Nelson Pass said:OK....
Everything else can be built with these.
😎
Praying for it
Found the bootstraped twin-T in THE ART OF ELECTRONICS
Hmmmm . . .
The schematic looks simple tho . . .
Nelson Pass said:[snip]Multimeter - RADIO SHACK FOR $39 (think about a couple of these)
Soldering Iron - RADIO SHACK FOR $19
Variac - MARLIN P JONES FOR $39
Scope - ANYTHING DECENT you can get used.
1 MHz, 5 mV, dual channel, a trigger that works.
Everything else can be built with these.
😎
... says the man with an AP in very room. 😉
But yes, you can built pretty good amps with these tools, (plus a signal generator, perhaps) if you know how to use them best.
Jan Didden
You build the signal generator and the distortion analyzer
at the same time, and use them to test each other.
😎
at the same time, and use them to test each other.
😎
As a personal preference, I like a faster scope; one fast enough to see any HF oscillation.
My favorite was the original Tek 475; last I checked, a new CRT was prohibitive though. And whilst I'm sharing biases and prejudices, I'd avoid the early digital scopes like the plague. Inadequate sampling rates and poor firmware made aliasing a real problem.
My favorite was the original Tek 475; last I checked, a new CRT was prohibitive though. And whilst I'm sharing biases and prejudices, I'd avoid the early digital scopes like the plague. Inadequate sampling rates and poor firmware made aliasing a real problem.
Nelson Pass said:You build the signal generator and the distortion analyzer
at the same time, and use them to test each other.
😎
Then, this good enuf (20-20K Hz)?
Thanks
Attachments
Hi Babowana,
-Chris

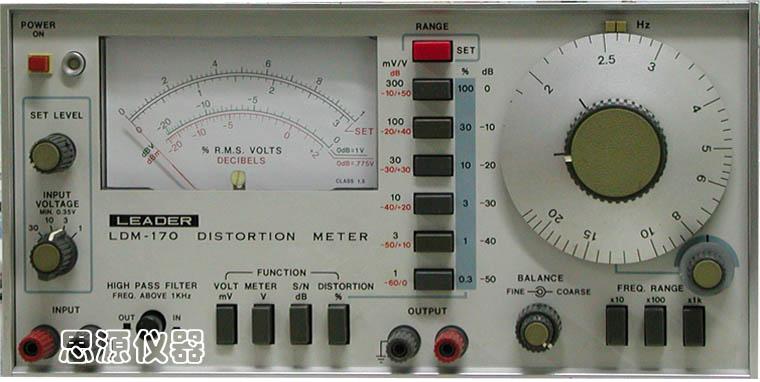

Yes, I'm currently using an LDM-171. Bought it brand new years ago.Then, this good enuf (20-20K Hz)?
-Chris
Hi Babowana,
I had to redo the capacitors in the power supply, so that might be your first project. Don't increase the size.
-Chris
I had to redo the capacitors in the power supply, so that might be your first project. Don't increase the size.
-Chris
anatech said:I had to redo the capacitors in the power supply, so that might be your first project. Don't increase the size.
-Chris
Understood.
Any good reason for that redoing?
By the way, the shop informed that only LDM-170 is available.
But, I found the price is too high to be a second hand tool.
If she does not lower the price, I should find another shop.
Tks, again 🙂
God help me, but I just broke my budget and bought one of these:
http://tinyurl.com/ybjpvt
What sort of hi-fi nut spends more money on test equipment than he does on actual audio gear? A DIY-er, of course! I couldn't hope to win the bid on a Heathkit AA-1800 power amplifier, not when I wanted this analyzer, too. The IMD capabilities are what grabbed my interest.
I guess I'll have to sell my two Heathkit distortion analyzer to help pay for this excess, but that's what Ebay is for, yes?
There are three of these Tektronix test sets left.
http://tinyurl.com/ybjpvt
What sort of hi-fi nut spends more money on test equipment than he does on actual audio gear? A DIY-er, of course! I couldn't hope to win the bid on a Heathkit AA-1800 power amplifier, not when I wanted this analyzer, too. The IMD capabilities are what grabbed my interest.
I guess I'll have to sell my two Heathkit distortion analyzer to help pay for this excess, but that's what Ebay is for, yes?
There are three of these Tektronix test sets left.
check
http://audio.rightmark.org
You will need buffers and a voltage divider if you want to protect the inputs of your sound card. The soundcard sampling ratye limits you if you want to do a THD plot all the way to 20k Hz.
However it's FREE. Not an unimportant consideration.
http://audio.rightmark.org
You will need buffers and a voltage divider if you want to protect the inputs of your sound card. The soundcard sampling ratye limits you if you want to do a THD plot all the way to 20k Hz.
However it's FREE. Not an unimportant consideration.
An approach to this could be one of the HP 400 series of AC voltmeters, that has an amplified output. A lot depends on how low the meter's noise and distortion is, of course. Heathkit's IM-5238 is a similar instrument, and I have won the bid on a unit on Ebay, so I will see how well suited it may be as a sound card "front end".
sam9 said:check http://audio.rightmark.org
You will need buffers and a voltage divider if you want to protect the inputs of your sound card. The soundcard sampling ratye limits you if you want to do a THD plot all the way to 20k Hz.
That looks really cool. When I get time I'll fire it up!
😎
There is also http://www.audiotester.de
No free but fairly cheap. Documentation is in imperfect English. When reading it it's easy to hear it in a Schwarzenegger voice.
No free but fairly cheap. Documentation is in imperfect English. When reading it it's easy to hear it in a Schwarzenegger voice.
sam9 said:There is also http://www.audiotester.de
No free but fairly cheap. Documentation is in imperfect English. When reading it it's easy to hear it in a Schwarzenegger voice.
Schwarzenegger is a Austrian, and he has abandoned their economics.
Hi all,
how about this one... worth the money and shipping cost?
grzz,
Thijs
Arggggg how do I get that link in my message 😕
[url]http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=7591259514&ssPageName=ADME:L😀BS:US:11#ebayphotohosting
how about this one... worth the money and shipping cost?
grzz,
Thijs
Arggggg how do I get that link in my message 😕
[url]http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=7591259514&ssPageName=ADME:L😀BS:US:11#ebayphotohosting
The webadress works if you paste it to the browsers adress line.
How does that smiley end up in the link😕
Steen🙂
How does that smiley end up in the link😕
Steen🙂
The BB software sees a colon followed by D as a smiley. That's an unusual combo in a URL and whoever coded the software didn't think of that.
Does anyone have experience with that software? Sounds almost as being too cheap, easy and convenient to be true?There is also http://www.audiotester.de
Steen🙂
