DAC-END 24 (AD1865 NOS DAC )

[quanghao]

DAC-END 24 (AD1865 NOS DAC )

AD1865 is a dac chips with natural sound and inspiring.

ago, Andrea and I had success with DAC-end, now I have upgraded dac-end 16-bit, 24-bit up-end DAC.

it receives the input frequency of 192 KhZ- 24bit and special use Amanero to use USB audio source from your computer.

invited to view some links:
DAC End - the AD1865N-K with single ended vacuum output stage
http://www.diyaudio.com/forums/quan...287-dac-end-best-dac-ad1865-updat-2011-a.html
DAC End 2 - the AD1865N-K with single ended vacuum output stage

DESRICRIPTION DAC-24

NOS DAC-AD1865- 192Khz
​

Quanghao-Andrea
​

Description:

DAC AD1865 unit accept 192KHz input with operate NOS (non-oversampling) mode.
​

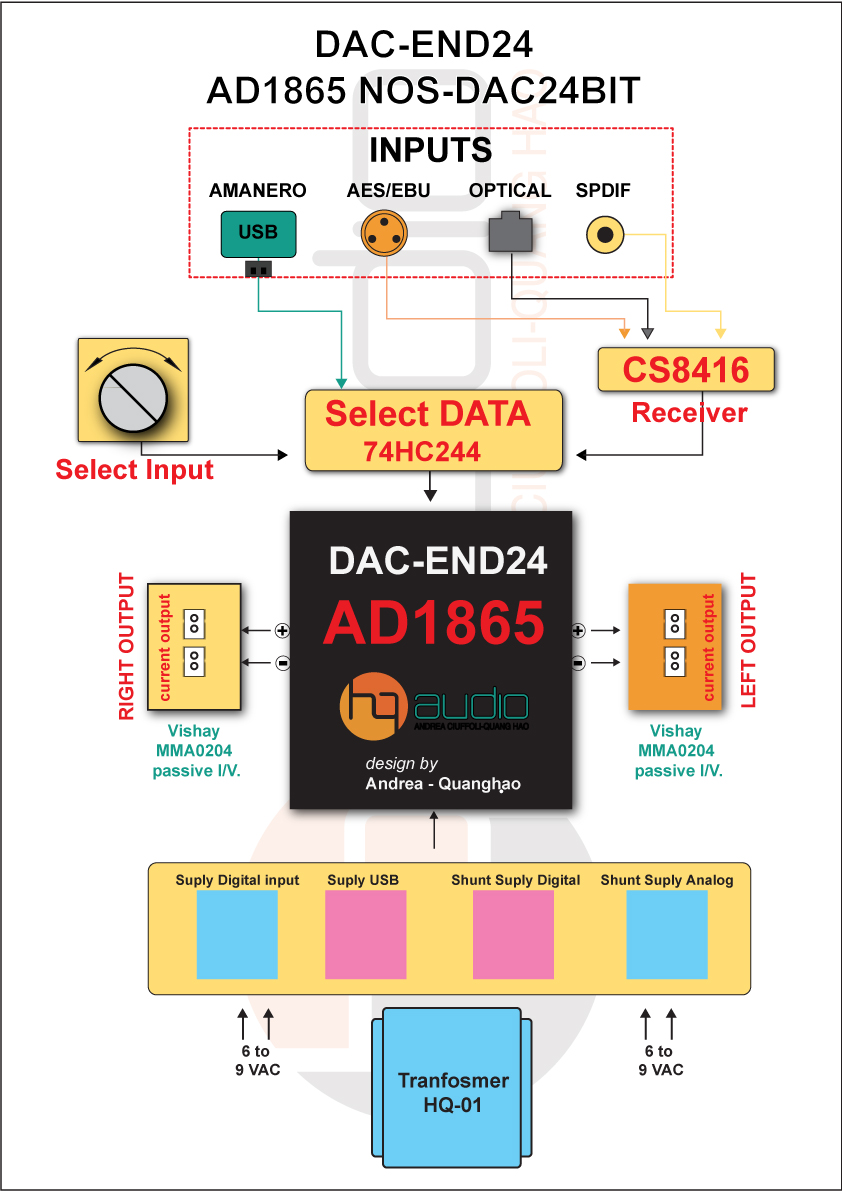

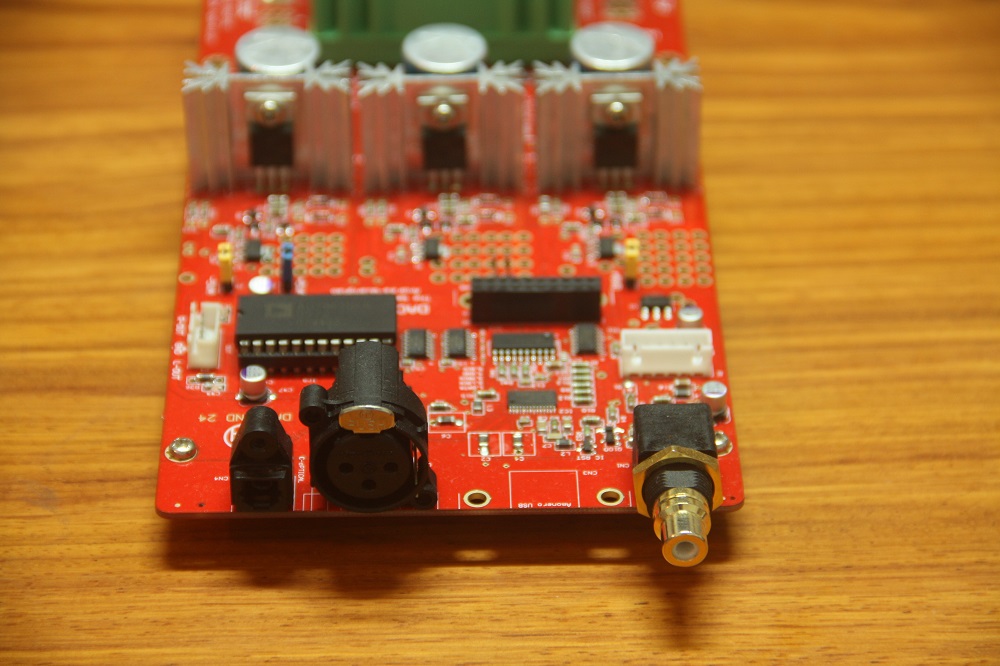

• Structure:

Digital input:
1 x coaxial input,
1 x Optical
1 x AES/EBU- Balance in put

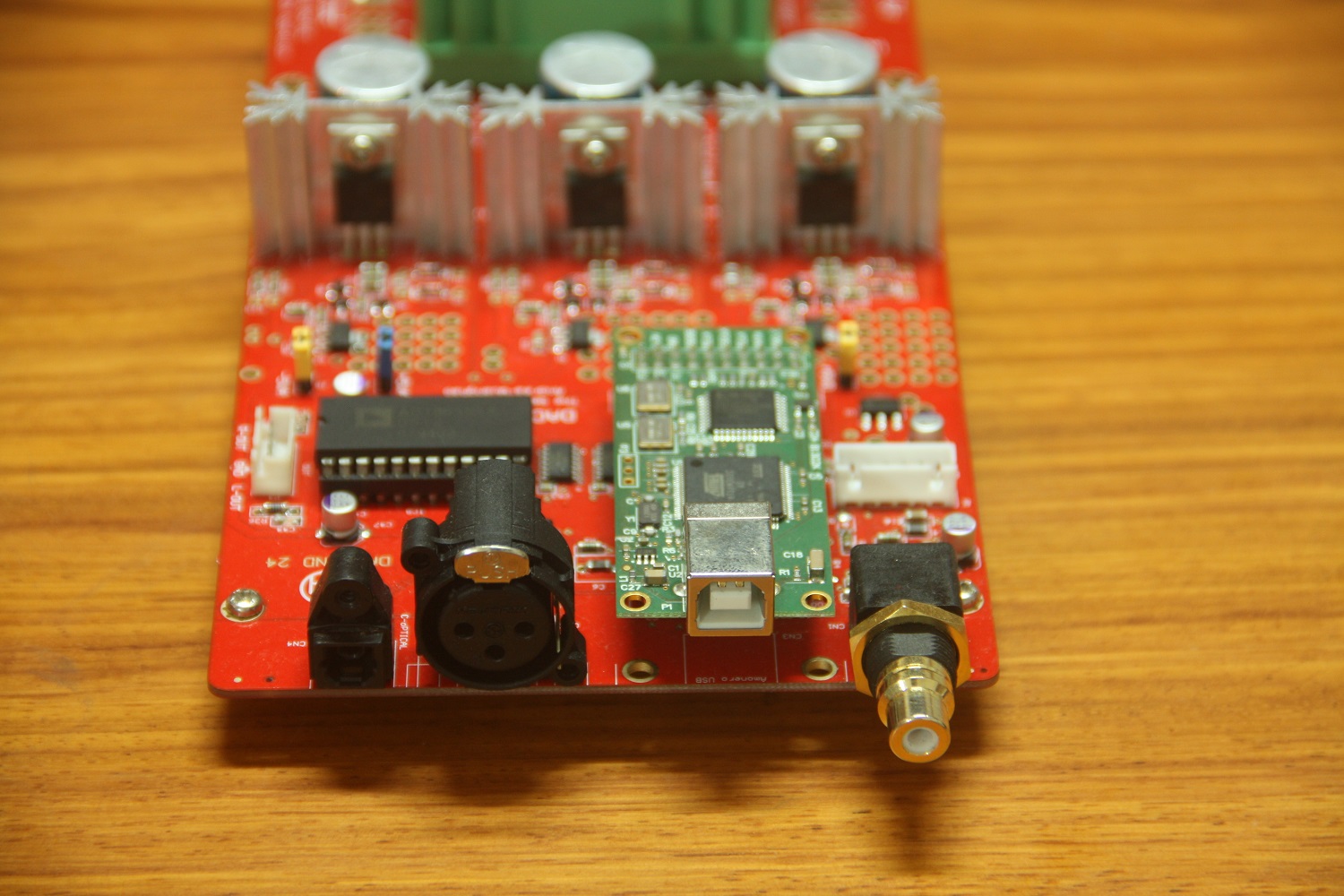

1 x USB Amanero

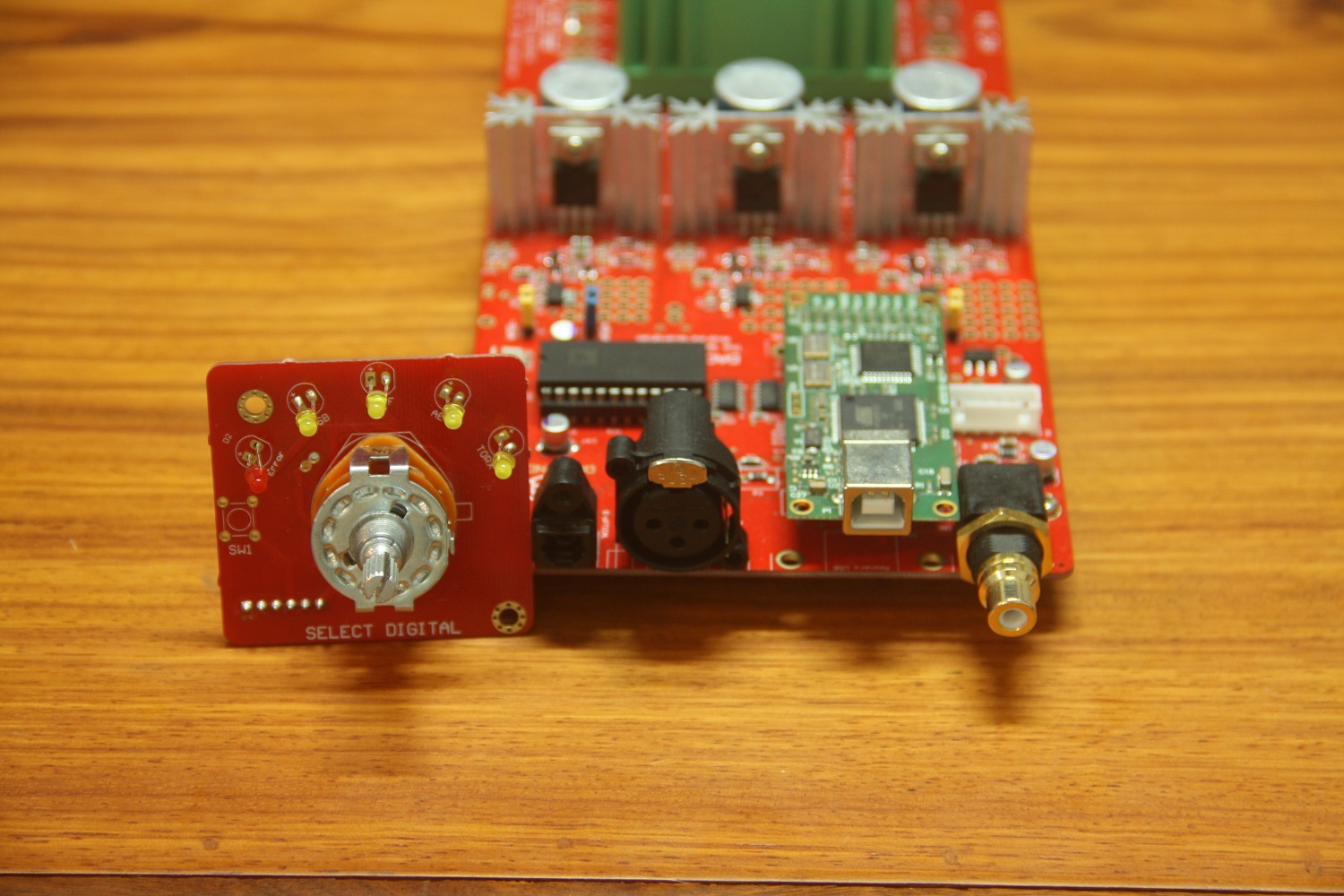

1 x selected in put
1x AD1865
1x Cs8416

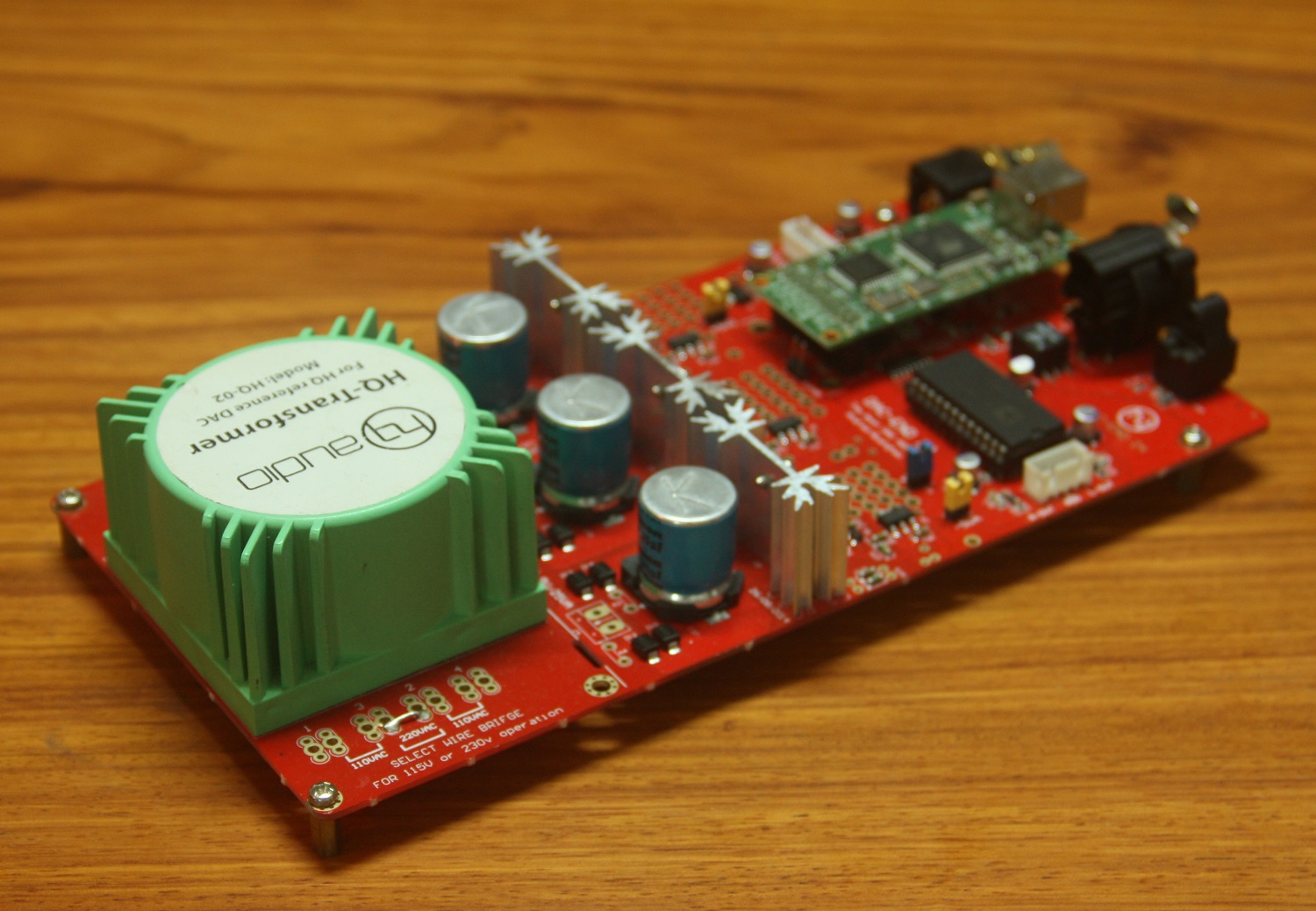

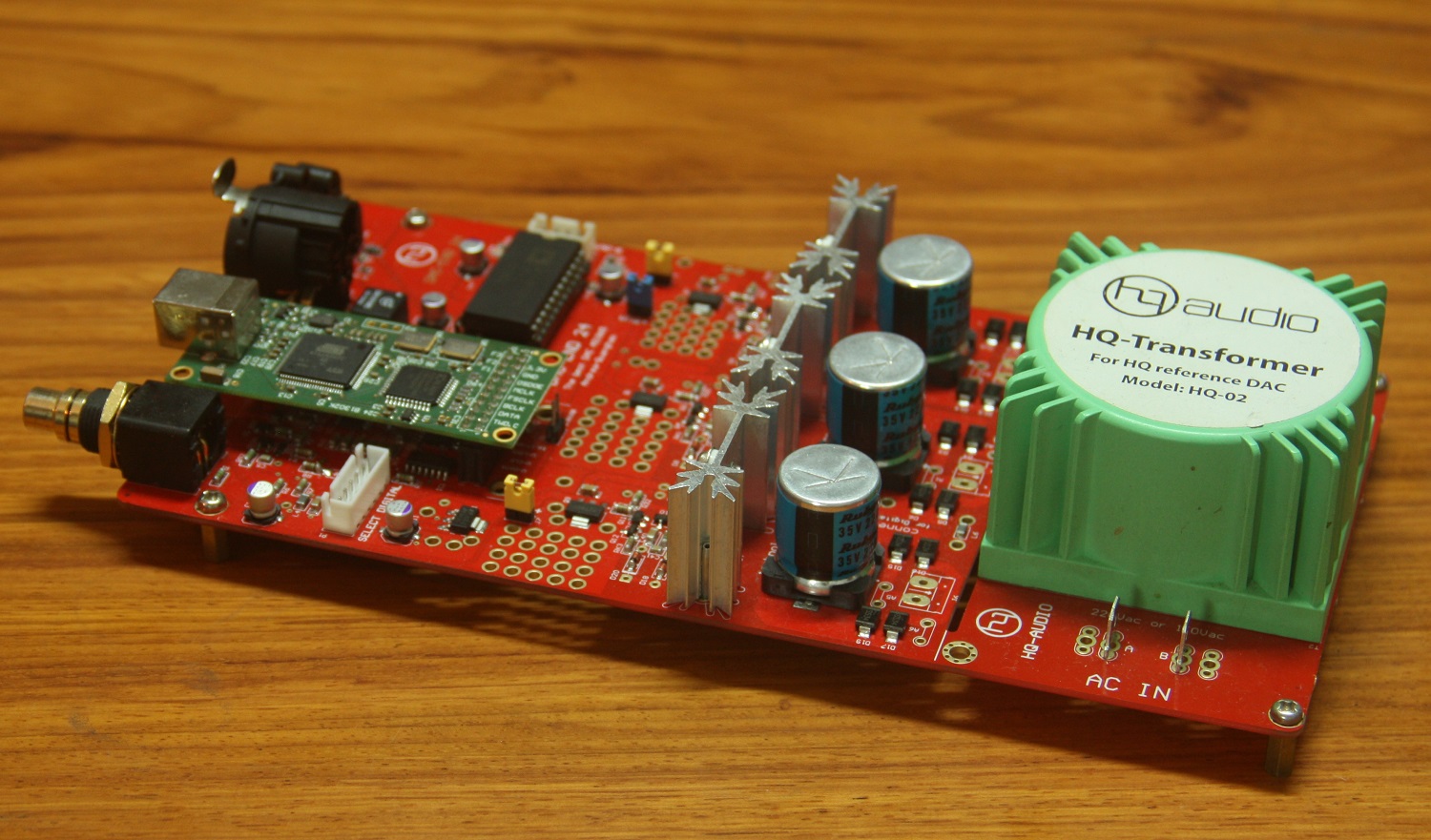

1x HQ-01 Transfomer supply: 0-6V*2
Analog output : R IV passive
Digital section : using AD1865 as digital receiver CS8416 + Amanero USB.

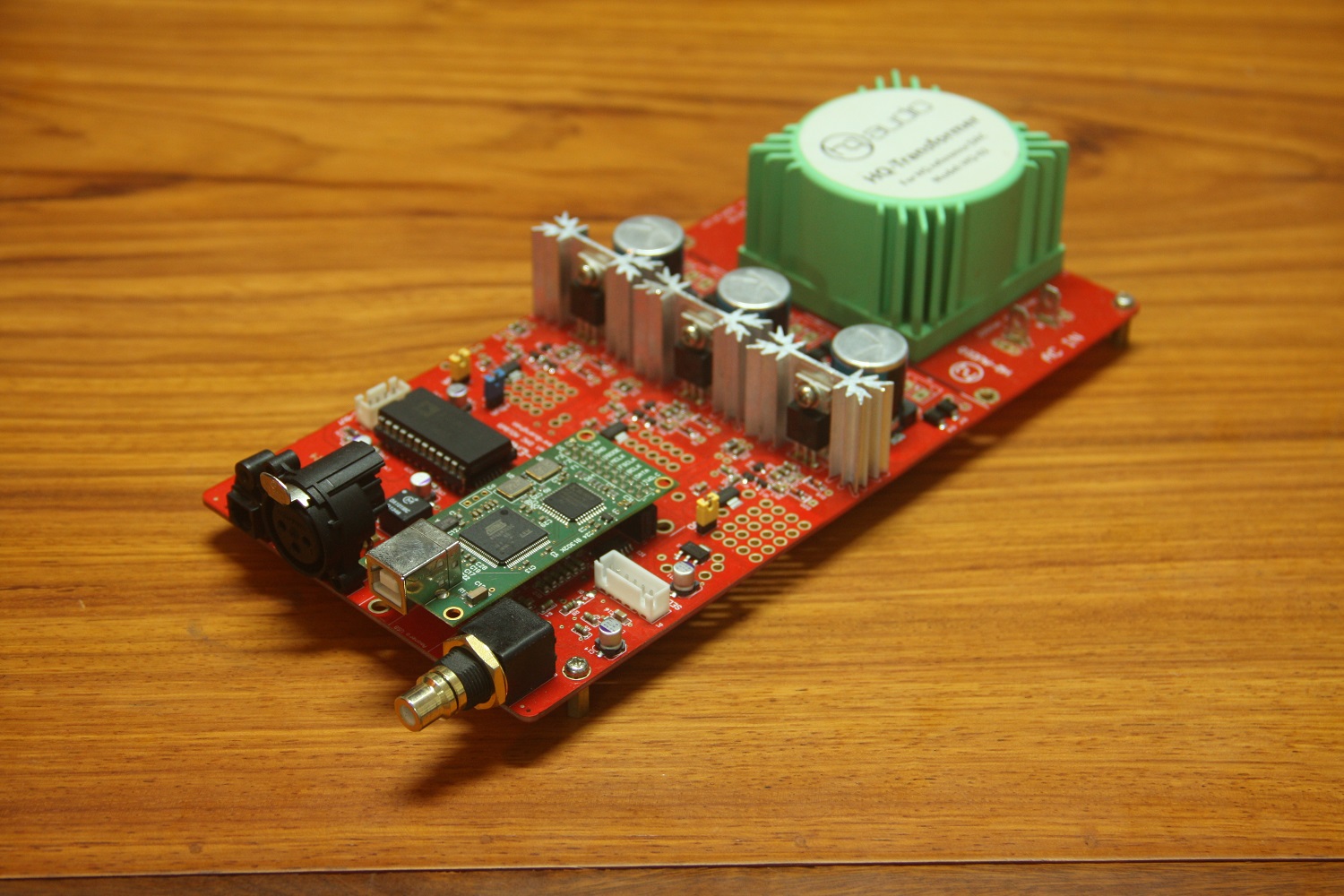

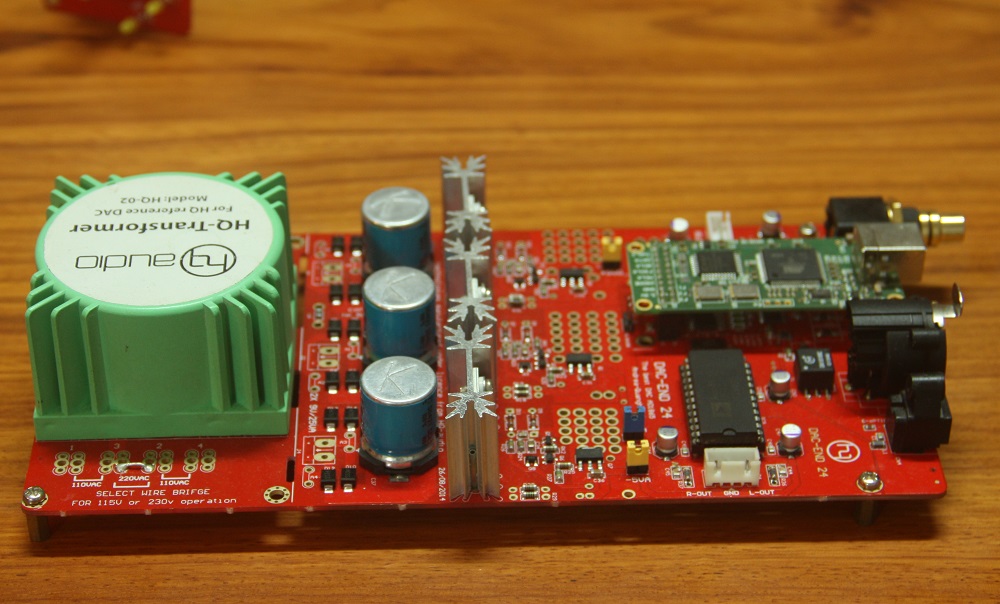

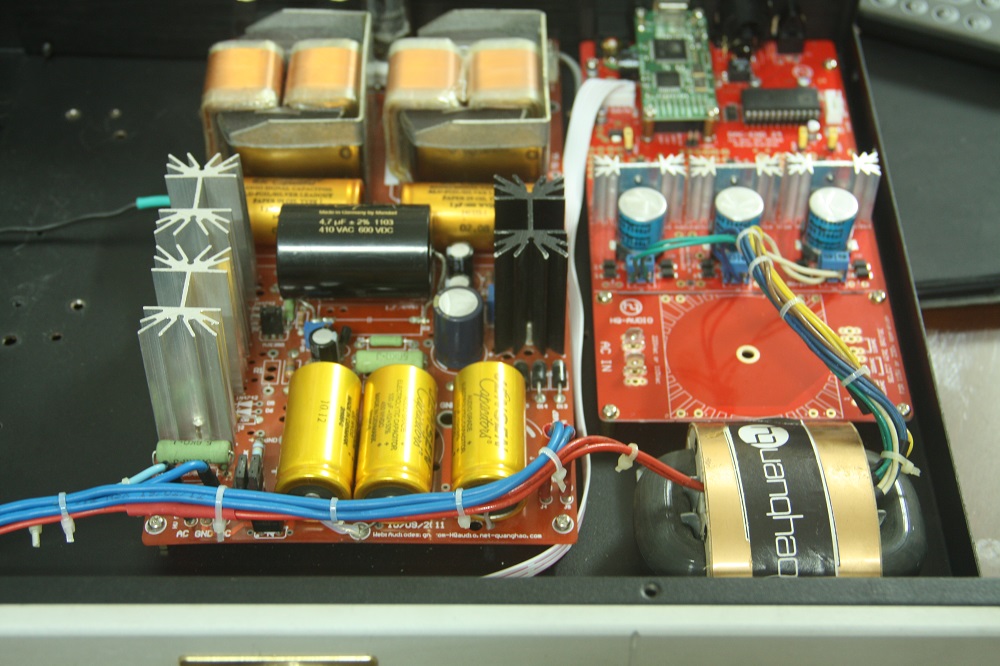

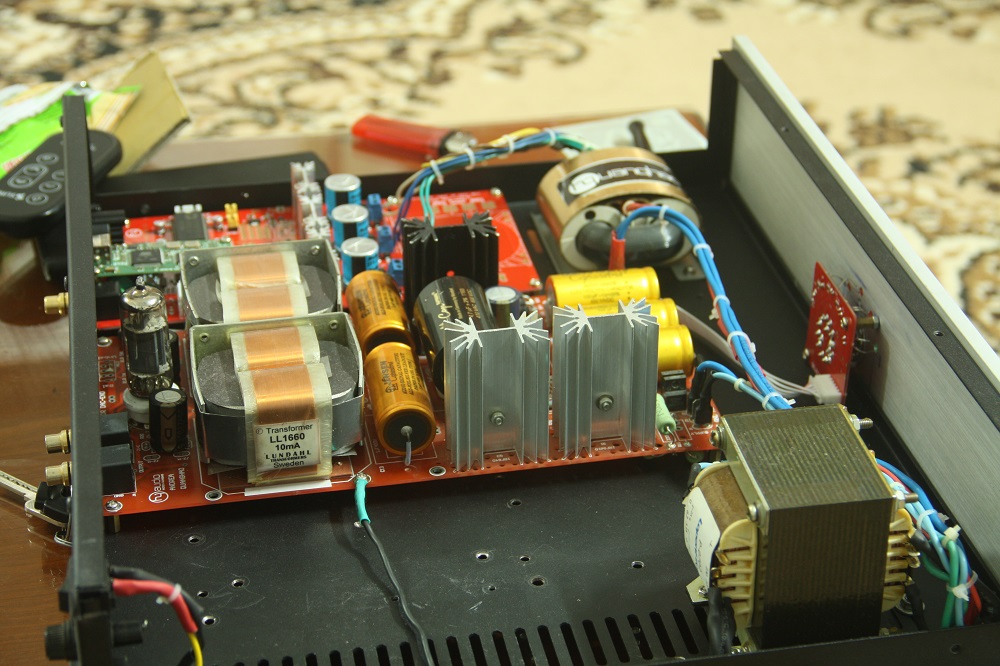

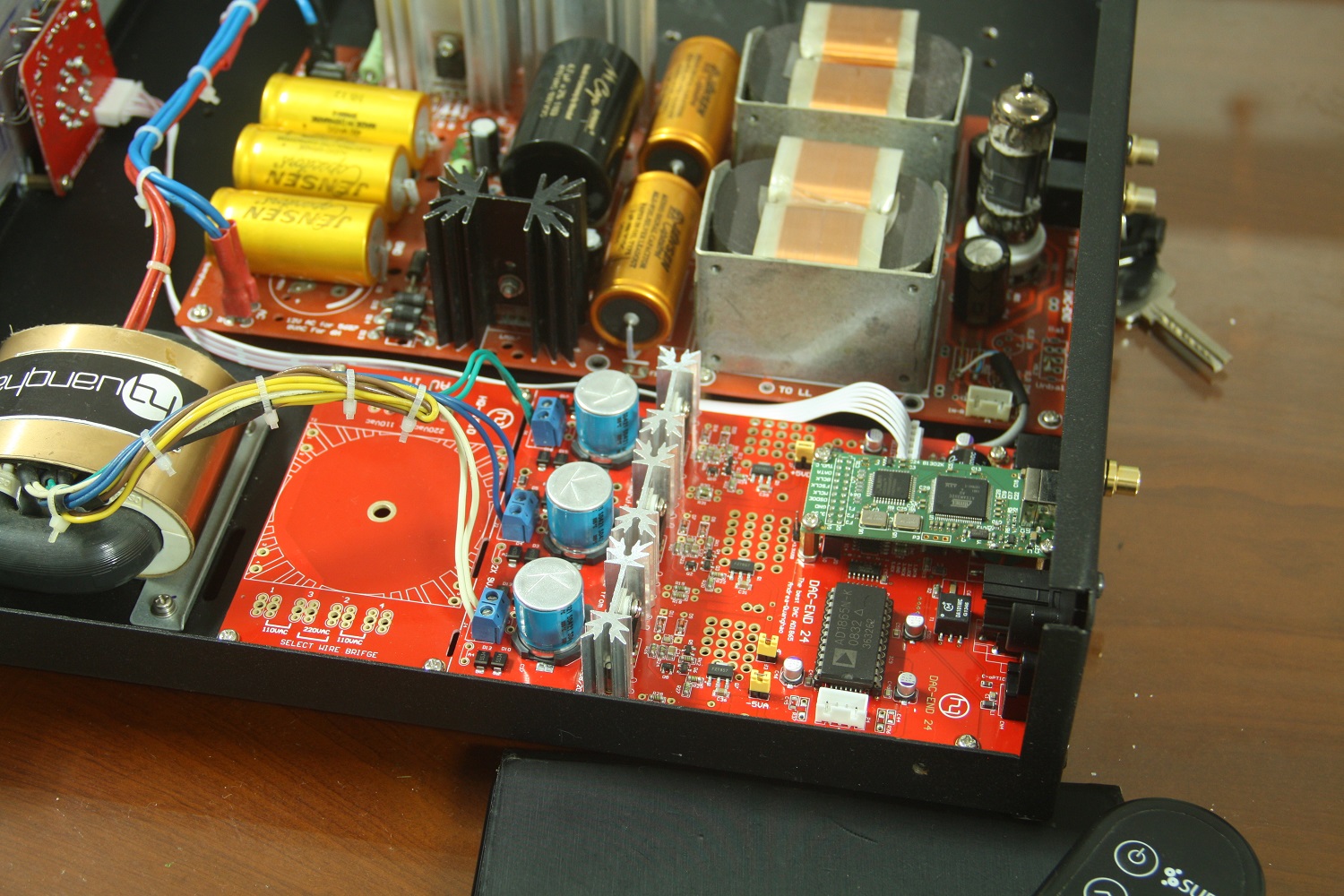

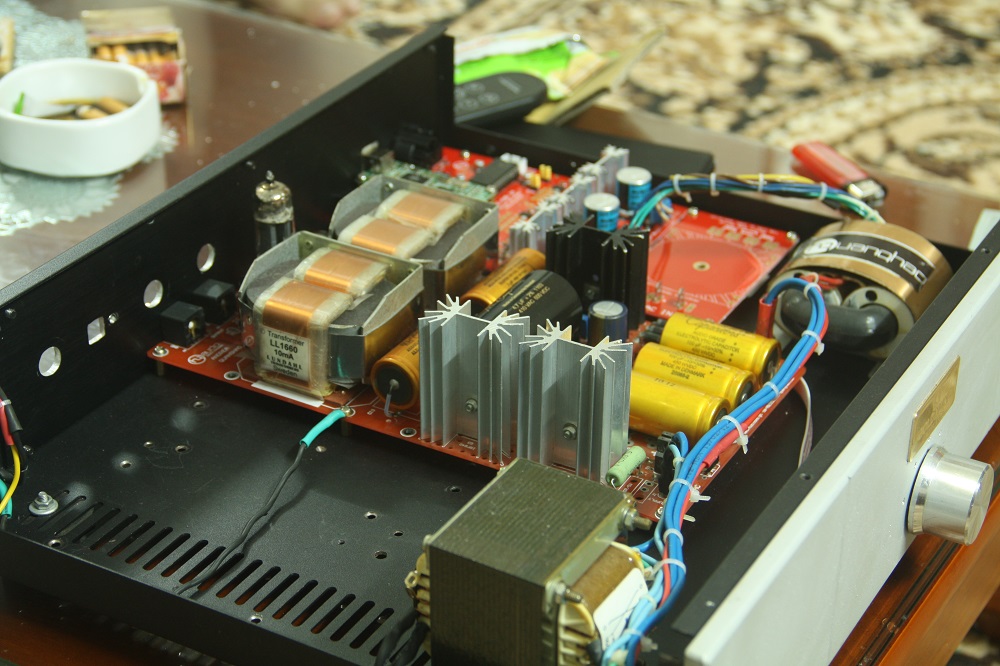

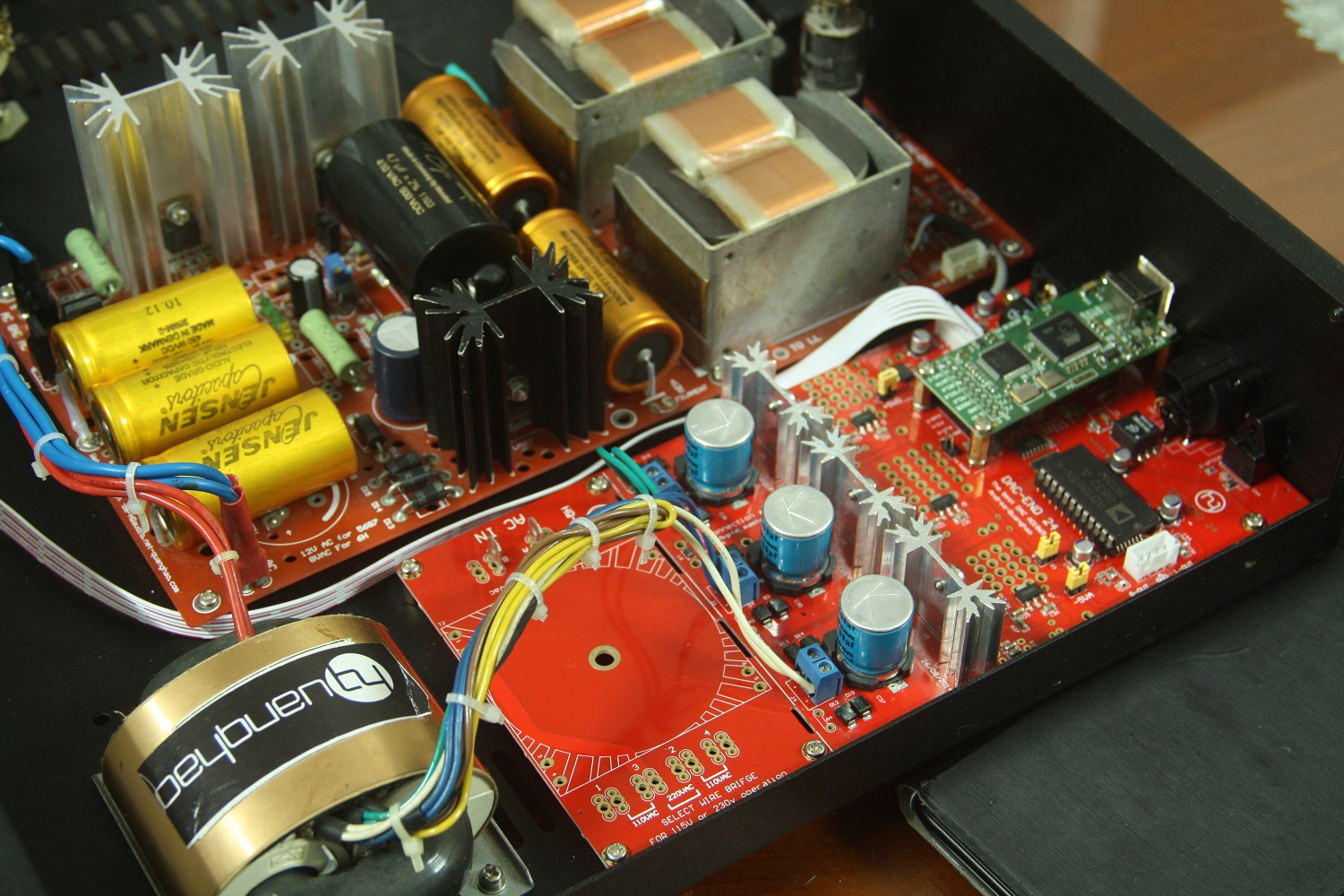

DAC module assembled and tested with all components
​

• DAC kit Design construction:

1. NOS (non-oversampling) application
2. 3 x low noise, low Z-out shunt regulator
3. 2 x LT regulator for Digital + USB
4. 4 stages regulation for digital section
6. Audio grade components were used.
7. OSCON capacitors used for digital section
8. The composition resistors Vishay error of 1%,
9. 1 x Transfomer supply: 0-6V *2

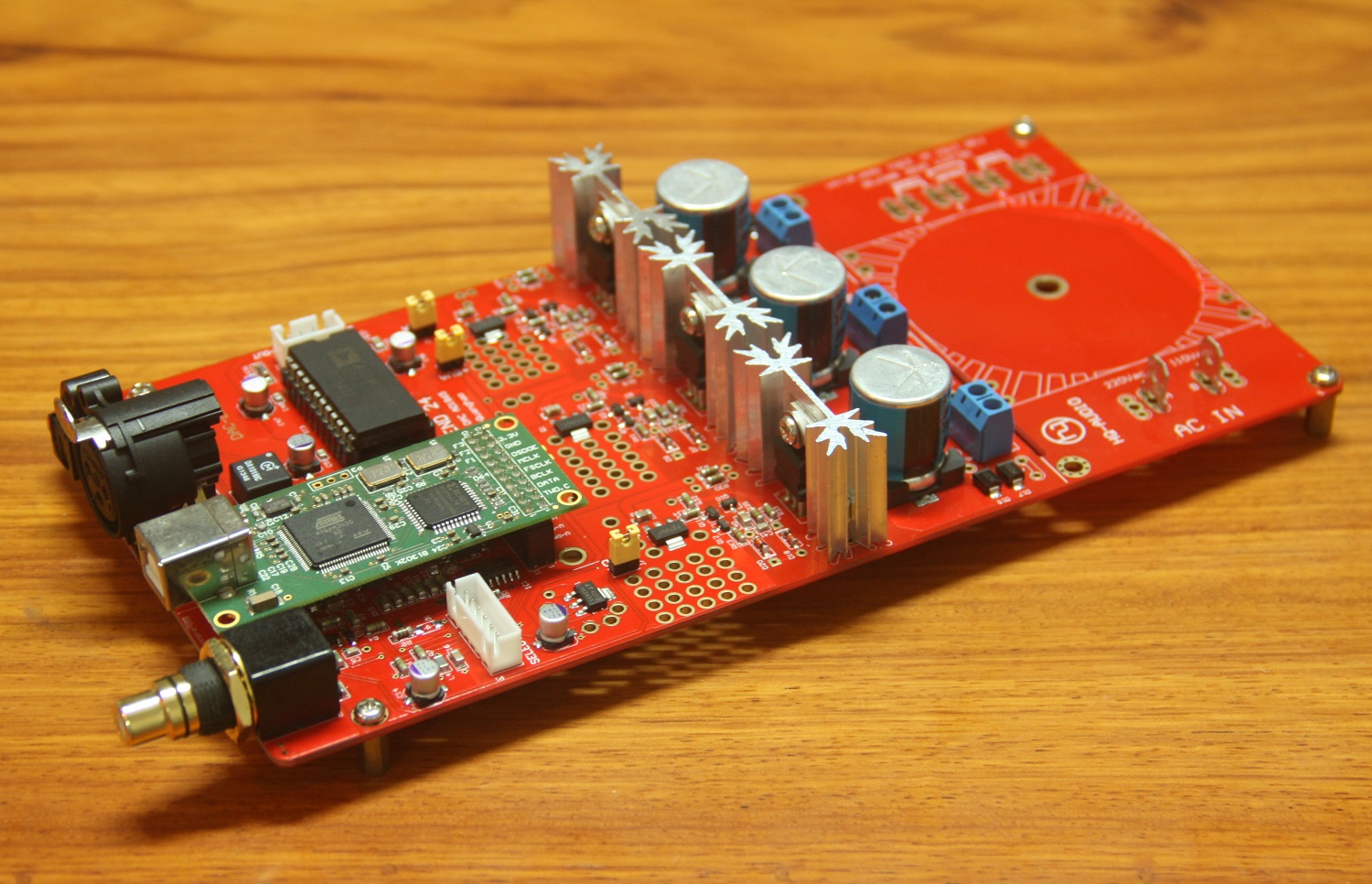

PCB size 216 mm x 110 mm, 1.6 mm double sides board with gold plated.

Optional: You are welcome to ask if you have any question on the assembly and more information.
Shall not be reproduced without consent!
