Cs8416 & Tda1543

[pigoia]

Hi, its possible built a dac with these chips?
Any schematics?
Thanks



[Archwn]

Yes. Look at their datasheets + good power supply. 🙂



[pigoia]

I saw the datasheets, the CS8416 output I2S is 24-bit. The TDA1543 input is I2S 16-bit. Are compatible?



[JeroenR]

I saw the datasheets, the CS8416 output I2S is 24-bit. The TDA1543 input is I2S 16-bit. Are compatible?

Yes, set the 8416 to I2s. I'm listening to one now.



[pigoia]

Do you have schematic?
Thank you anyway



[JeroenR]

Do you have schematic?
Thank you anyway

I used the Twisted Pear receiver (cs8416) and built the TDA1543 on breadboard. Connections :

CS8416 <-> TDA1543

pin27 OSCLK / BCK
pin28 OLRCK / WS
pin26 SDOUT / DATA



[pigoia]

Thanks a lot!



[pigoia]

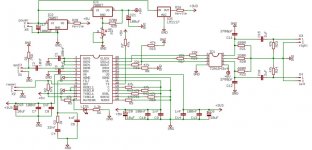

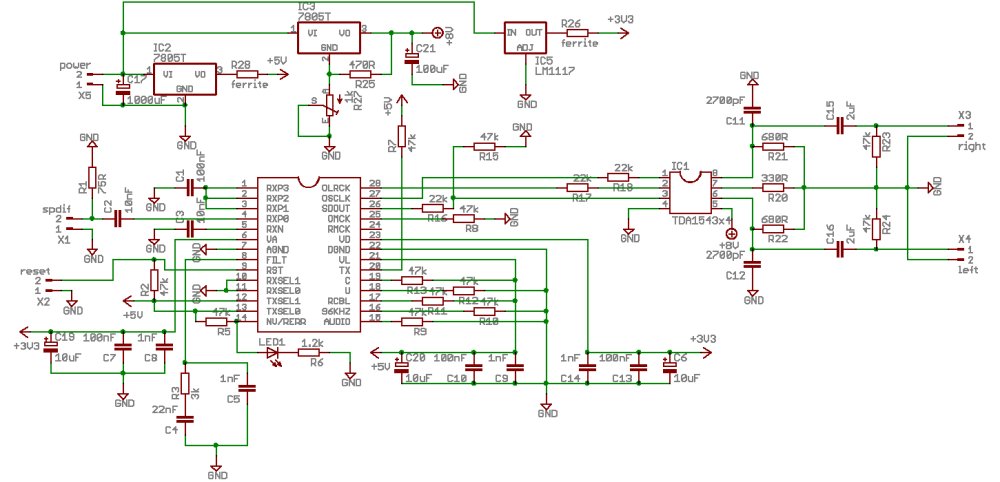

I follow the post #6 and after read the datasheet, I've designed and made this dac.
But obviously don't work!
Probably I made a mistake, when push play in the cdplayer the led on this schema turn off but no music.



[Robert GS]

Hi Pigoia,

I don't like the value of R16 - R17 - R18. Why do you want such a high value? Might be the problem.

Robert



[pigoia]

I remove R16 R17 R18 but not sound...



[Robert GS]

What do you mean by remove? I would say a value like 50R or so...



[JeroenR]

I remove R16 R17 R18 but not sound...

I used 22R.

Did you connect grounds between receiver and DAC?



[pigoia]

I change the resistor value, now R75 and work!!!
Thank you!!
I've only a small problem, I must reset the dac each time.



[asounds]

I there,
i'm also working on the building of a cs8416 tda1543 dac.
My question is if it's possible to connect a "lock" led indicator in the cs8416 like is possible in the CS8412/8414?
