Coupled output inductor in BTL?

[81bas]

Sooo... No definite conclusion yet?

I would say, you have to use separate cores for all 4 inductors! 🙂



[authlxl]

I would say, you have to use separate cores for all 4 inductors! 🙂

I agree with this conclusion.



[Pafi]

Khron!

You MUST use separate cores, otherwise the aliens will attack the Earth!



[Khron]

Pah! Big deal, the planet's doomed anyway, might as well get the aliens here sooner rather than later. Who knows, maybe something good might come out of that 😀

But anyway, thanks for the verdict everyone 🙂 I appreciate the input and interest...



[kASD]

I have used Single Differential Inductor for AD modulation and it works very well🙂



[Khron]

Any details regarding that?



[kASD]

15uH on T157-2 Micrometals Dual Stack

http://www.diyaudio.com/forums/attachments/class-d/165367d1270281119-6000w-irs2092-image0051.jpg



[Khron]

Differential, that means one winding starts "on top", and the other one "on the bottom" of the core, as viewed from above, right?



[savu]

Hello Khron,

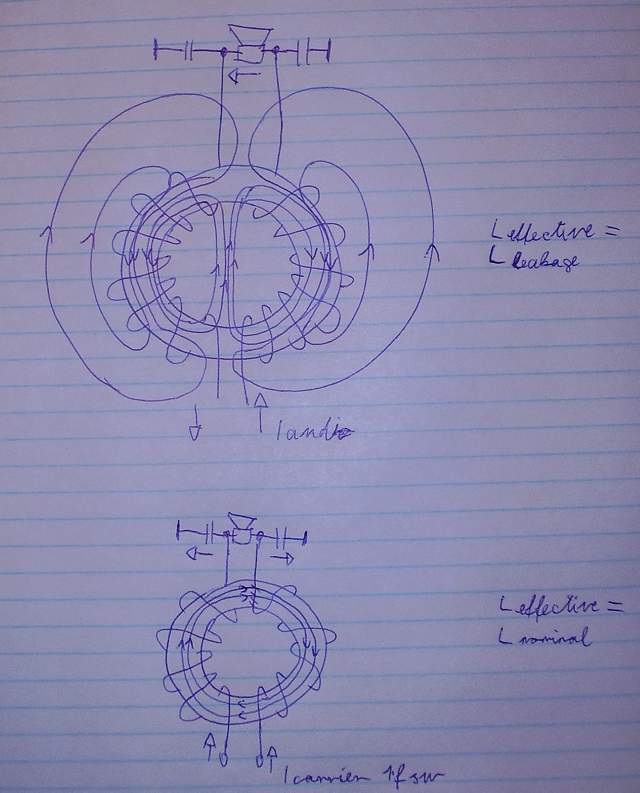

The winding senses are oposit of one another so that the core is magnetise with 2 fluxes shifted with 180 degrees forom one another.

Regards,
