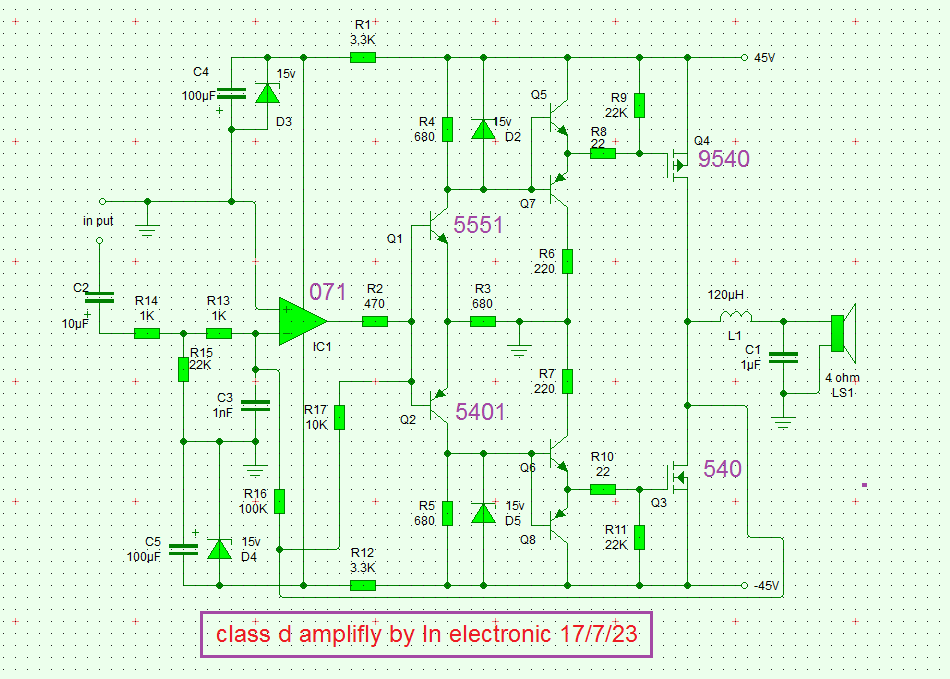

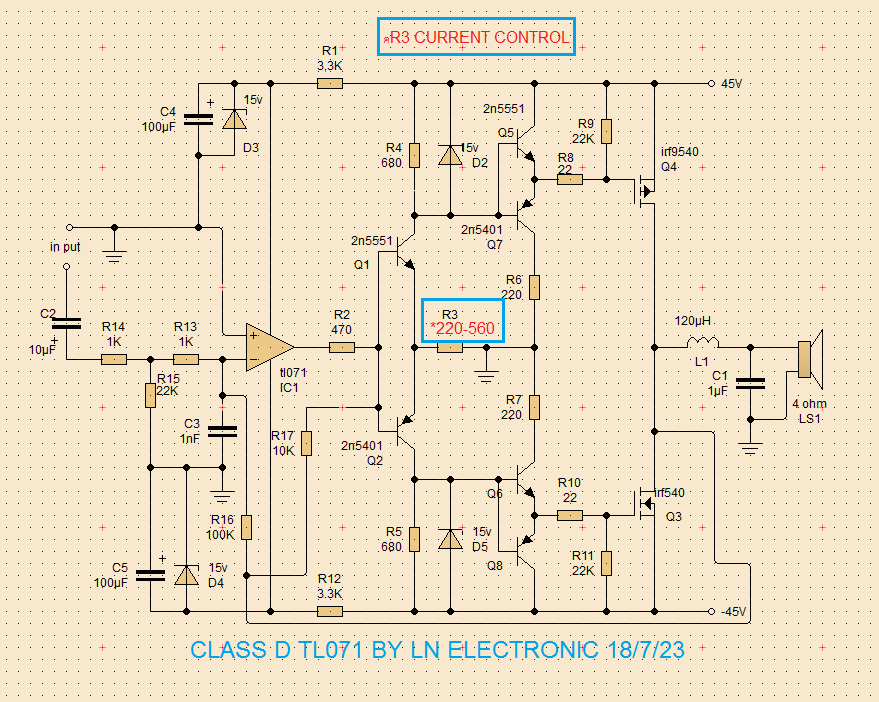

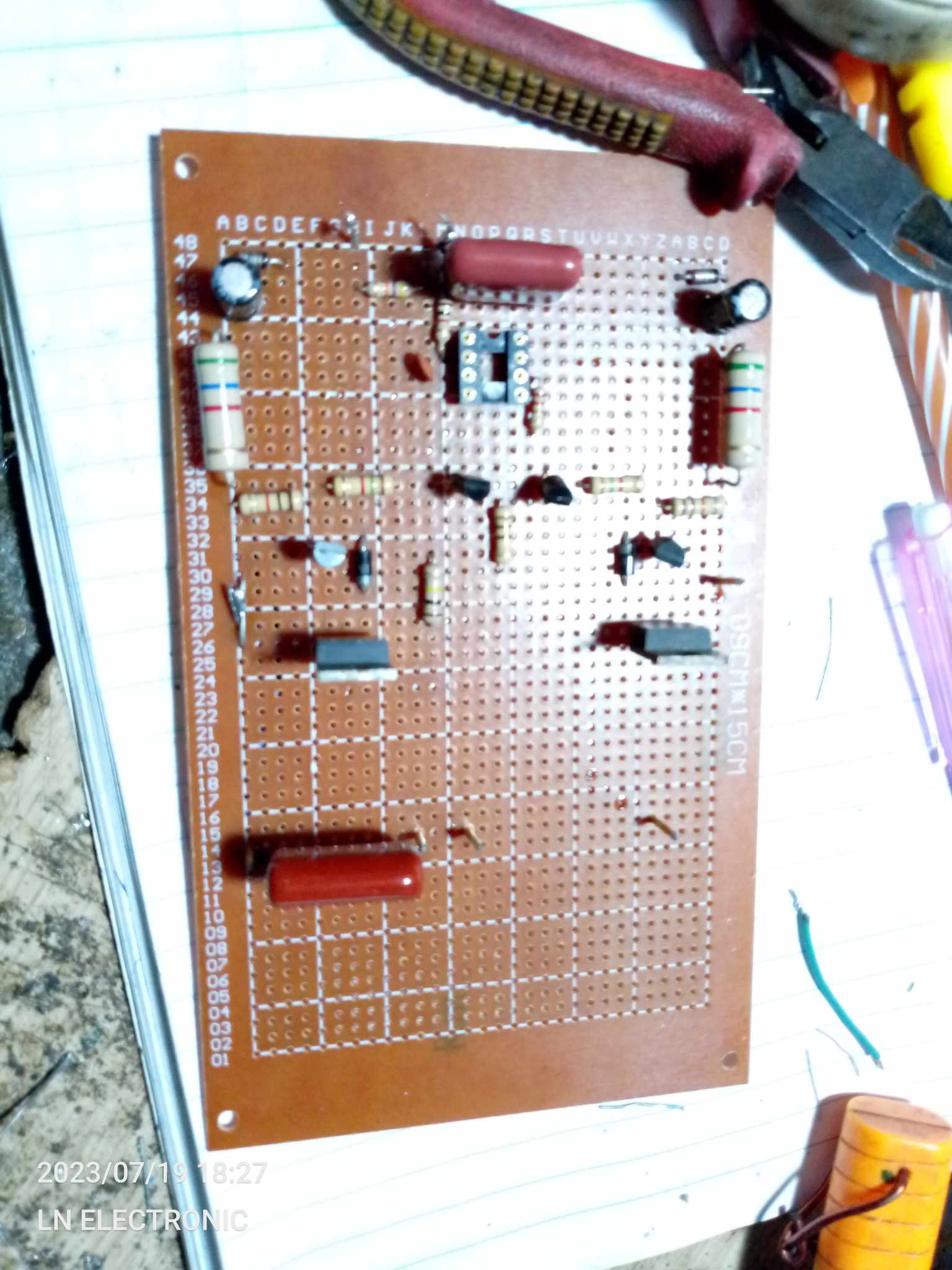

Class D TL071 by LN Electronic

[surachit]

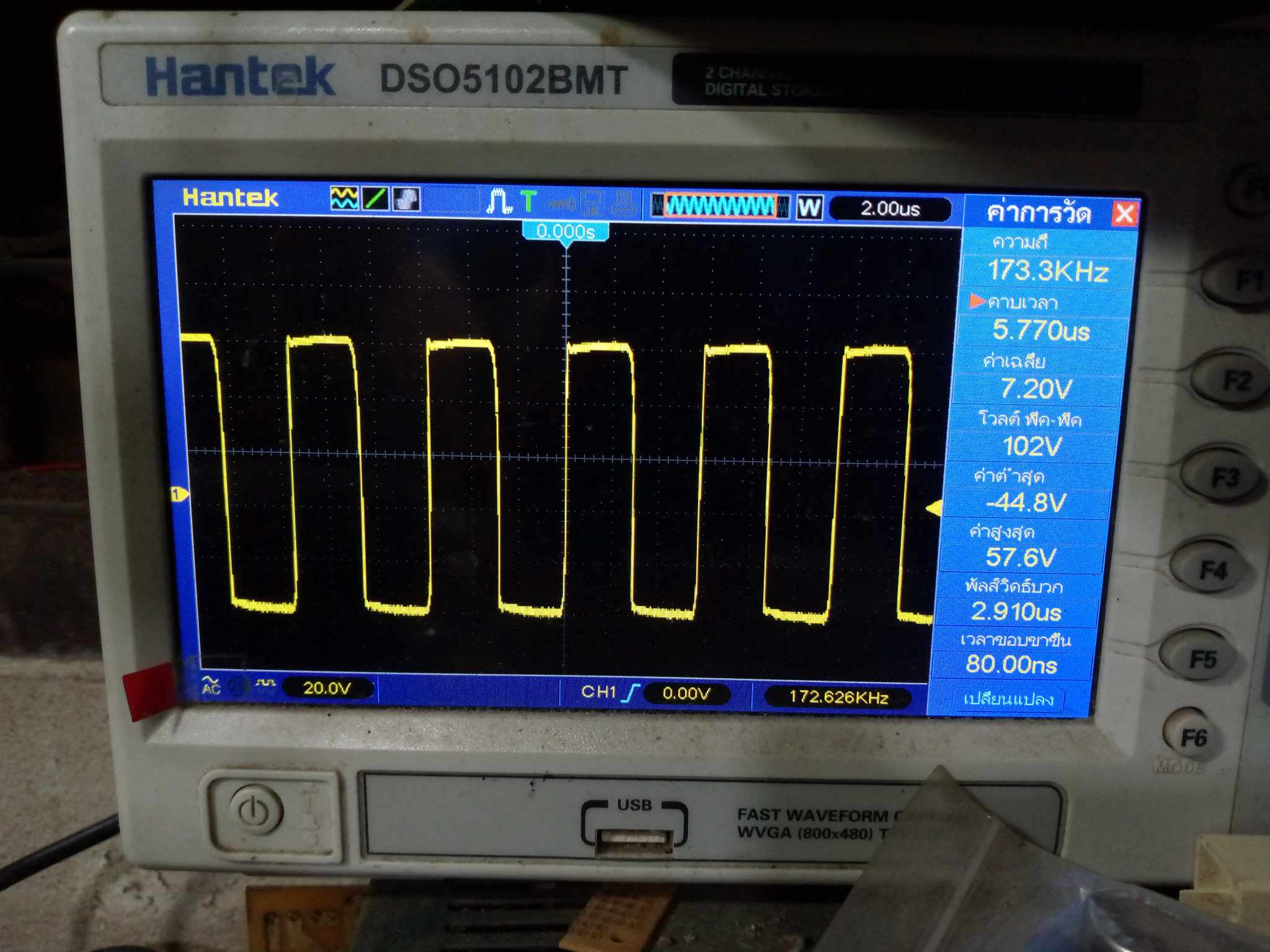

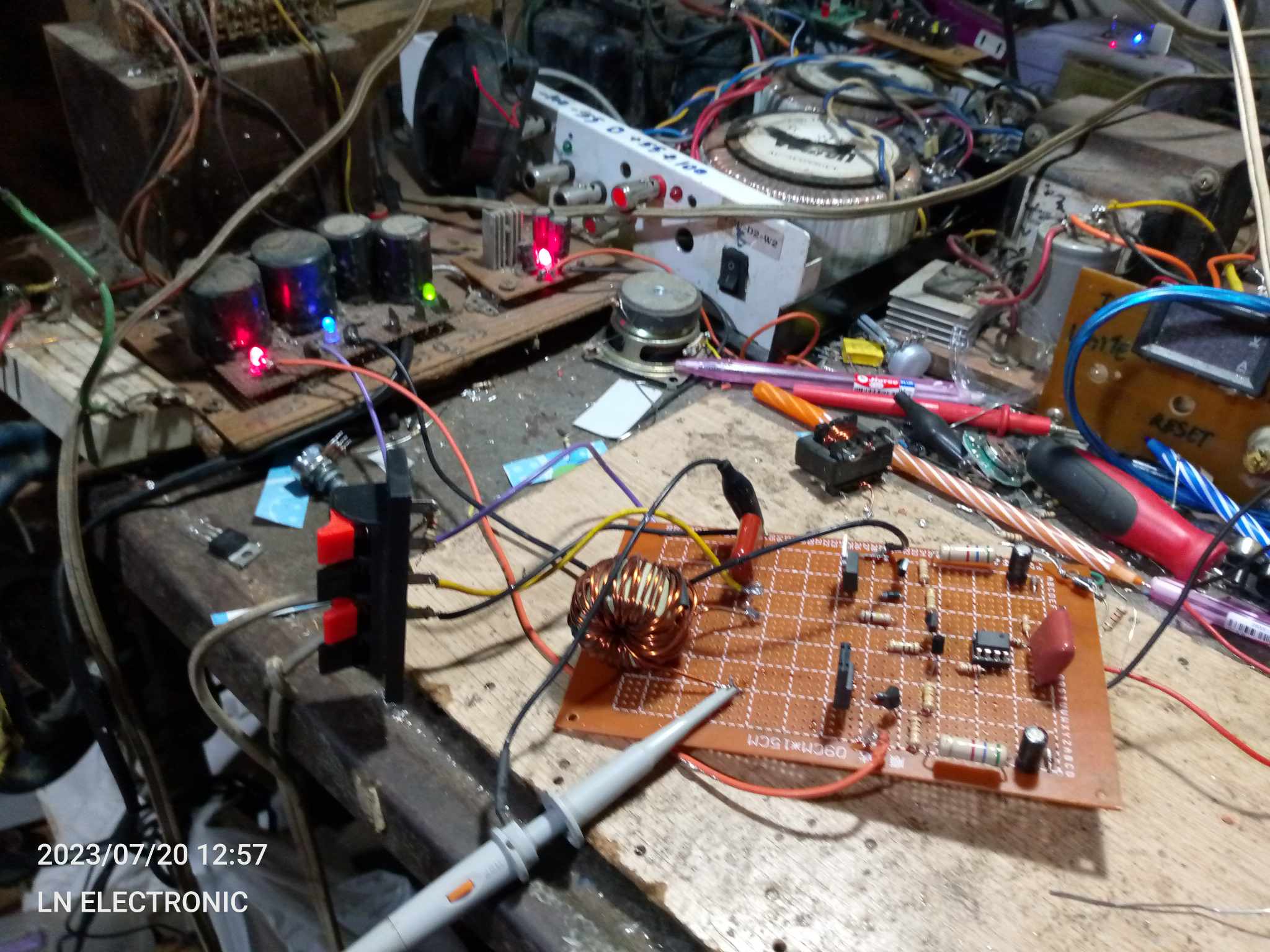

this circuit sell oscilator and class d frequency about 170khz vcc test +-55v



[dangus]

So, what kind of performance numbers does an open-loop class-D amplifier make?



[as_audio]

C4 wrong polarity



[surachit]

thank you r 3 large value, the circuit does not work If the value is small, the circuit consumes more current.



[surachit]

vdo sound test



[as_audio]

Please show scope pictures.



[HAYK]

120uH ! with 4 ohms????



[stewin]

this circuit sell oscilator and class d frequency about 170khz vcc test +-55v

nice project surachit , what can you do to use n channel fets only ?



[surachit]

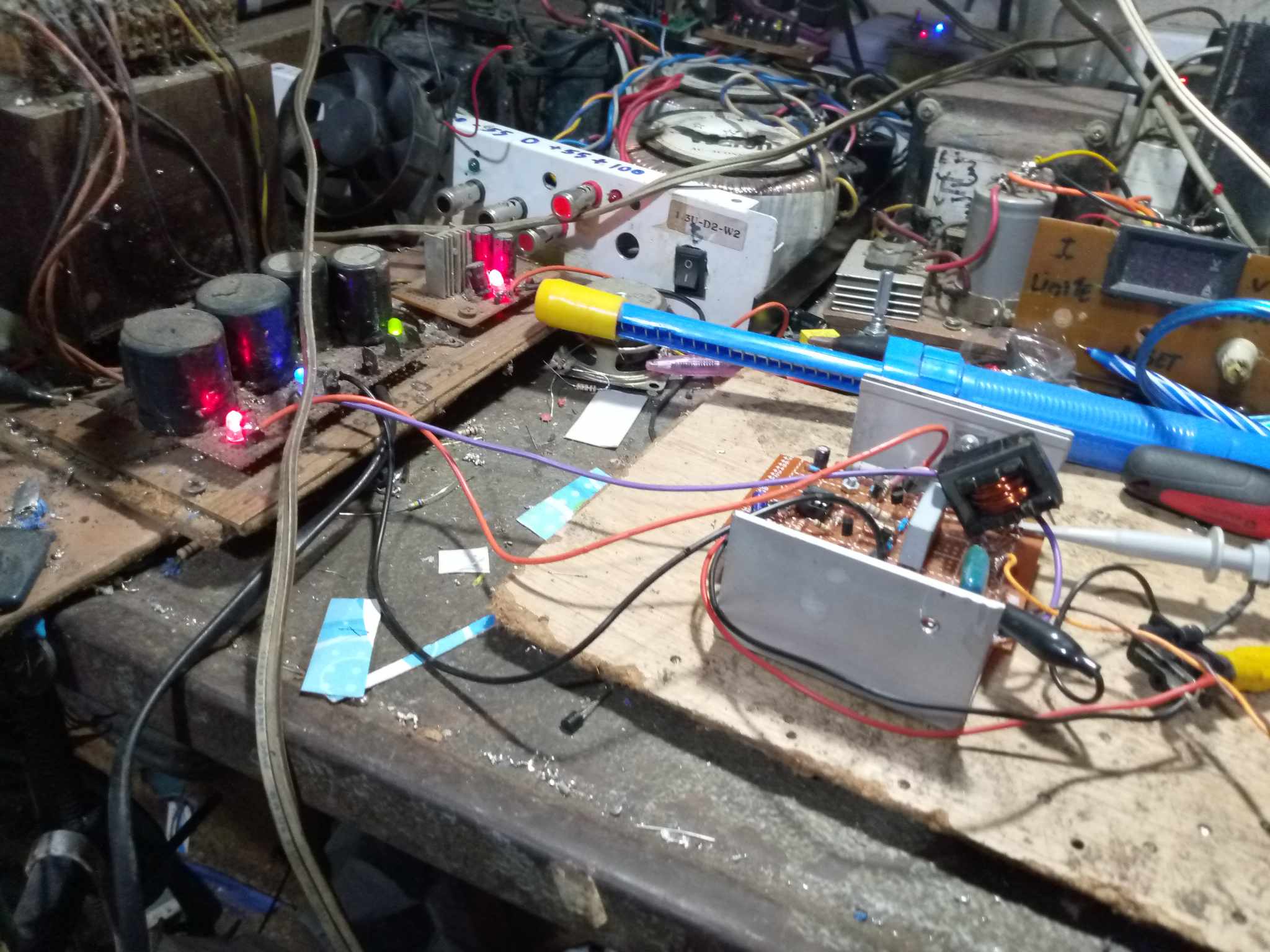

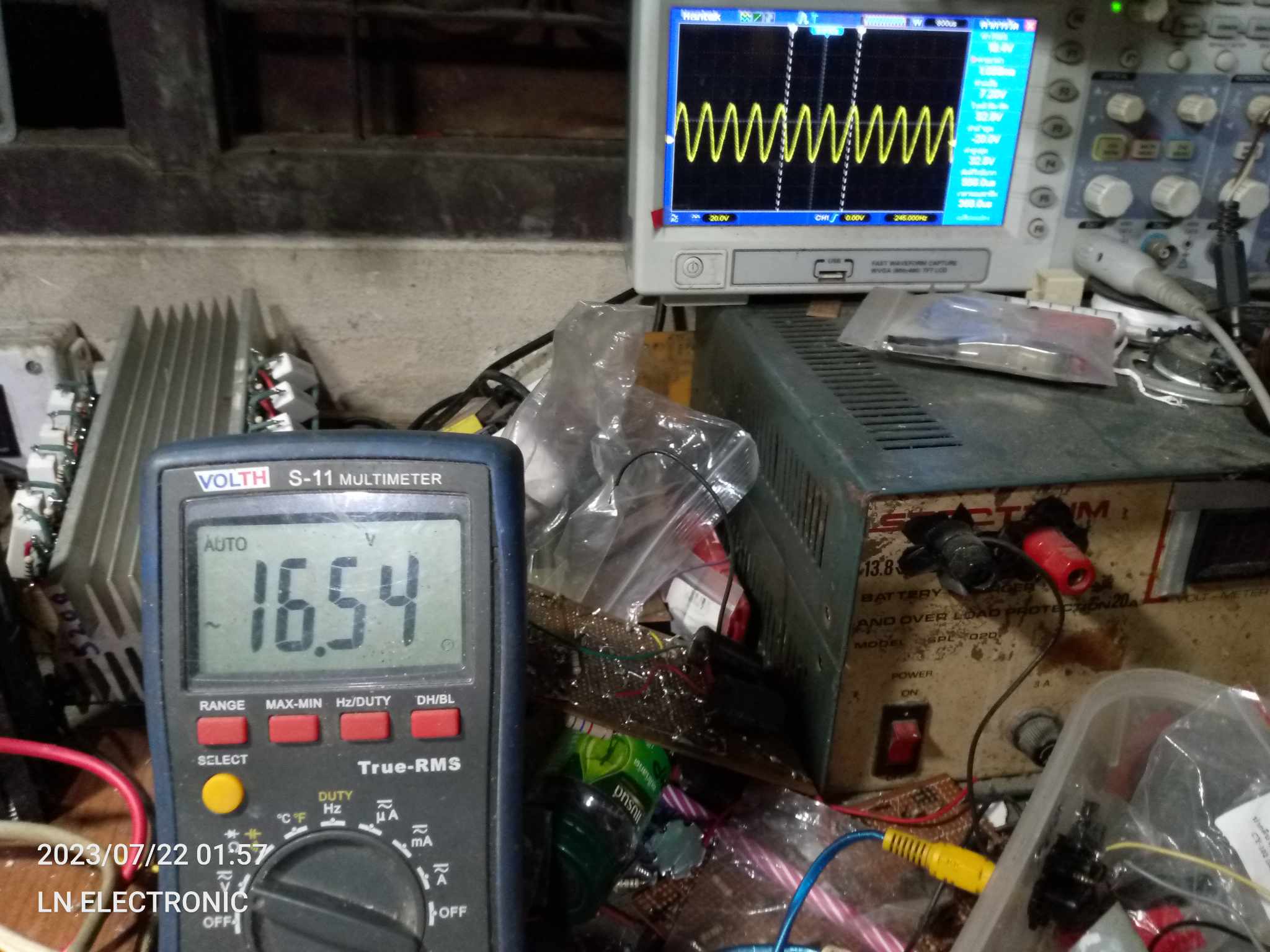

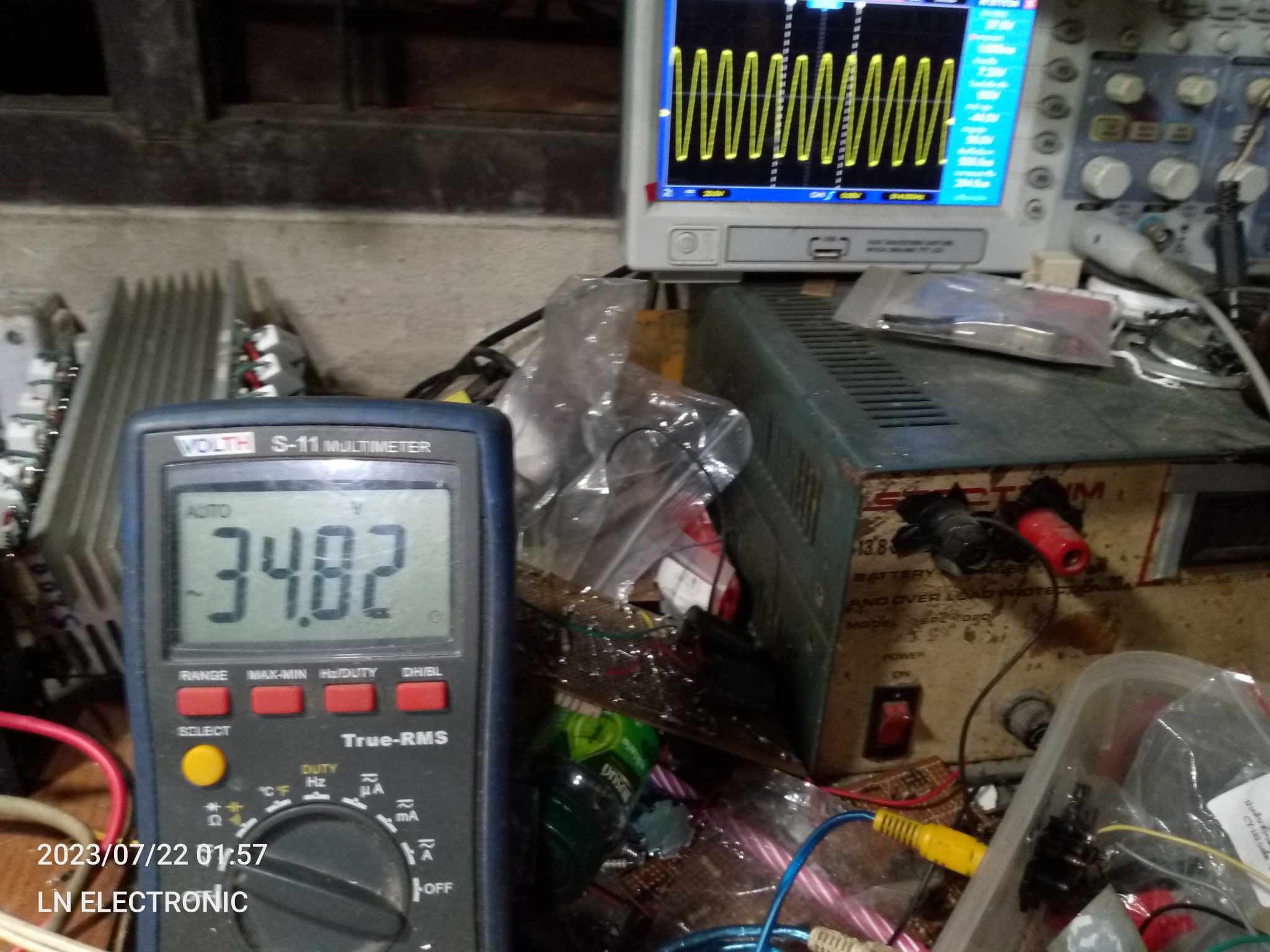

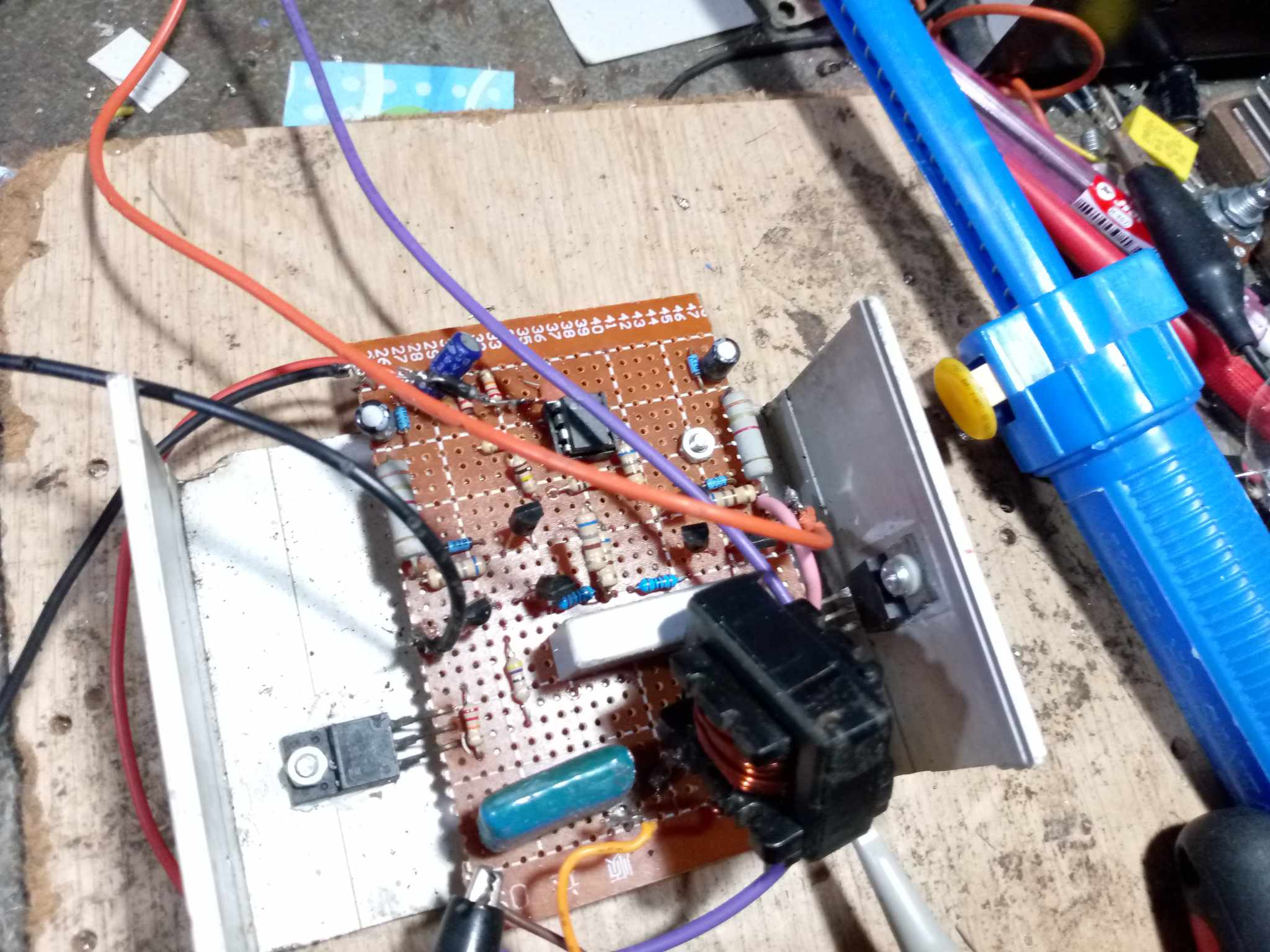

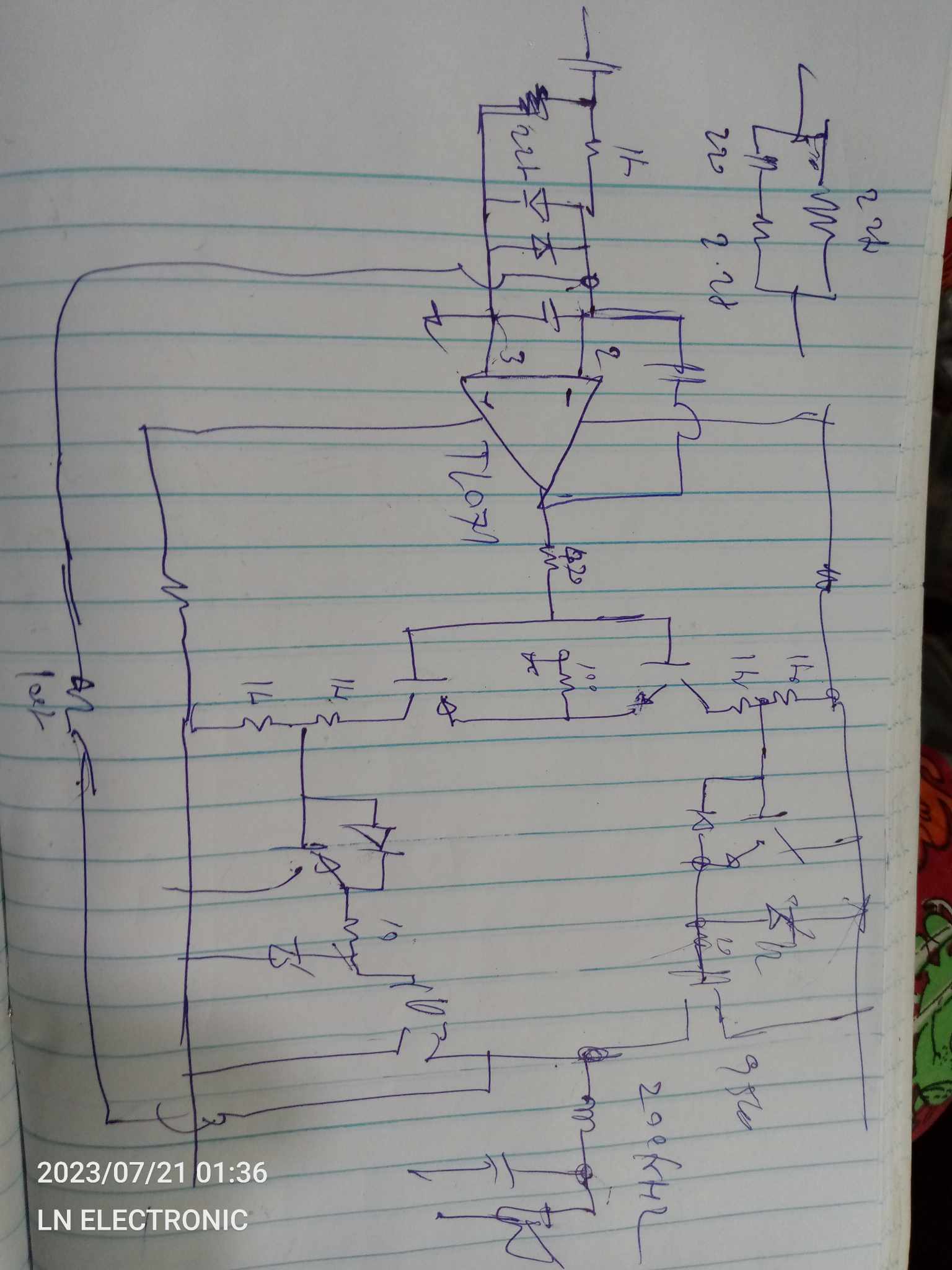

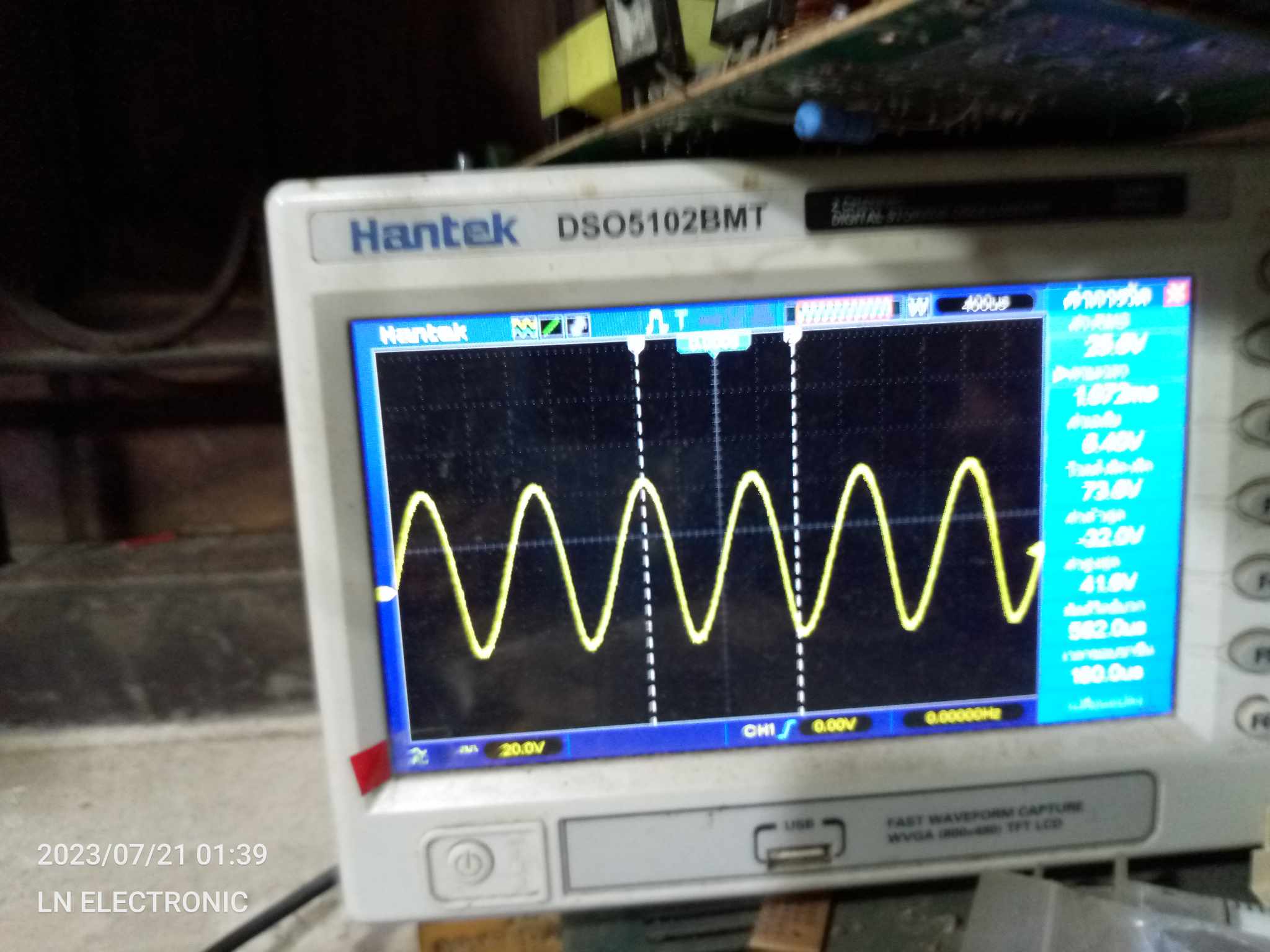

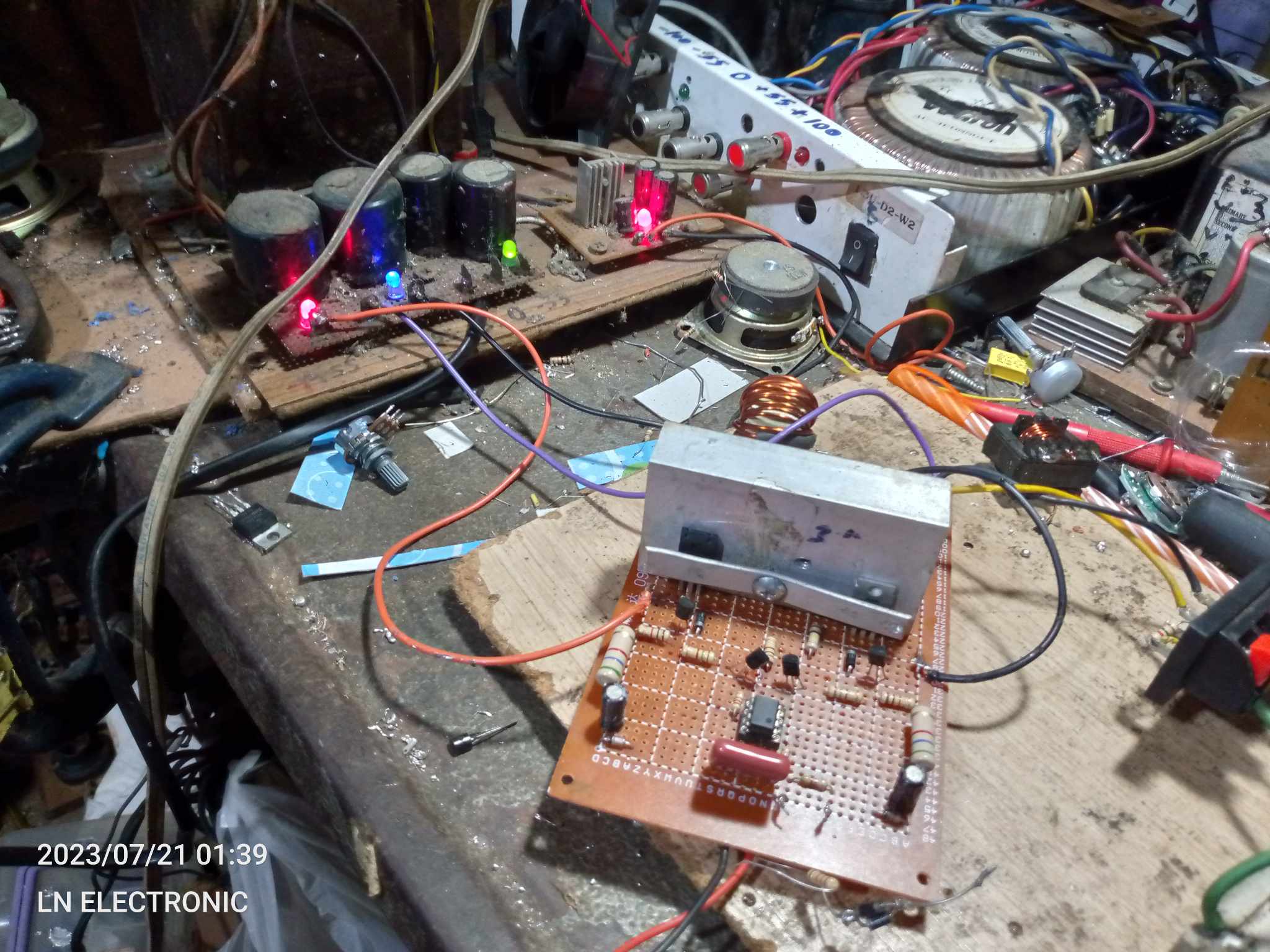

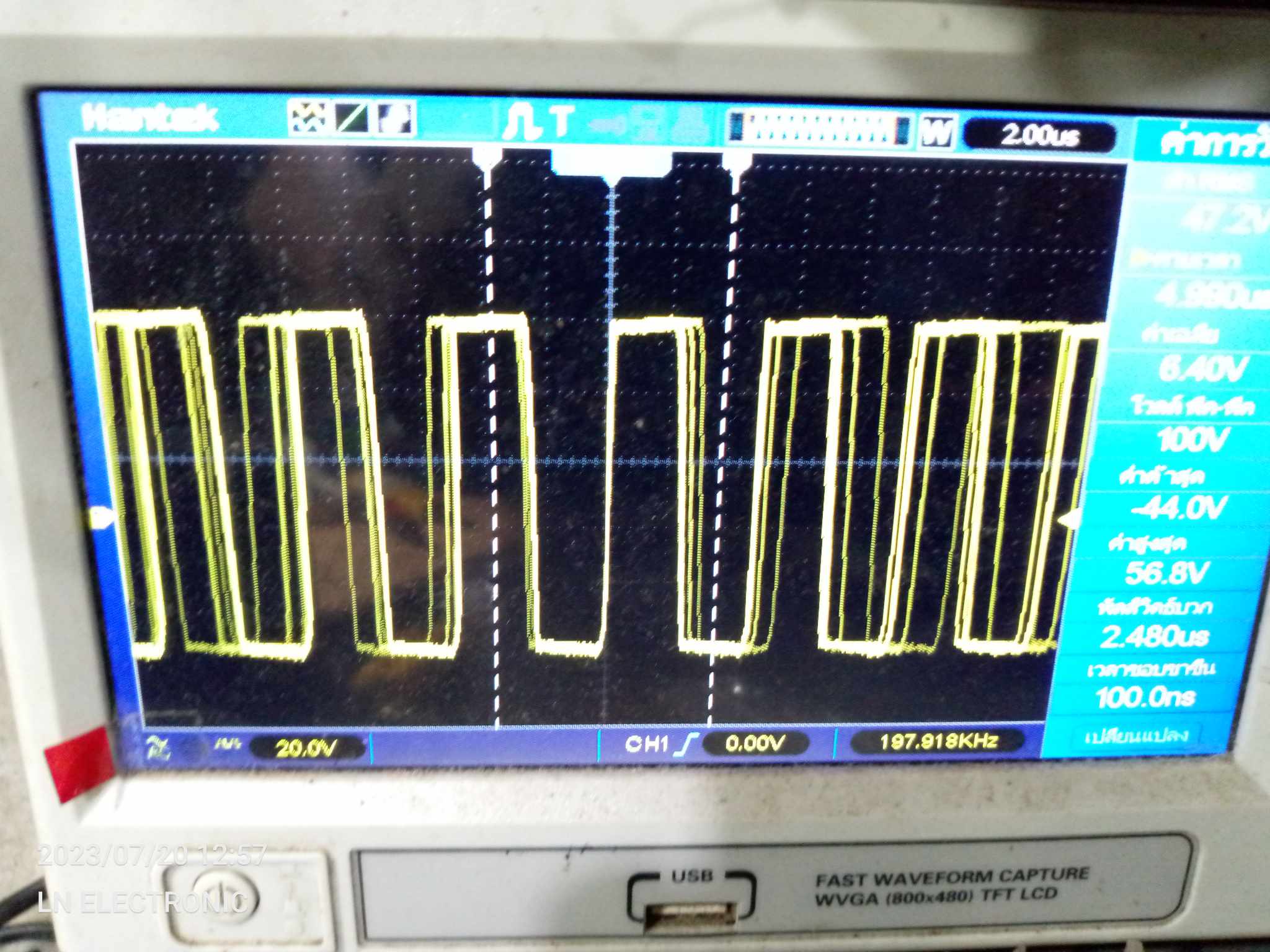

VERSION2 TLO71 CLASS D frequency about 200khz at load 4 ohm v out 32vrms



[surachit]

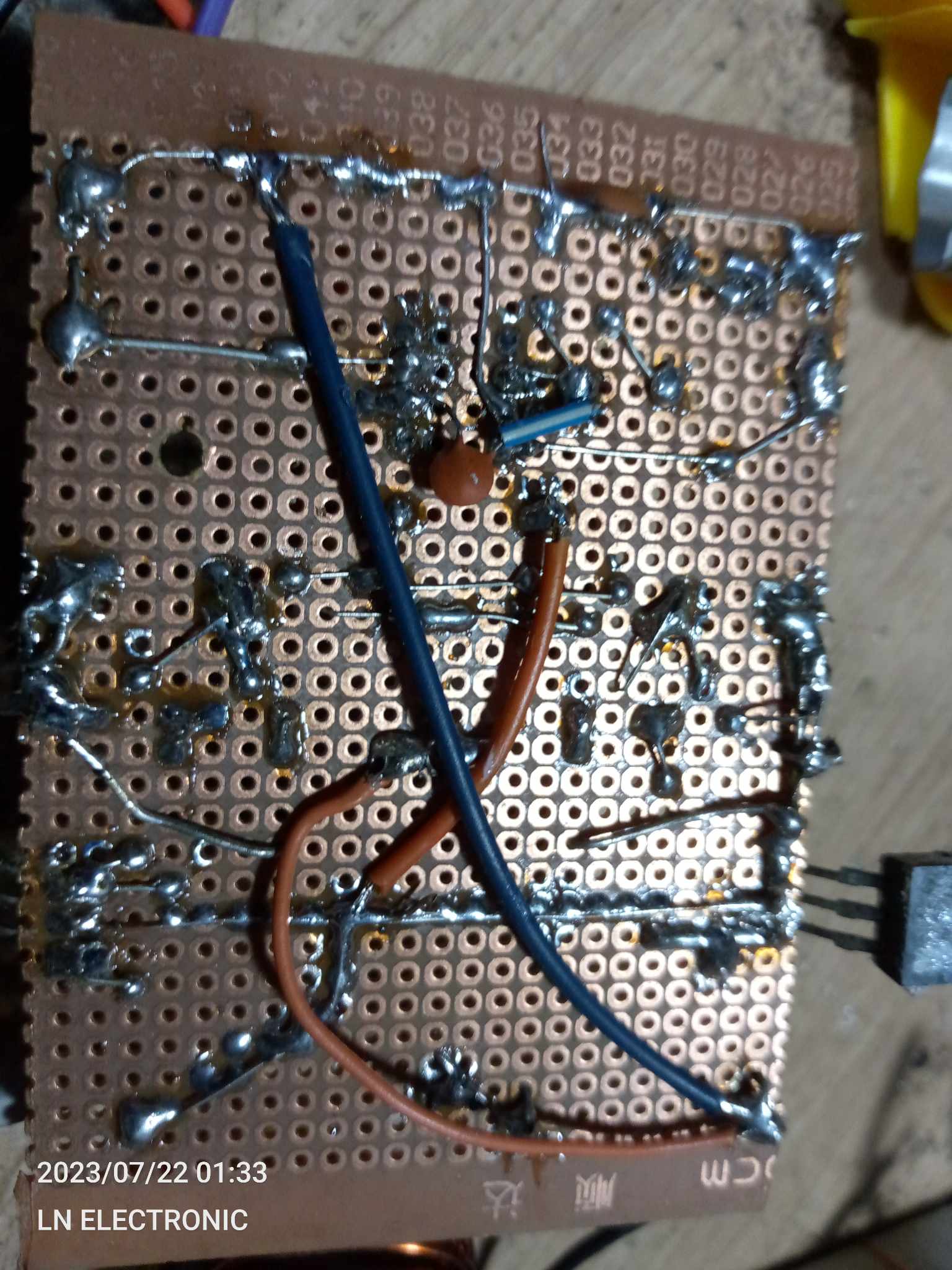

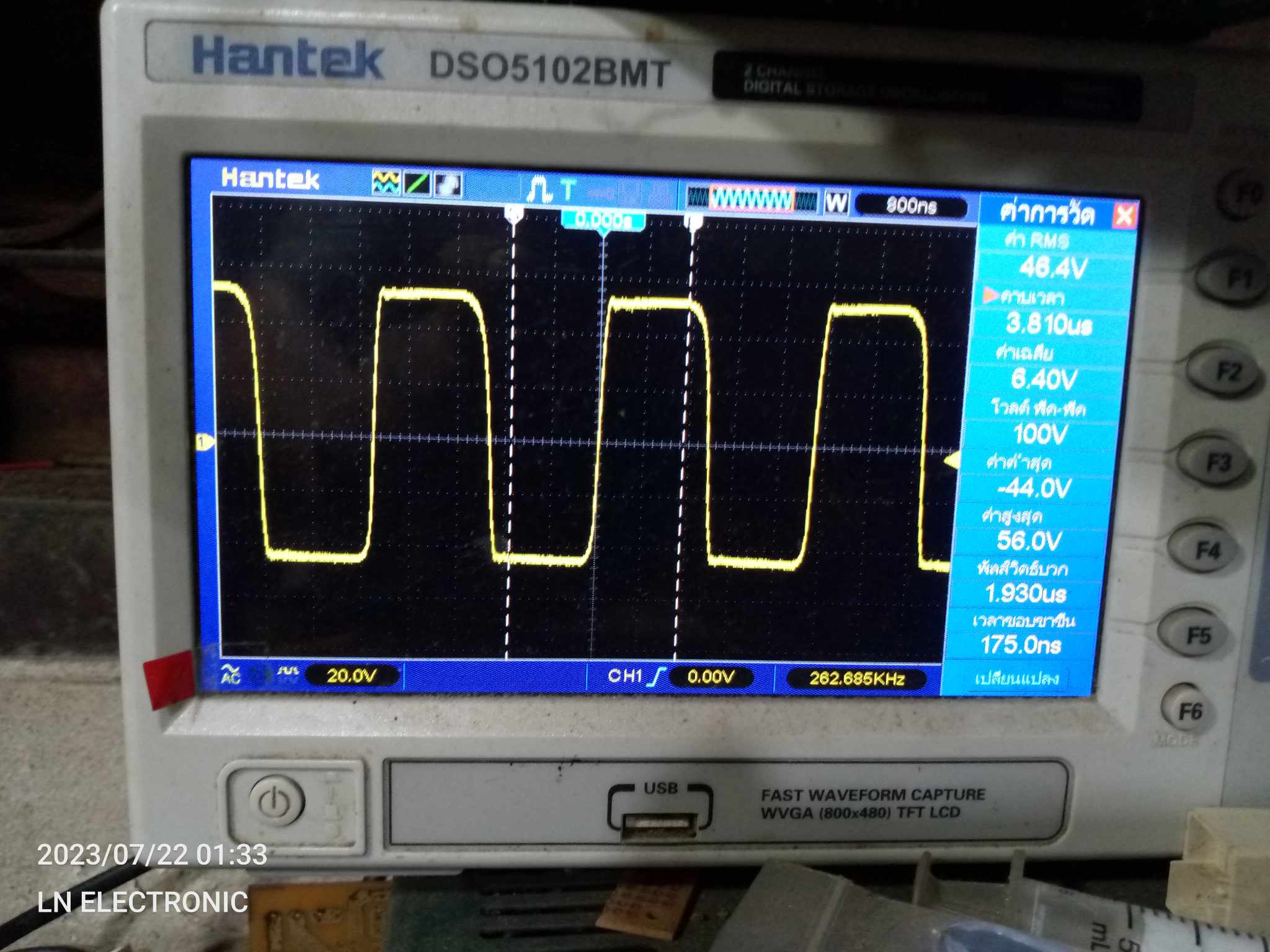

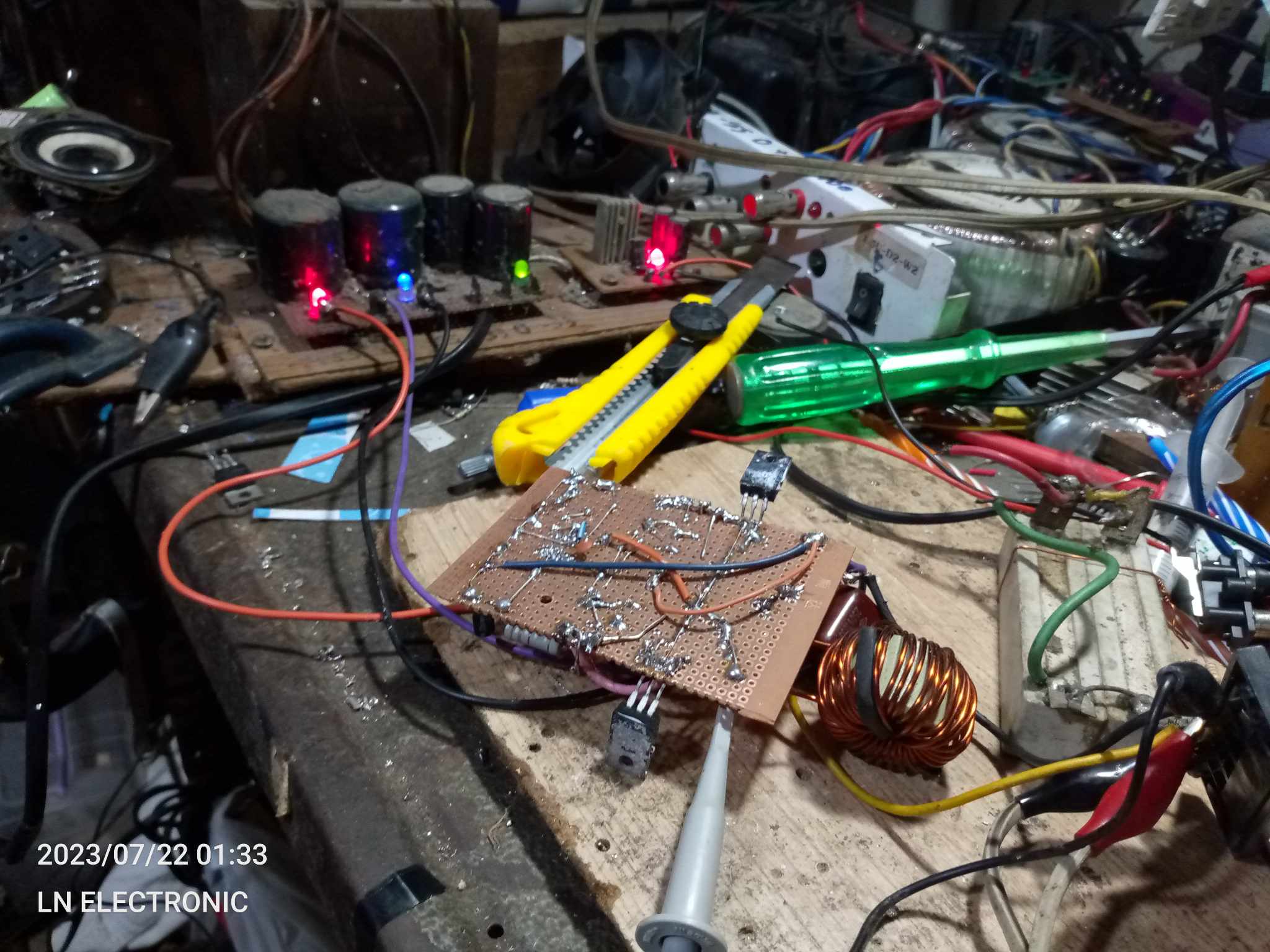

Improved ver1, higher frequency from 170khz to 265khz, better waveform. getting better
