thanks to google now i undferstand
Output Power (8 ohms): 2 x 400 watts RMS
Output power (4 ohms): 2 x 700 watts RMS
Output Power (2 ohms): 2 x 1000 watts RMS
Output Power (8 ohms bridged): 1250 watts RMS
Output power (4 ohms bridged): 1700 watts RMS
Output Circuit Type: Class AB
Input Impedance: 10 kOhm
Frequency response: 15 Hz - 25 kHz
THD: <0.03%
IMD 60 Hz and 7 kHz, 4:1: <0.038
Rise Time / Speed: 40 V / usec
Signal to noise ratio:> 102 dB
Damping factor:> 400
Cooling: Active Temperature Controlled
Protection circuits: DC output protection, long-term overheating control, delay, soft-power start feature, overload protection, Clip limiter
2 x XLR inputs + 2 x XLR Thru output
2 x Speaker (SPK) outputs
2 channel speaker terminals
Parallel / Stereo / Bridge - Fashion
Normal / Compress - Fashion (clip limiter)
Ground / lift mode
Sensitivity switch: 1.44 V / 1.0 V / 0.7 V
Power supply: 230 Volt
Size (WxHxD): 482 x 383 x 88.8 mm
Weight (net): 16.5 kg
Weight (gross): 18 kg

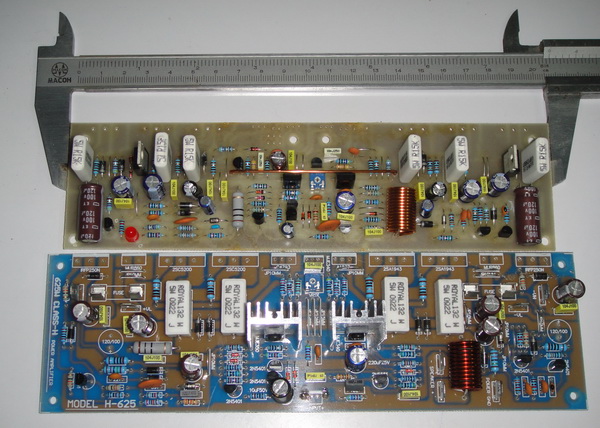

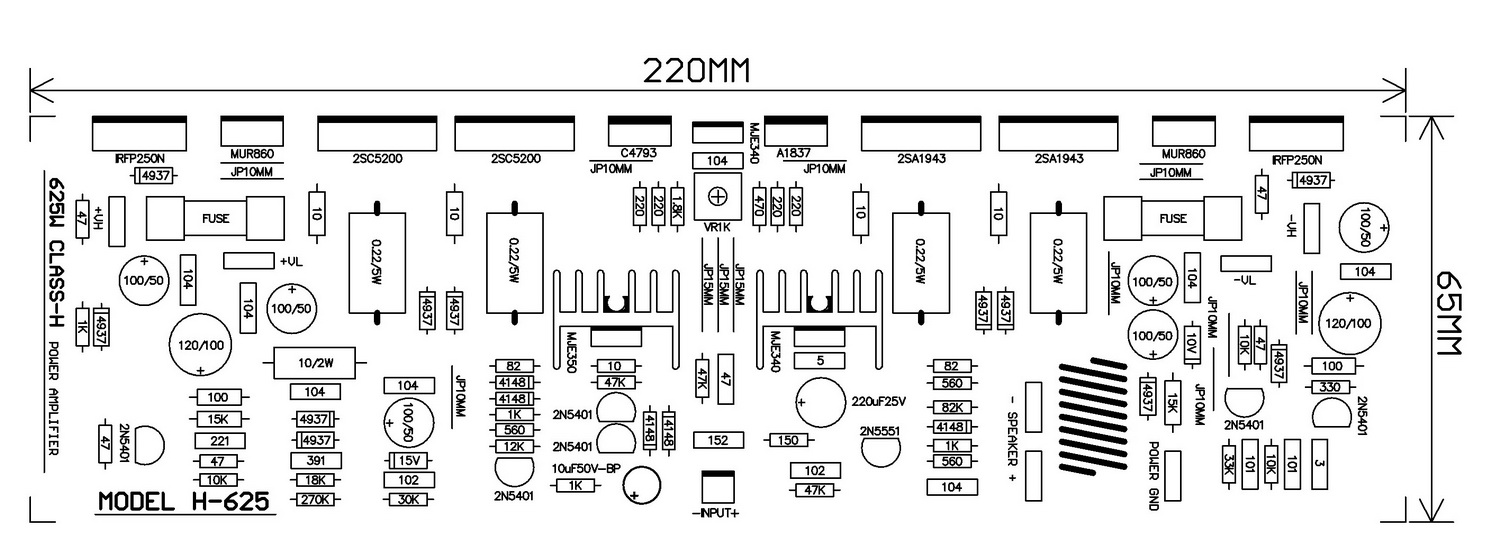

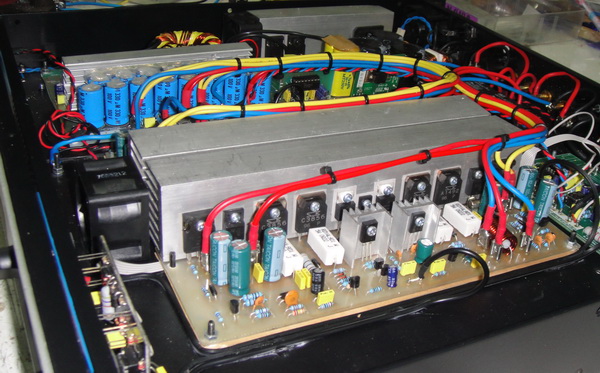

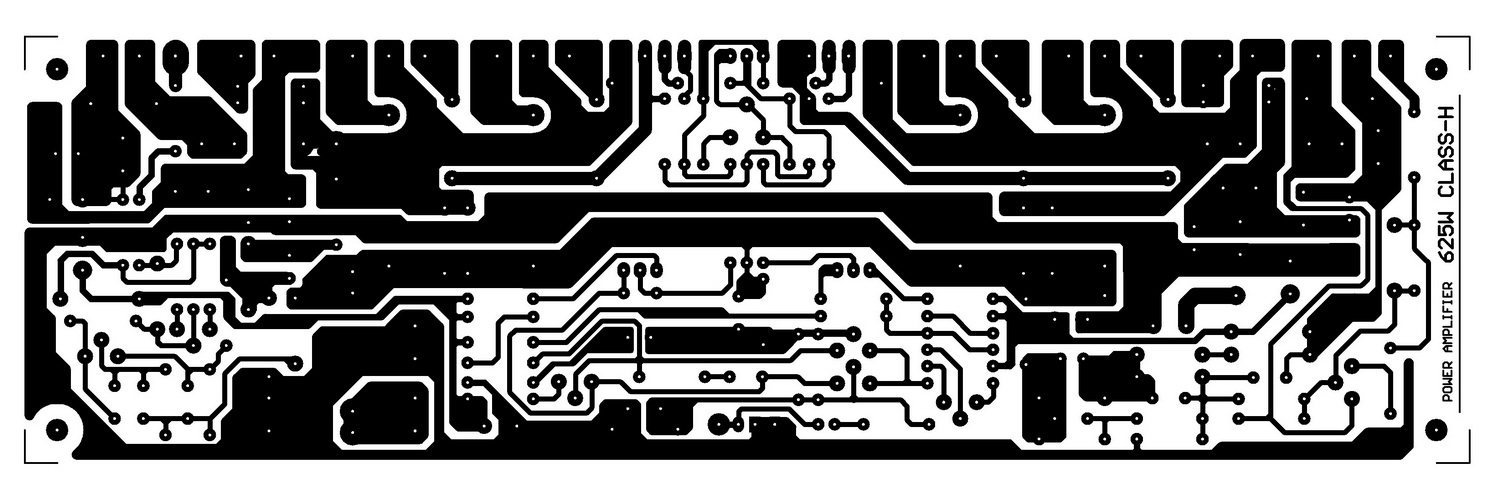

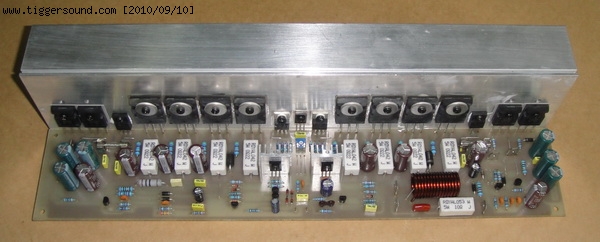

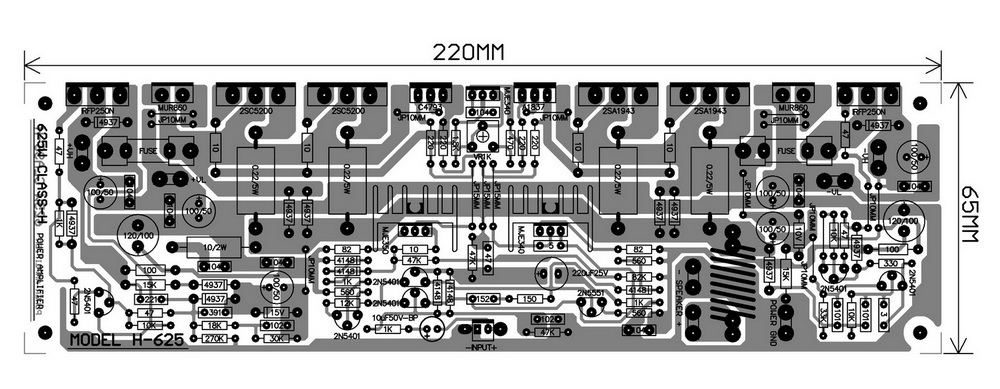

Cheshta LayOut needed
thanks and regards 😉
Hi sir,.. can u send me full layout with sprint layout?... pls..
thanks and regards 😉
hi nazir,. whether the steper ir2117 on each rail + and - works fine and does not limp voltage intake? or indeed as it is, because I put that steper rail - do not work or do not hv increased.
also most of the multiple-voltage HV on h900tef not work properly (there is a delay it).
also most of the multiple-voltage HV on h900tef not work properly (there is a delay it).
Hi Black what is the working voltage on this design?it has a minimal component's and good watt's rating,thank's.
only plan to pcb diagram drawing something from yamaha amplifier and step-up scheme is to PHONIC max 2500. There was a 1200 4-pair and 2 mos-feturi end in step-up
got it sir black if i use 4pairs of output what is the rail voltage of mv and lv
1200 for 4ohms load
1200 for 4ohms load
