case work pictures

[Per Nielsen]

If was woundering if any body would show me some beautiful pictures of diy amp case work design so i could get some inspiration


please also write a couple of notes how you have made it



[jleaman]

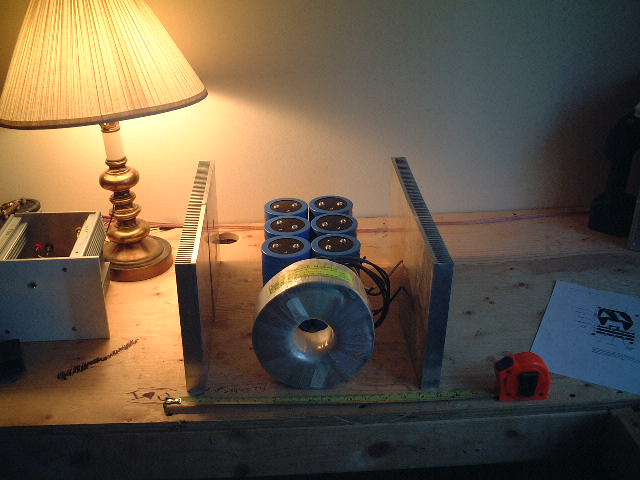

Here is my start of my aleph 2's



[Per Nielsen]

That thing next to it looks interresting, do you have any pics of it??



[Per Nielsen]

Nice caps !! how large(uf) are they??



[rwagter]

And my aleph5 becoming

An externally hosted image should be here but it was not working when we last tested it.

Just fisished the PSU 🙂 and that part is at least working as planned

Ralph



[Per Nielsen]

That sure looks fine!



[jam]

Jason,

How do you suspend the caps and transformer between the heatsink?:

Jam 😀



[Peter Daniel]

If was woundering if any body would show me some beautiful pictures of diy amp case work design so i could get some inspiration


please also write a couple of notes how you have made it

I think this could be your best resource😉

http://www.passdiy.com/gallery.htm



[jleaman]

The transformer is going to be bolted to the front face plate. and the caps are going to be bolted to the center of the bottem plate. and the front end board is going to be mounted on the rear faceplate.



[Per Nielsen]

Thanks for the link!!
