BOZ Gerber files

[Nelson Pass]

Recently there has been some email interest in Bride of Zen (BOZ) and
a request for the Gerbers.

So I put a little work into a double sided version and set up the Gerbers
for compatibility with China PCB Prototype & Fabrication Manufacturer - PCB Prototype the Easy Way

PL45AR0 is 8.00" by 4.60"

PL45BR0 is 4.50" by 4.60"



[Zen Mod]

Baaad Papa!



[carsten.witt]

Thanks!



[El Reino]

Thank you



[darrr]

Thanks Nelson🙂 I see it's balanced version. Can You post circuit diagram?



[Nelson Pass]

It's in the articles section of FIRST WATT



[Nelson Pass]

Oh, and I noticed that this is BOSOZ....

:ice cream cone > forehead:



[elwood625]

NP - I never knew you have an eating disorder. I hope your aim improves, get well soon.



[moe29]

The Balanced Zen Line Stage (BZLS) -

also known as The Bride of Son of Zen (BOSOZ)


A unanimous first ballot - DIY Hall of Fame - inductee



[Adi2009]

Can I use it to make unbalanced stereo preamplifier - unbalanced input => unbalanced output?



[Zen Mod]

you can, but why?



[Adi2009]

Because I've got a DAC with unbalanced output and stereo amplifier. I'm looking for great preamp and i'd like to try Bridge Of Zen. Here we've got pcb gerber files 🙂



[Zen Mod]

in which case you're asking for unbalanced input - balanced output?



[Botte]

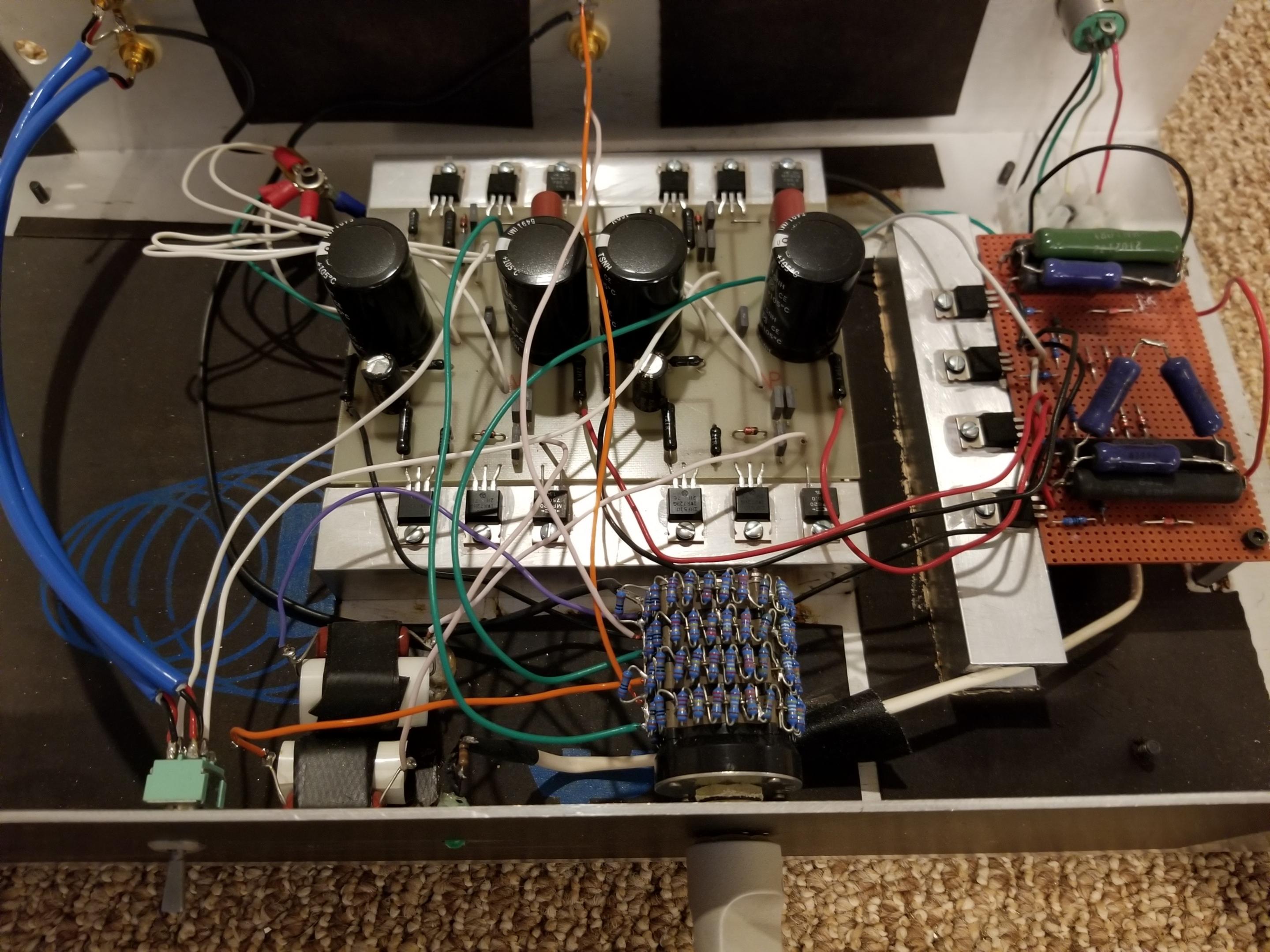

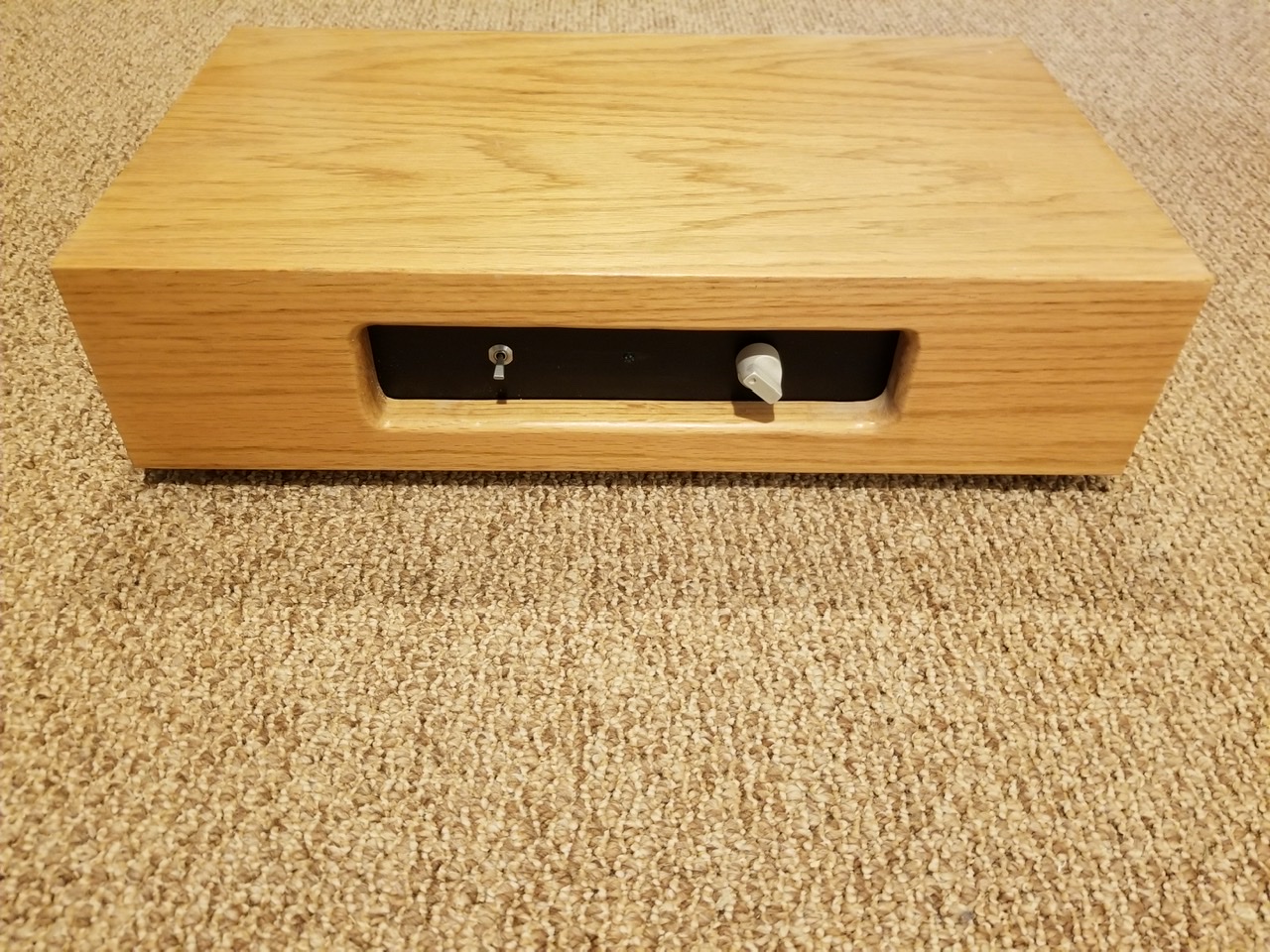

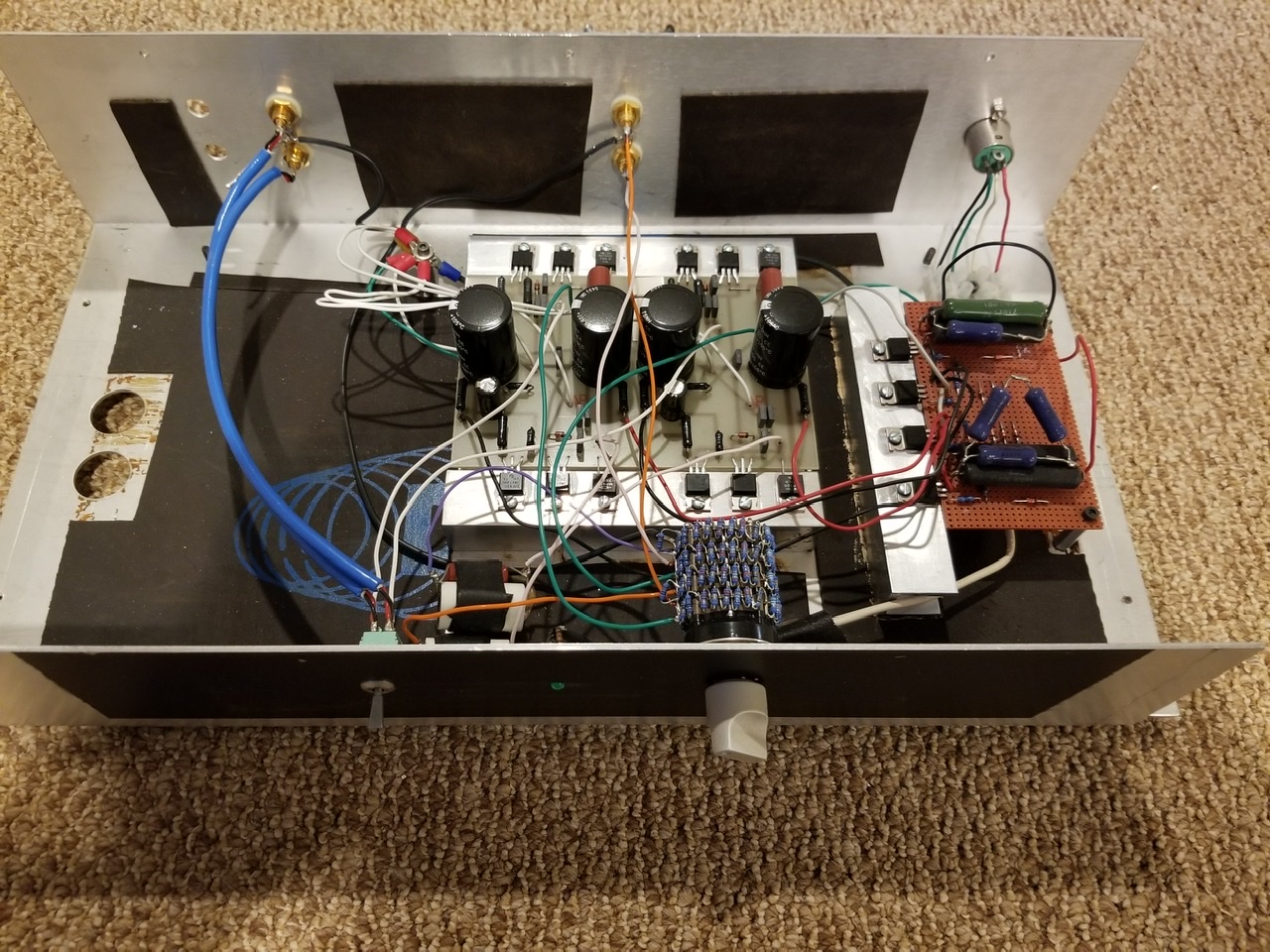

Seeing this thread, I thought, I built the Balanced Bride of Zen in 97’. Digging it out I see that my building skills have improved quite a bit in the last 23 years. It’s a bit messy. I never even wired up the Balanced outputs.

Something for Zen Mod to look at 🙂



[Zen Mod]
