Bogen MX60A Schematics

Status
Not open for further replies.
I'm looking for a freebie or low cost set of schematics for my Bogen MX60A amlifier. I know at one time they were knocking about DIY but the links I've found are all now dead ends. Any help would be greatly appreciated.

Geoffrey

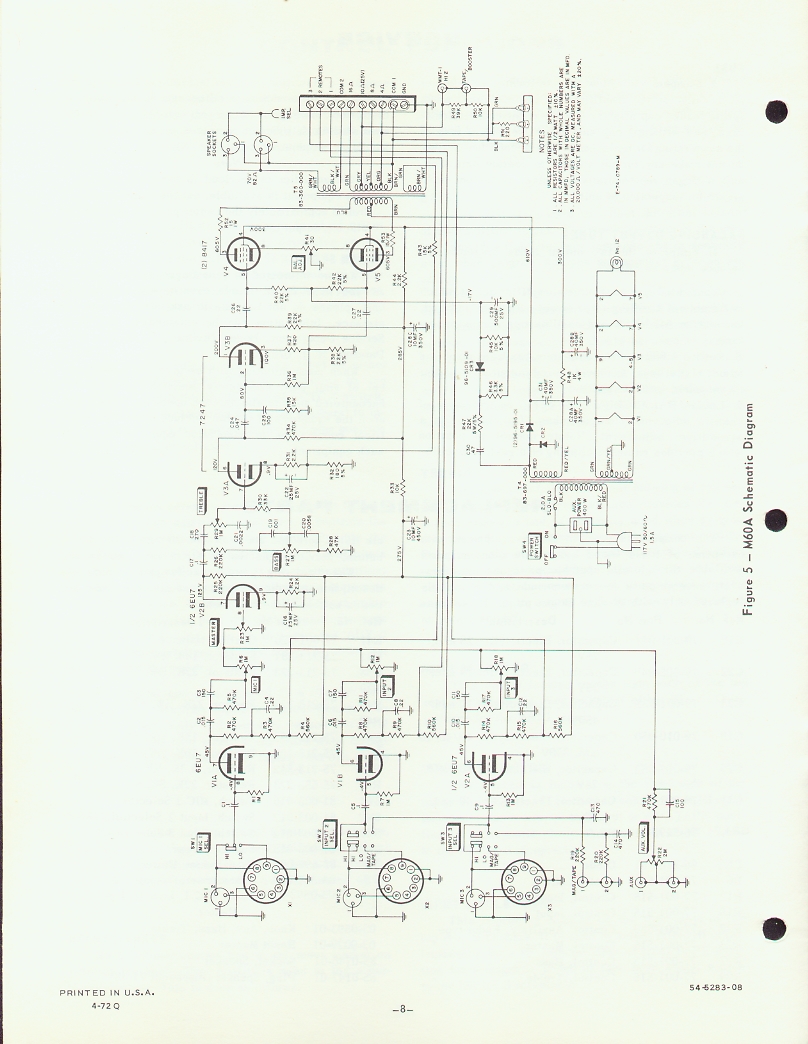

Maybe schematic of M60A (not MX60A) can help You.


Attachments

  • bogen-m60a-8.jpg
    462.3 KB · Views: 548
