spice EG parameter
Dear Bob,
is it possible, that the EG parameter of the model 2SC3503C may be wrong? I have some thermal troubles using a 2SC3503C in a Bias generator compared from simulation to real life (using the base/emitter diode as temperature sensor). If using the BD139C model the difference between simulation and real life is smaller.
Thanks!
BR, Toni
* 2SC3503C - created March 11, 2011 copyright Cordell Audio
.MODEL 2SC3503C npn
+IS=40e-15 BF=170 VAF=769
+IKF=0.08 ISE=200e-15 NE=1.5 NF=1.0
+RB=75 RC=1.5 RE=0.1
+CJE=95e-12 MJE=0.35 VJE=0.75
+CJC=7e-12 MJC=0.35 VJC=0.75 FC=0.5
+TF=585e-12 XTF=10000 VTF=35 ITF=20
+TR=10e-9 BR=0.6 IKR=0.05
+EG=0.75 XTB=1.5 XTI=3 NC=1.5
+ISC=7e-15 NR=1.0 VAR=100 IRB=3e-6
+RBM=0.035 XCJC=1.0 mfg=CA031111
* BD139C - created April 13, 2011 copyright Cordell Audio
.MODEL BD139C npn
+IS=150e-15 BF=260 VAF=99
+IKF=1.2 ISE=70e-15 NE=1.2 NF=1.0
+RB=5 RC=0.01 RE=0.08
+CJE=293e-12 MJE=0.33 VJE=0.67
+CJC=49e-12 MJC=0.39 VJC=0.52 FC=0.5
+TF=585e-12 XTF=10000 VTF=35 ITF=20
+TR=10e-9 BR=78 IKR=0.14
+EG=1.21 XTB=1.14 XTI=3 NC=1.45
+ISC=19e-12 NR=1.0 VAR=7.5 IRB=0.03
+RBM=0.001 XCJC=0.53 mfg=CA041311
Dear Bob,
is it possible, that the EG parameter of the model 2SC3503C may be wrong? I have some thermal troubles using a 2SC3503C in a Bias generator compared from simulation to real life (using the base/emitter diode as temperature sensor). If using the BD139C model the difference between simulation and real life is smaller.
Thanks!
BR, Toni
* 2SC3503C - created March 11, 2011 copyright Cordell Audio
.MODEL 2SC3503C npn
+IS=40e-15 BF=170 VAF=769
+IKF=0.08 ISE=200e-15 NE=1.5 NF=1.0
+RB=75 RC=1.5 RE=0.1
+CJE=95e-12 MJE=0.35 VJE=0.75
+CJC=7e-12 MJC=0.35 VJC=0.75 FC=0.5
+TF=585e-12 XTF=10000 VTF=35 ITF=20
+TR=10e-9 BR=0.6 IKR=0.05
+EG=0.75 XTB=1.5 XTI=3 NC=1.5
+ISC=7e-15 NR=1.0 VAR=100 IRB=3e-6
+RBM=0.035 XCJC=1.0 mfg=CA031111
* BD139C - created April 13, 2011 copyright Cordell Audio
.MODEL BD139C npn
+IS=150e-15 BF=260 VAF=99
+IKF=1.2 ISE=70e-15 NE=1.2 NF=1.0
+RB=5 RC=0.01 RE=0.08
+CJE=293e-12 MJE=0.33 VJE=0.67
+CJC=49e-12 MJC=0.39 VJC=0.52 FC=0.5
+TF=585e-12 XTF=10000 VTF=35 ITF=20
+TR=10e-9 BR=78 IKR=0.14
+EG=1.21 XTB=1.14 XTI=3 NC=1.45
+ISC=19e-12 NR=1.0 VAR=7.5 IRB=0.03
+RBM=0.001 XCJC=0.53 mfg=CA041311
Attachments

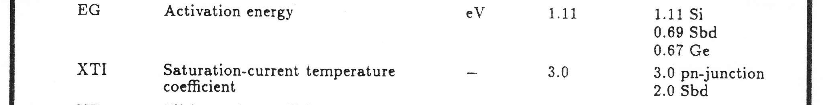

In my SPICE modeling I did not adjust EG from the manufacturer's models. It does look like the value here of 0.75 is on the low side, as EG for silicon is most often in the range of 1.1. Try changing it to 1.1 and see what you get. However, if I am not mistaken, that may interact with IS in such a way that simulated Vbe at room temperature may change.
Cheers,
Bob
Dear Bob,
thanks for this information - this explains the problem very well.
FYI: Just tested 2SC3503C model with EG=1.11 .
This seems to fix the differences. Now the simulated bias change from temperature 22 - to 50 degrees is nearly exactly the same as the real life measured one.
BR, Toni

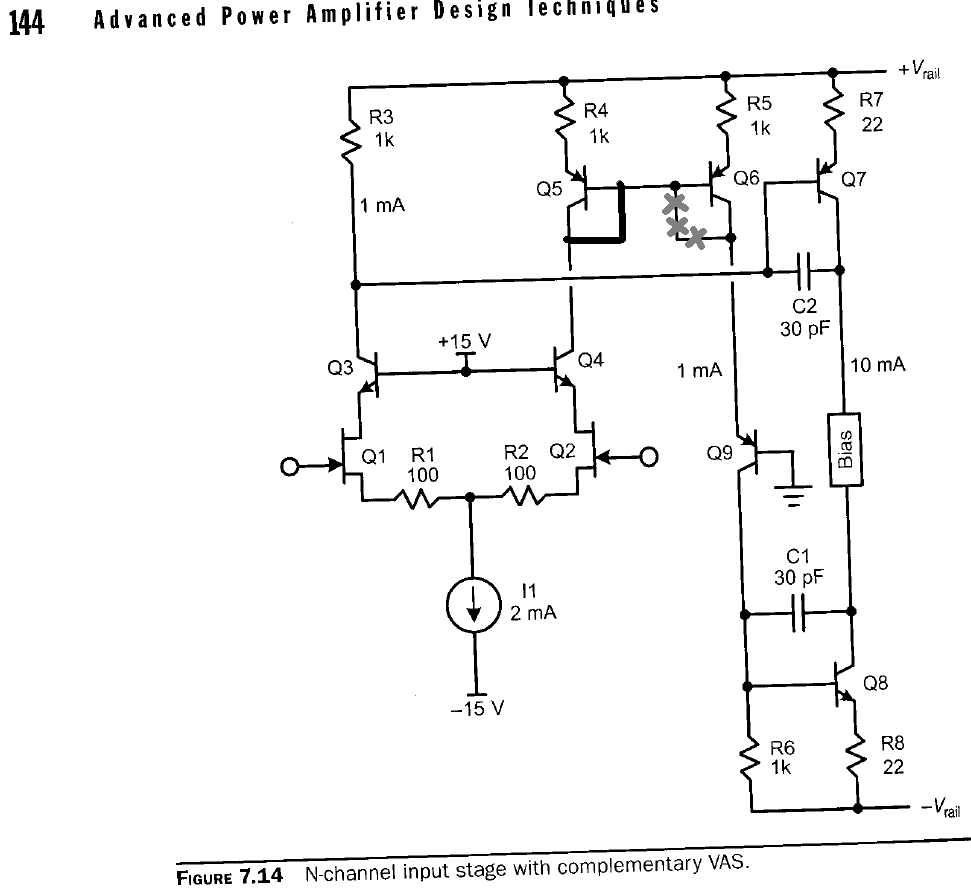

I'm sure that Bob will check in on this sometime soon, but yes...I agree that the schematic should be corrected in the manner that you show.
Hi Pawel,
Thanks for pointing this out. I always appreciate feedback on the book, be it in regard to errors, or sections that need better explanation, or technical assertions I have made that one does not agree with. Many people on this forum have been very helpful in this regard, and I had been previously made aware of this error. I have been keeping a list of all such errors so that I can make corrections in the second edition.
Best regards,
Bob
Hi Bonsai,
Thanks for your concern. I check in to DIYaudio regularly. Things are fine here, although I have been up to my eyeballs. I never thought I'd be this busy in retirement.
Cheers,
Bob
Ahh - sounds like me as well! I've told my wife that I am not retired - I'm just on extended sabbatical
🙂
🙂
