Beginning my aleph 30

[Phill]

un petit effort sur le format des photos.... ça a l'air magnifique !

Phill



[rhr9]

Hy Vince ,

It looks really great indeed !

@ + Philippe.



[bobsinclar]

Thanks guys,
as soon as I have progressed i'll show some more details...
this amp is just getting heavier and heavier, I think that I am about 30Kg by now and the faceplate and rear plate aren't there yet! I think I'll have to put handles front and back side, or I'll never manage to move it to the living
see you soon for the next steps!
Vince



[flg]

Very Nice
I'm not familiar with the Krell But, it reminds me of a JC or I guess ML-2 or something.
Super Job



[bobsinclar]

Hey thanks Flg,
that is almost a very nice compliment ,comparing my mechanical work to Mark Levinson is just very satisfying, and I have to admit that I was very inspired by the ML-2 , very happy that you noticed

My goal is to finish the amp as good as it began, not easy thought, as now it's getting more and more complex inside...
and I still haven't matched the fets "in situ",the hardest job still remains!
thanks for your support and nice comments, it really encourages me to make a nice work, especially because I know you are all as impatient as I am to see the thing finished



[Zen Mod]

now is even uglier!

hehe



[hifimaker]

Hi Vince,

Beautiful looking design!

One thought to consider as you make the chassis. Leave a lot of space inside the box for natural air flow. Some of the other internal parts will experience shortened lifespans with additional heat.

Here's a pic of the my Aleph30 using BrianGT's boards. Simply sounds great.

Nice work so far.

-David



[bobsinclar]

Thanks for your adivce David,all comments and advises are very welcome !
and congrats on your own aleph, very minimalist and clean looking!
Vince



[hifimaker]

Thanks for your adivce David,all comments and advises are very welcome !
and congrats on your own aleph, very minimalist and clean looking!
Vince

Thanks Vince for the kind words.

Here's a link to a thread with more pictures.

Take care and good luck,

-David

http://www.diyaudio.com/forums/showthread.php?s=&threadid=70622&highlight=



[bobsinclar]

David,
I will check this out right now!
right now I am working on the inside mechanic of the aleph, I will have soon some nice picts to share
Cheers!
Vince



[bobsinclar]

Great trade David,
actually very informative ,
I come with the improvments of the day , and some picts to show,
sorry for the low res, but the file size is very limited for the picts we can post...
cheers!
Vince



[bobsinclar]

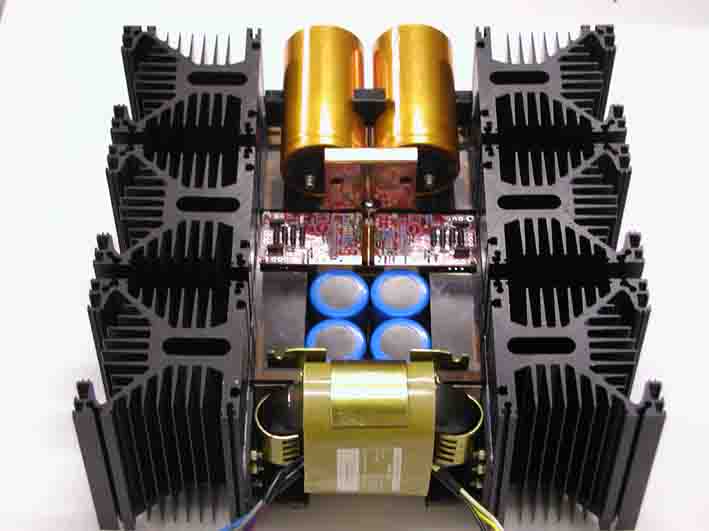

here is the top side with the big ROE caps at least attached ...
and Brian cards put in place, just on top of the fets rails...
Vince



[bobsinclar]

another onefor the fun
Vince



[bobsinclar]

Here is a better pict of the fets side(the copper is already getting oxcyded, I will solve that with some polish and spary with gloss.
Vince



[bobsinclar]

here are the 2nd and 3rd stage of decoupling caps of the psu close pict...
vince



[bobsinclar]

just for the wait... copper is cleaned and sprayed with mat gloss, and some decoupling caps have been added to the psu..
Vince



[bobsinclar]

here is the work on the back plate almost finished ...will show the massive front pannel tomorrow...sort of SAE X series design, but with a bad look
I hope i'll be able to finish it this week end...I will come with the picts azs soon as everything isassembled...
Vince



[bobsinclar]

here is the face plate, at least installed...I fired up the psu and the soft start circuit ...everything is ok...29volts...enough caps to let a 220V light on for about 1 minute after amp is turned out (about 400 000 microfarad)



[bobsinclar]

here is another view
Vince



[Phill]

Salut

impressionnant !

which is the diagram of your soft start ?

Phill
