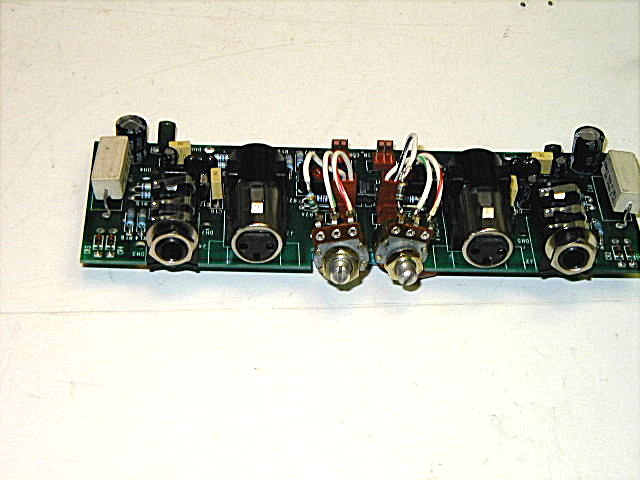

This circuit board enables balanced inputs to an unbalanced input amplifier.
It came from a working Hafler PRO 1200 amplifier. You can see it has XLR and 1/4" input jacks. It has its own power supply that takes ~50VDC from the amp's rails and converts it to the ±10VDC to operate its circuit.
Details about this circuit card, board layout, and schematic can be found on pages 9 and 10 here:
http://hafler.com/techsupport/pdf/PRO1200_amp_man.pdf
How about $25 + postage? Let me know of your interest. Thanks
It came from a working Hafler PRO 1200 amplifier. You can see it has XLR and 1/4" input jacks. It has its own power supply that takes ~50VDC from the amp's rails and converts it to the ±10VDC to operate its circuit.
Details about this circuit card, board layout, and schematic can be found on pages 9 and 10 here:
http://hafler.com/techsupport/pdf/PRO1200_amp_man.pdf
How about $25 + postage? Let me know of your interest. Thanks
Attachments
Woops. The info is on pages 10 and 11 of the manual:
http://hafler.com/techsupport/pdf/PRO1200_amp_man.pdf
Also, you can see the circuit board has level controls attached.
http://hafler.com/techsupport/pdf/PRO1200_amp_man.pdf
Also, you can see the circuit board has level controls attached.
