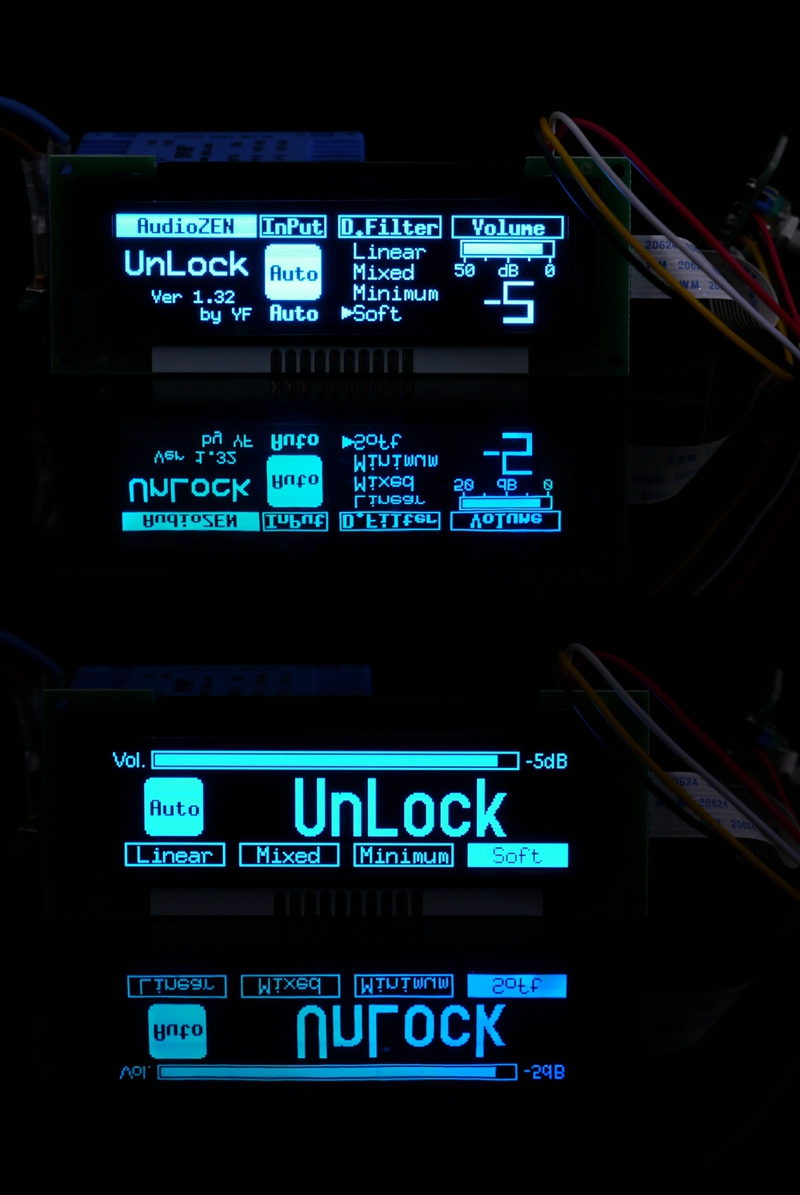

There are 2 styles of display window, you can switch with remote control or encoder.

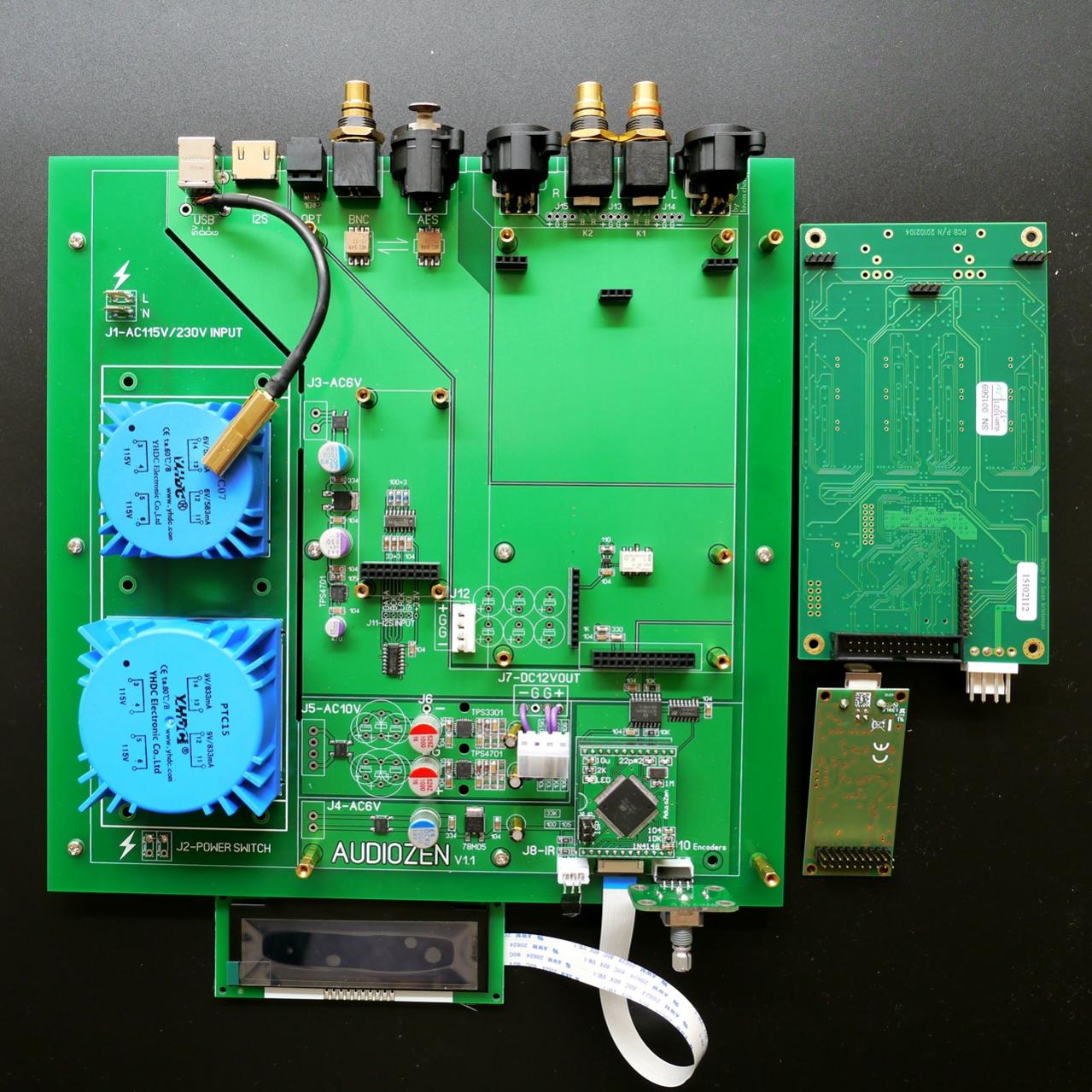

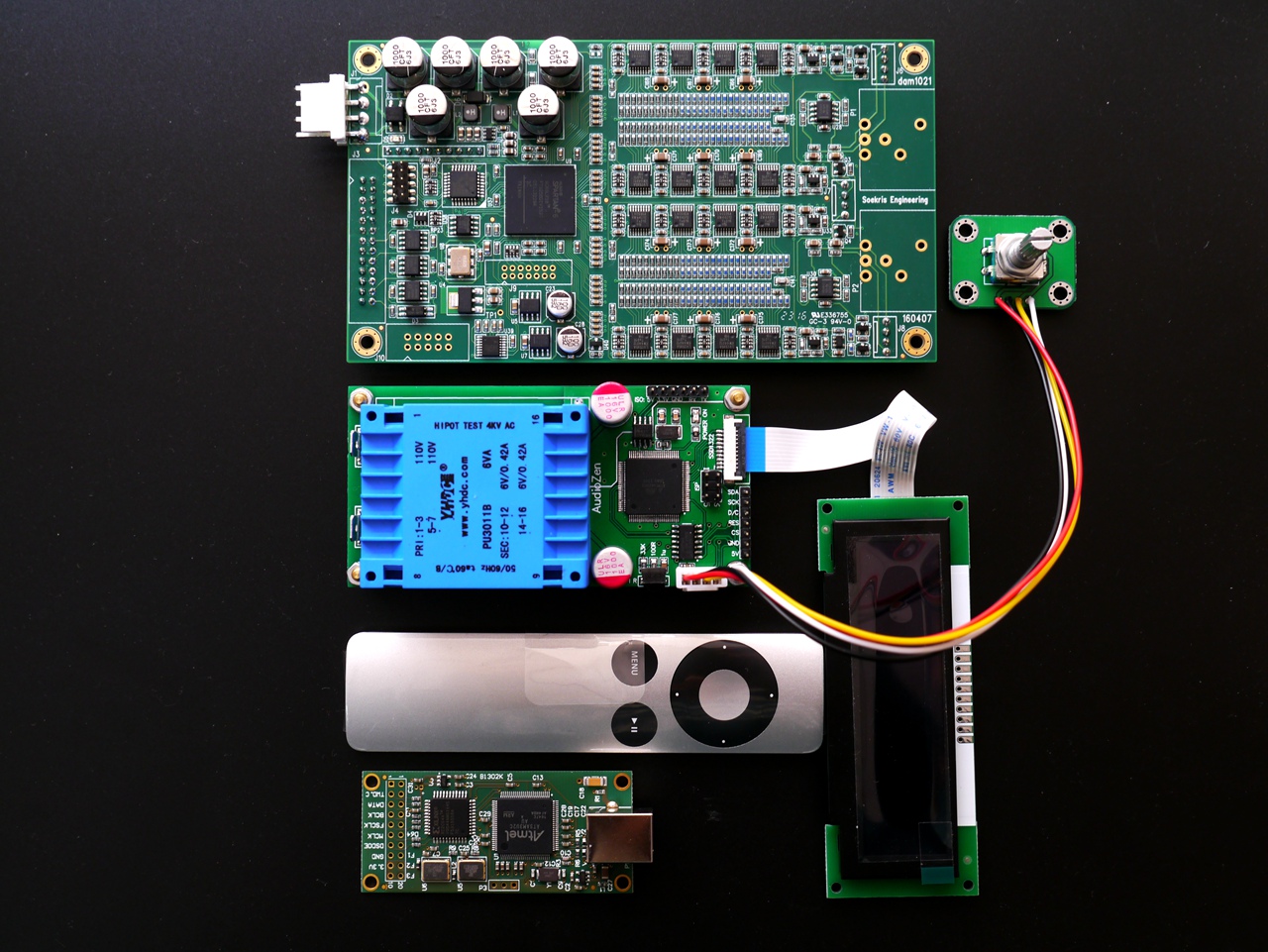

Remove dam1021 and USB board.😀



[audiozen]

Is the Lite package the one in the 5th pix?
I don't see the where the IR receiver is mounted from the pix.

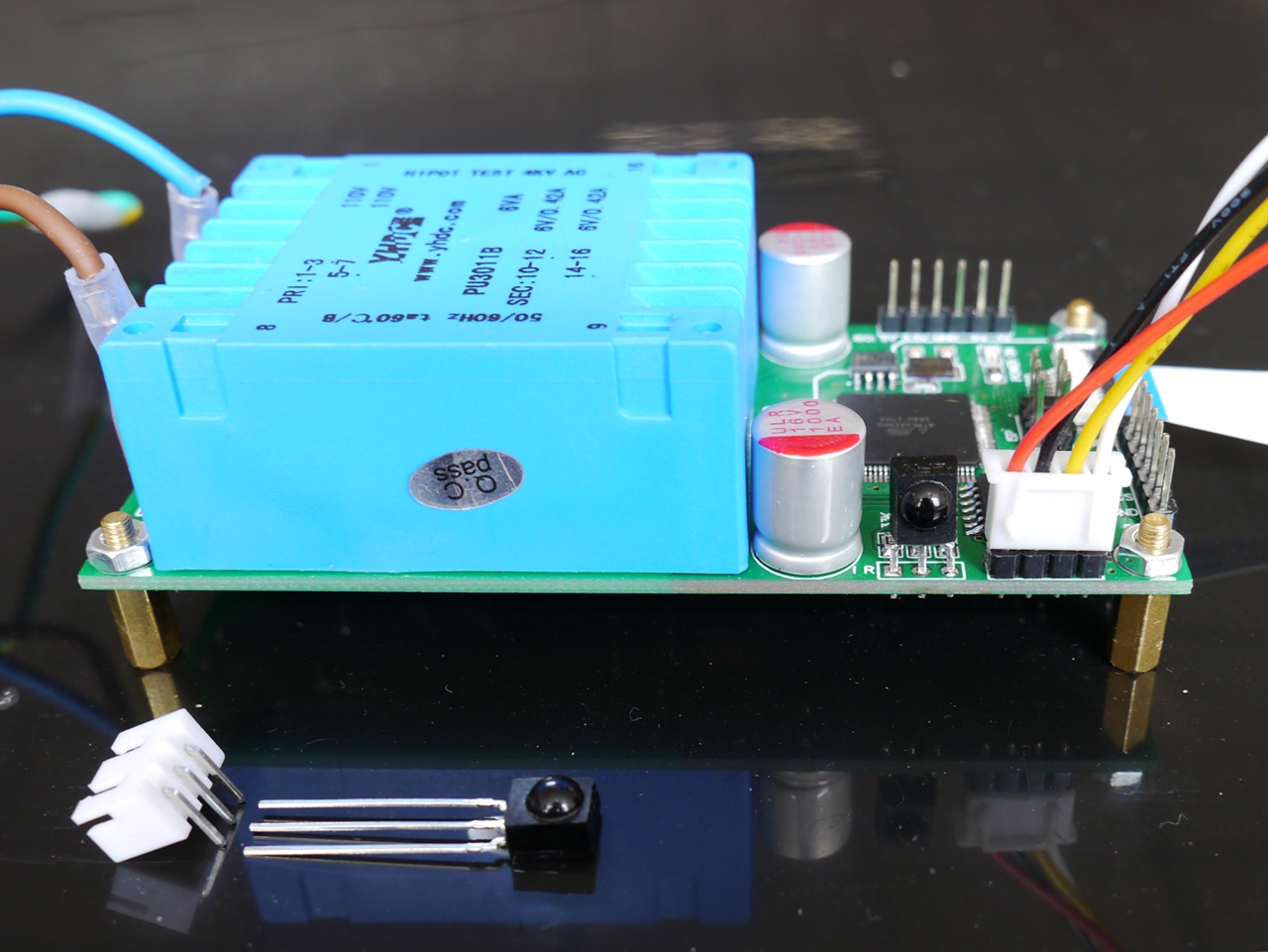

IR receive is the 3 pin of the 2.54mm，so you can directly weld, or with the extension line.when shipment，IR received will not be welded on PCB.🙂Users can choose their own installation.



[audiozen]

Is the Lite package the one in the 5th pix?
I don't see the where the IR receiver is mounted from the pix.

IR receive is the 3 pin of the 2.54mm，so you can directly weld, or with the extension line.when shipment，IR received will not be welded on PCB.🙂Users can choose their own installation.

Hold down the encoder, then turn on the power, you can enter the IR remote learning mode. I like the apple IR remote. It's compact and cool.😀



[audiozen]

Thank you for your support.Promotion is over.AZ1021 SK Lite left the last one. The list following.
AZ1021 SK OVER
bambodoo 1pcs
MisterRogers 1pcs
Mc002 1pcs
gavinb 1pcs
carsten.witt 1pcs orange oled
Philipp23 1pcs
rilke1999 1pcs
hifiasylum 1pcs
CeeVee 1pcs
cajunserb 1pcs
TrickyMicky 1pcs orange oled
izaka 1pcs

AZ1021S K Lite last one
Rrbs 1pcs
Philipp23 1pcs
xaled 1pcs
rsotirov 2pcs green oled
lwr 1pcs
prakit 2pcs
sorenb 1pcs



[audiozen]

Update the list.

AZ1021 SK
bambodoo 1pcs
MisterRogers 1pcs
Mc002 1pcs
gavinb 1pcs
carsten.witt 1pcs orange oled
Philipp23 1pcs
rilke1999 1pcs
hifiasylum 1pcs
CeeVee 1pcs
cajunserb 1pcs
TrickyMicky 1pcs orange oled
izaka 1pcs

AZ1021S K Lite
Rrbs 1pcs
Philipp23 1pcs
xaled 1pcs
rsotirov 2pcs green oled
lwr 1pcs
prakit 2pcs
sorenb 1pcs
bsy020 1pcs



[oscord]

+1



[audiozen]

Hi audiozen,

a really nice project you have there. I have some Q's about the lite version:

- Height of the module with spacers
- Height of OLED PCB
- Filter switching: only the installed filter and there between different settings, eg. soft and so on, or complete filter sets, e.g. NOS, DAM Standard?

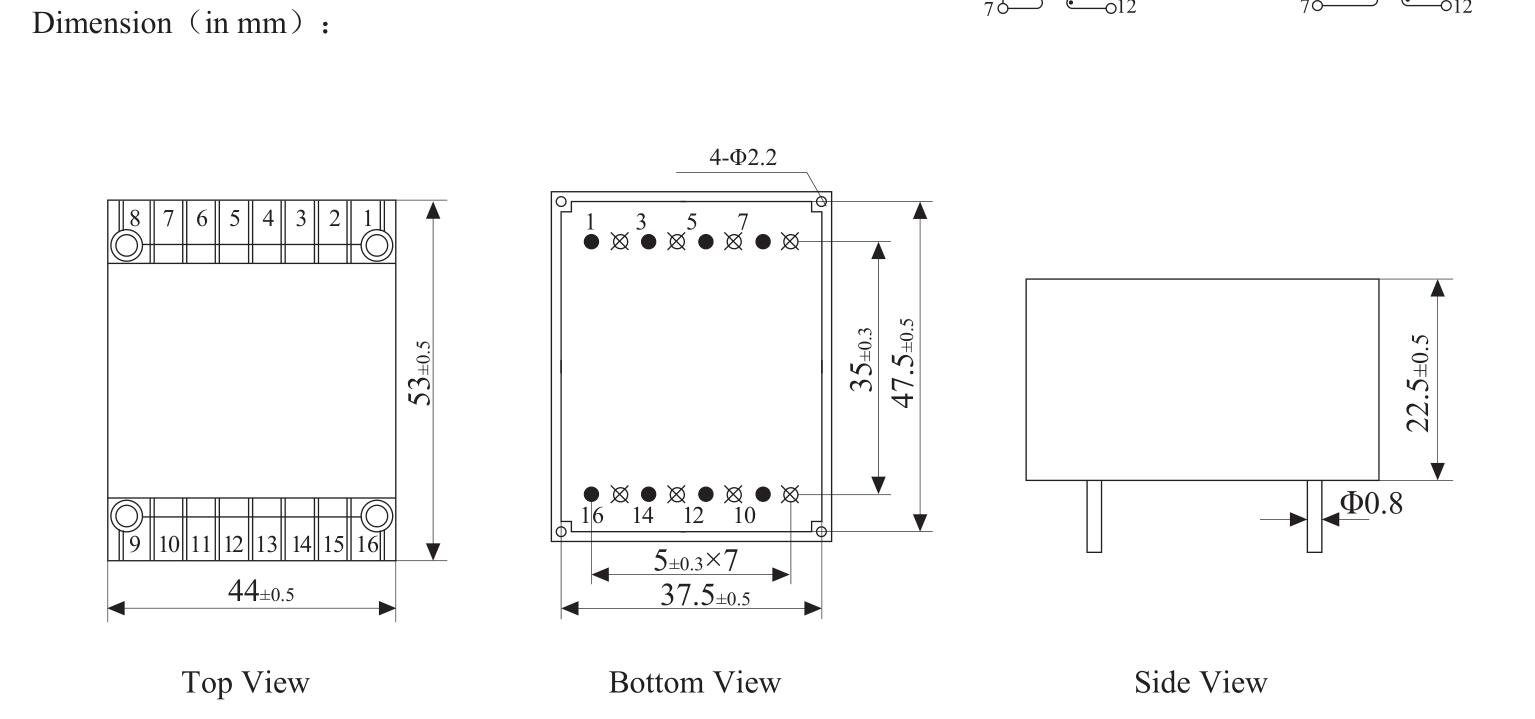

Our PCB is 100mm*50mm，Transformer size attached pix.

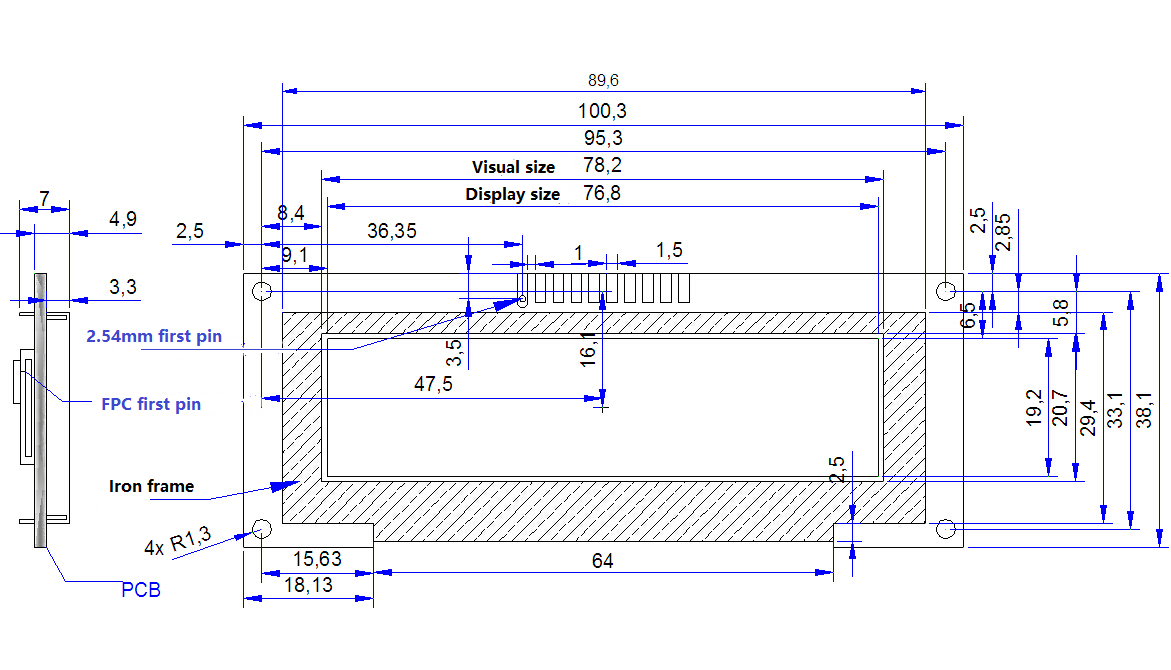

OLED size attached pix.
The menu shows that the filter is just a name, corresponding to the F4-F7.The filter can be replaced freely, but the name displayed on the menu cannot be modified.



[spikestabber]

I actually sent a message a week ago requesting 1 SK Lite but haven't heard back.



[audiozen]

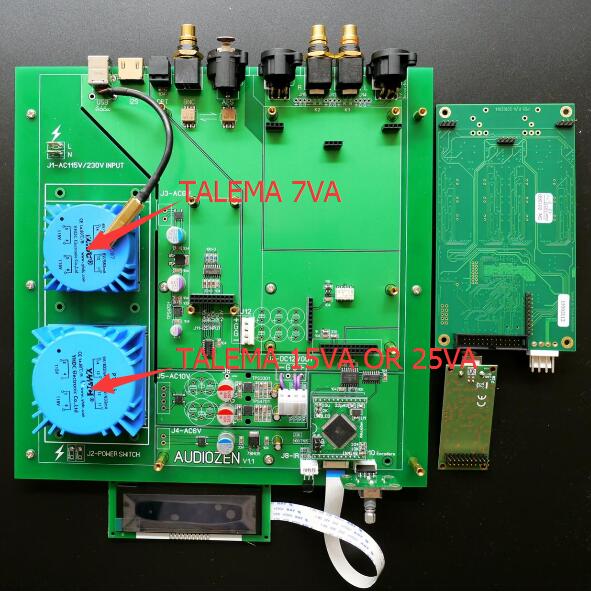

Transformer choice
Talema 7va dual 7v AC
Talema 15va or 25va ，If you supply dam1021 with DC, you can choose dual 12v ac output. If you supply dam1021 with AC, you can choose dual 7v ac output.



[audiozen]

I actually sent a message a week ago requesting 1 SK Lite but haven't heard back.

Sorry，I did not receive your PM, please see your PM.



[dabore84]

I have ordered the OLED setup, dam1021 and usb amarello.
So all I need to get is a trafo, regulator and a usb to serial cable?



[wcwc]

I have the Nordmundss input and switch boards. I haven't installed them yet, but the full version seems to duplicate much of the functionality. The Lite version looks interesting, but would be adding a nicer screen and remote capability to the DAC. Makes the other switch board unnecessary. I was going to do the volume control in a preamp. So I guess I am just debating if I want a screen to indicate the input and switch filters and remote controllability.

Would the Lite version work to control the inputs on my input board? Including the switching between I2S inputs; Raspberry Pi and USB in my case?



[audiozen]

I have ordered the OLED setup, dam1021 and usb amarello.
So all I need to get is a trafo, regulator and a usb to serial cable?

The transformers are needed, and the regulator and usb to rs232 cable are not necessary. Unless you want to update your filters and firmware.



[audiozen]

I have the Nordmundss input and switch boards. I haven't installed them yet, but the full version seems to duplicate much of the functionality. The Lite version looks interesting, but would be adding a nicer screen and remote capability to the DAC. Makes the other switch board unnecessary. I was going to do the volume control in a preamp. So I guess I am just debating if I want a screen to indicate the input and switch filters and remote controllability.

Would the Lite version work to control the inputs on my input board? Including the switching between I2S inputs; Raspberry Pi and USB in my case?

AZ1021 SK Llte input options can only be switched between auto/spdif1/spdif2/iis.Lite can't control other input boards.What you need is a multi-channel iis switcher.



[SilentGrace]

I have ordered the OLED setup, dam1021 and usb amarello.
So all I need to get is a trafo, regulator and a usb to serial cable?

if you ordered the SK,you just need Transformer and IR remote,the SK include the RE



[dabore84]

if you ordered the SK,you just need Transformer and IR remote,the SK include the RE

Yes, I have ordered the SK. Reading first post you are right, I don't need the voltage regulator (number 13 in first post).



[audiozen]

Hello-

I have 4 soekris original dac boards I bought to set up a 4 way system. Are your kits adaptable to such a set up? Thanks....

Hi，AZ1021 SK Kite can control muli dam1021，4pcs is OK. AZ1021 SK was designed for only 1 pcs dam1021. BR,Leon

Thanks for your reply. Do I need more than one SK lite to control the 4 dac boards?

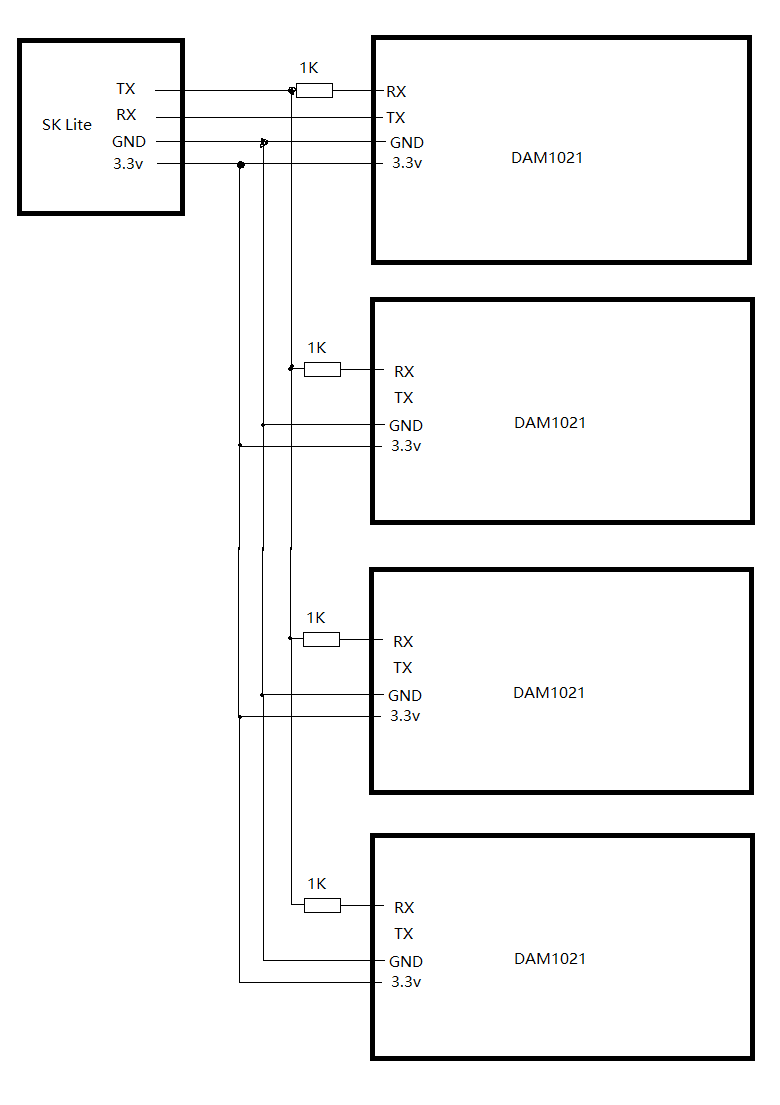

In theory, only a set of Lite will be needed, and the wiring diagram is illustrated. But we didn't take four dam1021 for the tests at the same time.



[audiozen]

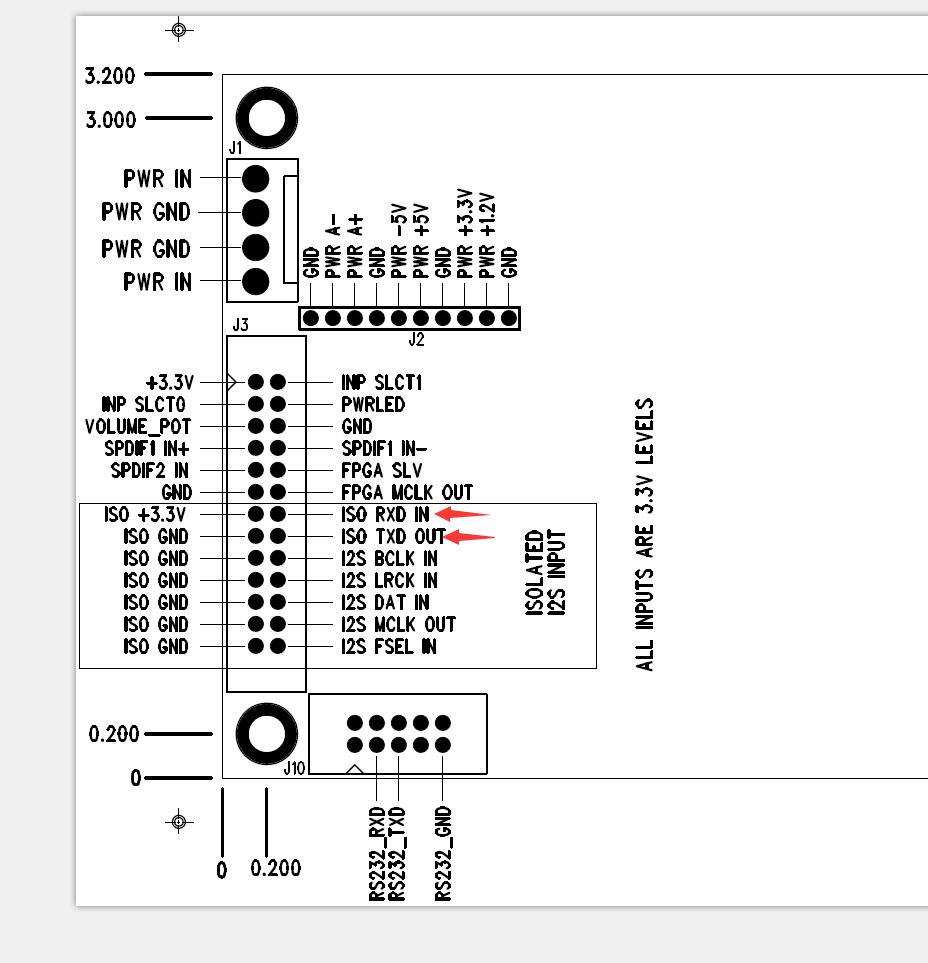

To emphasize, the serial port must connect J3 of dam1021, not the J10. It's very important, or it could damage the chip!!!



[audiozen]

update

Where the E-package is not covered, shipping this week. Europe and North America will be delivered next Monday or Tuesday. The tracking number will be update. Please don't worry.😀
