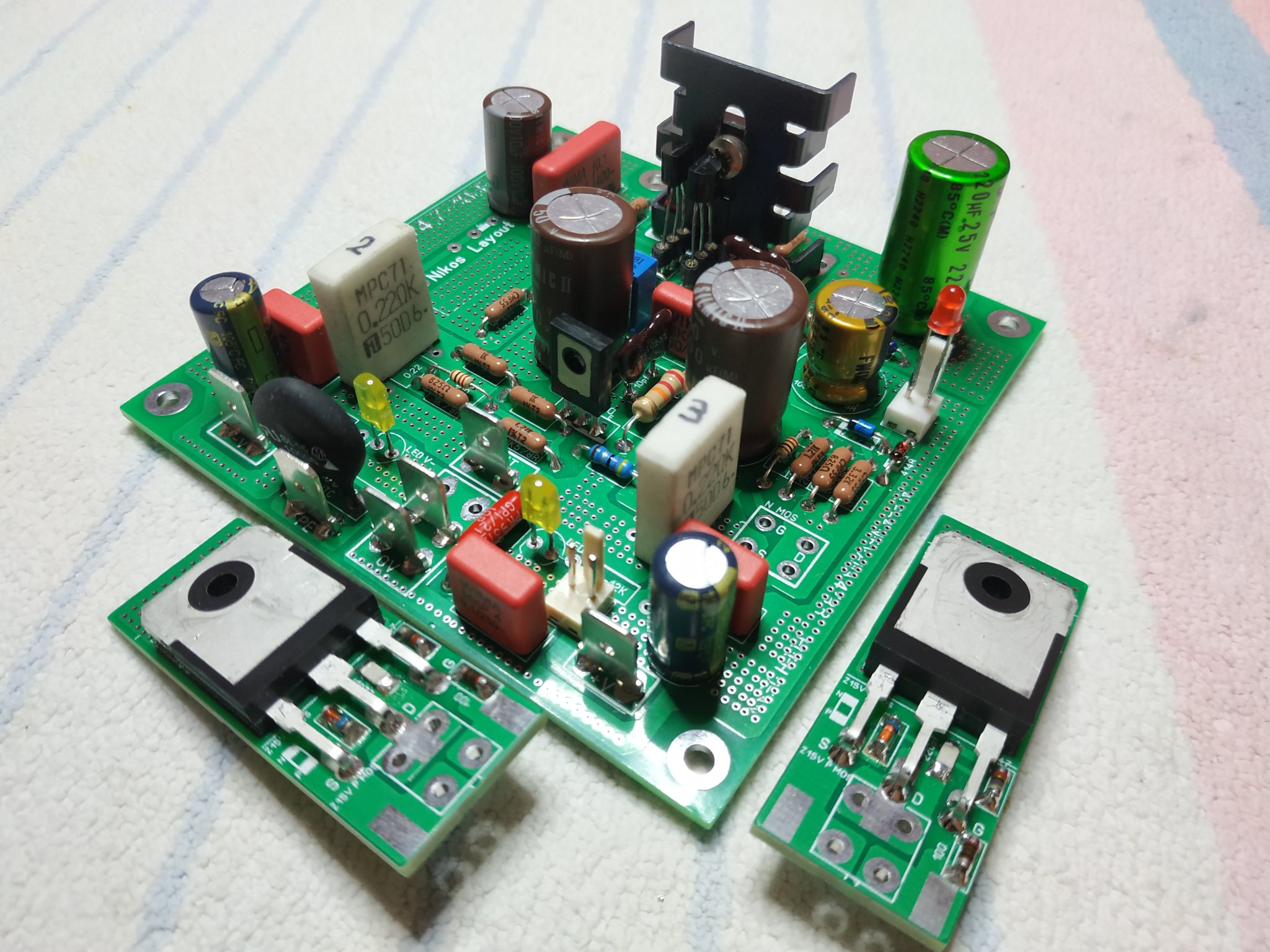

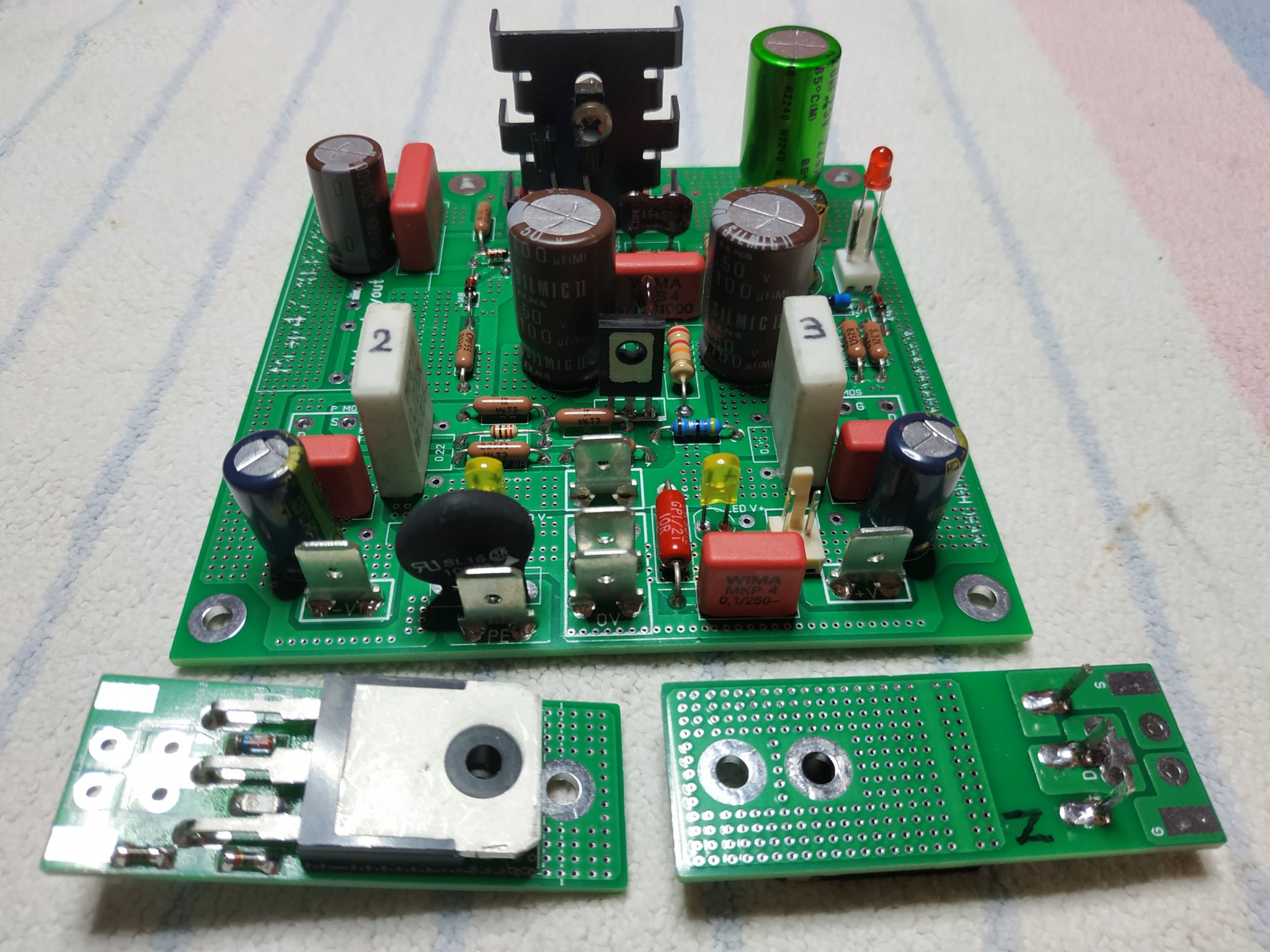

The journey of building my AN39 amplifier is over, everything went wonderfully.
I would like to give the opportunity to those who want to build this amplifier the rest of the mine boards are available.

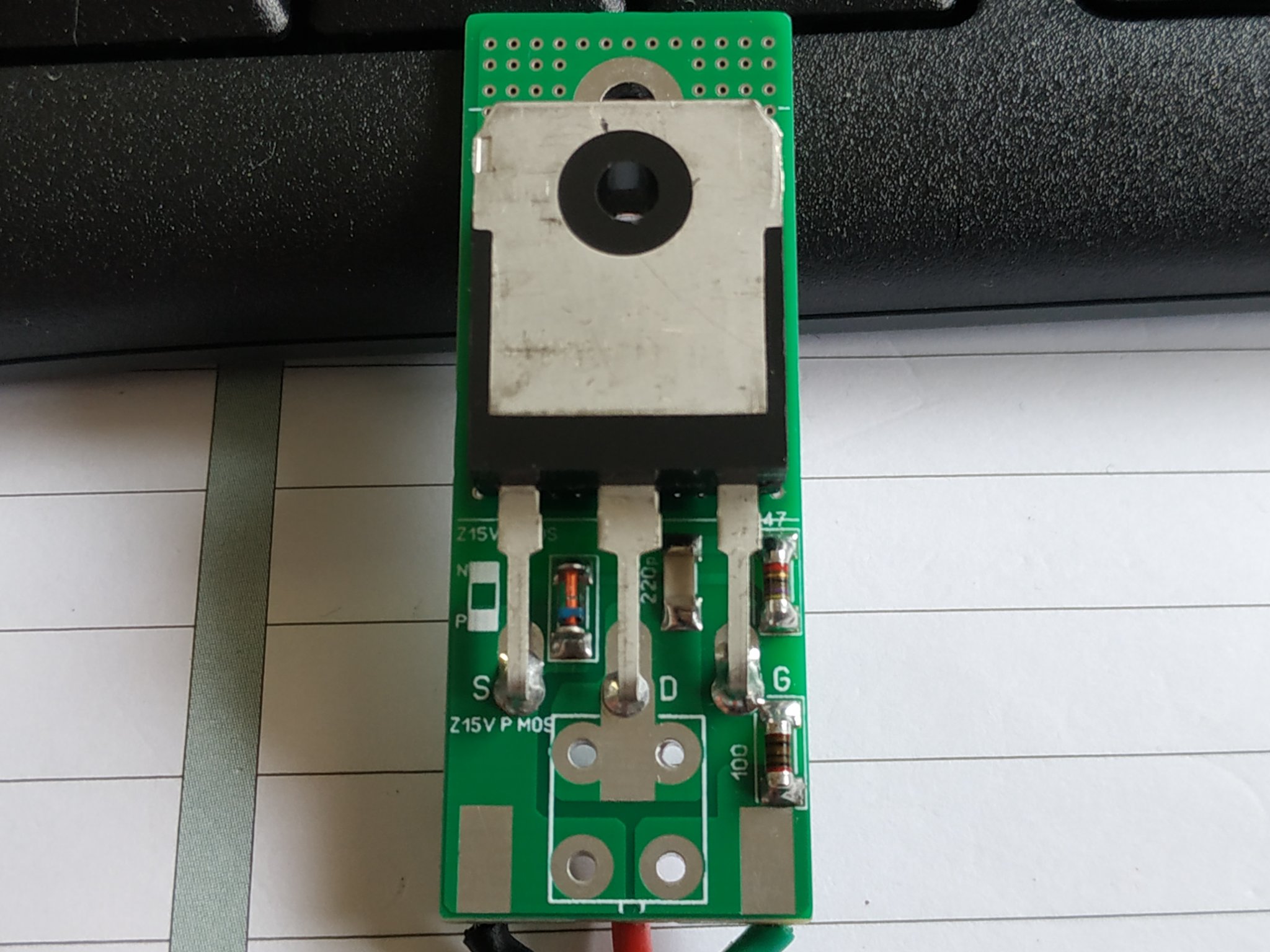

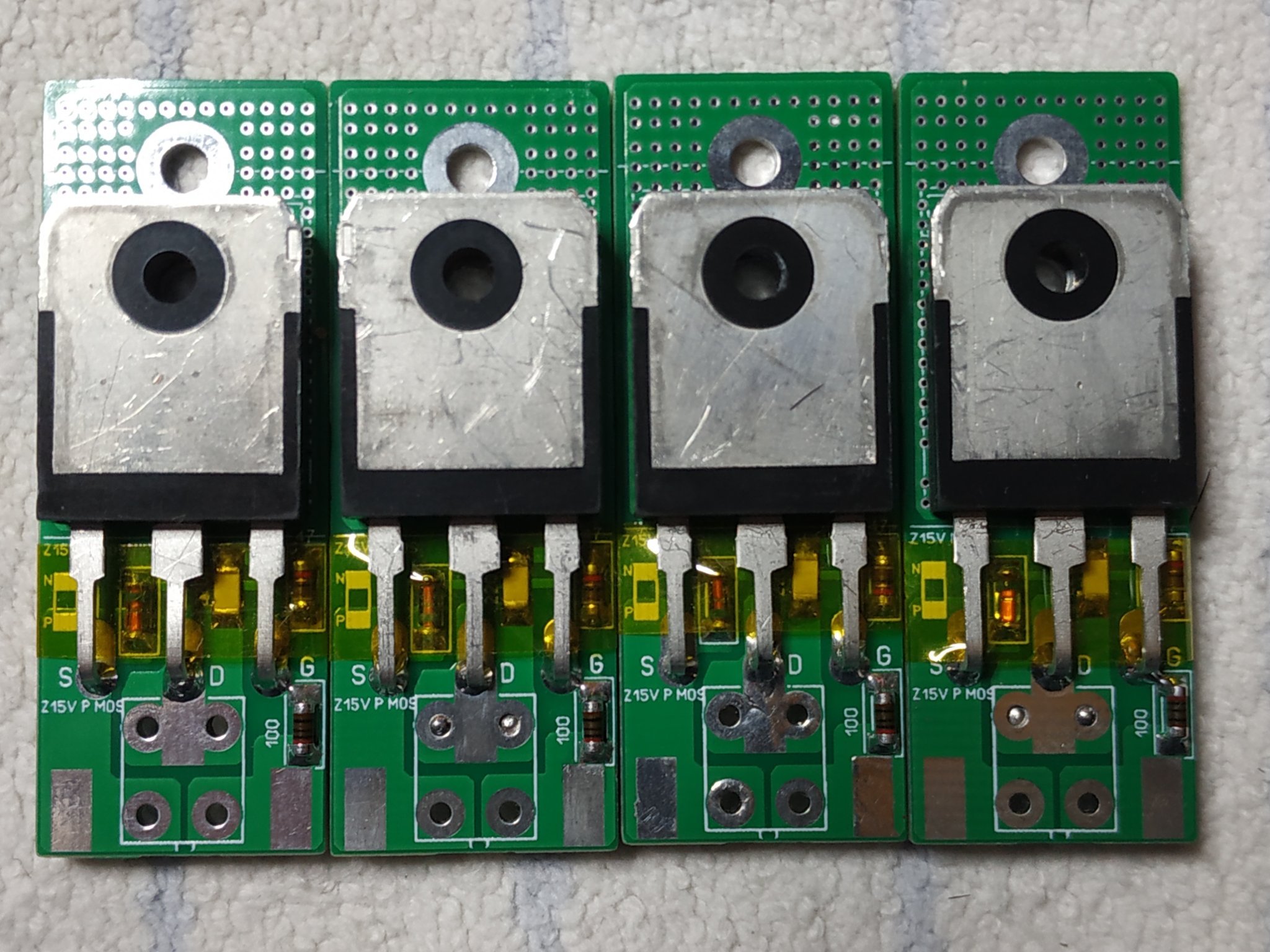

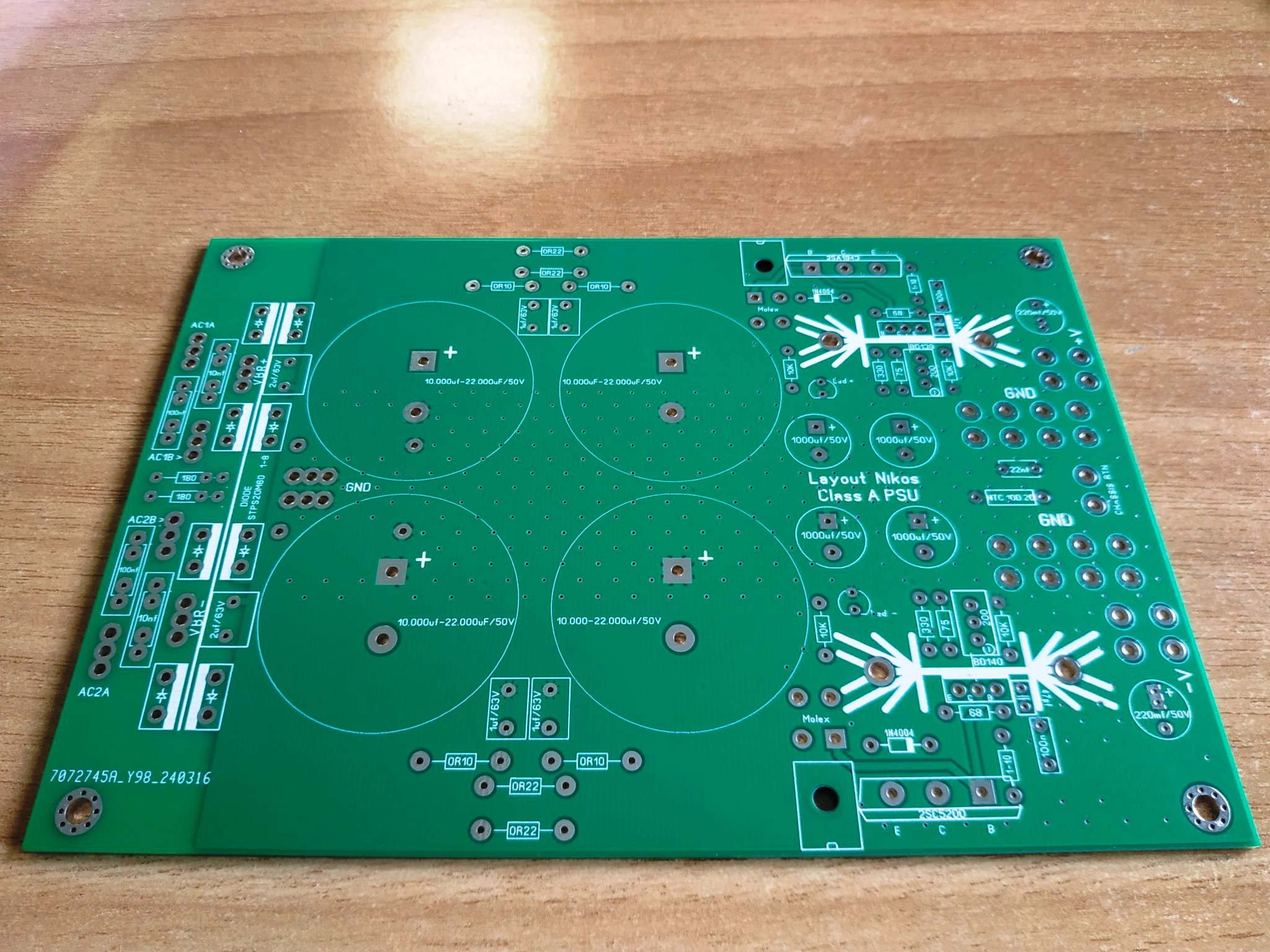

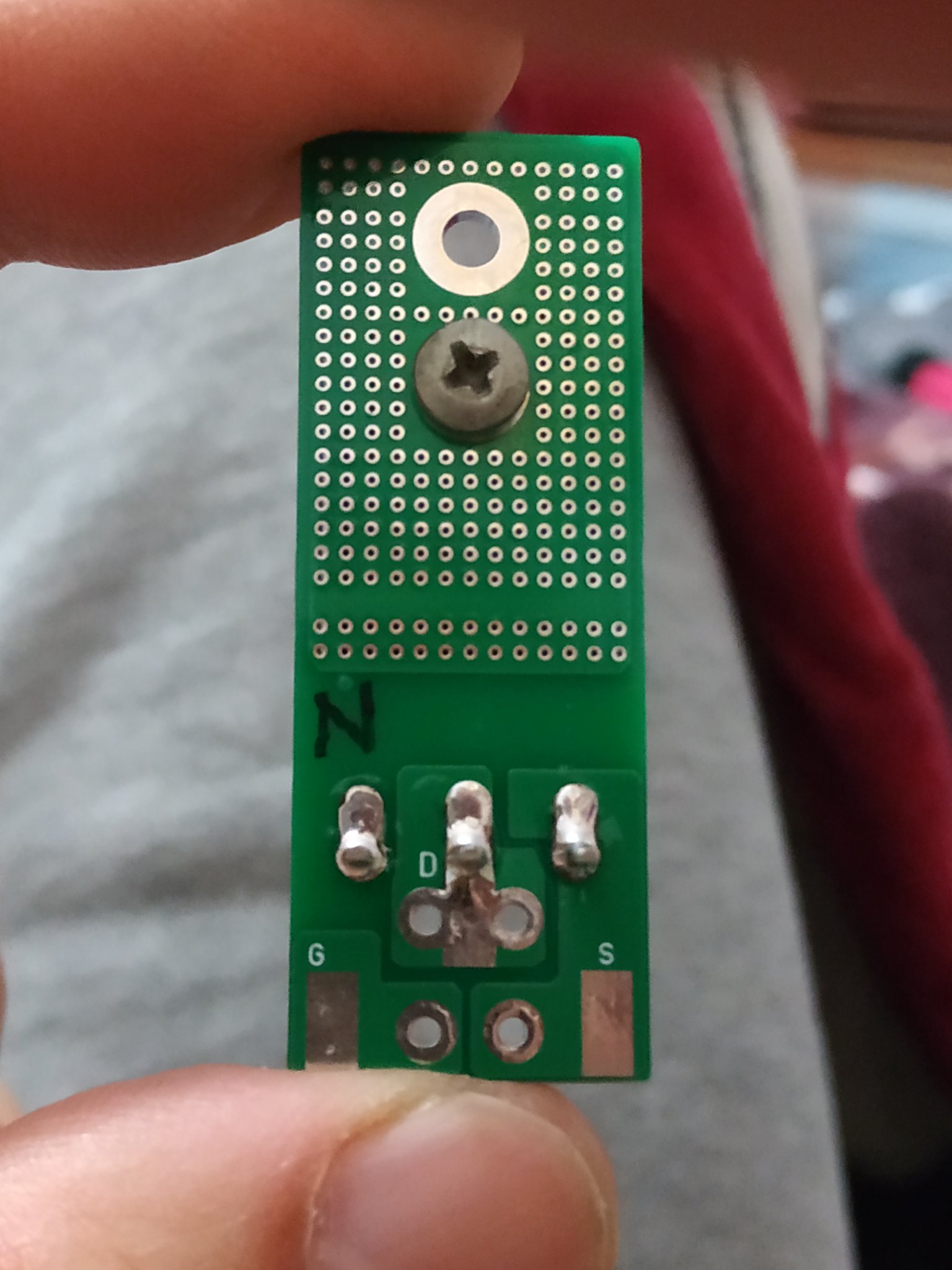

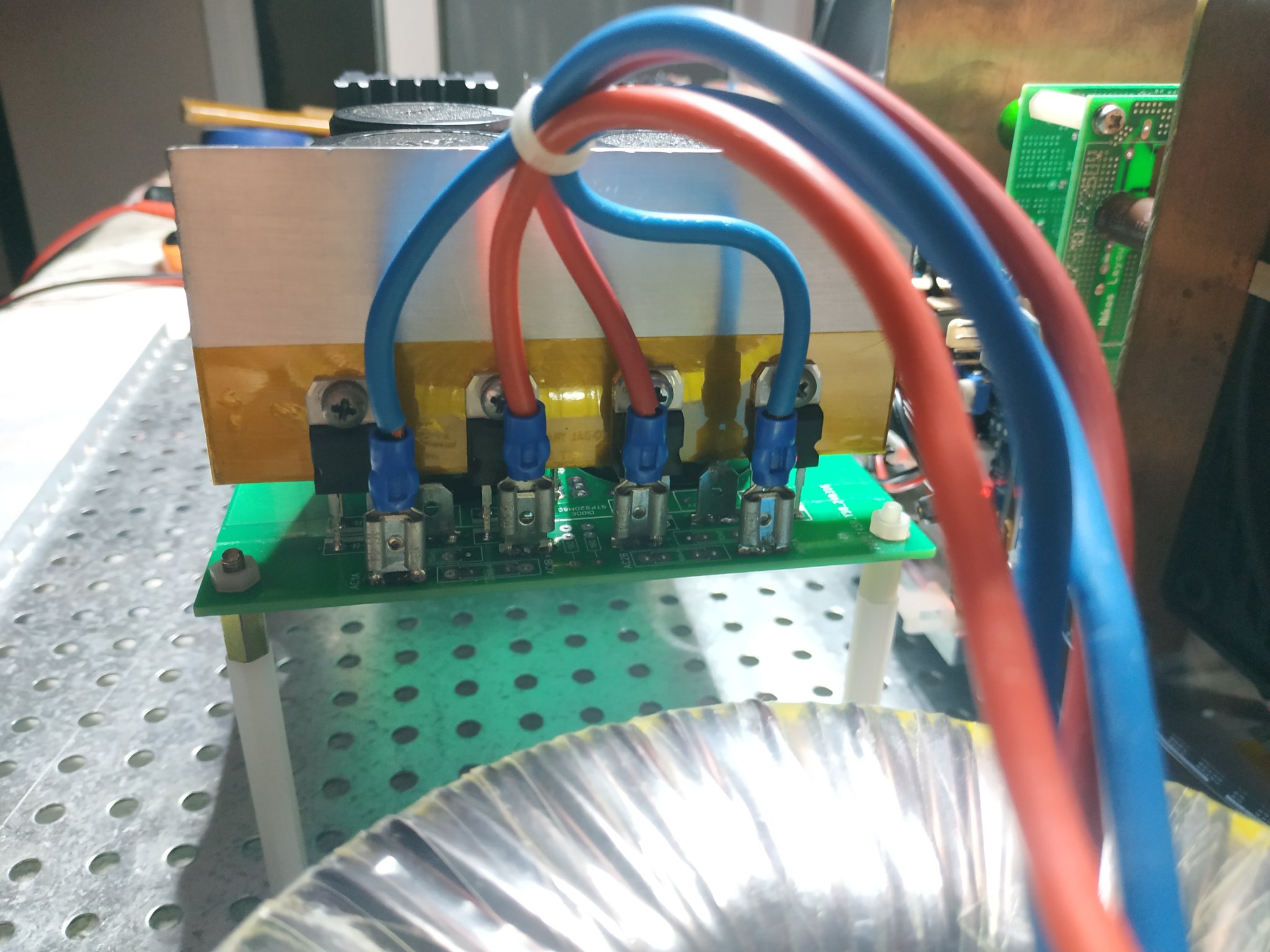

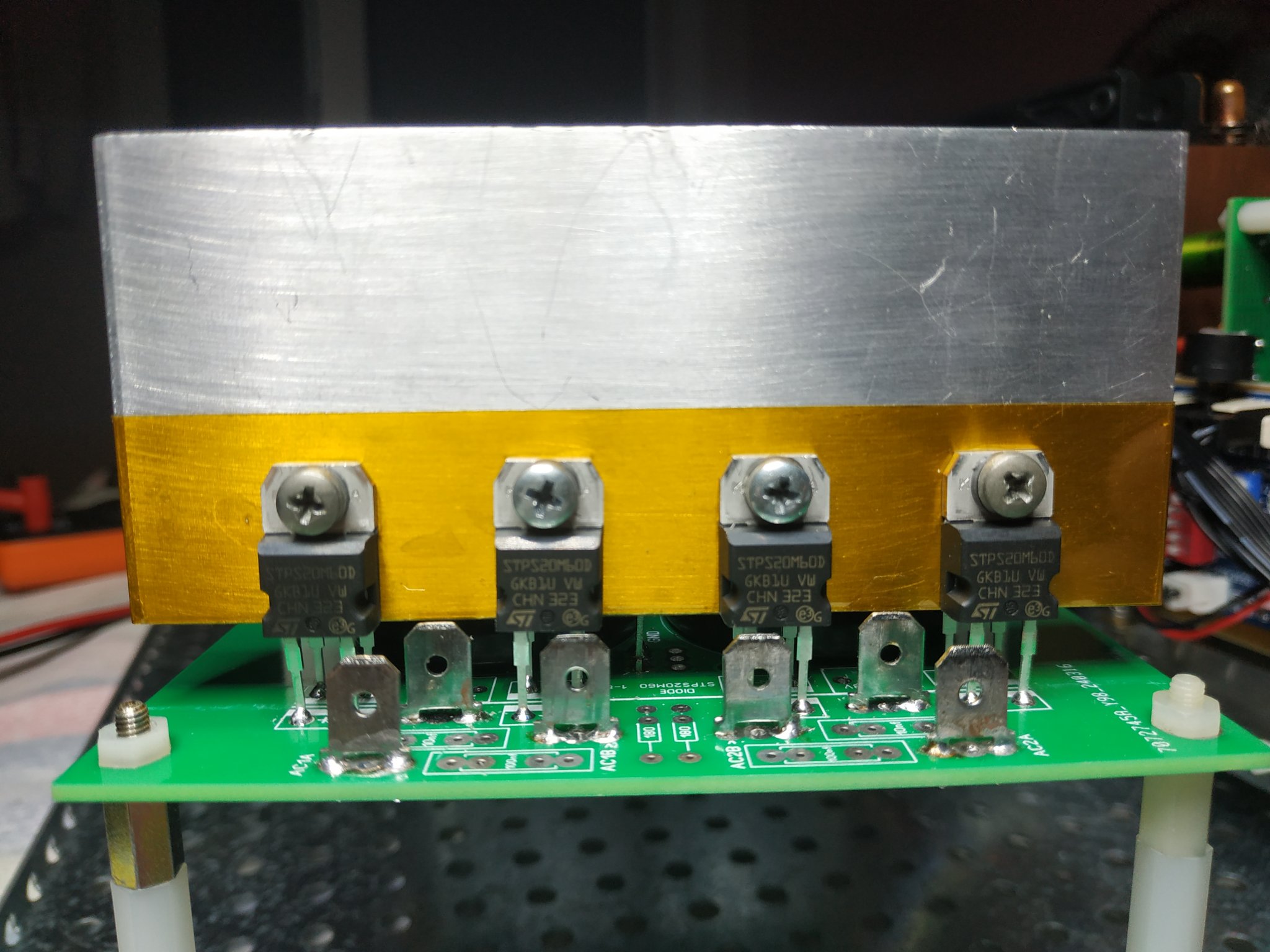

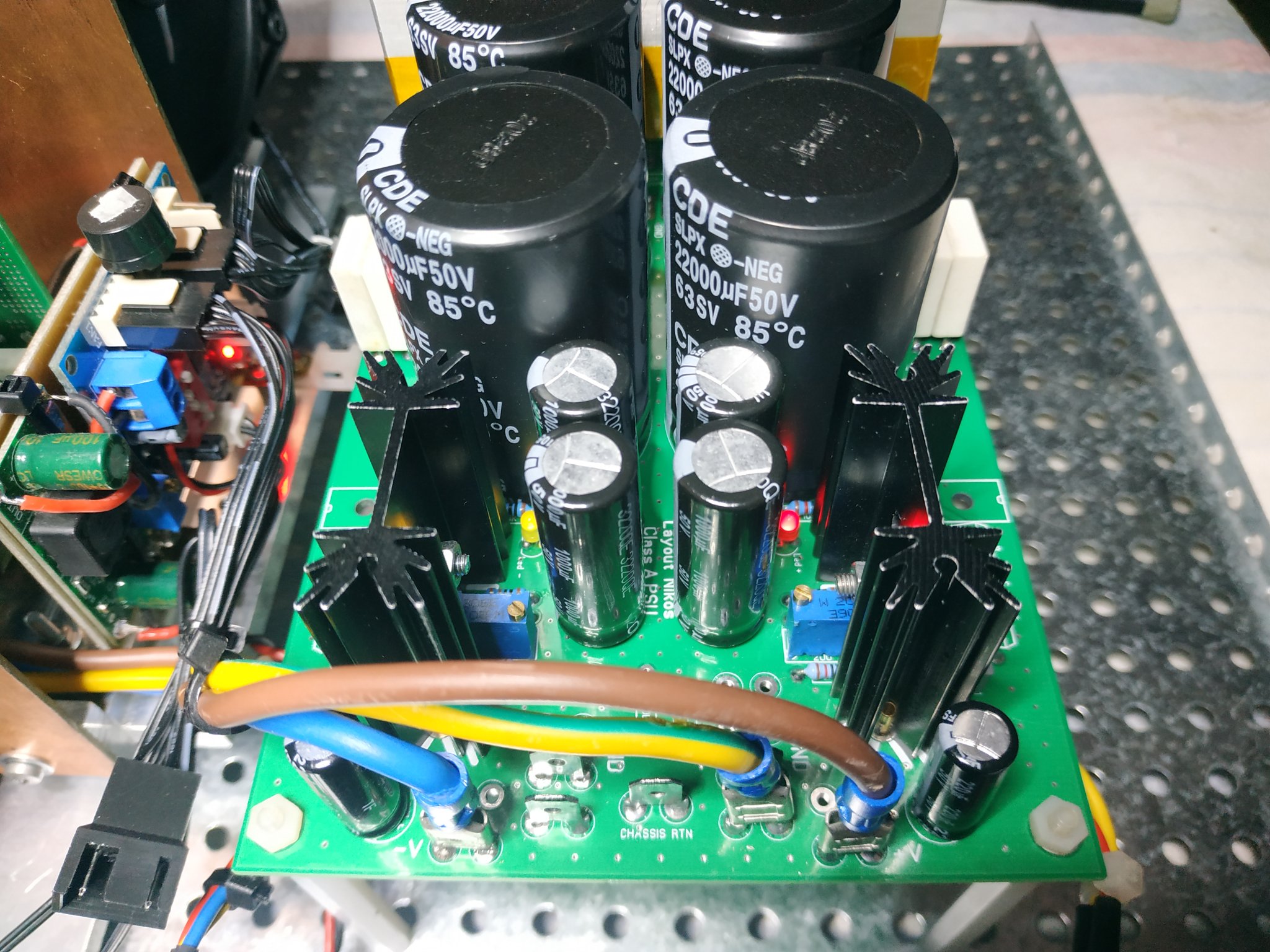

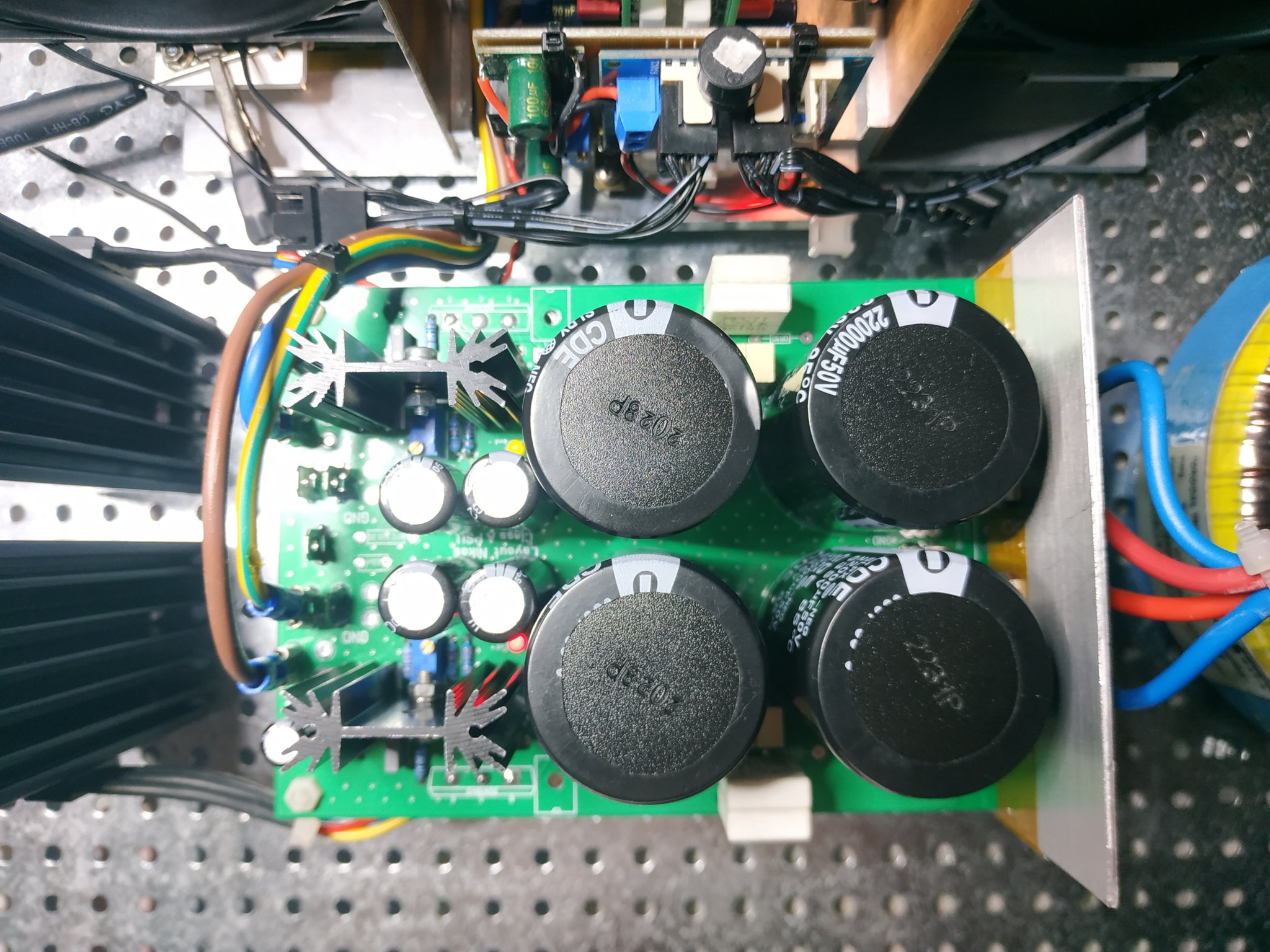

Also power supply boards class A with classic rectifier diodes STPS20M60D and Cap multiplier to reduce cost relative to LT4320 .The ripple at 2.6A its about 1-3mv
Pm please .
