Dear DIY'ers

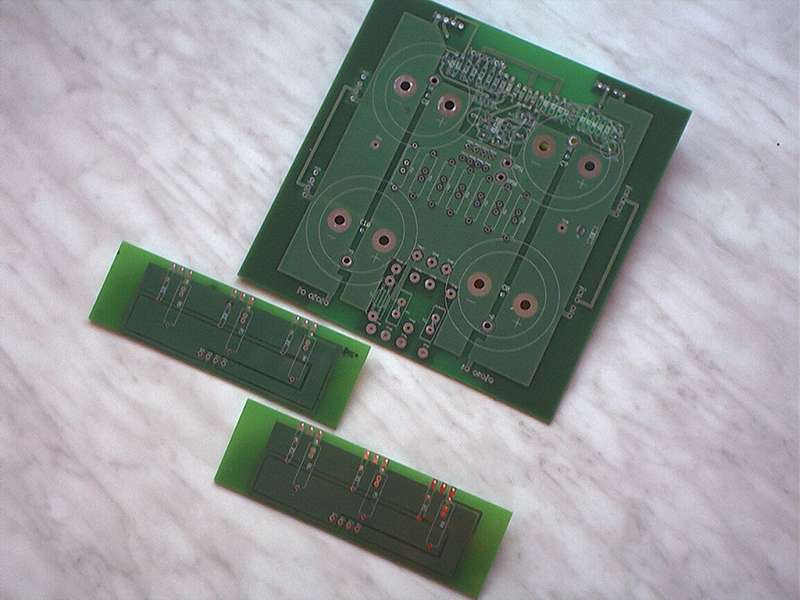

Recently I've designed PCB's for my aleph 1.2 project. As I have mentioned earlier on this forum, these are for sale. These boards can be used for any type of Aleph and are of high quality.
Check out the picture and send me an email if you're interested.
Xcel
Recently I've designed PCB's for my aleph 1.2 project. As I have mentioned earlier on this forum, these are for sale. These boards can be used for any type of Aleph and are of high quality.
Check out the picture and send me an email if you're interested.
Xcel
xcel,
Where is the picture you refer to?
What country are you in?
How much do you think you might charge? (I guess I could email you for this)
How many do you have?
Where is the picture you refer to?
What country are you in?
How much do you think you might charge? (I guess I could email you for this)
How many do you have?
paulb said:
The picture got lost somewhere, I've asked the webmaster to investigate.
I'm located in the Netherlands.
Kinda depends on the amount of interest shown from inside the DIY-community, I will elaborate on this matter in a couple of days.
As many as you want basically...
Xcel
xcel I live in Germany. I am also very interested in a pair of boards also. I would really like to see some pics of them. Please concider making more and selling. How much do you want for a pair of them ?
Greetings Promitheus
Greetings Promitheus
Dear DIY'ers
For people who are interested in the PCB's mentioned above, they're now on display at the following link;
http://members.tripodnet.nl/xcel/AlephProject/index.html
If you have any questions, do not hesitate to contact me.
Seasons Greetings,
Xcel
For people who are interested in the PCB's mentioned above, they're now on display at the following link;
http://members.tripodnet.nl/xcel/AlephProject/index.html
If you have any questions, do not hesitate to contact me.
Seasons Greetings,
Xcel
Only the picture of finish product...
Hi xcel,
Your link only shown your finish product, are you selling the PCB or the completely build Aleph 4?
By the way, I am in US, do you received many request for purhase in US? I am interesed to buy the PCB as well. Does your PCB has silk screen and plated thru hole?
Hi xcel,
Your link only shown your finish product, are you selling the PCB or the completely build Aleph 4?
By the way, I am in US, do you received many request for purhase in US? I am interesed to buy the PCB as well. Does your PCB has silk screen and plated thru hole?
Dear Roanldko
I do not sell complete Aleph's, that would be a violation of Nelson's patent. I certainly don't want sell complete kits either.
What I do sell are the PCB's, which are plated through and have silkscreens (see the pictures on my site, page 2 & 3).
I get requests from around the world, USA included.
Seasons greetings,
Xcel
I do not sell complete Aleph's, that would be a violation of Nelson's patent. I certainly don't want sell complete kits either.
What I do sell are the PCB's, which are plated through and have silkscreens (see the pictures on my site, page 2 & 3).
I get requests from around the world, USA included.
Seasons greetings,
Xcel
Dear promitheus,
Don't know for sure but 50 micron is a minimum in the PCB industry. Let me check that for you with my supplier. To avoid this problem I've made very wide traces (>20 mm). I've used this aproach in the past with my previous designs of high power class A amplifiers, and it has always worked fine.
The original boards in the Aleph 1.2 had similar tracewidths (even somewhat smaller, actually) .
Xcel
Don't know for sure but 50 micron is a minimum in the PCB industry. Let me check that for you with my supplier. To avoid this problem I've made very wide traces (>20 mm). I've used this aproach in the past with my previous designs of high power class A amplifiers, and it has always worked fine.
The original boards in the Aleph 1.2 had similar tracewidths (even somewhat smaller, actually) .
Xcel
you cant publish the "original" so one could etch his own boards ....i wounder cuz i would like to redraw some things ...
/micke
/micke
xcel,
nice work, you should definitely come up with a price figure here.
Also, it would be nice if you posted the component list, with the model type especially for components of variable size like caps and resistors. What is the distance center to center between the terminal of the PS capacitors? What is the MAX diameter of the cans one could fit underneath?
nice work, you should definitely come up with a price figure here.
Also, it would be nice if you posted the component list, with the model type especially for components of variable size like caps and resistors. What is the distance center to center between the terminal of the PS capacitors? What is the MAX diameter of the cans one could fit underneath?
grataku said:
Grataku,
Thanks for the compliment ! I"ll send you a price figure. My components are pretty ordinary, and so are their shapes and sizes. I can give you the manufacturers list of all components but that's not really necessary since I've used standard components. The holes in the PCB's are large enough to handle any component from any manufacturer. I don't want to be restricted to just one component supplier, you see. What I can tell you is that I use components from Philips (capacitors, diodes and resistors), MOSFET's from International Rectifier (IRF), Siemens (capacitors,NTC's).
The mounting holes for the capacitors are 30 mm apart, measured from centre-to-centre. The diameter of the holes are 6 mm, because of the fact that the screws are M5. My capacitors are 65 mm (diameter)x105 mm (height). They don't make 'm much larger than this. But to answer your question, the maximum diameter of a capacitor for this board can be 90 mm !!
Seasons Greetings,
Xcel
hifi said:
I certainly have no intention to publish my boardlayout. It would be useless because of the double sided nature of the main board.
Xcel
