Akai AA-1030 schematic?

[TomWaits]

Hi folks,

I just picked up a very good condition Akai AA-1030 receiver and Akai SW-156 speakers. Does anybody have a schematic for the amp? I got the lot with an old tape deck for $20 from the original owner.

Cheers,

Shawn.



[TomWaits]

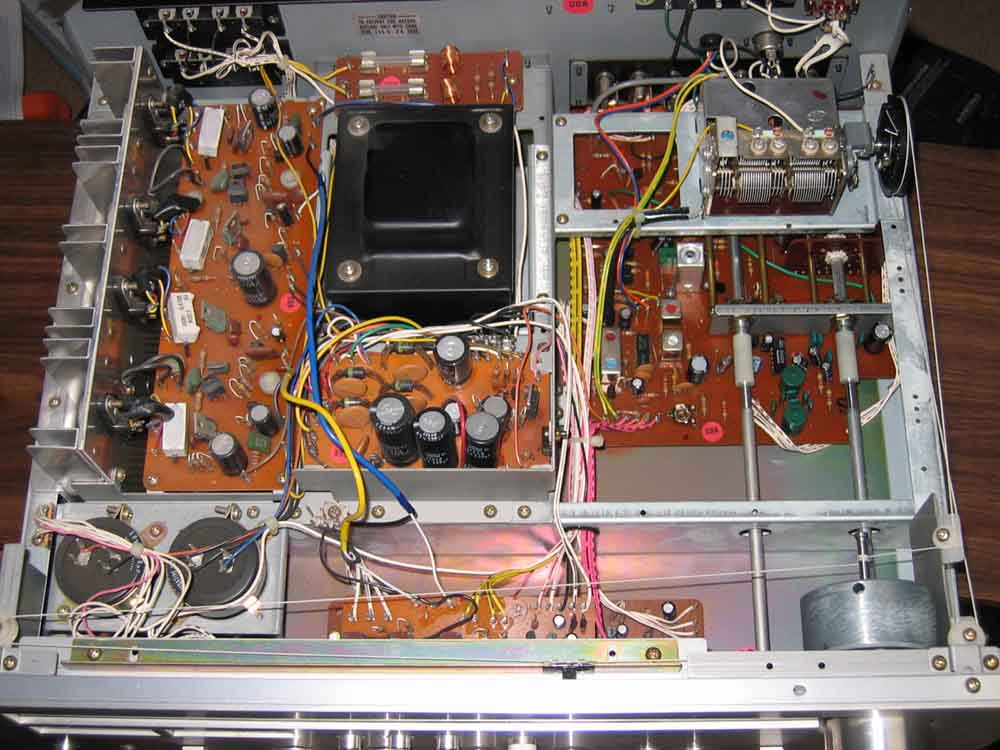

Inside

Top off. Every section has it's own pcb, cool.



[anderssondenniz]

Akai AA-1030

I also need a schematic or service manual to Akai AA-1030.
If anybody have and can send it to my e-mail I’m be happy.
The receiver doesn’t work so I need to reaper it.

/Denniz Andersson
