M mallikreddyk Member Joined 2017 2020-05-09 6:58 pm #21 2020-05-09 6:58 pm #21 Attaching the updated schematic, and full PCB package, My first attempt at making a PCB. Please review and suggest. Attachments PCB_Trace_non filled.png 113.6 KB · Views: 100 PCB_Trace.png 134.1 KB · Views: 105 PCB_3D.png 182.1 KB · Views: 98 Active_xover_05092020.zip Active_xover_05092020.zip 415.8 KB · Views: 65 Active_Xover.pdf Active_Xover.pdf 269.7 KB · Views: 91 T tcpip Member Joined 2003 tcpip.dhandanought.org/ 2020-05-10 2:05 am #22 2020-05-10 2:05 am #22 Won't the PCB need mounting holes? A PCB of this size may in fact need more than 4. And diyaudio.com is partial to a grid of 10mm square for positioning these holes, BTW. Not that your layout has to conform. Prev 1 2 First Prev 2 of 2 Go to page Go You must log in or register to reply here.

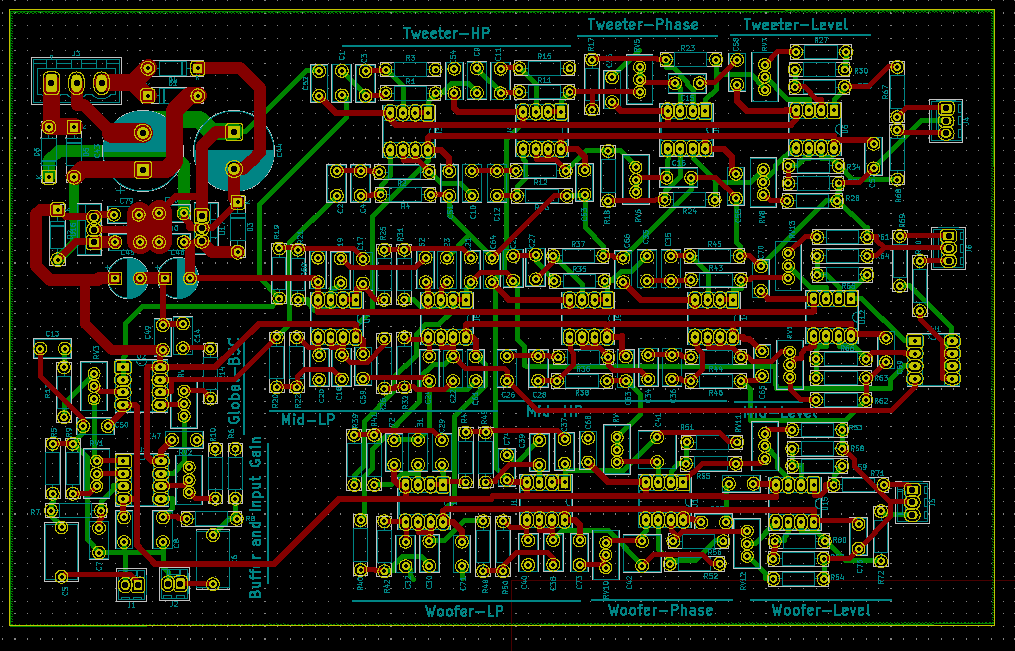

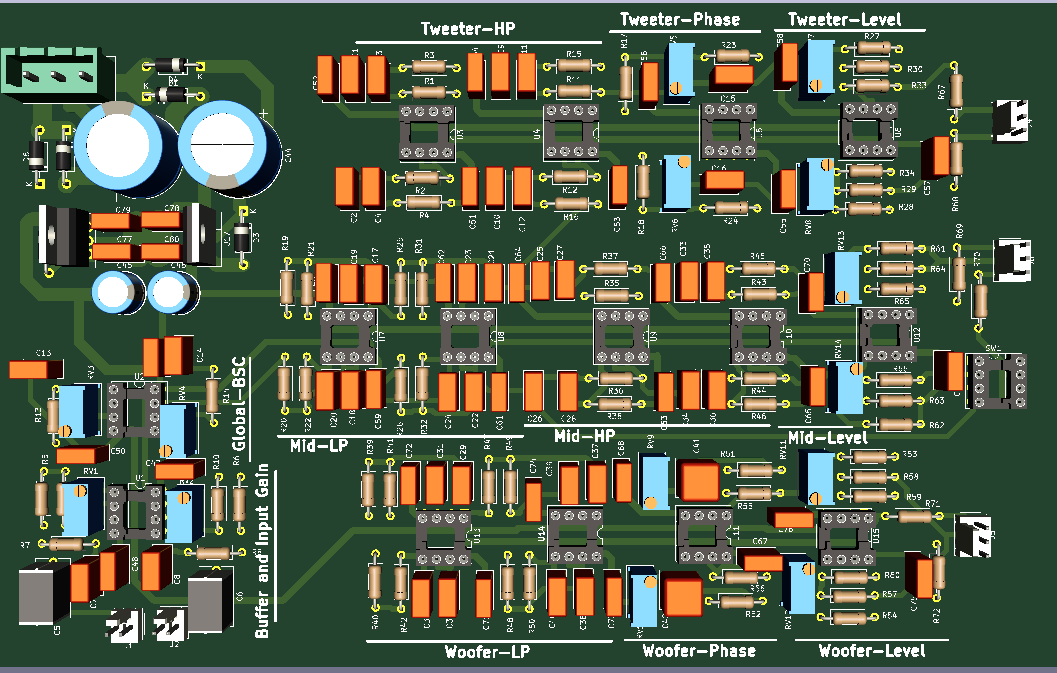

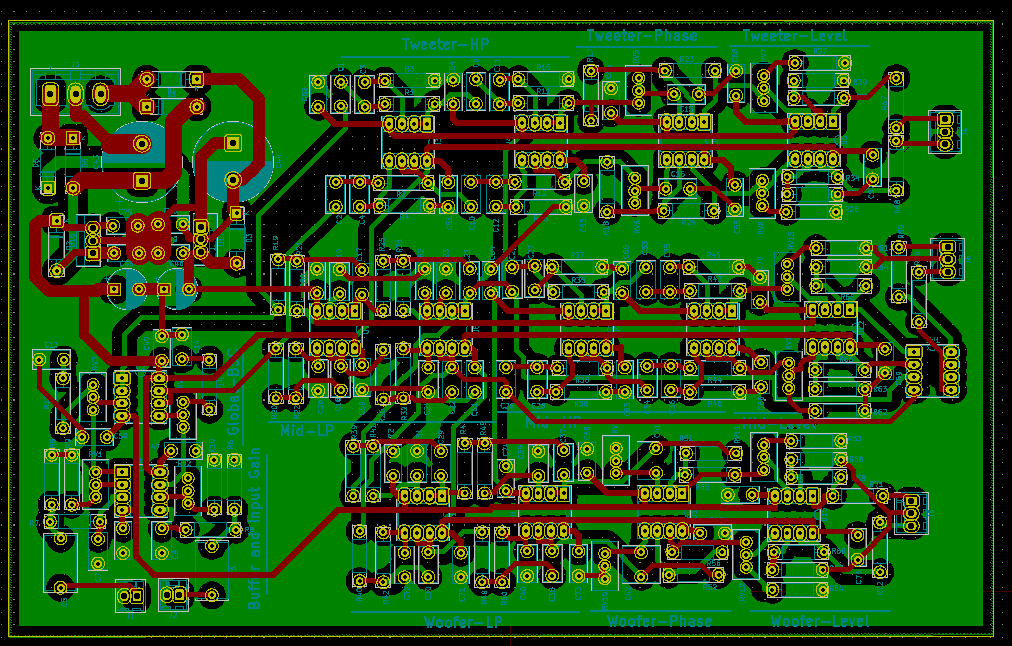

Attaching the updated schematic, and full PCB package, My first attempt at making a PCB. Please review and suggest.
T tcpip Member Joined 2003 tcpip.dhandanought.org/ 2020-05-10 2:05 am #22 2020-05-10 2:05 am #22 Won't the PCB need mounting holes? A PCB of this size may in fact need more than 4. And diyaudio.com is partial to a grid of 10mm square for positioning these holes, BTW. Not that your layout has to conform.
Won't the PCB need mounting holes? A PCB of this size may in fact need more than 4. And diyaudio.com is partial to a grid of 10mm square for positioning these holes, BTW. Not that your layout has to conform.
