I have made a 4 channel audio selector with Amplifier Power Switch using icro controller (89C51) there are three modules,
1.Controller module with connectors for front panel
2. Front Panel Module with LCD,Buttons, LED.
3. Audio Selector Board with relay, uses 4 pole relay to independently switch audio channels and ground (common ground return not used).
Controller module will have memory, last selected channel will be saved, next time when its switched on.
Additional feature Amplifier Power On/Off control using micro push button on panel (will drive 35A Relay).
Will post the schematic and images once work is completed.
I have made a 4 channel audio selector with Amplifier Power Switch using icro controller (89C51) there are three modules,
1.Controller module with connectors for front panel
2. Front Panel Module with LCD,Buttons, LED.
3. Audio Selector Board with relay, uses 4 pole relay to independently switch audio channels and ground (common ground return not used).
Controller module will have memory, last selected channel will be saved, next time when its switched on.
Additional feature Amplifier Power On/Off control using micro push button on panel (will drive 35A Relay).
Will post the schematic and images once work is completed.
Posting completed PCB artwork, firmware will be ready on next 7 to 10 days
Modular circuits , it can be used in combination with other circuits.
Control Board (micro controller board)
Uses 89C51, heart of circuit has connector for push buttons, LCD, ports to connect other modules, Power supply on/of .
Front Panel
Push buttons and 3 led's connected to control board(third one connected to 5vdc)
4 channel Relay Board, 4 pole relay to switch Left,Right and ground.
Common return ground is not used, additional mute relay (used during power on/off , and channel change) separate ground connection from amp for mute.
Relay board can be used with other circuits also, 5VDC relay are driven by ULN2003
Prototype likely to be ready during first week of march.
PCB Gerber files will made available for download. (with out firmware)
Images Below:
Modular circuits , it can be used in combination with other circuits.

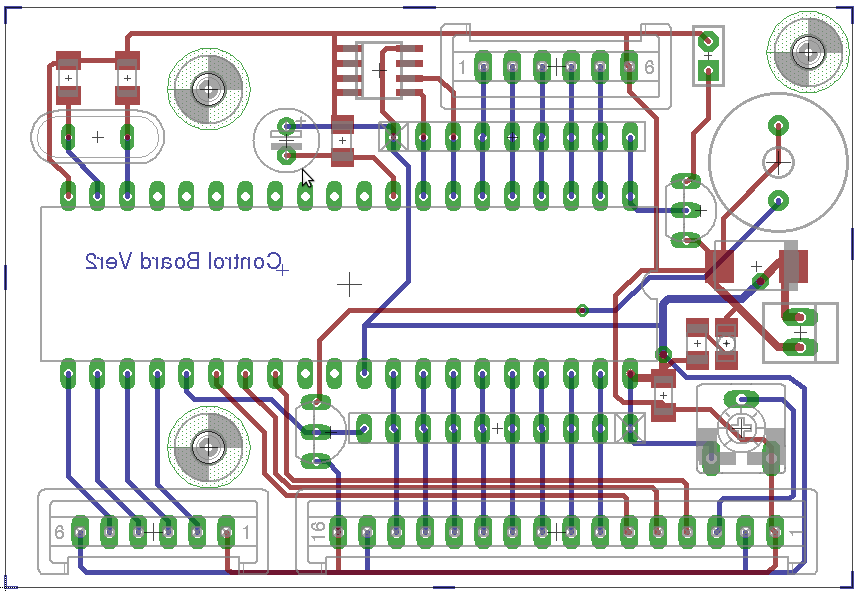

Control Board (micro controller board)
Uses 89C51, heart of circuit has connector for push buttons, LCD, ports to connect other modules, Power supply on/of .

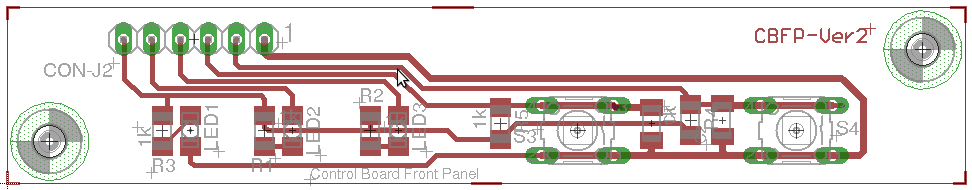

Front Panel
Push buttons and 3 led's connected to control board(third one connected to 5vdc)
4 channel Relay Board, 4 pole relay to switch Left,Right and ground.
Common return ground is not used, additional mute relay (used during power on/off , and channel change) separate ground connection from amp for mute.
Relay board can be used with other circuits also, 5VDC relay are driven by ULN2003
Prototype likely to be ready during first week of march.
PCB Gerber files will made available for download. (with out firmware)
