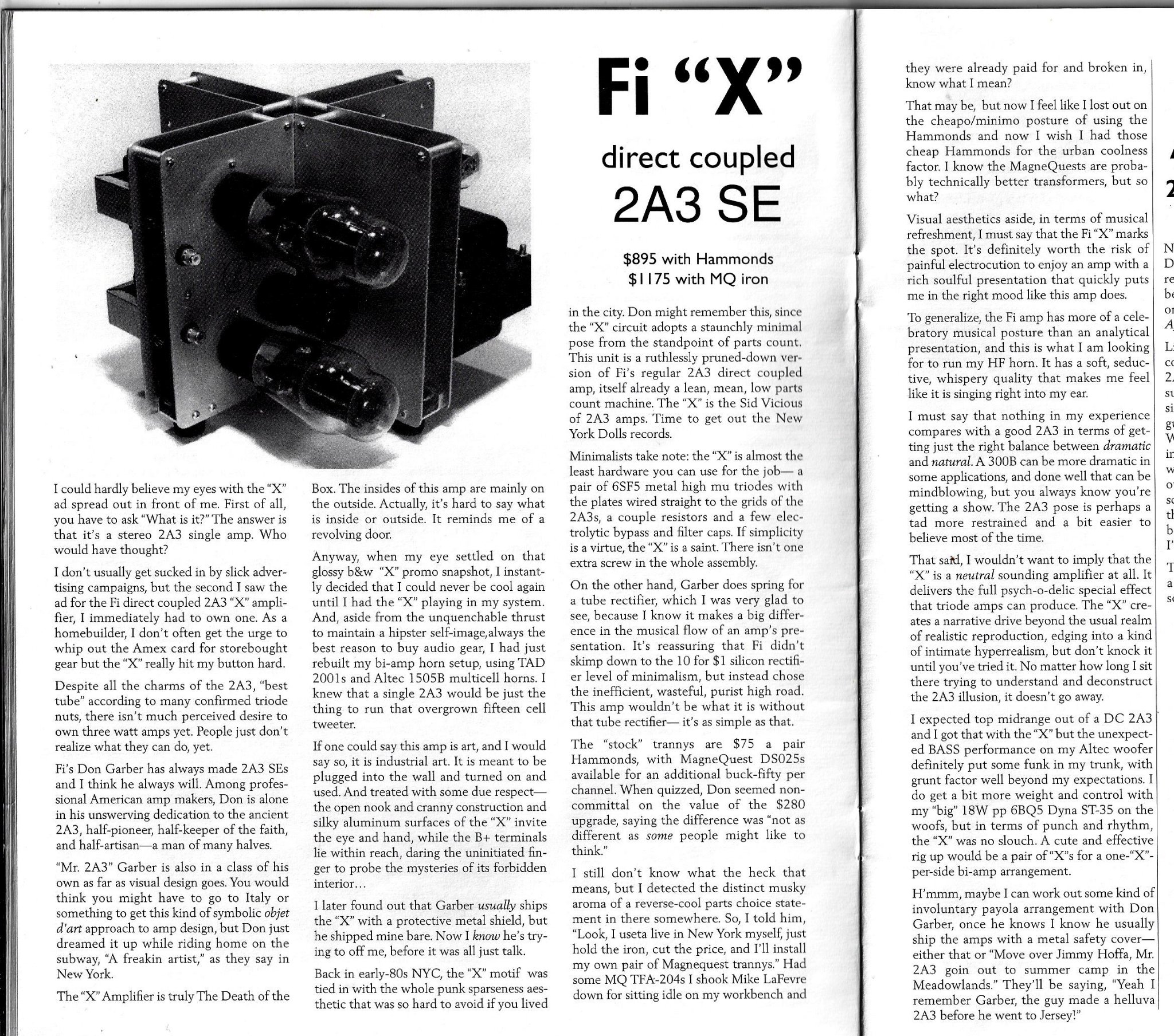

2A3 SE DC Amp Built in Cruciform Style

[jhstewart9]

The amp circuit has been built many times by many people
But this one is for appearance.🙂🙂



[kmtang]

It looks great but not practical at all. It is a lot better to build in conventional style.



[planet10]

From someone that worked on one of these — not well executed by his evaluation.

dave



[jhstewart9]

Your comments are all too true. But that is not the objective here.
Appearance is the key. As it often is here on DIY.

Any circuit that could be fitted into the space is possible.
And some of us will always try for something bazaar.
And different from the 'Plain Jane'. 🙂 🙂



[jhstewart9]

From someone that worked on one of these — not well executed by his evaluation.[/SIZE]

Thx for the link. But I see all of the material covers primarily loudspeakers & enclosures.
I thought from your response you had actually worked on one of amplifiers referred to in this thread.
Maybe not. 🙂



[hooman]

do you have schematic?



[bondini]

At post #8, diyaudio member bigun provided a schematic: https://www.diyaudio.com/community/threads/shishido-2a3-resistor-purpose.353882/#post-6189962
