100W + 100W amp to share

From posting #5:
THD and square wave response at 1KHz.
That's not a square wave - that's the output of a sound card band-limited to 20kHz or so.

For square wave stability test its important the test waveform is very square, out to many MHz, so that the slew rate is very high and forces the amp in to slew-rate limiting (and thus testing its ability to recover from this situation gracefully)


Thus posting #20 shows the real issues that #5 didn't.

Yep lesson learnt. Don't use a digital source for this test. The dominate pole is between the gates of the JFETs. Placing it in the usual place betweem the plates often causes slew rate/power limiting in the driver which gives raise to the classic valve fuzz. I hate this. My old K4040 was really bad here. A 10KHz sine wave came out as a triangle.

Last edited:

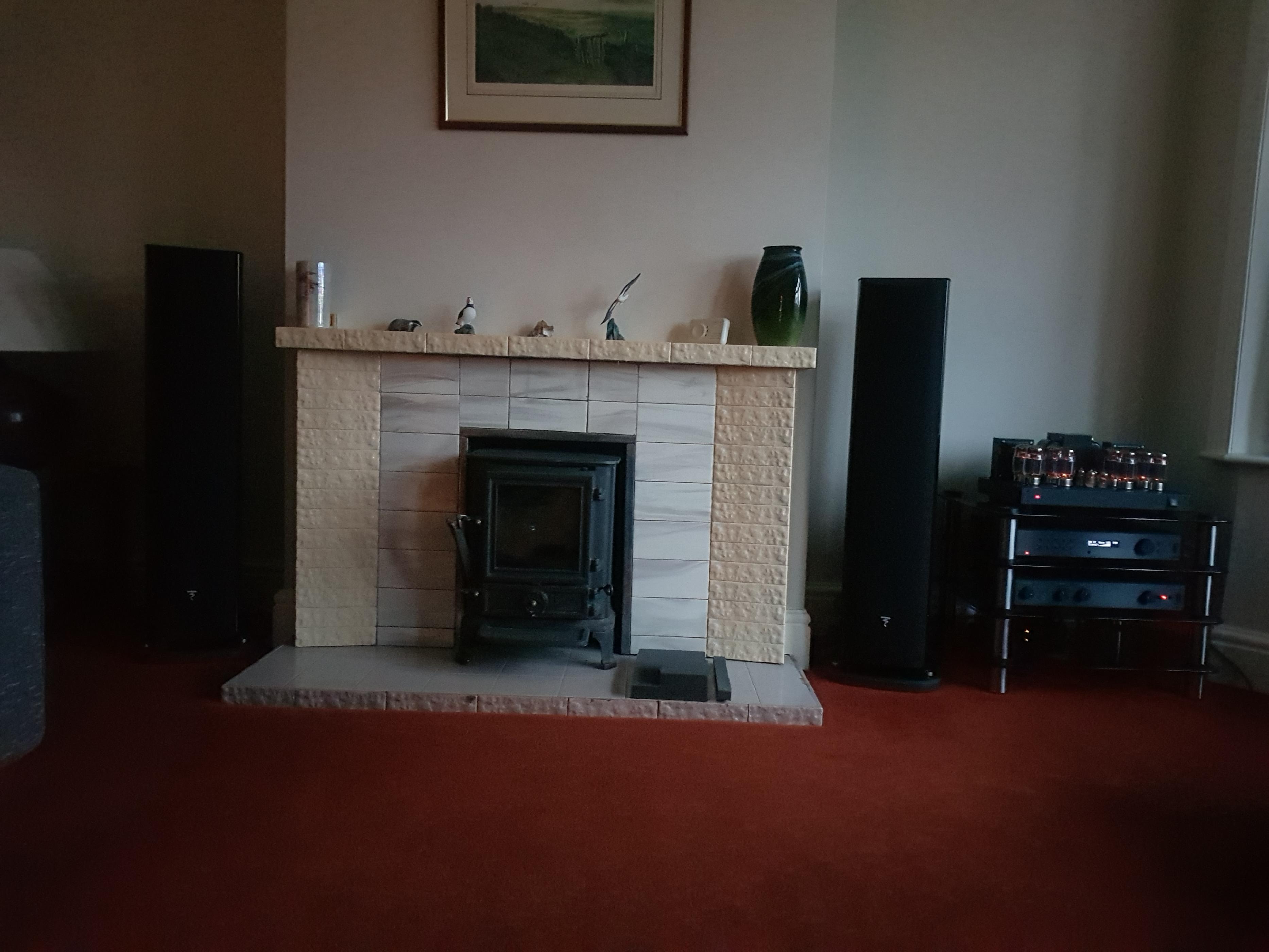

The answer is very neutral, transparent - you would not know you were listening to a valve amp - just works no fuzz or drama.

Thanks, I'm indeed planning to use other njfets as well, considering I don't use gnfb by now, so I don't need too much gain there. U440 wasn't bad at all, and already matched, but I tried it in another configuration and I need to try it again.

C15 is large its 4x470uF for both channels the ltspice is illustration only the PSU board does have bleed and timed HT startup (htdelay.asc). D7 is again to test on simulation that there's no switch off thump with this design. A big reservoir is needed to get the 100Hz intermodulation down when 1KHz tone is applied to -50dB below. They are not that expensive (£5 each). You can look at the size of the HT cap if you replace D7 with two diodes and make V3 two phase AC 50HZ sources to mimic the transformer.

Last edited:
The supply I don't have an actual schematic for. Its based around a 372LX transformer from Hammond. The HT is half bridge rectified to feed the 4x470uF 450V caps. There is a big 2k2 resistor in series to soft start which is shorted out by a 6V relay after about 10s. There is a circuit for this running off the heater supply but you could use a 555 timer. The 372LX generates the negative supply off a half wave rectifier 1000uF@100V cap through a 220R resistor and to a 470uF@100V cap. All these caps are long life high temperature.
