100TH Ep-Ip Curve

Status
This old topic is closed. If you want to reopen this topic, contact a moderator using the "Report Post" button.

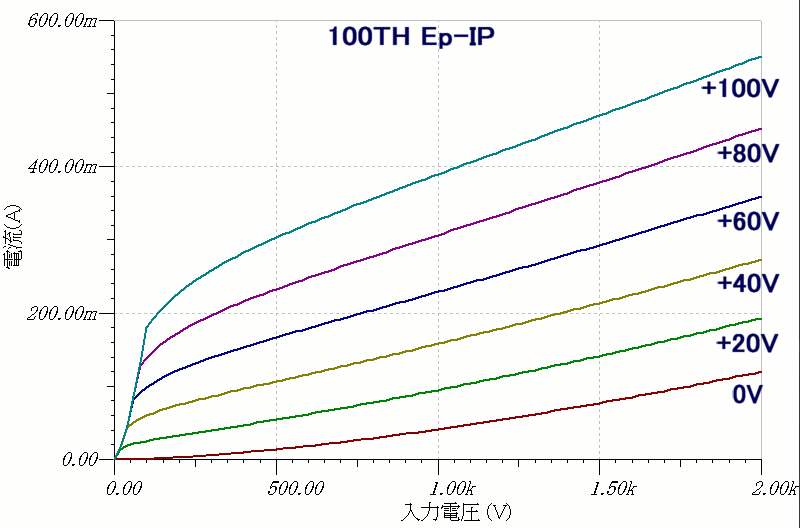

I have created an Ep-Ip curve of 100TH which has been derived
from the constant current curve in the Eimac's datasheet.


Attachments

  • 100TH.gif
    16.4 KB · Views: 156
