My home received damage during Hurricane Sally and the field adjuster wants me to replace the old school acoustic ceiling tiles in two rooms with new acoustic tiles. Problem is, I can't find any contractor in this area that install acoustic tiles.

My question for you guys is, do they actually offer any acoustic benefit over drywall?

Hello,


I'm referring to the phono preamp section of this integrated amplifer. We see a dual FET in differential mode, followed by half a 4558 dual opamp. We all know that nowadays there are so many better opamps than that one, but would the amplifier benefit sound- or noisewise from substituting it by, e.g, a NE5332 or LM833 - or an even better, faster, low-noisier one? Or is this section's characteristics mostly dominated by it's FET input what would make substituting the IC more or less useless?


Best regards!

Hello all, I would like to access the BT module on a HF-183 unit. Does anyone know if the usb port on the board can be used for this? I've read a lot of how to guides regarding soldering pigtails on other boards and using a converter/programming module but I've never found anything on this particular one that has a usb port. Thanks

Hello all

I am currently putting together a list of contents for a Third edition of Small Signal Audio Design.
Please be aware this is a very early stage in the project and it will not be hitting the bookstores for a year or more.

The Second edition was already about as large as my publishers consider practical, which is why all the phono amp material (plus a mountain of new stuff) was split off as Electronics For Vinyl in 2018. See: Electronics for Vinyl
The Third edition will have just two smallish newly-written chapters on MM and MC preamps, but nonetheless they will contain new stuff that is not in Electronics For Vinyl.

Obviously I would like to know what new stuff you would like to see in the Third edition.

Here is what is already planned:

Complete new chapter on variable gain stages.
Complete new chapter on tape machine electronics.
Complete new chapter on guitar peamplifiers.

and stuff on:

Frequency response, Frequency response of cascaded stages
Phase perception
Three-layer PCBs
Resistor accuracy: three resistor combinations
Distortion in Sallen & Key filters: 3rd & 4th-order lowpass/highpass single-stage
An improved Baxandall active volume stage with lower noise
The Newcomb and Young loudness control
Combining a Baxandall EQ stage with an active balance control
Wien fixed middle EQ: altering the Q
Improving fader offness
Balancing tracks to reduce crosstalk
The multi-function summing amplifier

Please let me know what else you would like to see.

The power supply drive section uses A1023 and C1027 drivers which I need to replace and don't have. I do have the 1220/2690 pair and the bd139/140 pair and and abundance of others.

Which would be suitable replacements for these? Normally I would just experiment but seeing as parts for this amp are not cheap I want to reduce my chances of failing.

With the recent passing of Eddie Van Halen Popular Mechanics has reposted an article by EVH about some of his hacks and a short history about how he got started in DIY.

You might enjoy reading his exploits in sound. I like his variac hack. 🙂

Eddie Van Halen Dead at 65: How the Rock Legend Hacked His Guitar

SOLD

I have two channels of slewmaster amps. These were built using irfp 240/9240 Mosfets. They include the spooky front ends. They are mounted to 8” pieces of heat sink USA 10.08” heat sink. These were 100% working amps when I took them out of service.
How abou $50.00 per channel plus shipping. They fit one each in a medium flat rate box from usps so about $30.00 shipping in the states. This is less than the cost of the heat sinks alone
Thanks,
Evan

I recently purchased a preamp board based on the AD 797 ex Ebay.
The schematic provided with this board wasn't accurate so I have re-done using LTSpice and attached as a PDF.
The first problem was that the AD 797's outputs could not be zeroed using the 2 preset pots (per channel), W1 and W2. I tried NE5534s and LME49710s both of which allowed me to zero the output. As such I thought of using the LME 49710s as U1 and the NE5534s as U2. Comments?
The input has a 50K log ALPS pot which has been 'set' to 42K (apparently 50% of rotation) as a mid-point. The 2 presets have been set to 29/21K which (in the simulation) provides the closest to zero output (but not in practice).
The power lines are decoupled close to each opamp using 3 WIMA caps ('face to face' so I can't read the values without unsoldering) and a 220uF electrolytic.
Otherwise 'peculiar' resistor markings such as R1a and R1b are because the original schematic only indicated one resistor, not 2.
There are a few peculiarities in the circuit such as the Opamps offset being on the +ve input terminal and not the negative (as I've read in books).
Given that I now have this circuit board, are there any simple mods that could be made to improve the performance or any other relevant comments?
Thanks

Hi Guys,
I am working on a LCR home theatre build (3 way speakers) using pro-audio components.

I am using the Dayton Audio PA255-8 which I hear are very good, I will be wiring 2 of them in each box parallel to give me a 4Ohm load.

My plan is to cross them over at 600hz and I would like to have a tuning frequency of 40hz.

Based on online box design the box should be 3cu/ft (shared space) and port should be 4" diameter and 2.5" length. Can you help me out and confirm is this is correct? Or recommend better design?

The details of the components are attached.

I am trying to build a simple circuit to break a ground loop I am having on my pedalboard. I came up with this. This is put into a box so wires will not be exposed. Eventually on mini circuit board. I have two diodes 6a 500 volt and a 1 k resistor. I tested the circuit. It conducts power but is not eliminating the ground loop. The loop on the amp is fine. I have ine pedal and the power supply is a voodoo lab pedal power. It is isolated transformer type. Here is a pic of the schematic and the actual build. Can someone give me an idea why this is not breaking the ground loop? All units are being plugged into the strip. I broke into a household variety power strip and oassed tge ground wire through circuit. What am I missing?

Does anyone know the Value Of R204 Its a 2 watt resistor that sits directly behind the Speaker termianls...

1 Side connects to the negative soeaker terminal the other side connects to the Positive speaker terminal

Received this amp, with only two mosfets blown in one output bank. Drivers (IRS21844s) survived. Would you change the drivers anyway for a better feeling?
Its also the first time, that i see mosfets FDA59N25 in this amps..

Hi All,

I noticed my Roksan CD started skipping the other month, extremely intermittent, only the very occasionally jump on a song and nowhere in particular (ie not the same length trough every CD or related to particular CDs), but still extremely frustrating when listening!

So after a bit of forum surfing I decided to remove the cove and mechanism and add a little white grease to the moving parts that could have become dry over time. this seems to be the least invasive but most cost effective first try at a fix.

So my first question was going to be - will I be able to open the mechanism (CD tray) without power to get to the gears and rails more easily. I have the mechanism out but I cant figure out how to get it open and don't want to force it and break something. ( this might be a trivial question for you all but this is the first player I've opened that not a PC CD drive 🙂 )

Now my second more pressing question is - Once I looked back into the case after removing the mechanism there was, what appears to be, a tiny ball bearing sat in the bottom of the case. I've taken the best picture I could with a case screw for size reference but cant upload for some reason (ill add them later), with a vernier it measures 0.54mm. Does anyone have any idea where this could be from and could this be the reason for the occasional jump whilst playing?

Thanks in advance,

Sam

Just finished the tri trix build from parts express. doing a trial run before finishing. The bass appears boomy . FYI I put about 1/2 of the recommended stuffing. Would more or less stuffing fix the problem? Thanks for any advice...

Hi everyone, does anyone know where I can get the service manual for a CROWN CH1 Amplifier. Thank you

Hello,

Im trying to come up with a front panel design and need some help.

Im using the front panel designer app and I can't seem to get how to use icons.

Is it possible to use other fonts? How/where can I get it and install it?

Can you guys let me know how to improve this?

Thank you!

Aleph J modules and 230v transformer (400va 2x18v secondaries). I’ve recently built a Pass Sony VFet so these boards now need a new home.

DIY Audio store transistor kits, plus the Teabag component kit. All top notch components. This was my main amp for a number of years. I’ve a feeling I may regret the sale.

Message for details.

Firstly, I apologise if this is a dumb question...I'm new at this. I bought a used amp to power my home theater subwoofers as the previous plate amp wasn't quite gutsy enough. I connected my sherwood RD6505 home theatre amp to my 4 x 12" rockford fosgate subs via the new AM XA1400 amp. Amp came on, no sound came out. As far as I know, all connections and settings for bridged operation are correct. Question is, is the lack of sound due to the difference in output/input ( 1K ohm and 1V from home theatre into 20K ohm and unknown voltage of amp), using unbalanced RCA to balanced XLR adapters, or is there another incompatability between home stuff and pro stuff I'm unaware of.

I know there are many threads on this, but can't hurt to ask my specific question.
Been looking for a new iron, have seen the recommendations for a T10. Recently, have decided that I also want to get a rework gun.

So, among the many options available on ebay and ali, what would be the best way? Get a T10 or T12 with just a standalone rework gun? Is a T12 as good as a T10? Get one of the myriad rework stations available, which have so many model numbers I will call them 8xxx? Are the irons on the rework stations as good as a T10 or T12?

Any insight appreciated. TIA

I'm currently planning out a future 300B SET build, and I'm running into some analysis paralysis with output transformers. I'm investing a nice chunk into this build, but still trying to keep costs relatively under control. I believe I've narrowed my choices down to the Edcor CSXE and the Lundahl 1623.

The Lundahls are about double the price, but are they substantially better quality than the Edcor? I've tried to do some forum searches for direct comparisons, and haven't been able to extract some good info. I've had good luck with the Edcor GSXE, which leads me to believe the Edcors won't leave me wanting, but some info on other threads might lead me to believe Lundahls are of better quality?

I'll be running the amp into a pair of Klipsch RP-260F speakers.

Thanks for any assistance!

Hi All

I have an SLDL1 linear tracking turntable which has been in the family since around 1983. It still sounds fantastic and I have tried my best to maintain it changing belts and lubrication, etc.

It has developed an annoying fault which I cannot work out on my own. The tone arm suddenly skews to the left (off centre) just before the end of the final track of an LP and sounds like you are scratching the record as it does this before it finally lifts up.

The rapid skewing across occurs if even if you move the tone arm across the record using the fast forward button. If you use the "rewind" button after this has happened the tonearm sometimes skews to the right (off centre).

I have lookd at the service manual but cannot work out what to adjust.

Any Help would be appreciated

I have two A-30 Crown mono blocks that have been modified from the original EL37's to ECG7581's. I have plenty of EL37's from my stash.

The transformer used is a Hammond 1650H which seems not to be a good match to the EL37. https://www.hammfg.com/files/parts/pdf/1650H.pdf

I'd like to find another output transformer that is a better match.

A 6.6k plate to plate i think is to high....maybe 4.0k
primary seems to be 400-0-400
the output impedance would be for 8 ohm speakers
I'm new to this,so please bare with me.
attached is a A-30 schematic
and the original output was 30 RMS and is now 40 watts
Can anybody help with the other necessary specs for the new OT's
I think there are better OT than the Hammond

EL37 @ The Valve Museum

The output transformer company sent me this.....

As for the output 4k plate to plate, (need UL taps?) if so what %?

80/80ma idle (little high there)

12 ohm secondary (8-16)

40 watts capable.

8db NFB,

A new project using cathode follower valve front end with a TDA9274 chip amp.
The valve uses +/-335VDC for B+.
Heater volts are dropped to 12VDC using two resistors from +35VDC.

Nelson Pass - PL45 Balanced Line Stage PCB from original gerber files

Hi,

the last one set from PL45AR0 & PL45BR0 boards from original gerber files (direct from Nelson)

Costs: 20€
Shipping packaging: padded envelope (not tracked / not insured)
Shipping - Germany: 2€
Shipping - World: 4€ (will check before payment)

Or shipping by arrangement but then other shipping costs.

Hi everyone.
I have a doubt.
Sometimes a tube such as a 5842, or D3a, or 6E6P or 6S45P or C3g is used to drive a triode such as a 45, 2a3, or 300B.
Estimating that they have gain factors between 30 and 45 times, approximately 2v input is needed.

Why are there circuits with two 12ax7 stages or two 6sn7 stages that the gain factor would be 300 times or more, to drive a triode that needs approx 160vpp to fully operate without NFB ?

I have one of these from a console and am curious what modifications if any, would need make to have it work as a stereo amp?

I have a gorgeous Sansui 5000. It is a 5000 in a black case, (it is not an 5000A nor a 5000X). I have one problem, and only one problem (everything else works 100% perfectly). When used in FM or FM Stereo there is no volume. If I turn the Level Adjust all the way clockwise and turn the volume all the way up, I can just barely here the sound. The Tuner appears to be working fine and I am getting level 5+ signals via an Audio FM Antenna. I am hoping the problem is something both common and obvious to someone because I am very good with a soldering iron. My weakness is an inability to read schematics well (other than knowing what a component is when I see it), and I have no diagnostic equipment. I have the service manual, so if someone was to tell me that it needs a new "xyz" transistor, (or resistor, capacitor, etc) on the "123" board, I could do the repair. Please help! (Thanks in advance).

I have some Aliexpress regs using the 5pin Lt1963. They measure 5v out just fine but I have also measured the caps. Input caps are somewhere between 7 and 10uf over the 5 regs I bought which is within spec of the LT datasheet.
However the output caps are woefully under sized and measure 80nf.....0.08uf.

Should I replace with a new 0805 >10uf X5R.
Or parallel an electrolytic and maybe also a 0.1uf film over the existing 80nf.

Or is there a better alternative.? Won't be drawing much current. They will be powering individual dac chip rails

Thanks

Hi all brother i'm from jkt indonesia, nice to meet all brother, and specialy for you perry 😊
I have problem with code ic u1, u2, u3, from driver board china monoblok 1700watt, please help me🙏
And i'm sorry my english very bad.. 🙏😁

I would like to discuss what available discrete class A single and dual channel opamps exist out there that are designed for hi-z input and low-z output for use in a guitar pedal buffer circuit for driving long pedalboard cabling.

The first google result I found was the
Sonic Imagery Labs Model 995FET-Ticha

but I'm hoping there more options. 70 bucks seems kinda steep for an opamp, unless this is normal for discrete ciruitry. hmmmmmmmmmmm

It has to be a hi-Z input and a low-Z output. I'm looking to make a 1Mega ohm in and 100 ohm out. the OPamp can deviate between 90-120 ohm out. Will need to design a circuit for this.. cuz heck, custom is cool, yeah? 😎

edit:
slightly off topic but related link for peeps who don't have ADHD like me: https://web.mit.edu/6.101/www/reference/op_amps_everyone.pdf

So I had built my amp and posted some pics a couple weeks back. I probably have at least 40 hours into it running now.

I recently noticed that the power transformer started to physically vibrate. I can't hear it but I can feel it.

Note that this is a stereo amp where both sides are directly coupled via the respective B+,++,+++ lines.

I ran current checks through R7(B++) and R17(B+++), it's less than 15mA combined. I checked R18(KT88 cathode) on both sides and they're consuming around 50mA each. So we're going no more than 115mA at idle. The secondary is rated for 201mA.

I checked the heater secondary for any shorts and found none.



All the voltages check out as expected. The choke(also rated at 200mA) and OTs are always cool. I used an IR camera and nothing unexpected is running hot(both over and under).

The difference from the schematic is that the secondary is center tapped and goes to C3 through a full wave SS rectifier(two UF4007s).

The 5V secondary is snipped and heat-shrinked off since I'm using diodes.

The PT is running at about 111ºF(43ºC) according to my IR thermometer.

tldr; I can't find any obvious shorts and I think I'm running this transformer far under its power capability. It didn't do this when I first built it.

All of my resistors are 1W with the exception of the bleeder at R19 in the PSU, which is 2W. The hottest running one(of the 1Ws) is only dissipating around 1/4W from my measurements.

What am I missing?

Hey Guys! I figure it's about time. I get requests fairly often. Here's the deal I need a commitment of 25 pairs to get the ball rolling. And those that participate in the GP get a few bucks off the normal price.

If you're not familiar here's a long thread over at AC about them.

These next print of boards will feature a BOM with an updated TL431 that's even lower noise. The old TI one sounds a little warmer for who's ever interested. The amplifier boards will be larger to accommodate the option of Jantzen capacitors (1.5uf). The Antipole boards will be a little shorter with the removal of the now unnecessary hexfred board provisions.

Price for GB:

$22 Amp board ($24 normally) (high grade BC337 transistor included, NOS)
$19 Antipole board ($21 normally)
$8 USPS priority shipping, contact for international.



How to join:

Just update the attached txt document, I need an email and how many pairs of boards you'd like. Once we hit 25 I'll send out an email with payment information.

Does anyone know how to make these have more tension holding the transistors to the heatsink ?

The amp was blown and all of the clamps have barley any tension on them and they do not clamp the transistors tightly to the heatsink

I'm looking to build a version of the Seas A26, but I really do want those 10" A26RE4 (H1411) woofers.

Anybody have a pair of those beauties they want to get rid of?

Thanks!

David

Hi Folks,

taking advantage of the Covid lock-down, I have been sorting out our loft and came across my old University notes, amongst which I found a small booklet published by Mullard in 1970 that introduces the basic theory of semiconductors. The document may be a bit old, but the basics are still the same.

Since we get a number of newcomers to the forum, I thought it might be useful to explain the fundamentals and the terms and specifications that appear on transistor datasheet.

I have scanned the document in in several sections due to upload file size limitations and within each zip file is a pdf.

Regards

Mike

Hello,

Was a long time ago i build some tube amp.

I have a 300b SE amp with plate volt at 370v.
I have set mA to 74. Is that ok?

It has a LL1664 output transformer with 3K/8 Ohm.
Would the tubes be dammage if a connect a 6 or 4 Ohm speaker?

BR/ Daniel

Found a this beautiful design; what do you think about these?

Nautilux by renaudchine - Thingiverse
Is the enclosure too small for a 4" full-range driver?



Then two transmission line or TQWP inspired;

HIFI Maze Speaker audio box by iiime - Thingiverse
3 inch Speaker Box by Landluger - Thingiverse


How much would the material impact sound, should they be made from wood filament or preferrably normal PLA for hardness?

I made these 3D printed egg speakers about a year ago and now they are ready to be posted (many things had to be worked out and tested), many color variations can be made 🙂


Sound with the sioux unit is very good, well Make: Magazine posted them as Audiophile speakers, i have been using these units for 10 years and have never found anything that comes close to sound and price, just needs a tweek with a small upgrade to treble crossover
3" Egg is based on the W3-871SC unit, good sound but very little bass, with a sub they would make great satellites and they are cute, have been thinking about doing a 2" also

For now i have 3, 4 and 5" sizes but more will come later, TDA7294 + Transistors will also be in various versions + Class D amp(s) in 3D printed cases


Thingiverse (Download and make your own, and info on volume etc)
About dr_frost_dk - Thingiverse

Make: Magazine Article
3D Printed Egg Speakers | Make:

I've got a stereo pair of them here that both work fine except for excessive DC offset. Is this a known issue?

I've checked / cleaned the gold edge connectors already. Otherwise these seem pristine and low hours. No evidence of prior repairs, no evidence of overheating (believe it or not).

I looked thru the forum but did not find a lot on this model. Thanks for any suggestions that you may have. I'm reading 0.2 & 0.7VDC on the outputs after warmup - way too much.

(these are later models w/toroid xfmr, FWIW)

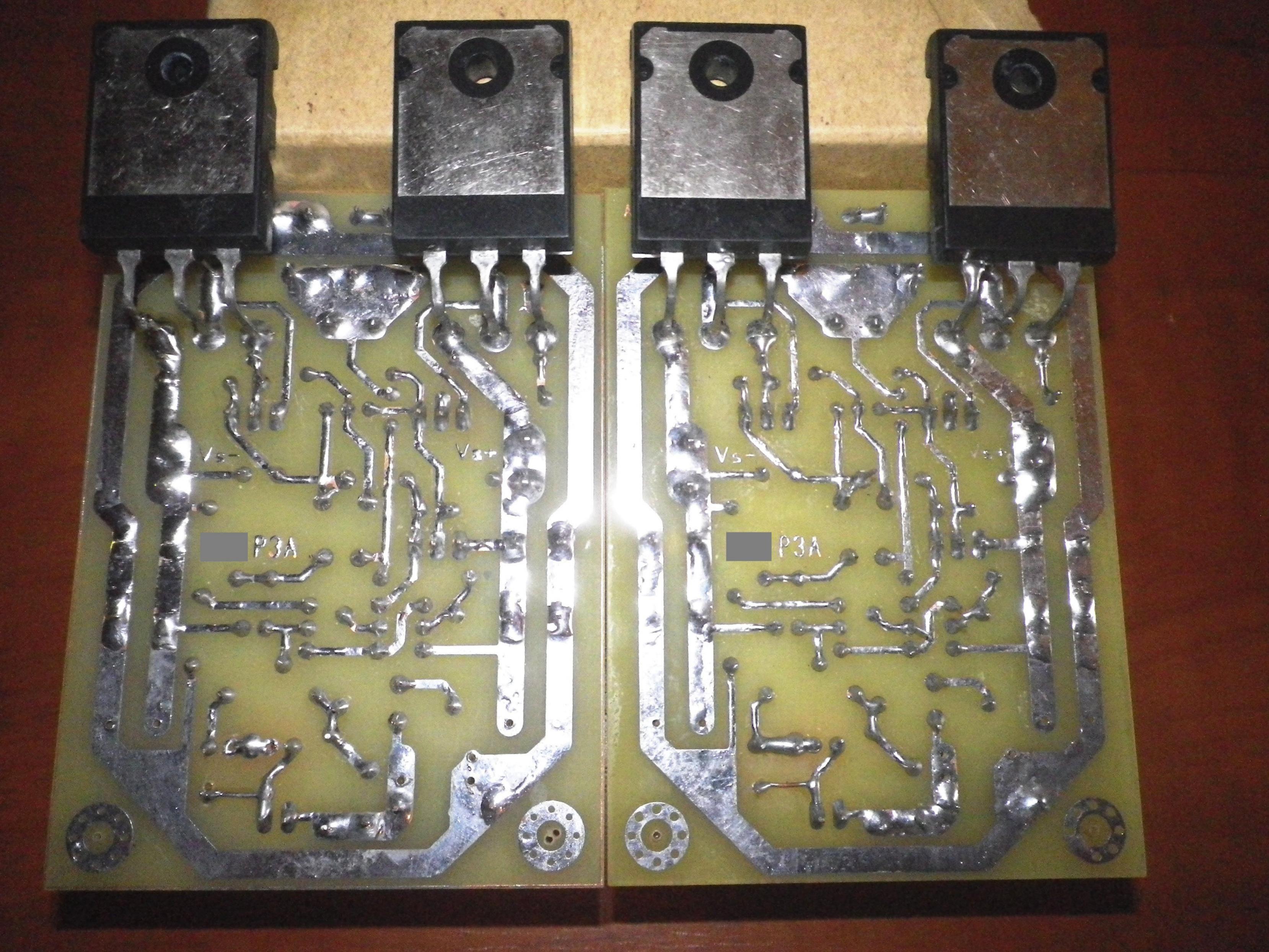

1) Pee Cee Bee V4 Two board plus 4 selected Mosfet 2x ECX10N20, 2x ECX10P20 (blue-yellow lot ). ALL 55 Euro

2) Amp 2 Modules P3A 40-60W P3A, 1 PSU pcb - Capacitors Nichicon 4.700uf/50V, MUR 860
Capacitors Nichicon 470uf/63V -Wima input caps 2.2 uf/63V X 2
Mica caps 100 pf-500V
Matched input transistors ON Semi, 550-560.
ΜPC71 Non-Inductive Resistors 0,22 R
Toshiba 2SC5359 - 2SA1987 original transistors from Elektor
Offset 1-3 mv 40khz tested under load 8Ω ..photo All 75 Euro

3) ES9018K2M DAC Isolated with ELNA for Audio ROA Cerafine 100uf/10V made in Japan with default opamp 5532 . 40 Euro

4)0.8uV Ultralow noise DAC power supply regulator +-12/15V, 1.A LT3042 DIYINHK SOLD
0.8uV Ultralow noise DAC power supply regulator 3.3/5/7V 1.5A* X 2 LT3042 DIYINHK 40 Euro SOLD Only one available .

5) PSU +3/5/7V 4ΧMUR 860, Μain Cap 10.000uf/35V Panasonic , Panasonic 1000uf/25V Low ESR, WIMA 0.22 uf MKP 40 Euro

6)Two OPA 627AU Double matched. 15 Euro SOLD Only one available .

7) Amanero Combo384 Module Original - USB class 2 to I2S 32bit and DSD output Adapter Black Color 45 Euro SOLD

All items for friends and family plus shiping cost.

I have been modding my Oracle Delphi Mk II for years. I while ago I modded the control electronics, the motor mount and the bearing. BTW, the Oracle bearing system is not new. It has been used in optics for precise laser mirror rotation. There is a patent for it 6 point bearing system.

I am going to redo the sub-chassis so I will share this info later.

I will start with the power supply. I have the most current, but non turbo supply. The exorcise was to fit a supply in the same box because I think it looks cool.

I had a lab style supply laid out, but then found an Acopian supply on eBay for 40 bucks. I went with the Acopian and added a filtered power entry module, design a PCB for a DC blocker which would fit the block and finally a ground loop breaker for which I added a perf board for the resistor and capacitor.

Next I plan to replace the local regulator with one using the new TPS7A4701. It's specs look really good, especially in the low frequencies compared to the LM317 used.

I do have schematics of the original electronics and my modded ones if anyone is interests. They were made by tracing out the old PCB's.

one more thing, I will be replacing the caps and resistors on the motor PCB. There is a schematic out in the internets GS 38.09 Ver 02. It is more extensive than the Ver 01 which I have. If anyone has experience with the difference and can give some pointers, it would be great.

The following PSU will be running between 27.04 and 28 Volts. The GC 38.09 is spec't for 27 +/- 20%. Steady state current draw is 45 mA, transient is 240 mA. The light bulbs and LED suck up less than 100 mA more. The Acopian I a using can provide 1/2 Amp.

Hi folks!

Got this one with one blown channel for free and tought it would be nice to give it some love. After much googeling and comparing i went with njw1302 for 2sa1106 and njw3281 for 2sc2581 drivers 2sa968=mje15032 and 2sc2238=mje15033, small signal trabsistors measure fine. all electrolytics in entire unit is replaced with equal audiograde caps, output relays, and every trimpot is new bourns multiturn aswell.

So far iam not a novice in the game, but.... the pd5115-2 board just seems totaly dead shorted (it is not) when trying to power it up (with ballast) this is where i really consider my choice of transistors, did i think wrong, missed something fatal? Or does the problem lie elsewhere?

I know there is a lot of extremly good knowledged people in here so i pop this question before i switch back to the original transistors (yes i have them all, brand new non counterfeit)

Hi,

Anyone know if HID headlights can cause intererence through speakers that are amped? Have a mate who gets noise when there turned on when the volume on the HU is at minimum

If so, apart from removing them is there any fixes

Cheers

Hi Im Looking for one replacement speaker for one of my Ruark Talisman Speakers it can either be a CB17RCy or CC17RCY or an Equivalent,Its a 6.5 inch MId/bass driver at present its been replaced by someone with an Altec Lancing on one speaker which dosnt sound as good or even balanced with the original speaker in the other cabinet,so any help would be appreciated if anyone knows of a suitable replacement,it has 4 fixing holes not like the modern seas with 6 also higher sensitivity at 91db
Regards in advance for any help Malcolm

So I had this amplifier I purchased with some shorted output transistors. And the power supply was completely burnt crispy. 22r gate resistors and maybe 80n70's were in the power supply.
I removed the bad output transistors (irfp4229) and ordered 8 new ones on mouser or equivalent.
Removed and replaced all burnt driver transistors, mosfets and replaced al the gate resistors with 47R as I was going to use irf3205's.
The unit runs the 4 torridal, 4bank setup in the power supply.

I recently bought a 4 way audio switch -

( Source selector RCA 4 to 1 / reversible - Audiophonics ).





A picture probably explains better than words - this is how its used.





When I turn the switch to output to the power amp, there's no hum.


When I turn it to output to the headphones, the speakers buzz - and if i turn the power amp volume up, the hum gets louder.




I've checked all connections, and everything is powered by the same power strip.


Any ideas to stop it?

Thanks,

Hi I'm sketching a 3 way classic with a 3" ScanSpeak 10F which is around 10 cm diameter with the front plate.

I planned a cut-off between 3k and 3.5k hz with a recess for the tweater to try secnd order or 1st order if sounding good enough for te last.

I'm not sure anymore about the Center to center between the mid nd the treble.

Please, should it be below the wave length of the XO or the half wave length of the cut-off number ?

Saw Troels Gravsen is a little above the wave length with his 3 Way classic with more than 10 cm mostly due to the diameter of the classic tweeter tht have quite large front plate due to their low Fs those days....

Thank you for your tips

Hello,

I happen to have a spare torroidal transformer at hand, that is rated at 32-0-32 Volts secondaries and 850VA power.

Do you think I can succesfully accomodate it into powering any of the Aleph builds?

Thanks in advance,
Nick.

Designing a 6th order series bandpass using hornresp for an 18" Car sub



rear chamber is tuned to 25hz


when you design for heavy cone subs hoiw much group delay do you tolerate? peak delay is at 25 hz.


Prioritizing output over SQ.

Hi to Everyone,
I have a smps from Meanwell that i like very much Unfortunately its fan runs very fast from the start and it is very noisy (pic attached)
I wonder what would be the best approach to follow in order to tame the noise
Can i mount it reversed ? i guess that know it pushes the air inside and this could be a reason of the noise ?
I understand there are also silent fans ?
Just taking it out worries me.
Any kind and welcome suggestion ? as i said above this is only the real issue i have with an excellent smps.
Should i move instead to a different model ? i am very willing to do it.
I am using 24VDC for some little digital amps that i am testing
Thanks a lot to everyone.
Kind regards, gino

I still have scanspeak 18w 5535 and d2905 9500 yweeter from my old car audio system. I wonder have anyone here got any experience with this driver? And how it compare with the newer midbass in discovery line?

I am looking for a new bookshelf project using these drivers as I am currently building lm3886 based amp to drive them.

At the current stakes, should I still use them 5545 or better of with the newer discovery line, or should I ditch them all and buy the sb acoustics driver instead?

Hello,

I have a little project to build the smallest possible player to have something portable, but with the best quality possible. I have a dam1121 left from from a previous project that never materialized, i also want to include an headamp, a line driver and a small sbc with a mimimalistic setup (only mpd for a local collection).

I have what i want to build this and i found a nice case, the biggest question is what sbc to use. The best would be to find something very tiny with i2s out. Of course the best is also with low power arm core like a53 or a55 only.

Nano Pi offers such boards, all of there product have i2s out. NEO Core2 is the smallest with 40 x 40 mm. But the allwinner h5 cannot be sourced and is out of stock. There new NEO3 is a little bigger with a Rockchip RK3328. It could also fit my project, but what about the i2s capability ?

The raspberry pi have an i2s with good capability because it became some kind of standard and the community decide to increase it. But these kind of boards are kinda obscure so i won't be surprise if the i2s is limited to 16 bit 44.1 or 48 khz. I do have high res files in my collection (up to 24 192 and a few dsd).
Of course the alternative is to include an usb interface instead, i think it's doable in my build but i would prefer avoid it.

I don't find in internet anything that summarize the i2s capability of the differents popular socs. Maybe someone here would have some info ?

Thank you

I don't yet know the price, but I've been offered the opportunity to acquire a pair of Electro Voice Royal 400 speakers from an estate sale. I think the offer was made because this person has helped me to sort through some old tubes that I'm using for a set of 300B tube amps that I'm building.

I don't know very much about these speakers except for what I've been able to learn from their user's manual that I found online. They seem to have been produced in the early 1960s and feature a 3-way design with an 18" woofer(!), an 8" midbass, and a horn tweeter. They can be bi-amped and the power handling for the mid and tweeter section seems rather low, thus I am surmising that they are relatively high sensitivity, but I don't know this for sure. I think the original price as $250 each. I attached a random image of them that I found online.

Are these speakers any good? I don't really have a place to put them (they are really large boxes) and I'm wondering if I'm making a mistake by passing them up. Any input would be appreciated.

Thanks!

2 Crescendo amplifiers
Elektor design 1982.

Each with two pairs lateral mosfer 2SK135 / 2SJ50
Heatsinks measuring 200x150x40mm

Asking euro100 for both.
Shipping costs are for buyer.

Chaps,

I have the chance to purchase a mint, unmolested SP3 from the wife of the late original owner, all tubes are Amperex, they seem to be original. She let me bring it home to have a listen. She wants $1,700.

I turned it on, let it warm up and played a CD. Turning the balance to the left there is no sound. I could have cleaned the pots but it is not mine, I don't want trouble.

There can be too many things but I am looking for suggestions and, if possible, an idea what would it cost to repair it.

Please no suggestions as to forget it and buy another preamp.

Cheers,

Hi guys,
have any of you made these changes on the STK4050? STK4050 STK4050V 200W Power Amp IC - Buy Online @ AmpsLab
I don't understand well what the 510 and 4.7 indicates, are they resistances? especially the 4.7 is already present, so there are two in the series ??
Thank you

I can't believe it.. Whenever I buy components from eBay, they are typically sent in an ESD hazardous manner. Wrapped in aluminum foil, inside a paper bag or whatever.

I have no idea WHY sellers do this, but today I got REALLY angry.

Bought 3 MPSU60 transistors for quite a price, and they arrived... Taped to a styrofoam pad 😱 😱 Why?? Why don't they put them in ESD bags or similar? I waited a month for these to arrive, and now I won't dare to use them. Who knows what hidden damage may have been caused!

What is your experience? Why does this happen so often?

Where can I buy insulation tape like this?

Dear Forum Members!
I found an active cable solution recommended for connecting instruments.
I think the cable inhibits high frequency attenuation.
Is that so?
How do you do it?
Is it recommended for good quality connection of audio devices, cheap?
I tried to show how the cable shielding capacity cuts higher frequencies ...
Thank you for your answers!

I have designed and am in the process of gathering the materials for my WAF friendly Pouf subwoofer.

This will be a dual opposed 12" sealed, passive sub, DO mainly because i don't want vibrations in my feet or cabinet vibrations traveling to my neighbors.
I got a deal on 2 lightly used (allegedly) Eminence LAB12 drivers, so those are locked.

I modeled the design in 3D and adjusted the size of the box to end up around 85L netto using boxNotes, which gives a Qtc of 0.76 in WinISD.
I end up having 35hz at -6db with I believe is fine for my hybrid HT living room.

I will be building the box myself, but the upholstry is something I may be getting a professional to do, as it is outside my comfort zone.

I am eyeing a pretty good deal on a Lab Gruppen IPD 2400 amp, but am having a couple reservations I'm hoping someone here can help me clear up before I buy it.
Lab Gruppen IPD 2400

The drivers are 6 ohms and asks for 400W RMS, (800W max) efficiency is 89.2db.
The amp is 2 channel and can provide Max output power (per channel)
2 ohms - 800W, 4 ohms - 1200W, 8 ohms - 600W, 16 ohms - 300W.

The amp does not appear to have a bridge mode, which is a bit unfortunate.

Because of that I am considering a way to wiring them up which i'm unsure if its at all a good idea:

Connect the receiver (Marantz SR7013) from
LFE1-out to IPD2400 channel1-in then channel1 to LAB12(driver A).
LFE2-out to IPD2400 channel2-in then channel2 to LAB12(driver B).
This means that the drivers will not be connected either in parallel or serial but utilize that I have 2 LFE outputs. If I need to indicate impedance on the amp I would set it to 4 and probably end up around 800W max per driver.

This way I'm assuming that I'm getting something similar to a mono signal but using both channels in the amp.

The question is then if the balance is maintained and the benefit of DO reduced vibrations is compromised, can I count on both the receiver and amp to get the signal through without the slightest variation?

If I end up having to connect the drivers in serial or parallel, I will likely need to choose a different amp.

I've attached my 3D drawing of the design and an exploded view.
The transparent designs are only size comparisons to commercial Poufs that are wife approved.

As this is my first sub build I'd greatly appreciate if anyone sees anything I should consider before I start building!
I'm a bit unsure if I need any damping inside, whats the consensus on that?

Cheers
Andreas

My Revox A700 has the following error: Losing the right channel completely if the switch is in Stereo, if the switch is in to R there is absolutely no signal, if the switch is in to L or Mono, 2 speakers and headphones have sound but the VU meter on the right does not work, when the switch is in in L the sound is louder than in Mono! When put in INPUT, turn on the source connected to INPUST's AUX 1, channel R doesn't audio and channel R's VU meter still doesn't work! So where is my Revox A700 faulty?

Thanks for the help!

Hello,

I have heard a lot about the STC/ITT 5A/152M being one of the best sounding driver tubes in triode mode.
Has anybody a diagram (Ua/Ia) for triode mode connection or better a SPICE model?
I want to use it driving a AD1.

Thanks

A quick question:

Does a linear power supply make a noticeable sound improvement over a switching mode power supply ?

I have a Fosi Audio TDA7498E mini power amplifier i have used for some days with my tube buffer with upgraded tube.

I wanted to try it without the tube buffer and it also (still) sounds good, i have use a TPA3116 based amp, where the amp sounded worse without the tube buffer than my TDA7498E amp does (the difference where bigger with the TDA3116 amp not using the tube buffer than it is with my TDA7498 amp).

I previously reported on the result of the Original NaO (which is significantly different from the new NaO II) in this thread: http://www.diyaudio.com/forums/showthread.php?s=&threadid=82604&highlight= . After e-chatting with John K I realised that he had basically re-developed the NaO XOs, both the passive and active and called it NaO II (using single or dual 10' bass drivers). The passive XO was completely different, and the active XO had different response and a new tone control circuit. I then purchased the NaO Update Plan, which was to bring the original NaO ln line with the NaO II for the panel (except the XO point). The original NaO used a single 12' bass driver.

Now the update has been applied and a few weeks time spent on tuning the XOs.

What I can say is that I am totally happy with the sound. It is comparable to the best speakers regardless of prices. I have lately auditioned (again) the Wilson Maxx (AUD$80,000+?) and the JM Lab Ground Utopia (AUD$130,000) and I thought the NaO sounds overall more accurate. Of course, I may be biased because I built and tuned the NaO.

I have some audiophile friends who have been playing audio equipments for over 20 years to listen to the speakers and so far all of them liked my speakers. One of them used to declare that the Rogers LS3/5a had unbeatable midrange but confessed the NaO beats the LS3/5a. He said his old 15' Tannoy and his old 15' JBL (all of which were reference grade speakers in the yester-years but are still fashionable today) would not match the NaO. One of the forum members said the sound of the NaO has to be from speakers of $20,000. Another friend who has a system of Mark Levinson 39, Gryphone (high end mono blocks) driving the Thiel CS7 and CS7.2 sent me a note after a listening session: "Congratulations the speakers are incredible. The dynamic range, transparency, beautiful Mids and truth of timbre, transported us to the live performance. Your comment that the speakers place one right into the performance was very apt". Note that I had not completed the fine-tuning when they listened to the speakers.

Any hint of harshness in the 3k region in the original NaO has disappeared. The new active XO also integrates the panel with the woofer very well so bass is part of the music. SPL improved. It can play quite loud for most music. I have only a few CDs that can bottom the woofer at high SPL.

I am seriously looking for a cabinet maker to rebuild the cabinets. Are there any forum members from Sydney a cabinet maker and happy to help?

Any questions are welcome.

Best regards,
Bill

I'm looking a full range for my FAST build. Chambers for the full range will be 1L (ideal) to 2 liters max.

I can get them at around the same price (incl. shipping). But plus point to the SB Acoustics, I can get them locally. The other two I have to buy through AliExpress, which will take longer to get here and I haven't experience overseas shipping during the pandemic.

Amp will be either TPA3116D2 2.1 or TPA3118D2 2.1, I haven't decided yet.

Which drivers do you think I should go for and why?

Hi,

For sale is a pair of input transformer, Cinemag CMOQ-4LPC.
Preferably shipped to Europe, but rest of world is possible.

60 euros for the pair, shipping at cost.

I’m retrofitting an old Cerwin Vega amplifier with a blown channel. The power supply only has one +73VDC output, it doesn’t have any low voltage taps to run the +/- 12v sections required for the 1000A. However, I’m more inclined to come up with a solution for that because I’ve heard the Sure amps are not very good quality and do not output anywhere near their stated ratings. What are your opinions on either of them? I will be buying two, running dual mono, replacing both amplification sections in this amp.

I'm building a Tubelab SPP that is currently mocked up before put in a chassis.
I also just finished Jan's Autoranger so thought that it could be interesting to run some measurements on the SPP.

I have 3 quad's -- new JJ's from AES, NOS Telefunken that were found sealed by a member here, and Matsushita 6BQ5 that I bought off a Japanese auction site.
I tried 3 different 12AT7's (all NOS) and results were similar.
SPP is built with Hammond 1650FA OPT's, using UL. B+ around 315V

I ran an FFT at both 1W output and right before clipping (about 10W)
The test results were very surprising...
The Telefunken had highest overall THD but it was primarily 2nd harmonic. It's 3rd harmonic was significantly lower, while the other 2 pairs had similar amounts of h2 and h3.
The Matsushita had surprisingly low THD .. the numbers look almost too good to be true.


What do you think of these results?

EDIT: These results were incorrect. Updated numbers: https://www.diyaudio.com/forums/tub...easurable-distortion-makes-2.html#post6348638

In the 4th edition of Valve amplifiers Morgan introduces the ‘statistical regulator’. It is made out of a CCS feeding a string of 5,6V zeners. Nothing new feeding a zener with a CCS, but MJ has a series of arguments and measurements to show that the stack of 5,6V zeners does much better than normal high voltage zeners or other common shunt devices.

On page 176 of the 3rd edition of VA, MJ writes that the 6,2V zener is the best, as it combines the true zener action with the avalanche effect: less temperature dependent and less noise. Also datasheets show that the impedance of a 6,2V zener is (much) lower than that of a 5,6V zener (on one datasheet I saw 2 vs 7 ohm). I am sure MJ has his reasons to prefer the 5,6V to the 6,2V, but I would like to understand why. Can someone shed a light on this?

many thanks! Erik

I want to start a new thread for SOUNDEASY speaker design software, or at least encourage someone to initiate a general DIY Soundeasy forum thread.

It goes without saying that the Yahoo Soundeasy Group is not useful, and no longer shows member posts {no archive}.

Anyway, I’m having a Soundeasy v25 crossover design project problem and I don't know where in this DIY website I can ask for suggestions.
------------------------------------------------------------------------------------

I'm having a problem with Soundeasy (v25) ‘automatically’ changing my driver files (Amplitude and Impedance plots) when opening a new project.

When I open a new project, and load my driver measurement files (done by Soundeasy 25 measurement system), the driver amplitude and impedance plots are surprisingly changed.

After opening the project, I checked to see if the driver measurement plots are still the same as when I did the original driver measurements. {Note: I did not go to driver editor and did not attempt to model the driver’s magnitude or impedance plots. I did not go to the enclosure design menu, either.}

I did this check of the three drivers after opening the new project, by navigating to menu “CAD Frequency / Time Plot Control” & then select Plot Parameters: “SPL of ‘Driver Type Is” with selection of the appropriate node for each of my three drivers in my new three-way speaker design project (.wfr, .mrd., or .twe).

To my astonishment, the magnitude & impedance plots of the drivers (using “SPL of Driver Type Is”) are not the same as when I open each driver file by itself (no project open) . The amplitude and impedance plots for each driver file are OK = the same as when I did the original SE driver measurements.

What could I be doing wrong in SEv25?

Thanks in advance,
Bill

Please, would anyone have some info, possibly a diagram, of old COSMOS valve amp made in Japan...using 6BM8 in output. Any idea on when it was made? Appreciate greately!

Hi guys,
Just wanted to clarify some doubts I had with biasing issues on SS amplifiers. I am really interested on working on amplifiers and anything related to audio. I have been reading on amplifiers.

So here is the series of events on the project I am working on:

1. Output transistor Q6050 was shorted and one half of the emitter resistor R6100 was open (left channel) and the B+ fuses were open.
2. So I borrowed the two output transistors and the emitter resistor from a working channel which was not used. Replaced the fuses however I didn’t replace the driver transistors(I should have!).
3. Powered on the unit and measured the biasing voltage at the test points and it was within specs given on the SM. However I should add that I didn’t monitor it long enough.
4. Played some signal through it and it was working perfectly fine.
5. So assembled the unit and returned it to the owner to be used until the replacement parts arrived.
6. Checked it at his place, was working fine and after I got back he called me back saying that the amp had failed and that there was no output.
7. I checked the amplifier again the same left channel had shorted. The two output transistors were shorted and the B+ voltage fuses were blown. The emitter resistor was intact this time though.

As per what I have read online regarding what could blow the output stage (some reasons):

• The speaker being shorted - I checked the speakers and I didn’t measure a short across the terminals. However it had a cross over circuit and only what I could read was a capacitor charging and both speakers showed similar behaviour. The L and R speaker sounded same to me when it was working.
• Cold/broken solder joints - I have checked for these and didn’t come across any obvious points.
• Other components failed - I have checked almost all the components on the left channel and it measures ok.
• Biasing issues.

I would like to clarify about the biasing circuit used on this amp. I have done some research on Vbe multiplier circuits but most of the circuits I came across the variable resistor is connected to the base of the Vbe multiplier. However in this unit the VR is connected to another transistor’s base Q6010. I am finding it a bit hard to grasp how this works. Could someone kindly explain.

Q6010 is placed next to one of the drive transistor and it has got what looks like thermal compound applied to it. What is the reason for this?

If it was a biasing issue and some how it caused the output transistors to short out, note B-C-E were shorted - why didn’t it take out the drive transistors? The drive transistors still checks out ok.

All of the components related to the biasing part of the channel checks out ok but hypothetically speaking what component failure for e.g.: the potentiometer’s contacts loosing connection, some kind of thermal effect messing up with the biasing circuitry’s transistors?.

If its some kind of an issue which only causes the fault when power is applied what further troubleshooting should I be doing on this circuit? At the moment I am waiting for the replacement parts to arrive but meanwhile I would like to figure out what exactly caused the fault - could I power up the amp without the output transistors and see if the proper voltages are preset which is shown on the SM and lets say if the drive transistors are faulty, ‘leaky’ for instance would I be able to measure that?

Based on what I have detailed above, what’s your opinion for the reason for the fault to occur?

Thanks in advance for the help.

P.S - I couldn’t find replacement for some of the transistors and resistor so here are the equivalents that I have ordered
2SC1740S-S ——— 2SC2240
2SA1930 ——— A1837
0.22 Ohm 2W emitter resistors —— 0.22 Ohm 5W
Also note that there are some film capacitors which looks a bit black, I am not sure it was like it to start with. It measures ok especially when compared to a working circuit. Hope you can see it in the photo.

Hi guys,

Here is a pretty nice PS from a vintage all tube Novacord synthesizer.

As you can see there is a nice noise cancelling circuitry instead of the usual big choke/caps design.

I've read that the tone part of this equipment was generating a lot of harmonic so that PS was designed to cancel those harmonics. True, false? I don't know.

One thing I do not understand is the 6K6 bias (both).

To me it seems like those triodes have the grid elevated compared to the cathode, therefore a positive bias ? How could this work?


Thanks.

Hello
Someone will have an image or information of the circuit integrated that the driver card of a digital designs M4a and value of all pots .
Please .
Thanks

A pair a Radialstrahler, clone of the MBL drivers.

They were crafted by a gifted member of this forum Arek ; the full story here : My MBL 101E replicas.

They are unique and "one of" (waited over a year to get them)

Never installed ; i sadly have to give up on my projects.

They will cover 800Hz to 17khz

They use powerful magnet that caused hair marks in the paint (see picture) ; it is noticeable only when in the intense light

If you are looking for a unique DIY project, these are the drivers....

Looking at US$ 2,200 + Shipping + 3% if paid by Paypal

Bit late posting this.
Listened to a few of this years BBC proms broadcast from the Royal Albert Hall without an audience.
I was surprised at the level of background noise heard in the broadcasts.
Although I have heard similar before I guess I assumed the background noise was mostly from the audience (breathing, coughing, shuffling in seats).
Anyone else noticed?

Good Morning, looking for specks and possible cross for an ITT5210 transistor. Anybody have any info on these? Thanks

Hello all,
I'm new here and have a noob question. Maybe you can help. I have built a prototype for a valve amp using EL34s and cathode-coupled splitter. It works quite well. I have a potentiometer to adjust the gains of the splitter to balance them. So, I get this idea that I could build a small microcontroller circuit to allow me to monitor the balance all inside the amp. (See the attached schematic.)
The way it works is to switch the outputs of the splitter from the output tube grids to my measurement circuit while switching the amp input to a generated test signal. The circuit uses a precision rectifier in each phase and a difference amp to drive the ADC of a microcontroller and to display the difference on a small display. The point of switching out the output tubes is to eliminate the need for a (relay-switched) dummy load.
As shown in the schematic, the circuit works just fine. Except, as I indicated, when driving the grids the voltage swing from the splitter is way smaller than when driving the measurement circuit.
Is the grid load really that big? I must be overlooking something. Or maybe this just isn't a workable idea.
Just for completeness, I should mention that the static (bias) voltages measure the same at both the "grid" resistor and the "measure" resistor. I am using 10x (10Meg) probes.
Any help in understanding what's going on here would be really appreciated. Even if the bottom-line is that I'm being something of an idiot.
Thank you if read this and thanks in advance for any feedback.

I've been trying to learn what I can about how push/pull pentode outputs work, and I've carefully read (and I believe I've understood) what is presented at valvewizard.uk site on this subject.
I can see that some tube datasheets provide very specific operating points as examples. For instance, the sheet from GEC for the KT-88 helpfully suggests that you can run a pair of these with 560V B+, a 4500 ohm load, G2 supplied with 300V, G1 fix-biased to about -34V, each plate idling around 60mA. These conditions do correspond to a point on the plate characteristics chart, yay.
Now, and finally getting around to my question: when I plot the load lines as described by The Valvewizard, they go across the maximum plate dissipation curve, and into that forbidden zone rather deeply... Valvewizard says it's ok for the class-b part of the load line to cross. In this case the class-a part of the line also crosses, and it just doesn't look okay to me. Granted, I don't know shirt from shinola with this stuff. What's going on here? Am I just being a scaredy cat?

Because this confused me, I also looked at the datasheet for 6L6GC, it looks to me like it has somewhat more sane ideas. The load lines skirt the max dissipation curve closely.

Most likely, I won't ever embark on building any such thing, but still I'm the curious type...thanks for any insight on this.
