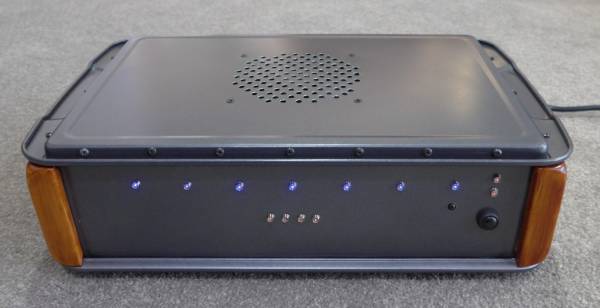

The Baking Tray Amplifier
Click on image to view larger image

Previous image   Next image

Photo Details

diyAudio Member

Registered: June 2008
Posts: 28
users gallery
The Baking Tray Amplifier is a 7-channel Class-D power amplifier based on LJM L15D modules, delivering 125W RMS into 8 ohms and 200W RMS into 4 ohms. It has speaker DC protection and infrared remote power on/off, and is designed as a high-power home theater power amplifier.

The other photos in my personal gallery describe the build in more detail.
Date: Wed February 15, 2017
