15 - Phase inverter connections to L15D boards
Click on image to view larger image

Previous image   Next image


Photo Details
serafis


diyAudio Member

Registered: June 2008
Posts: 28
users gallery

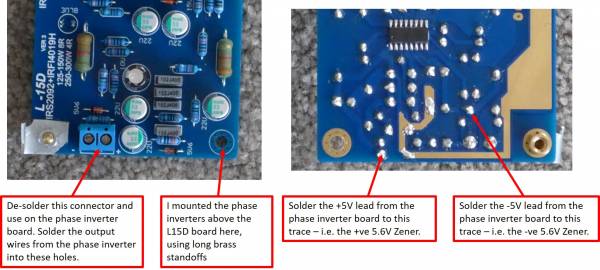

I re-used the input connectors from the L15D boards on the phase inverters, and connected the output wires to the L15D boards where the input connector used to be. I took the +5V supply from the +ve end of the positive rail 5.6V zener, and the -5V supply from the -ve end of the negative rail 5.6V zener.
Date: Wed February 15, 2017
