UCD 25 watts to 1200 watts using 2 mosfets

[andrewlebon]

Hello Nano
greetings thanks for your help your email please
warm regards
andrew



[vohonghai]

irs 3000



[Hadighorbani]

irs 3000

Hi
Thanks friend
Do you have top layer and part list?
Please share to all what all you have.



[jory16]

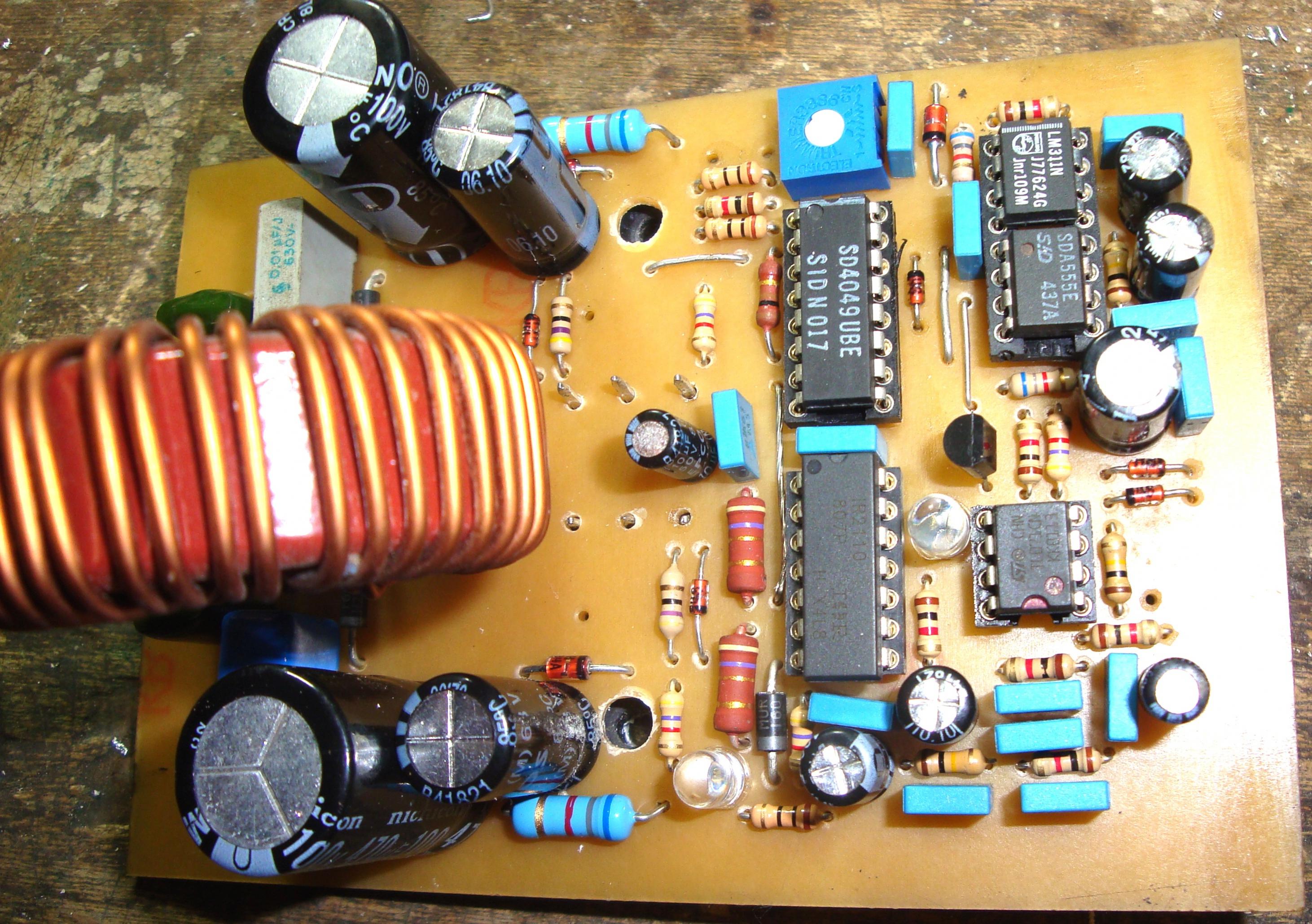

Hello mates, which of the following amplifiers have better definition audio and efficiency.
The configuration comprising the (IR2110 + CD4049) or (74AC00D + IR2110).

I appreciate all your opinions

Greetings ...



[vohonghai]

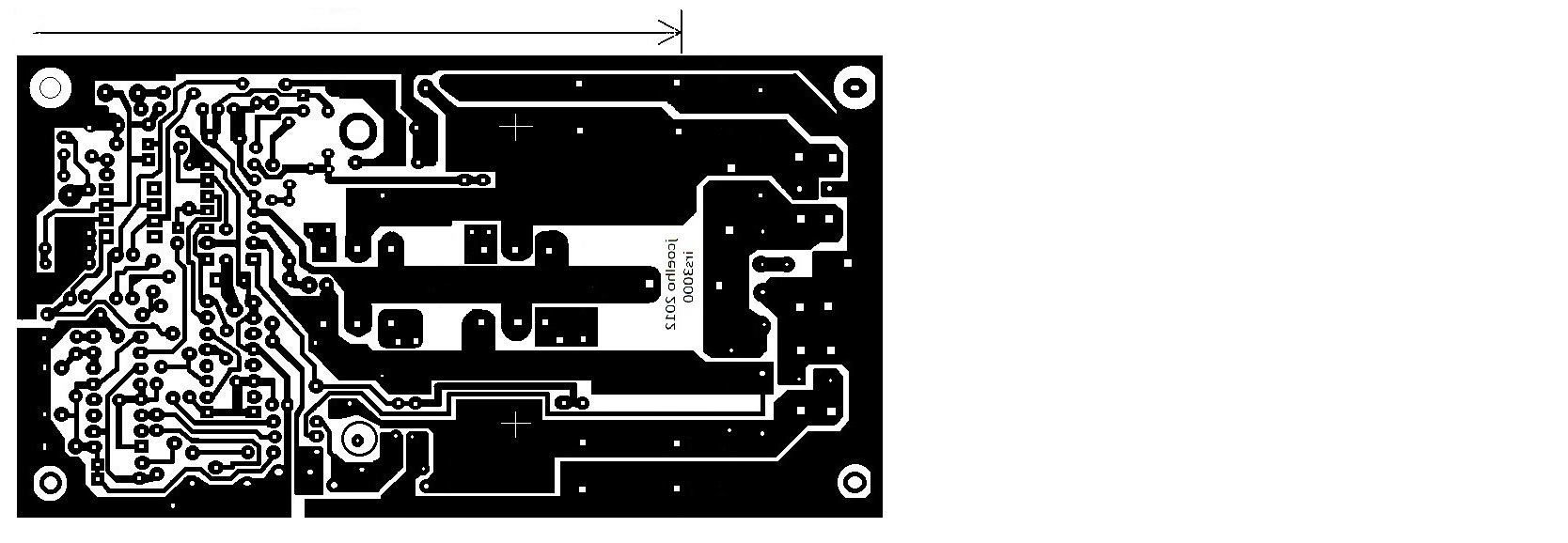

irs 3000



[andrewlebon]

H i Vohonghai
greetings why have you put .01 cap instead of .01 ohms current sensing
resistor irs 3000 is 2 pair amp
warm regards
andrew lebon



[Hadighorbani]

irs 3000

thanks
are you have part list for it?
i mean resistor with ?%
it is important to me
how many volts for supply?
can work with + - 35?
can i use in 2 ohm?



[sweetperfume]

Andrewlebon,
do u have the password of manoj's design...i downloaded it a month ago but dint ask for password.....can u provide it to me????



[manojtm]

Hi sweet,

My pass: diyaud5new

regards
manoj



[manojtm]

hi i will make the amp i am interested for the one with irfp250 +/-80vlts switching at 250KHz

Hi stewin,

with limitter or without limitter which one you ask and PCB not compleated

REGARDS
MANOJ



[andrewlebon]

HELLO

Hi andrewlebon beauty. Now next step is to test IR2110 totem with BD139, 140
03 pairs IRFP260N.
Nano.

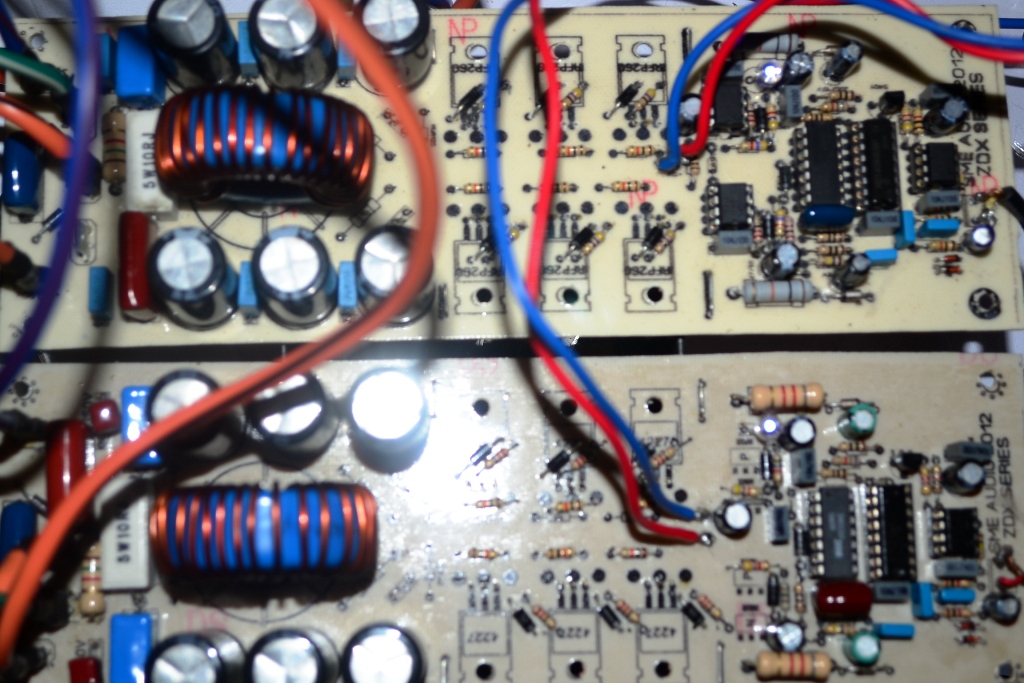

Hi Nano
greetings it working with 3 pairs FETS
warm regards
andrew lebon



[ravpreet420]

Class D Amp

Class d amp with 4422+2092 and with totem pole



[sweetperfume]

Hi sweet,

My pass: diyaud5new

regards
manoj

thank you sir,
and is the pcb ready and fully tested with shortcircuit protection



[don2007ksa]

hi nano how's your totem pole with BD'S + 3 pair's of IRFP260 does it work fine?



[binho]

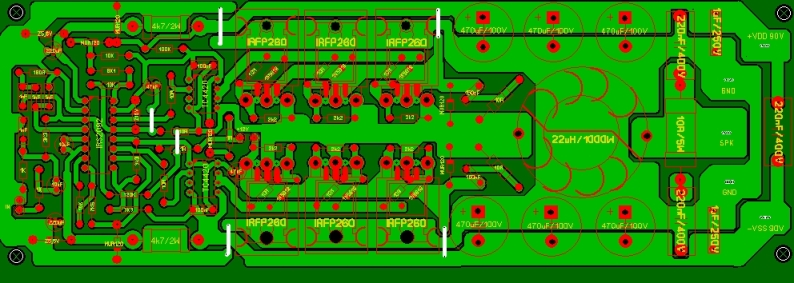

Class d amp with 4422+2092 and with totem pole

GOOD MORNING! my dear I really like this amp that you postor only to see that there's nothing you like more mandar detalhado.eu ja tetei can not ride because he had more mistakes I thank you very



[NANOTECNOLOGIA]

Hi andrewlebon beauty. Now next step is to test IR2110 totem with BD139, 140
03 pairs IRFP260N.
Nano.

Hi Nano
greetings it working with 3 pairs FETS
warm regards
andrew lebon

works very well with totem, is used in commercial circuits.
hugs.Nano



[Deleted member 148505]

How many watts of output power does a pair of IRFP260N can handle?

Thanks



[NANOTECNOLOGIA]

How many watts of output power does a pair of IRFP260N can handle?

Thanks

1500WATTS COM 85-0-85V 2R



[irvynejay]

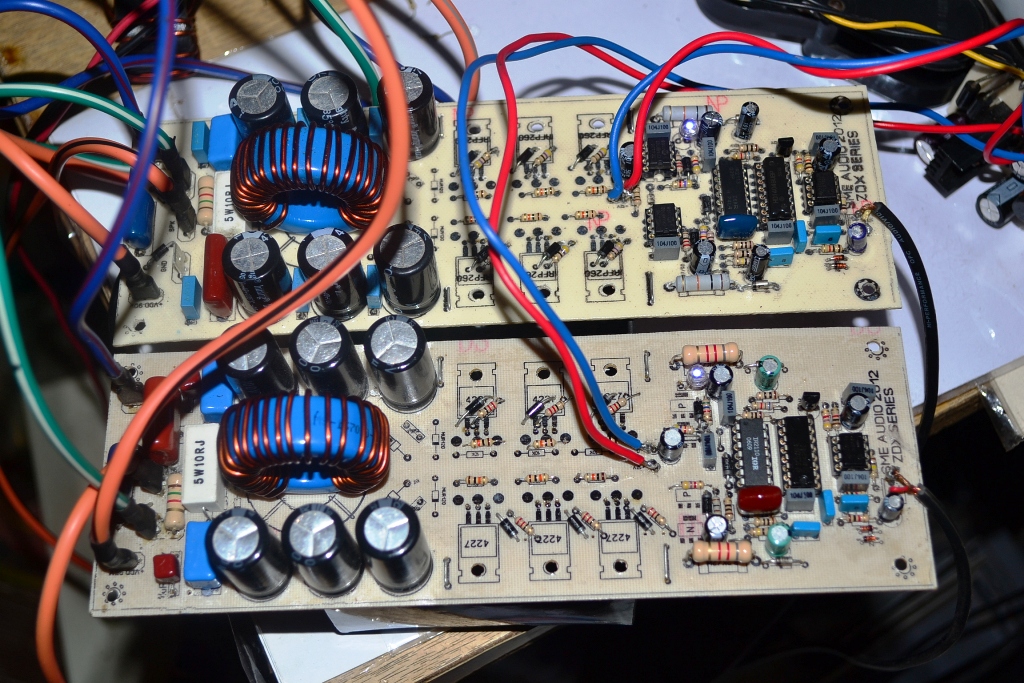

3 pairs

ir2110 with totem bjt and tc4220



[andrewlebon]

FAIRCHILD IC

Try FAN7392 instead of IR2110 ic seems sound is more refined
warm regards
andrew lebon
