QUASAR a reborn design

[iTiberius]

The boards have been made to fit this enclosure.
http://www.modushop.biz/ecommerce/cat079_l2.php?n=1

An externally hosted image should be here but it was not working when we last tested it.

Regards,
Tibi



[Patrik Floding]

The boards have been made to fit this enclosure.
http://www.modushop.biz/ecommerce/cat079_l2.php?n=1

An externally hosted image should be here but it was not working when we last tested it.

Regards,
Tibi

Yes, it's a very nice case!
If the project goes well I may well install it in this case in the end.



[Patrik Floding]

Re: Re: Re: New PCB

Hej Patrik!

Just remember that these boards will not fit a standard Quad 405/405-2 enclosure.

Roger

Hi Roger!

How is your 405 (405-2?) coming along?
Is it working, or dead?

Regards



[RogerGustavsson]

Hej Patrik!

Well, I am running a pair of active speakers since my Quad went crazy. I found an Audio Pro A-100 with A2-2 speakers.

An externally hosted image should be here but it was not working when we last tested it.

I will combine that set with my Audio Pro subwoofer, a B2-40. When the Quad are back in business, the Audio Pro gear will be used elsewherwe in my house.

Roger



[Patrik Floding]

Roger,
If you can extract the PCBs (with the integrated alu profile of course), postage may be not too bad. I'd be happy to fix them for you. However there is a chance the problem is in the power supply or other parts of the non-PCB circuitry. PM me for more info, as I don't want to hijack this thread too much!
Hälsningar



[RogerGustavsson]

Patrik!

It seems that you have chosen to block PMs from this forum. Thanks, for your offer! I have most parts for a full upgrade à la Keith Snook. Just want some "nicer" PCBs too.

Roger



[Patrik Floding]

Patrik!

It seems that you have chosen to block PMs from this forum. Thanks, for your offer! I have most parts for a full upgrade à la Keith Snook. Just want some "nicer" PCBs too.

Roger

Strange. PM should work!



[RogerGustavsson]

I get this message:
"Sorry! That user has specified that they do not wish to receive emails through this board. If you still wish to send an email to this user, please contact the administrator and they may be able to help."

Please, try to send ME a mail.


Roger



[jkraxi]

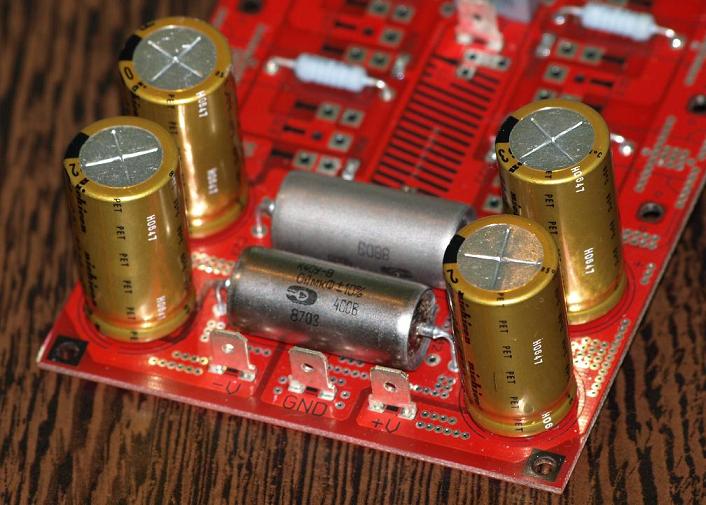

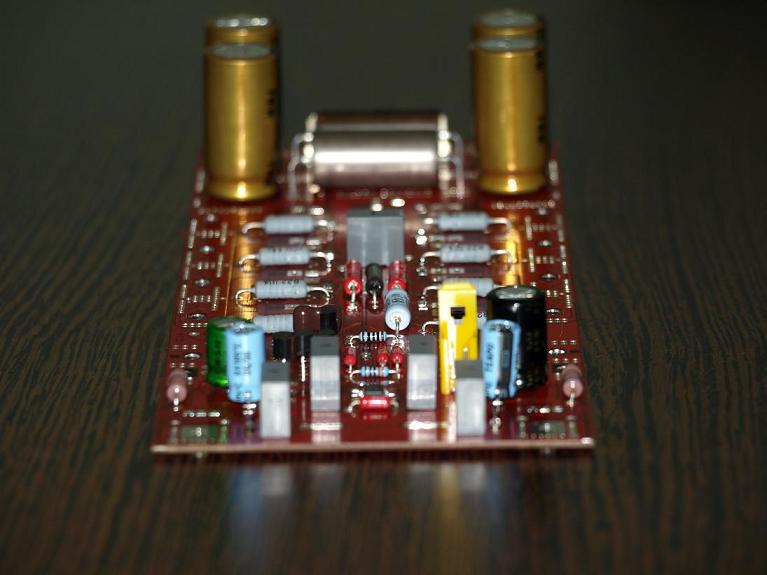

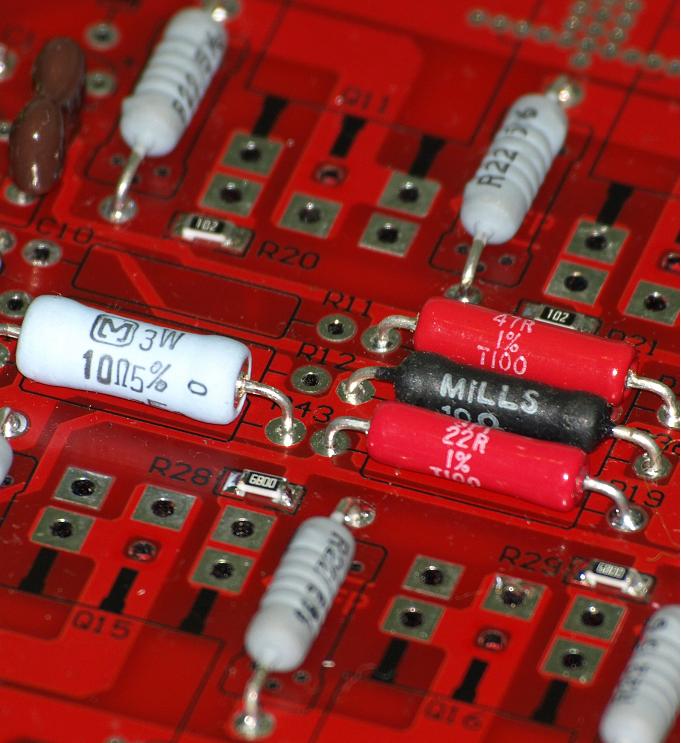

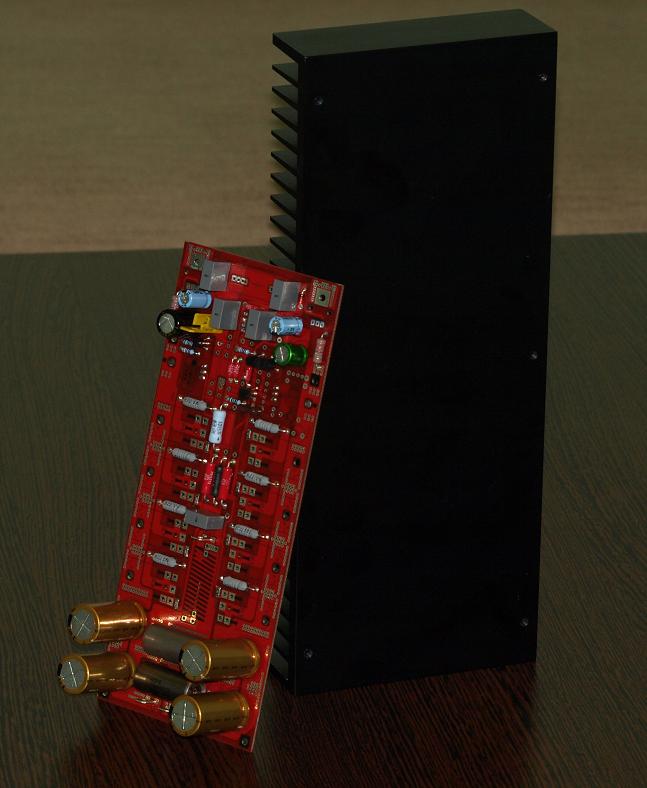

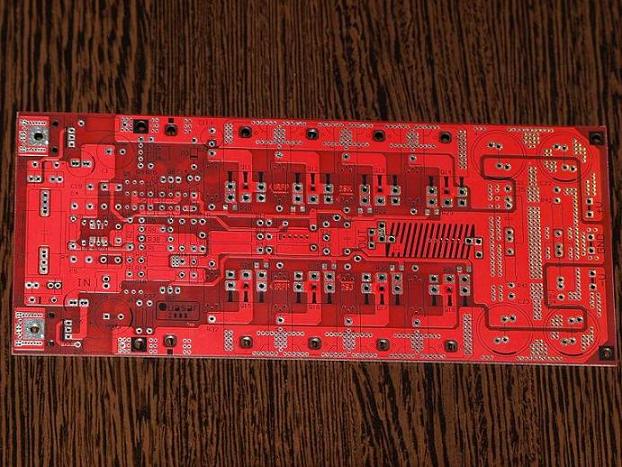

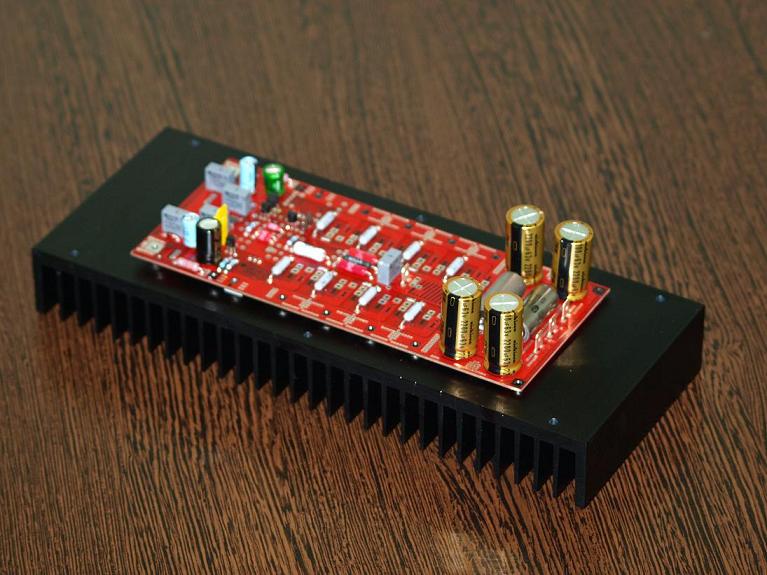

Here are some pictures of the Tibi's amplifier.
Soon I'll come back with details related to the specifications that tibi mentioned.



[jkraxi]

more...



[jkraxi]

...



[jkraxi]

... and



[jkraxi]

encore...



[jkraxi]

... ...



[jkraxi]

still more



[jkraxi]

stay tuned



[jkraxi]

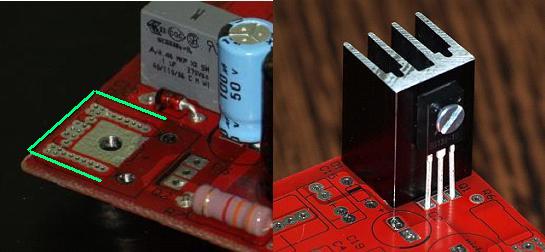

Options for BD139/140’s heatsink

There is a copper region on each layer of the board (2 polygons and vias) for use as a heatsink.



[jkraxi]

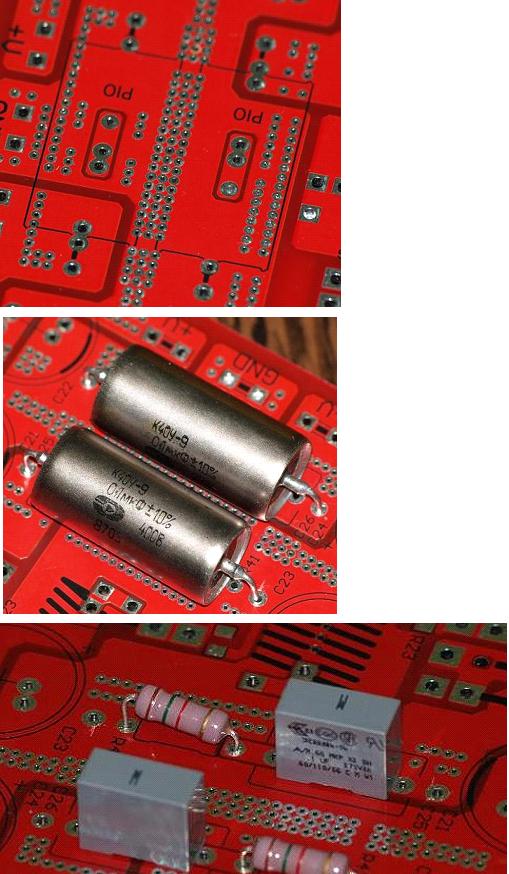

rooms for snubber or PIO

...



[jkraxi]

vertical mos-fet's or lateral

...are both accepted. The 2sk&sj use the left top pads and the IRFPs use the right bottom pads.



[jkraxi]

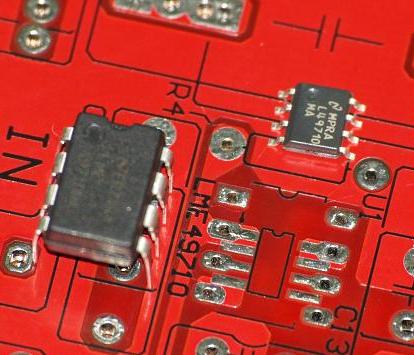

room for LME..

DIL or SOIC
