Post your Solid State pics here

[Mooly]

Ah so grasshopper... indeed



[eesbiboi]

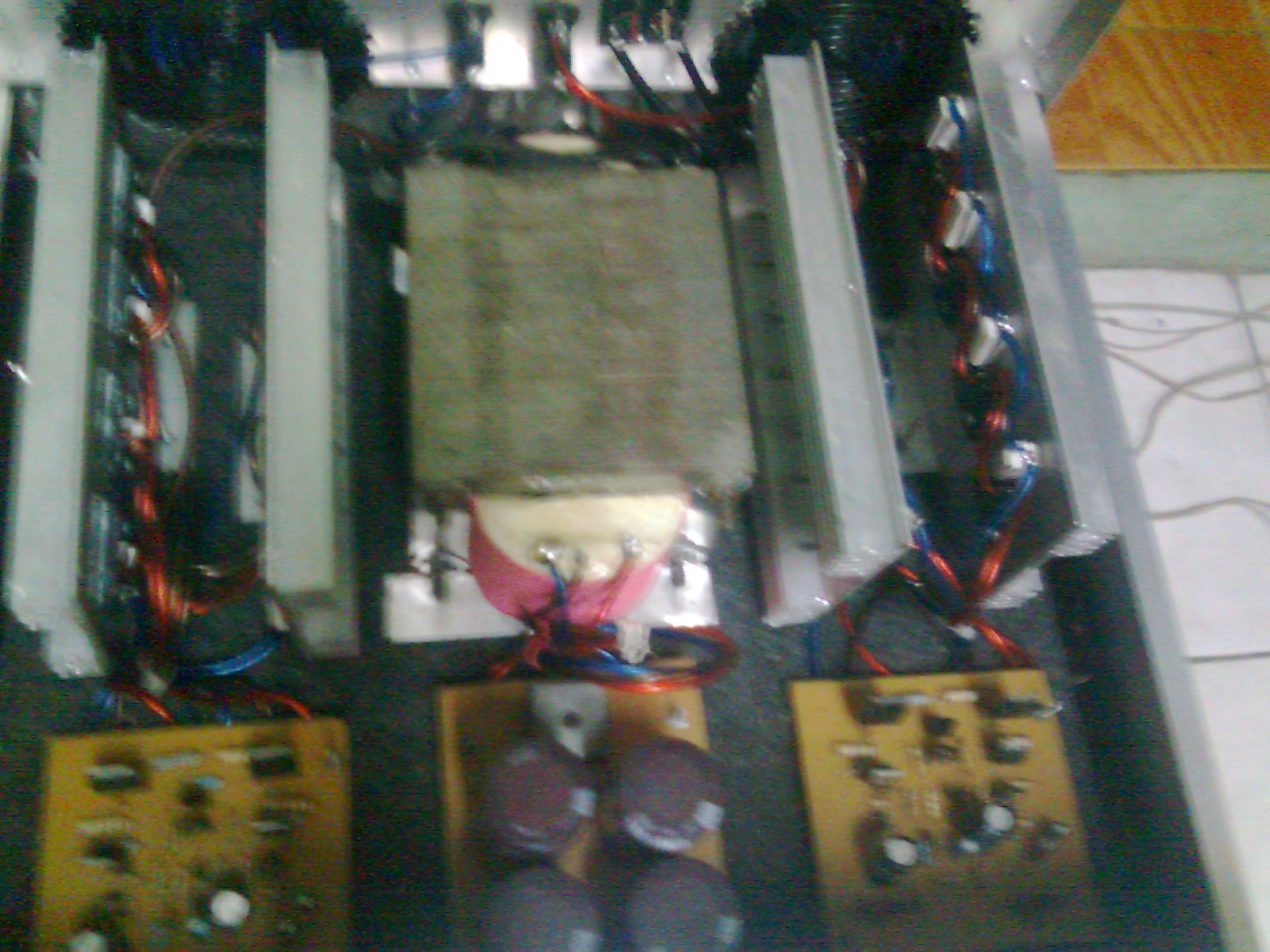

i see there are lots of very nice amps posted here...i wish to build one like those someday...by the way here's my work...



[shaan]

wah wah! i like this setup isbi boy!



[shaan]

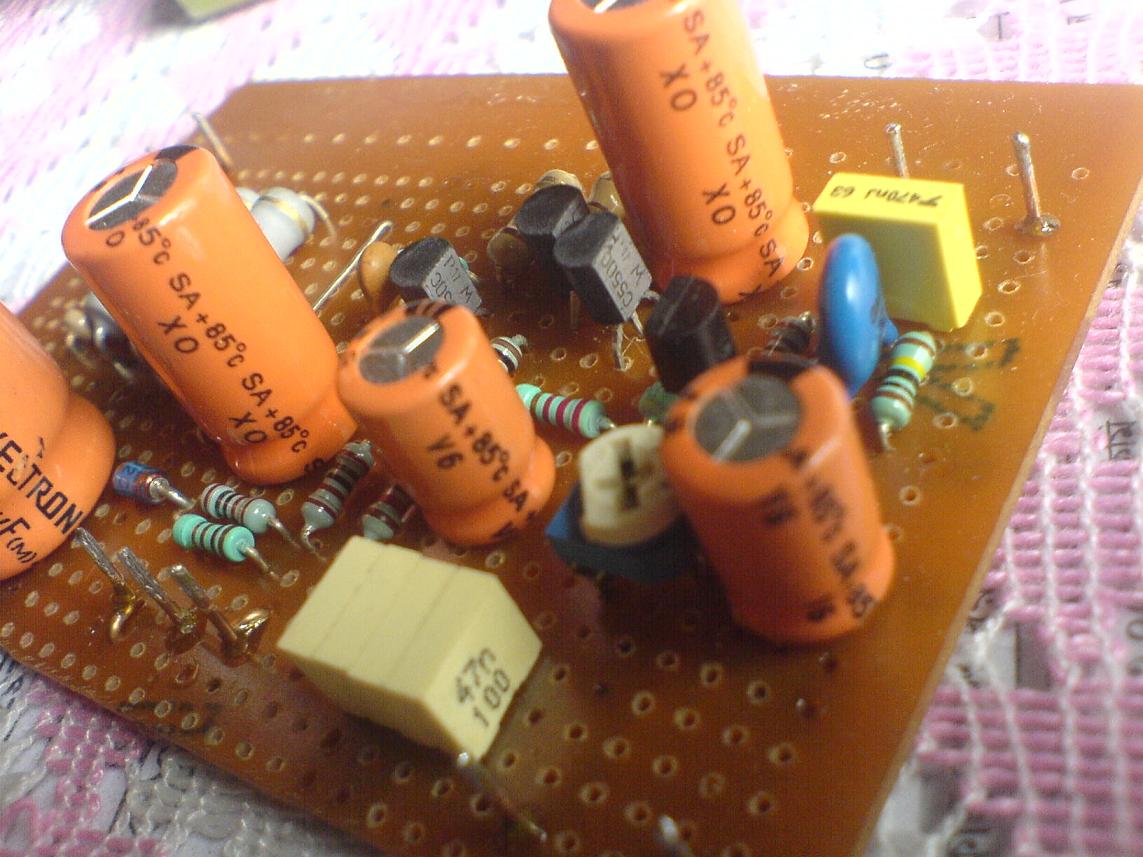

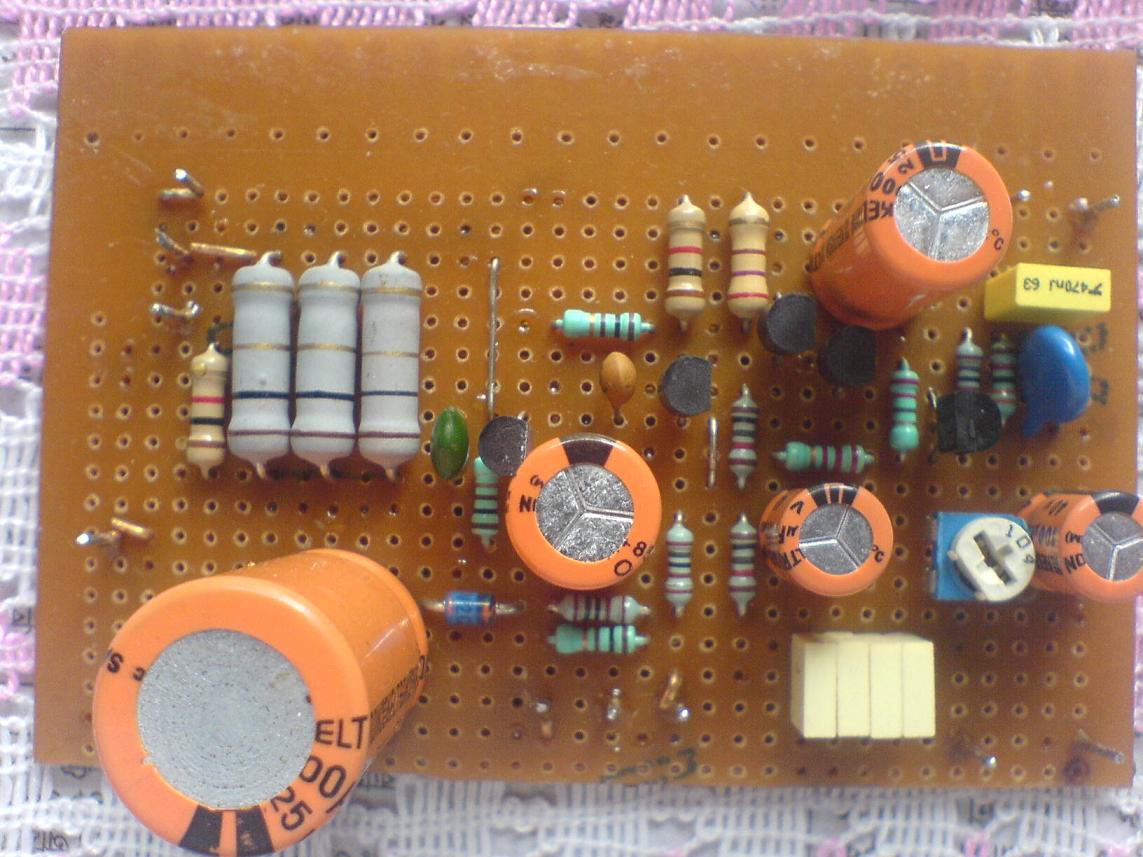

One of my vero board amps.

Latest version of an experimental se class-a amp. Left unused for its too clean sound.



[eesbiboi]

wah wah! i like this setup isbi boy!

tnx...
thats how we set up amps here in our place...

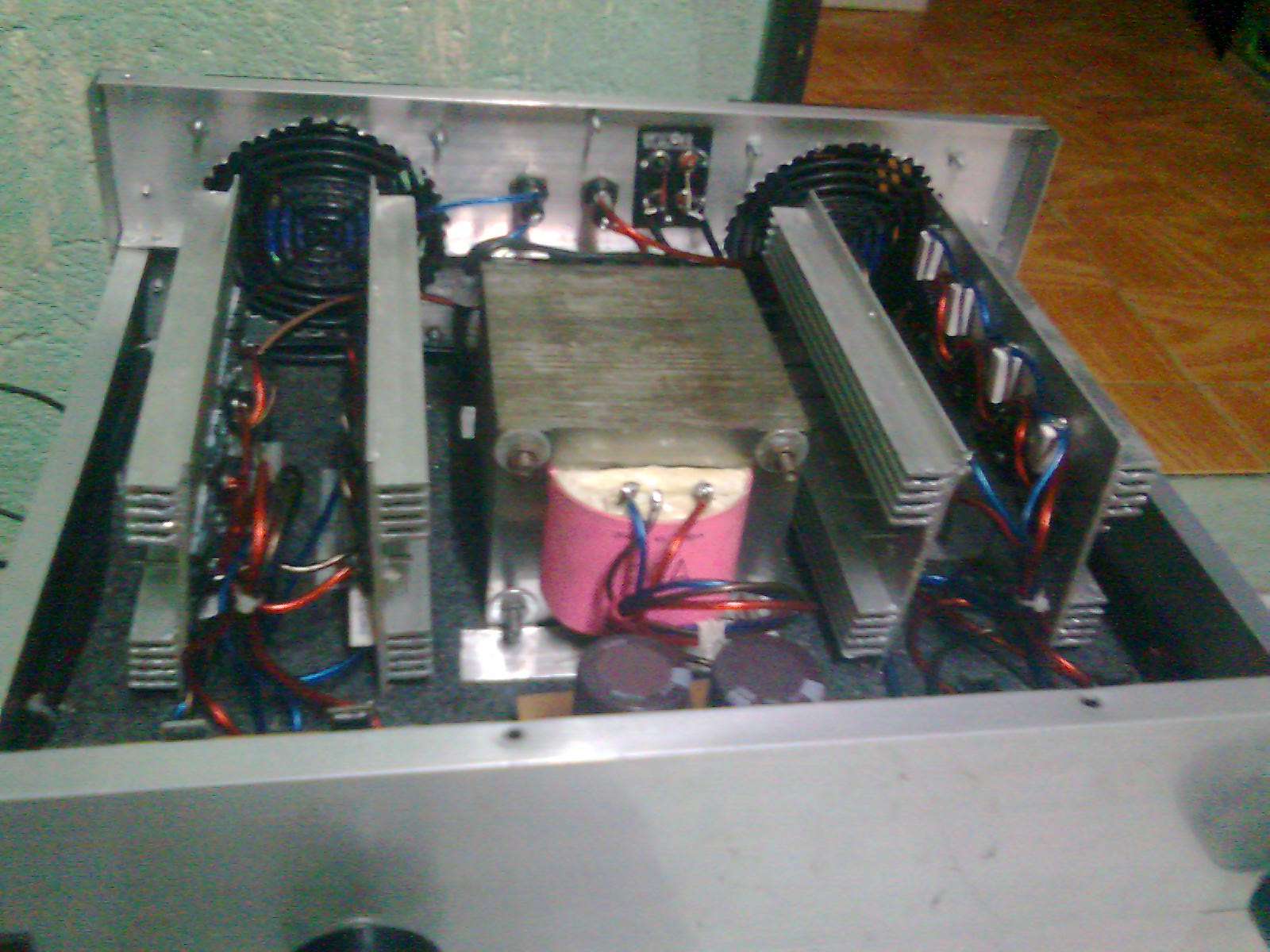

transformer placed at the center...heat sink on both sides...



[Nrik]

Left unused for its too clean sound.



[Federmann]

2x200W very small noisy toy. HQQF-55-503WK

Some have unnecessary fears



[east electronics]

2x200W very small noisy toy. HQQF-55-503WK


Some have unnecessary fears

variable capacitor in feedback ????? that is really new .... would you care to talk more about it ???? beyond a nice construction ... also nice drawings

wonderfull !!!



[regiregi22]

2x200W very small noisy toy. HQQF-55-503WK


Some have unnecessary fears

Congratulations. I have read your thread about this design, and finally you made it possible. It looks like a nice solid construction. How does it sound? Any scope capture?
Can we see a picture from the front side?

VERY NICE.

Regards,
Regi



[Federmann]

Missing to complete the coating. The sound is very solid and good.



[PMA]

Nice work, Federmann!

What is the reason of those very thick side panels?



[danhard]

Hi Federmann,
on the amplifier outputs are EMC chokes, amplifier produces any RF interference ?
What is the value of the coil ?



[Federmann]

Hi Federmann,
on the amplifier outputs are EMC chokes, amplifier produces any RF interference ?
What is the value of the coil ?

Output choke, much simpler and smaller, much less work.



[Federmann]

Nice work, Federmann!

What is the reason of those very thick side panels?

Very simple constriction. Excellent cooling, 80 ° C at full power, without a fan. Once the black surface, the temperature will be lower.



[PMA]

You probably mean long thermal time constant, don't you.



[regiregi22]

Output choke, much simpler and smaller, much less work.

As always, great explanation.



[FastEddy]

Add to the above easy solutions for input / output chokes:

3DotAudio Lug Kit for digital [or analog] data cables RF Ferrite Bead / Lug Filters



[Mooly]

Federmann... I am intrigued... the ferrite component in post #1393.
Am I understanding correctly that you used these in place of a conventional output inductor.

I ask because I experimented with ferrite beads slipped over a 0.22 ohm resistor in series with the output from an amp and as the ferrite saturated at higher outputs distortion even on a 'scope was very obvious at HF. Something an air cored coil doesn't so.

Edit... oh yes nearly forget... great job with it all.



[Sendy]

Very simple constriction. Excellent cooling, 80 ° C at full power, without a fan. Once the black surface, the temperature will be lower.

Temperature 80 ° C is on this side panels ?



[Federmann]

Inductance is 1μH, please do the listening tests.
