Post your Solid State pics here

[roly3055]

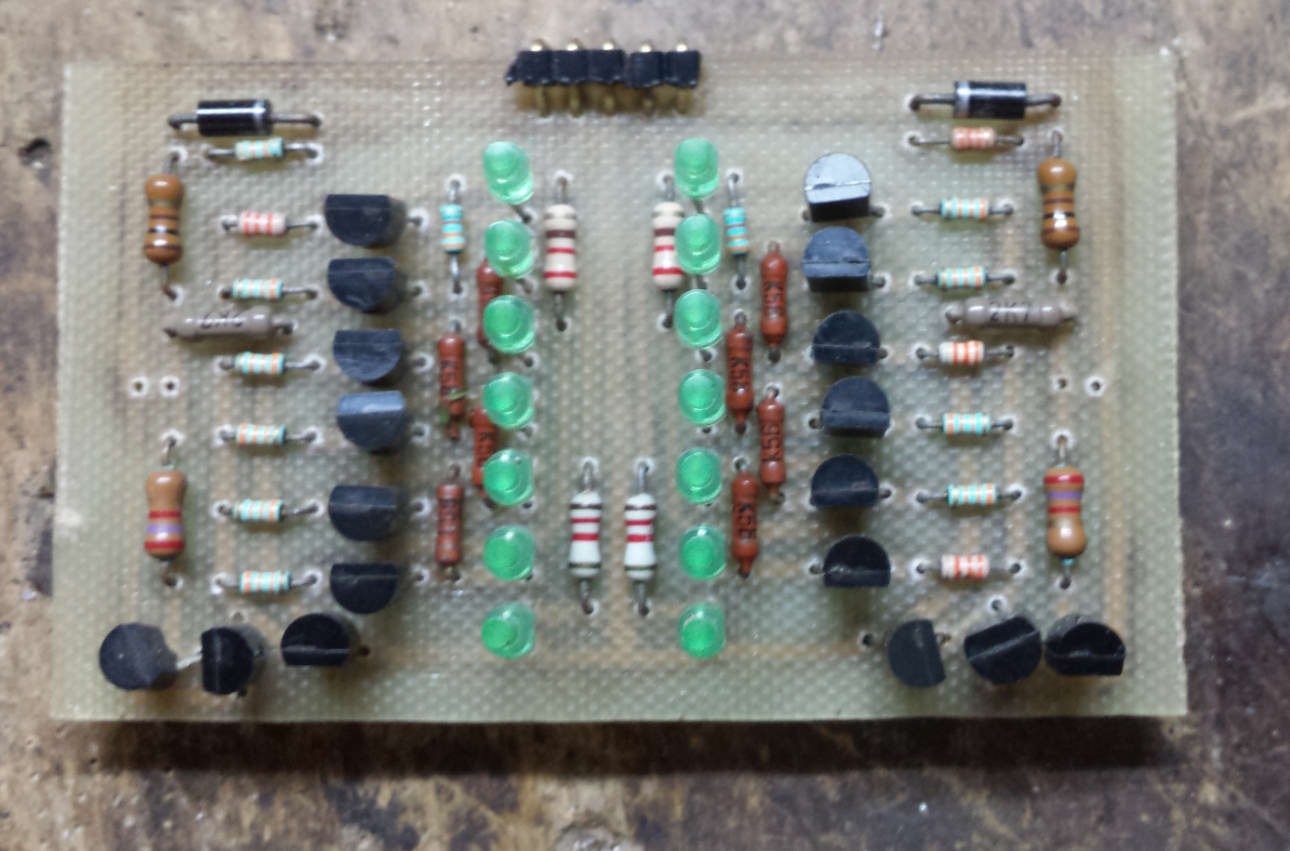

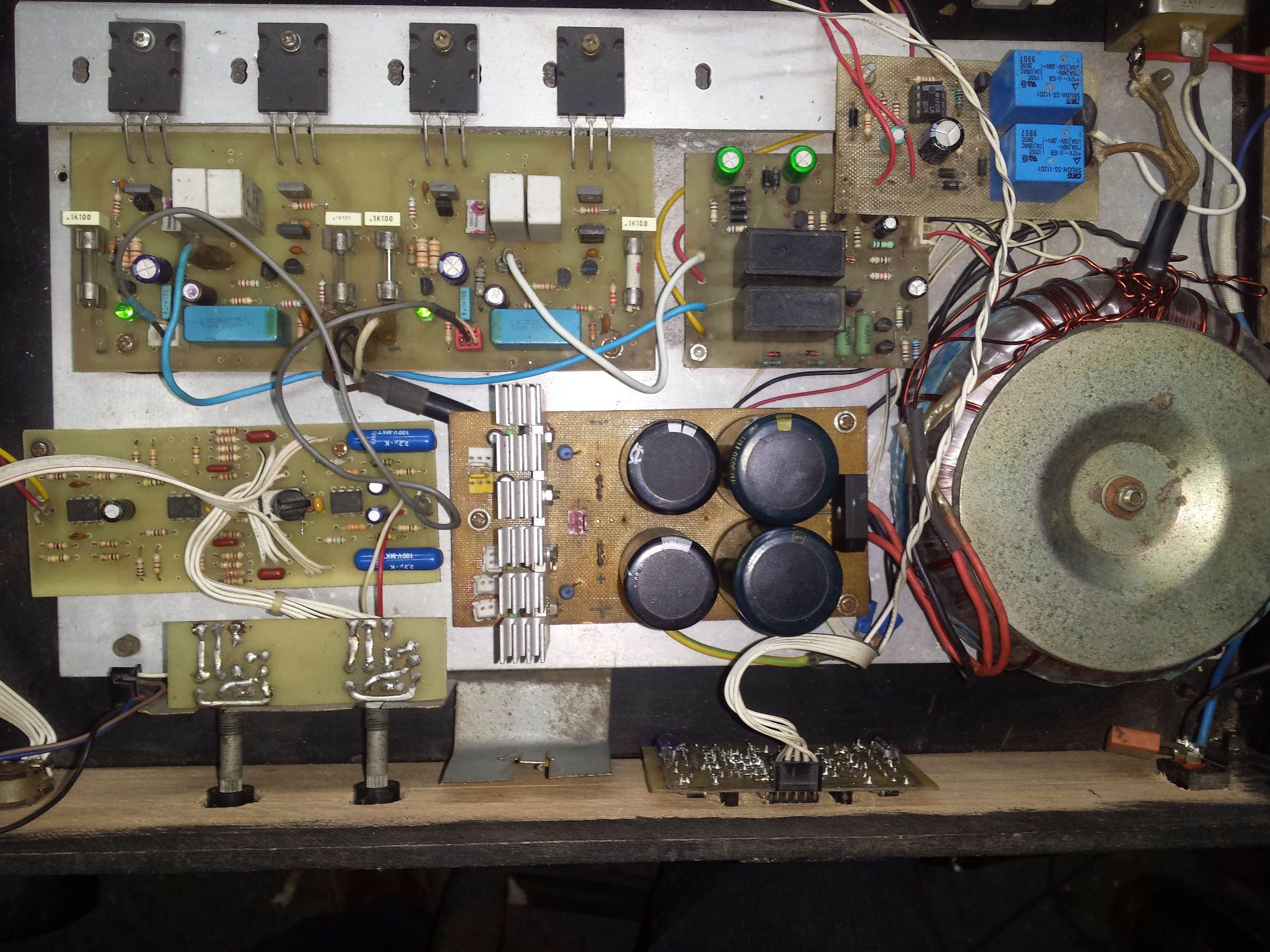

P3A+P97+P33+P39+Apex auto-range vu meters

finally finished...., all recycled, handmade boards
very good sound



[quiquas]

Very nice

Enviado de meu LG-V480 usando Tapatalk



[venar]

#4538# continue



[apexaudio]

finally finished...., all recycled, handmade boards
very good sound

Can you post front side picture?



[vargasmongo3435]

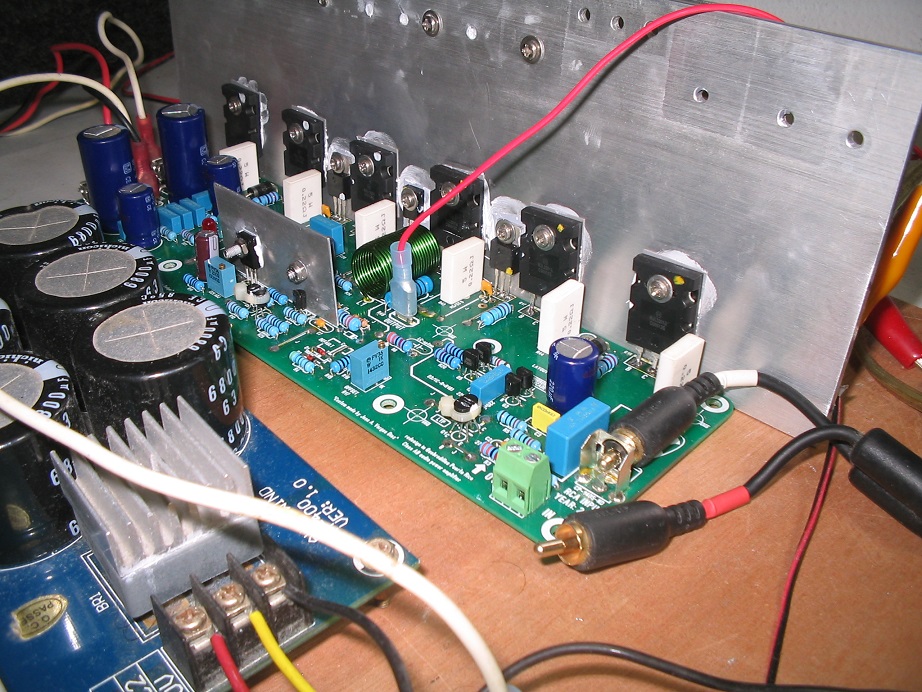

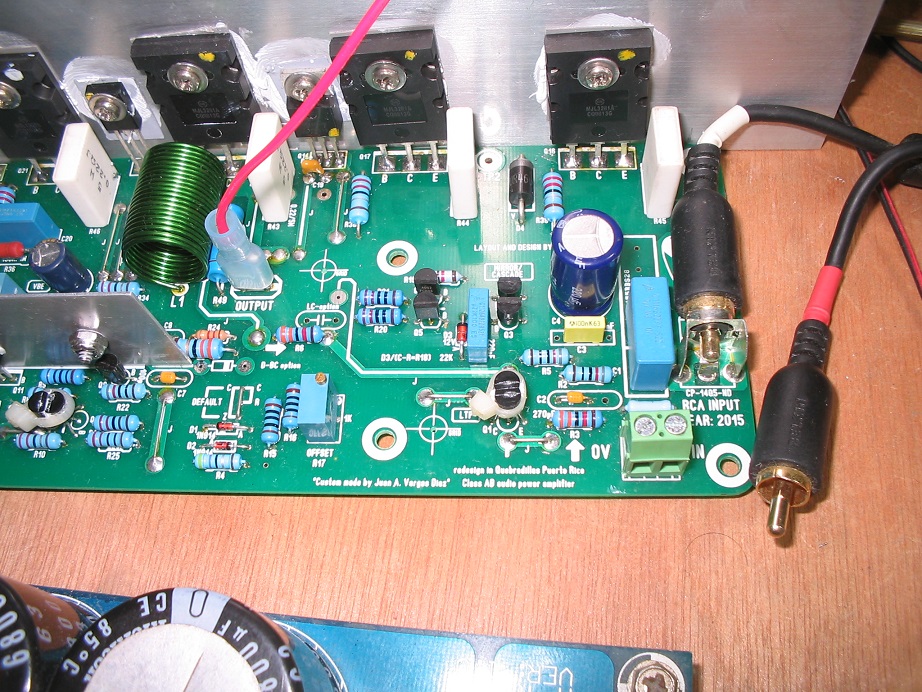

my custom Honey I just add the RCA



[jwilhelm]

my custom Honey I just add the RCA

Looks good, except you have them pointing the wrong direction.

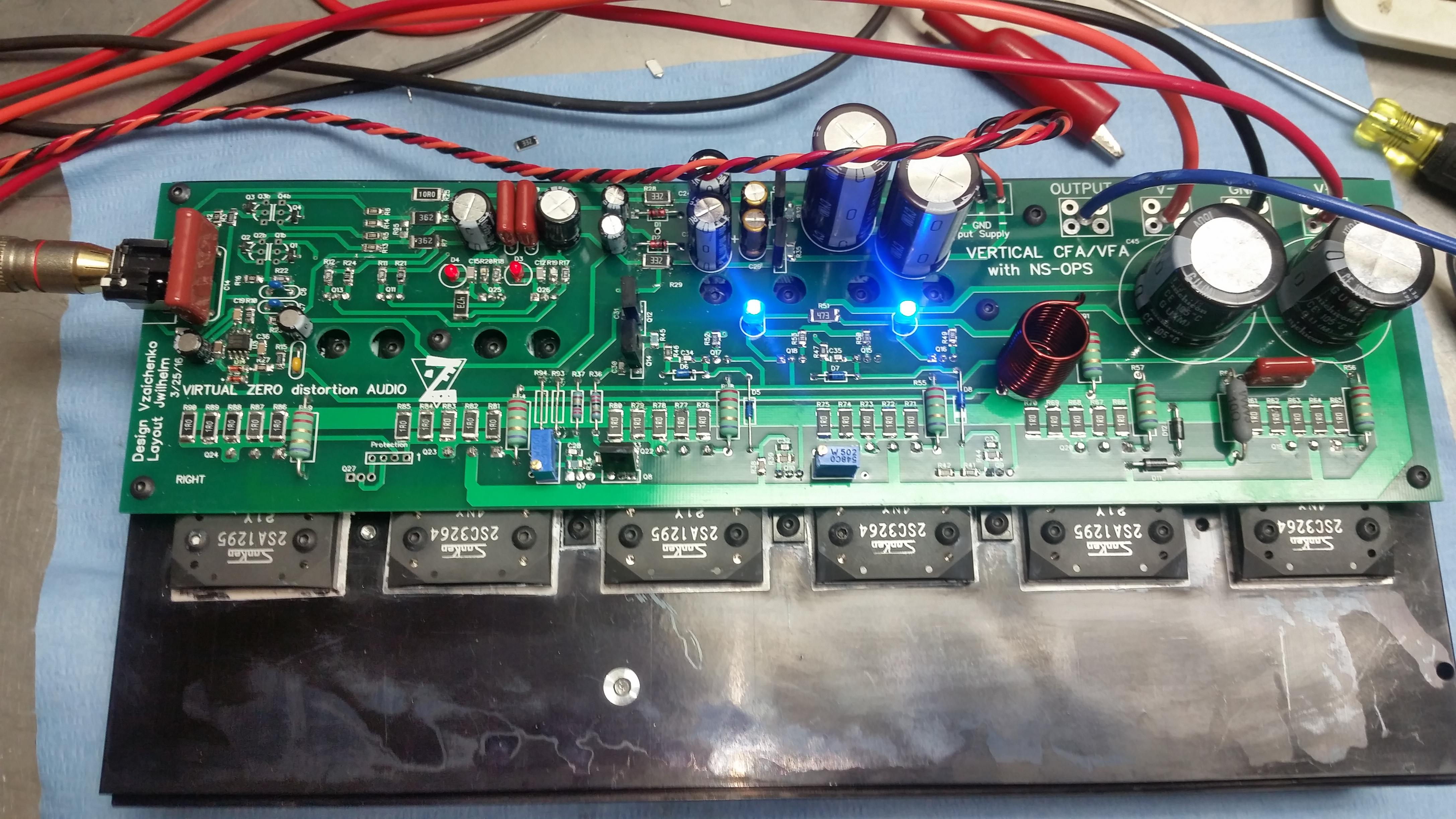

Here's now I did my NS-OPS boards. The RCA connector mounts to the rear panel, so there's no input wiring inside the chassis.



[pinnocchio]

Hi,

Here's some images of my USSA2 amplifier. It is a fantastic amplifier and the design is from Fab (on this forum), a highly respected amp designer on the French Canadian forums.

You can find the schematics here for version 1 but version 2 is easy to change to:
Amplificateur USSA 15W - Conception

You can find the schematics here for version 4 which I'm currently working on :
Amplificateur USSA-4 : hybride entre version 1 et 3 - conception

The build manuel is in English and can be requested to Fab

Ciao!
Do



[minek123]

I see you are using toroidal transformes from SumR - Richard Sumner Technology.
What are their prices?



[Cantunes]

Beautiful!

Hi,

Here's some images of my USSA2 amplifier. It is a fantastic amplifier and the design is from Fab (on this forum), a highly respected amp designer on the French Canadian forums.

You can find the schematics here for version 1 but version 2 is easy to change to:
Amplificateur USSA 15W - Conception

You can find the schematics here for version 4 which I'm currently working on :
Amplificateur USSA-4 : hybride entre version 1 et 3 - conception

The build manuel is in English and can be requested to Fab

Ciao!
Do



[pinnocchio]

I see you are using toroidal transformes from SumR - Richard Sumner Technology.
What are their prices?

I believe they were around 115$ CAD each
They're 300VA each with shield and core band, four secondary (2x 20.4Vac 280VA and 2x 12.9Vac 20VA)

Beautiful!

Thanks! I'm really pleased with this amplifier, sounds really good!



[vargasmongo3435]

Looks good, except you have them pointing the wrong direction.

Here's now I did my NS-OPS boards. The RCA connector mounts to the rear panel, so there's no input wiring inside the chassis.

yes I know, I just figure that out lol



[vargasmongo3435]

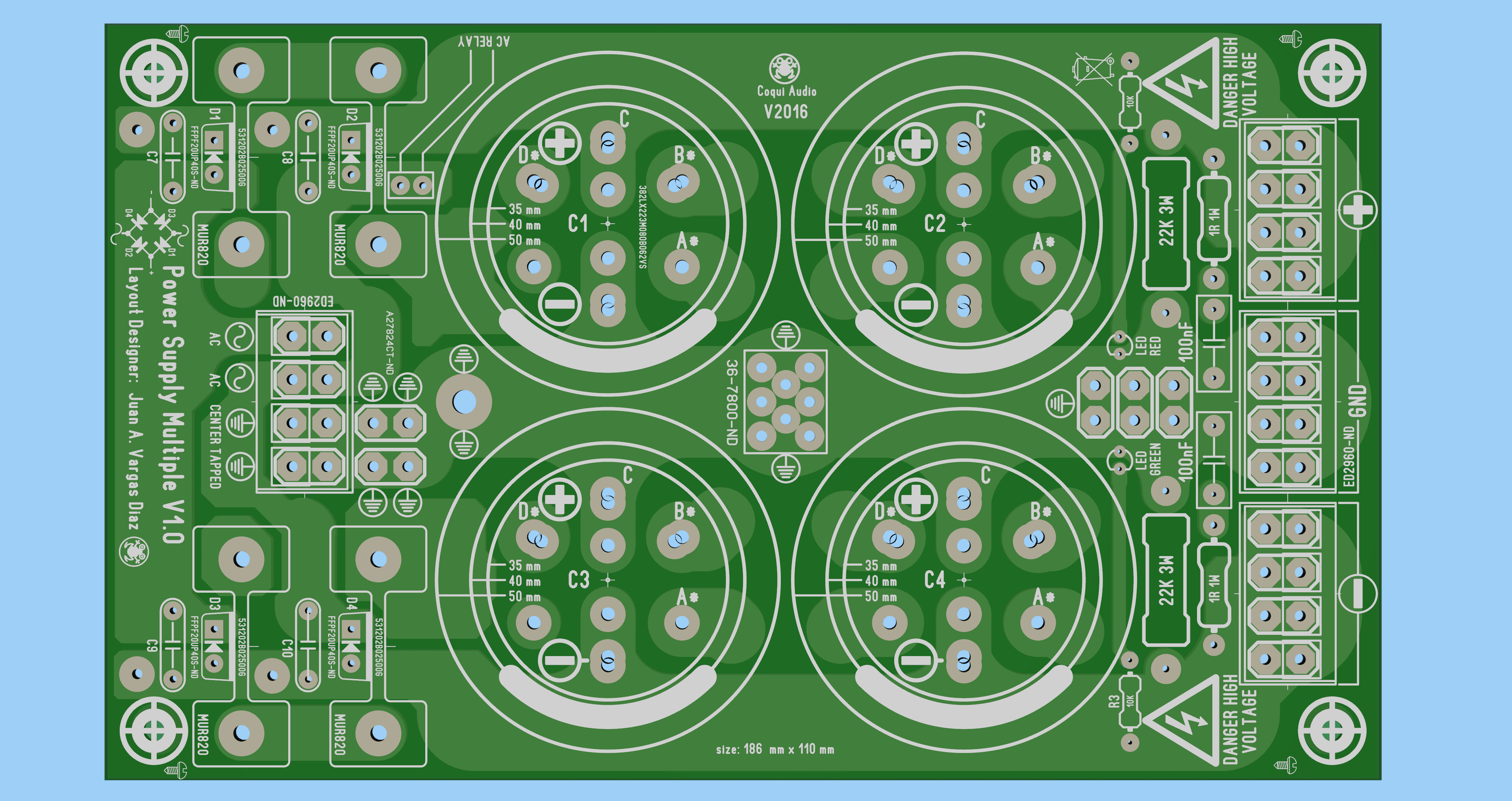

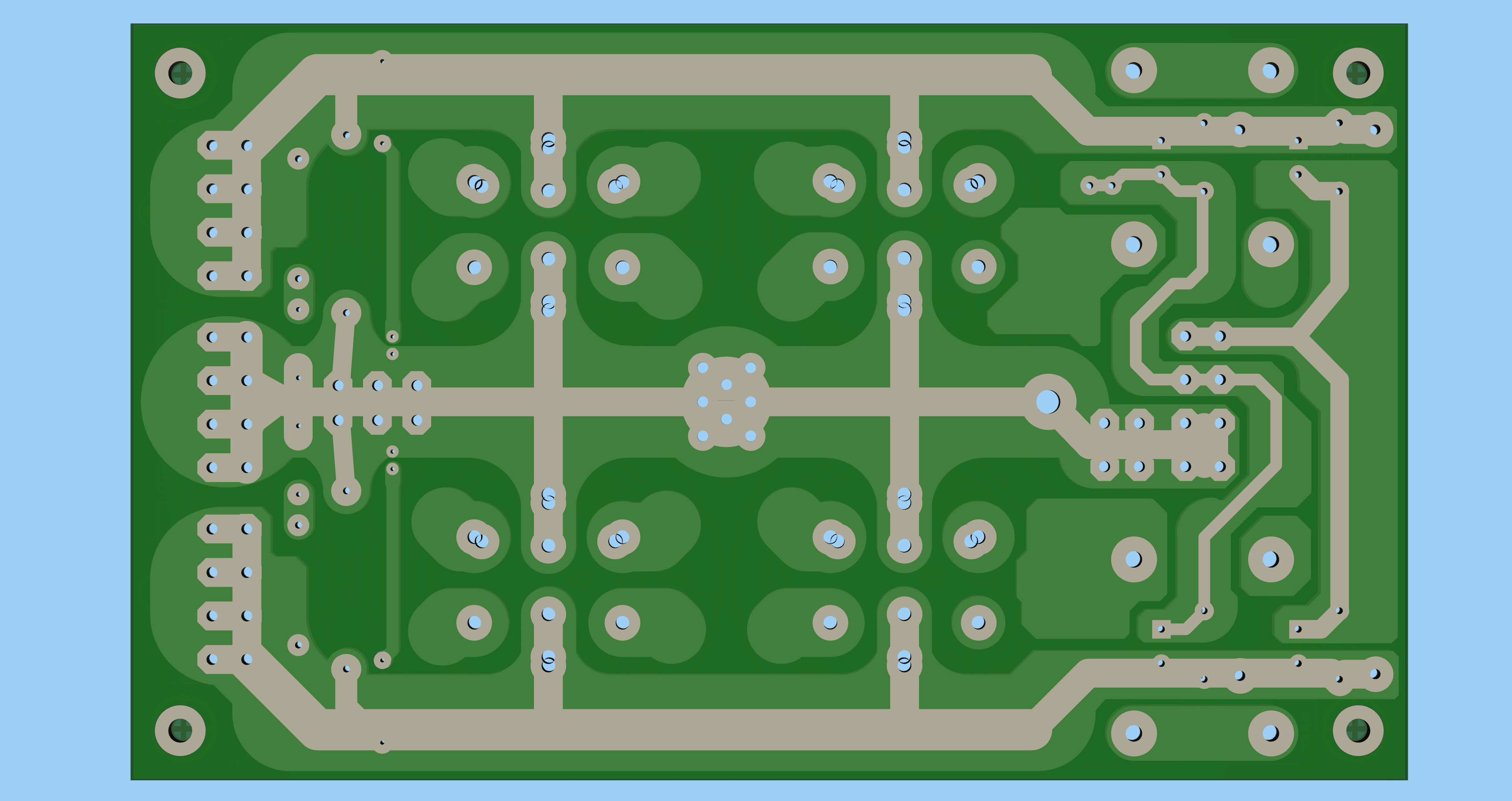

I have plans to order my own power supply design is just a simple one, what you guys think ?



[mhouston]

Cantunes, looks serious.



[xrk971]

I have plans to order my own power supply design is just a simple one, what you guys think ?

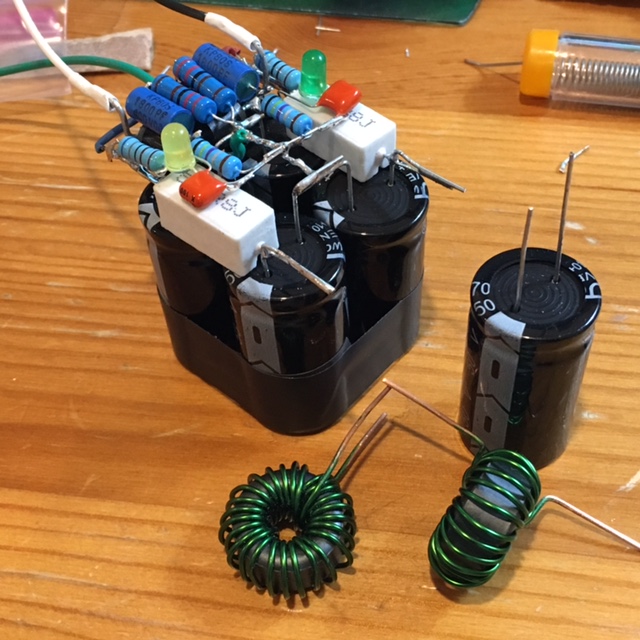

Nice PCB but I discovered that they can be made point to point in 3D and they save a lot of space that way and work great.

This one is about 1/3 the real estate it would have taken on a PCB. These are all 4700uF caps and the whole thing is tiny.



[ammel68]

I have plans to order my own power supply design is just a simple one, what you guys think ?

Nice work Juan...as always.



[mhouston]

I built a whole preamp on itself, including PS.

BoZoaC - Bride of Zen on a Cap - DIY Audio Projects Photo Gallery



[Pato666]

Nice PCB but I discovered that they can be made point to point in 3D and they save a lot of space that way and work great.

This one is about 1/3 the real estate it would have taken on a PCB. These are all 4700uF caps and the whole thing is tiny.

Awesome design! Point to point is a good choice sometimes.



[roly3055]

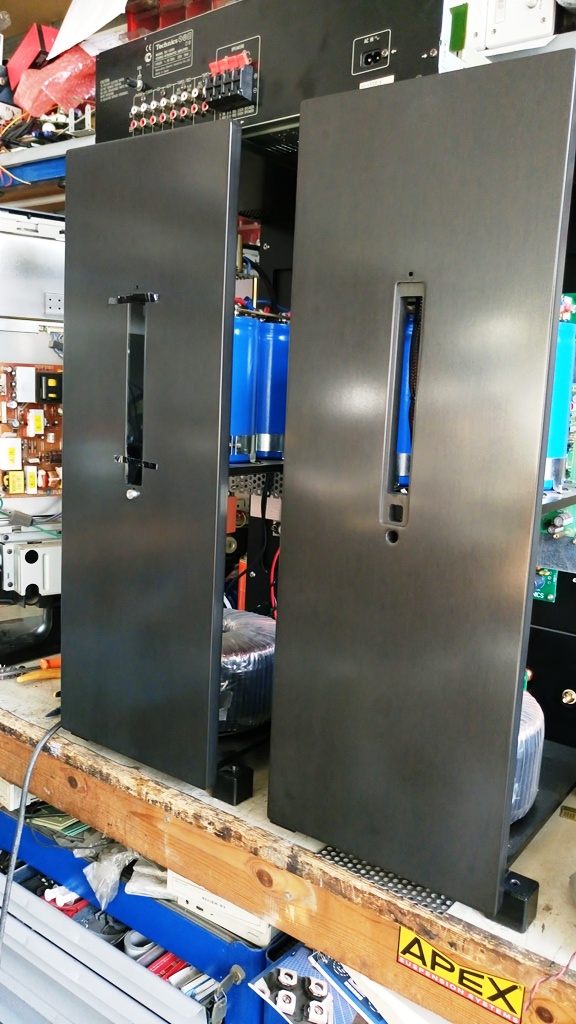

P3A, P97, P33 ....

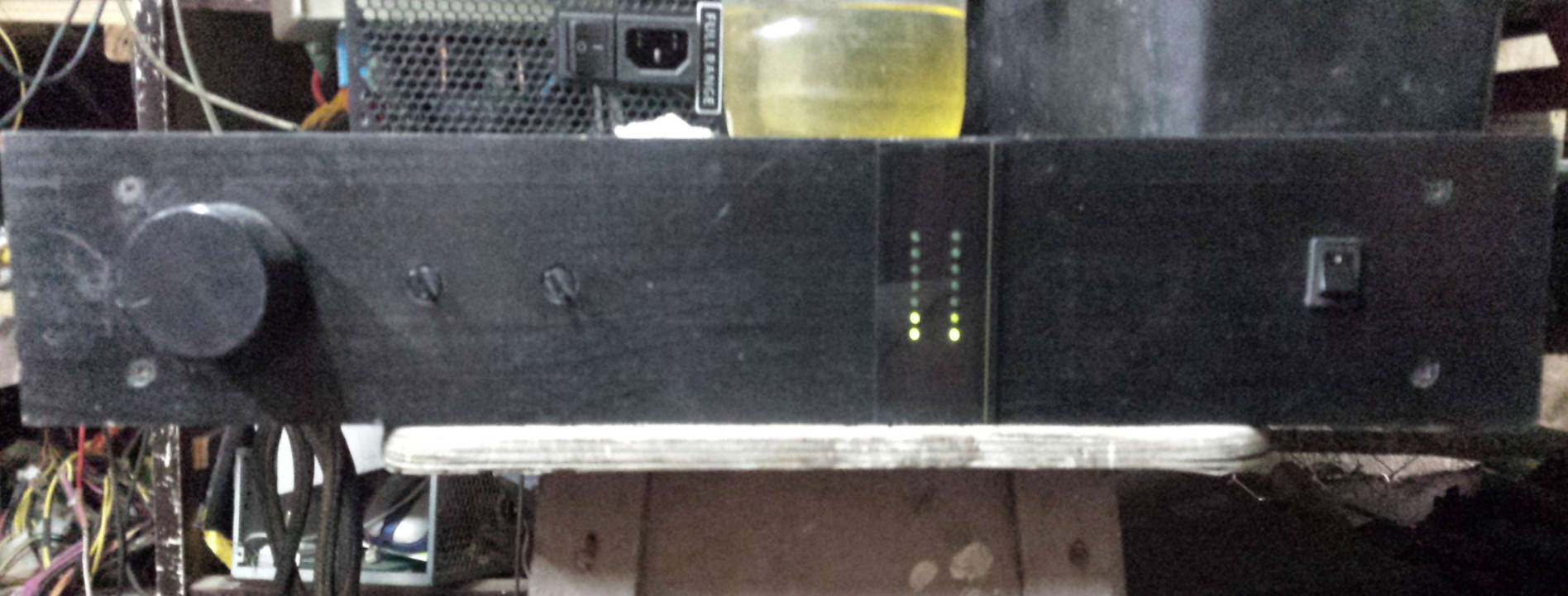

Front Panel and Apex auto-range vu



[dudaindc]

I have plans to order my own power supply design is just a simple one, what you guys think ?

I would be interested in a few of these boards...



[vargasmongo3435]

Nice work Juan...as always.

thanks
