Neat balanced headphone amplifier from Bottlehead. Uses 12AU7 for power and two 6C45-Pi. This build features a powdercoated antique copper top plate, copper-leaf wood base, big 10uF Jupiter capacitors, and classy Cardas copper wire.
Enjoy the pics! Build log with lots more photos and details here.
Looks like a million dollars! Incredibly nice build, I love the smooth control plate and knobs WOW!
Looks like a million dollars!
Guess you've been watching the news. Leonardo's painting will fetch way more.
This is a tough crowd for 'arty' pieces though.
Not sure I follow... there are plenty of artistic pieces in this thread made by people many times more talented than I.This is a tough crowd for 'arty' pieces though.
Last my experiment: 2x1 W SE 6П9 Russian-60s & PCC88 Tesla - incredible details, deep sound /in my 96 dB speakers/ from this metal small tube, that Russians use for driver for 6S33S, 6S41S, 6P45S,....and for big high voltage power tubes....IMO better than 6E5P, 6J4, 6J9P /6Ж9П, 6Ж11П/...
https://picasaweb.google.com/109570777566485968551/Amplifiers#6116860910391917010
https://picasaweb.google.com/109570777566485968551/Amplifiers#6116860910391917010
Last edited:
Neat balanced headphone amplifier from Bottlehead. Uses 12AU7 for power and two 6C45-Pi. This build features a powdercoated antique copper top plate, copper-leaf wood base, big 10uF Jupiter capacitors, and classy Cardas copper wire.
Enjoy the pics! Build log with lots more photos and details here.
Incredible build, happy to see that also art is being taking serious here, chapeau.
Last edited:

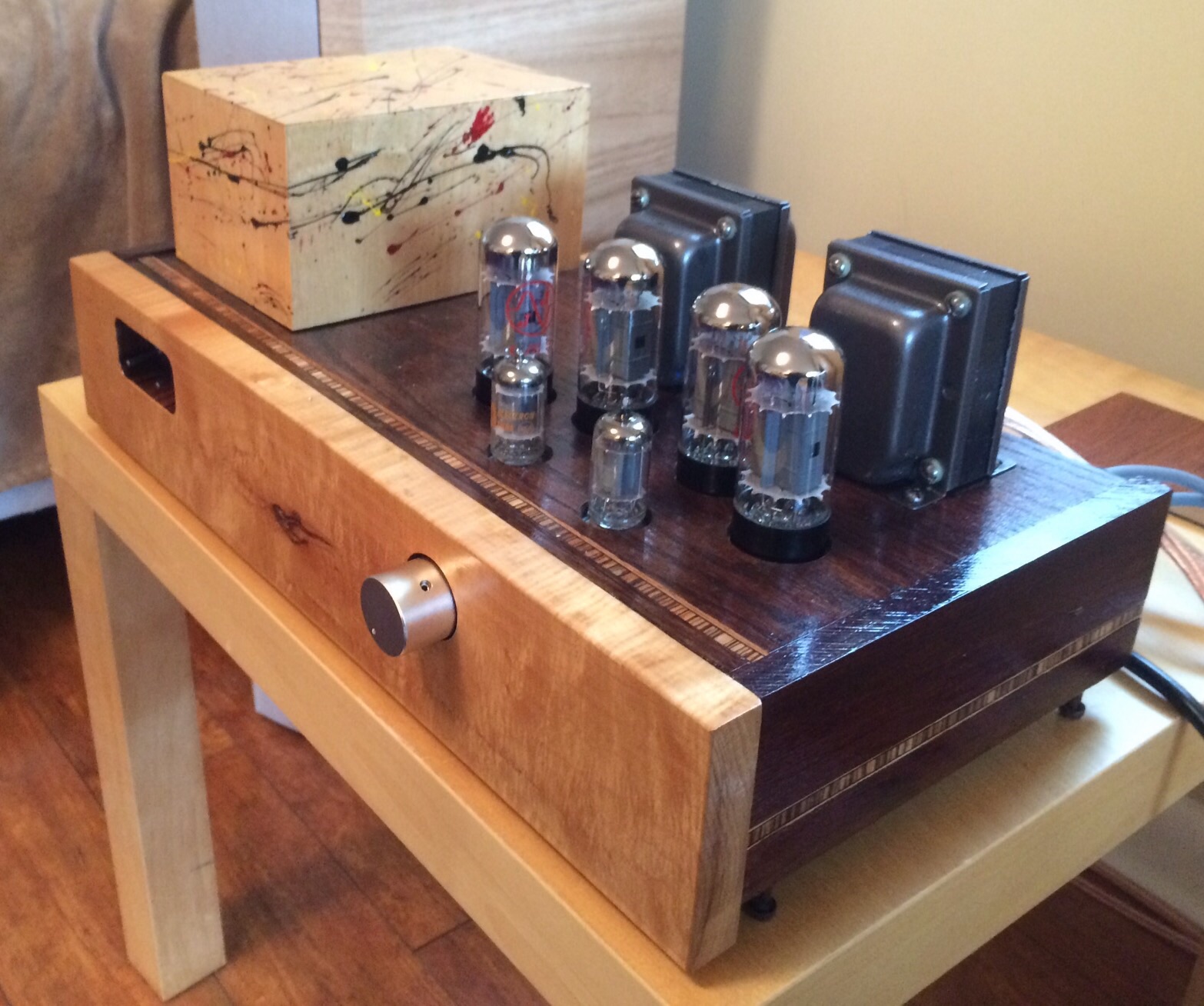

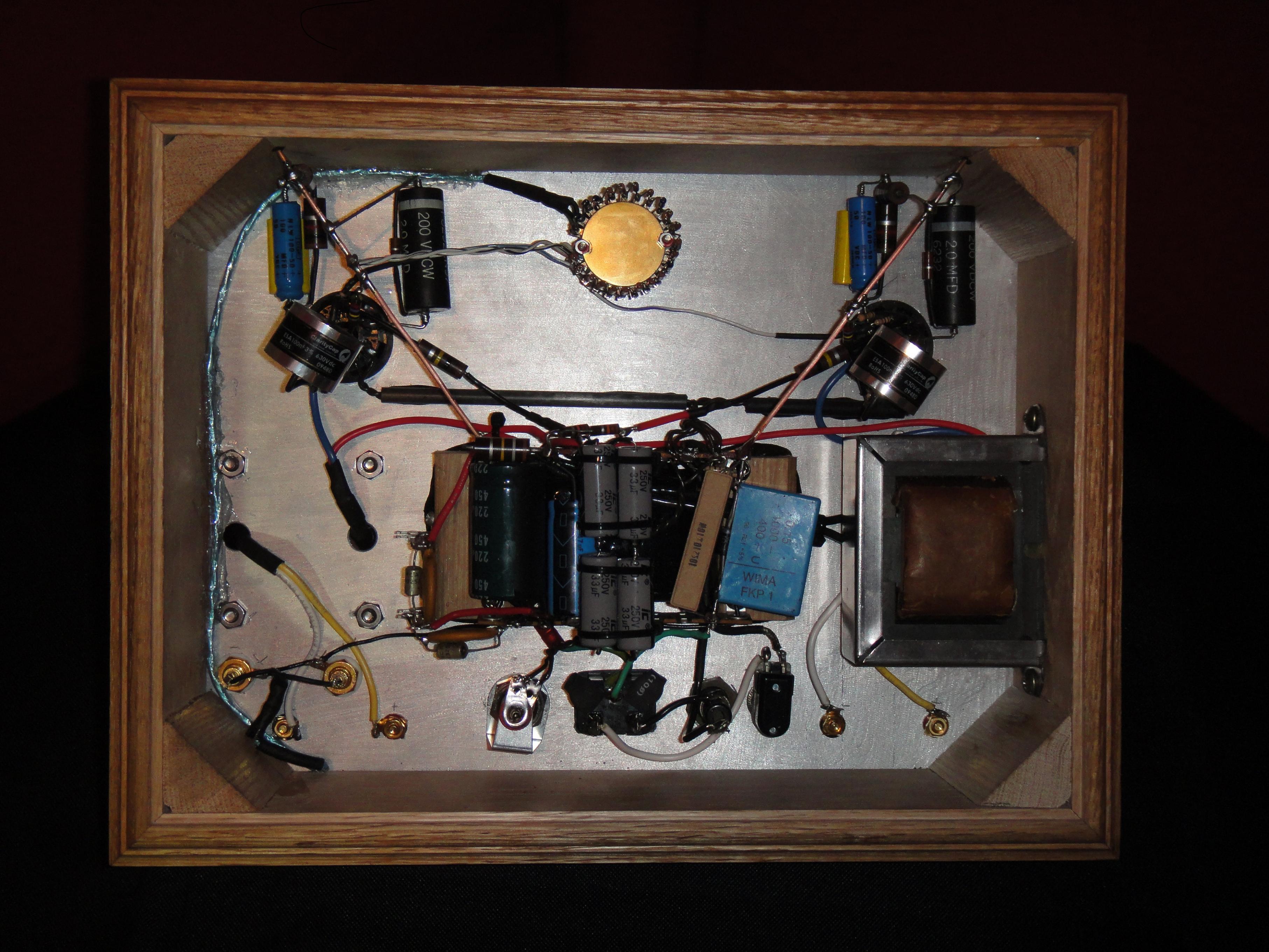

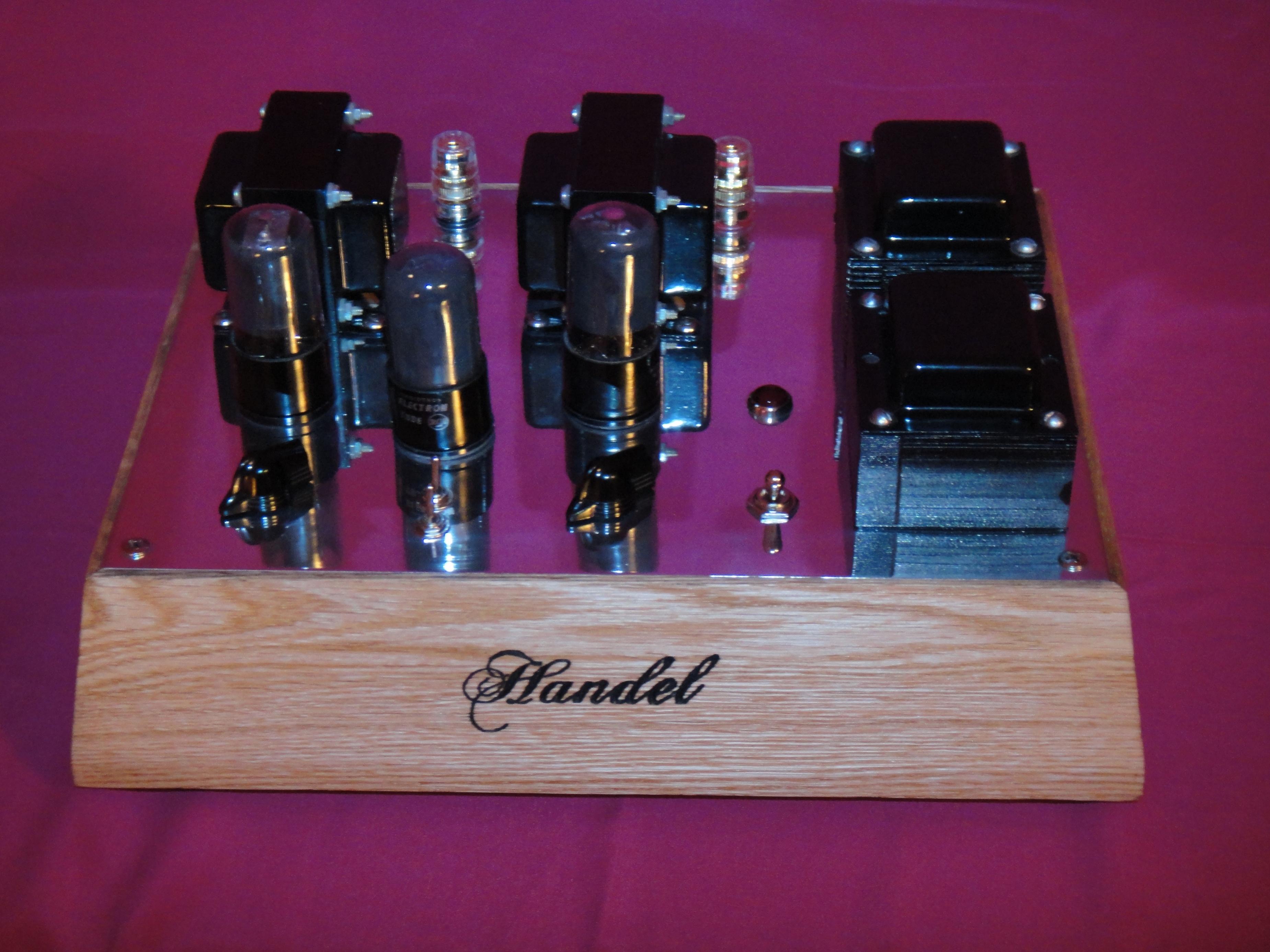

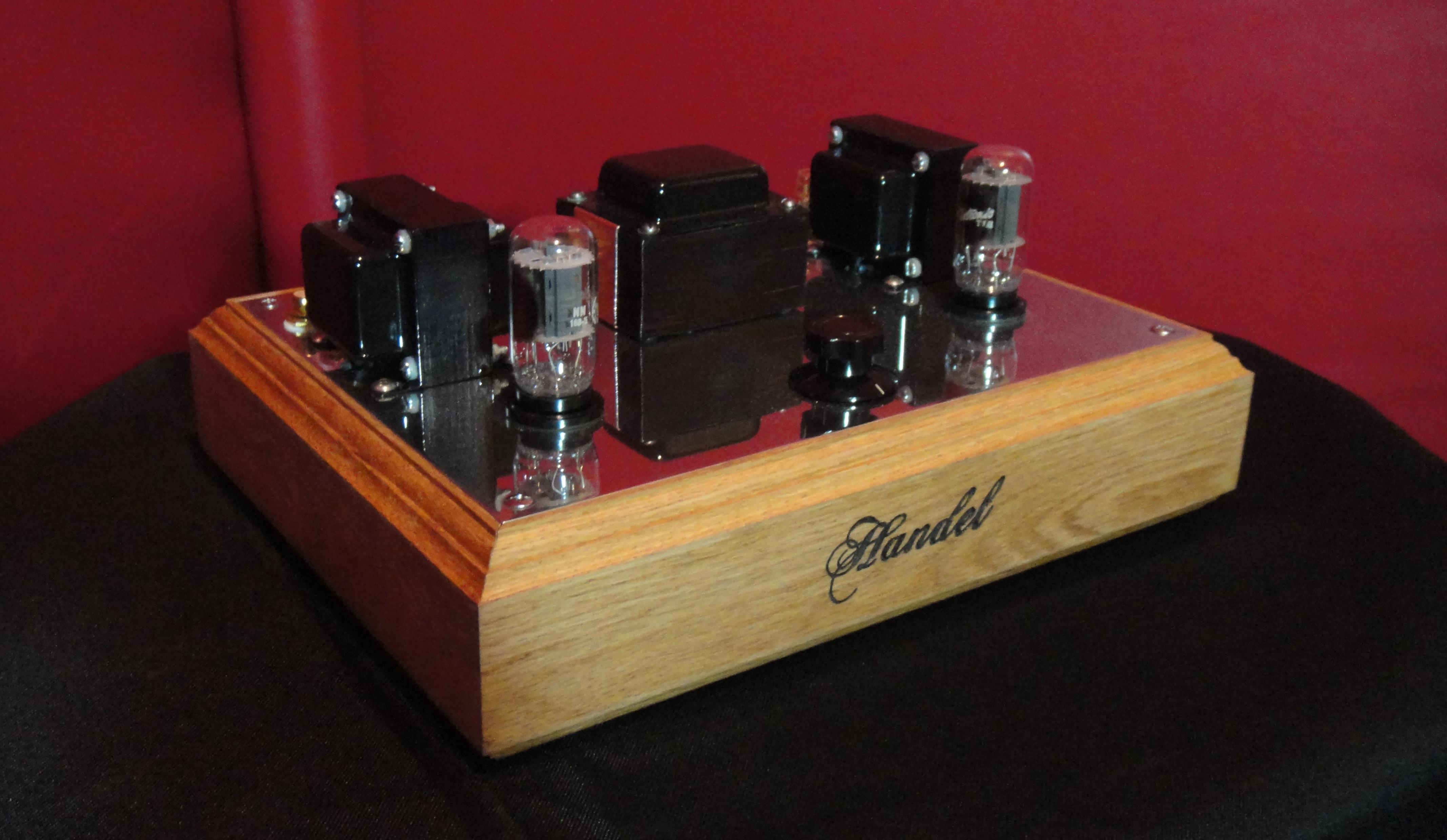

6EM7 SE Triode Stereo
Here's this week's build.
You've gotta' hear this flea watt 2 watts/channel setup. www.youtube.com/watch?v=QHZtVtAzYvw
Here's this week's build.
You've gotta' hear this flea watt 2 watts/channel setup. www.youtube.com/watch?v=QHZtVtAzYvw
Attachments

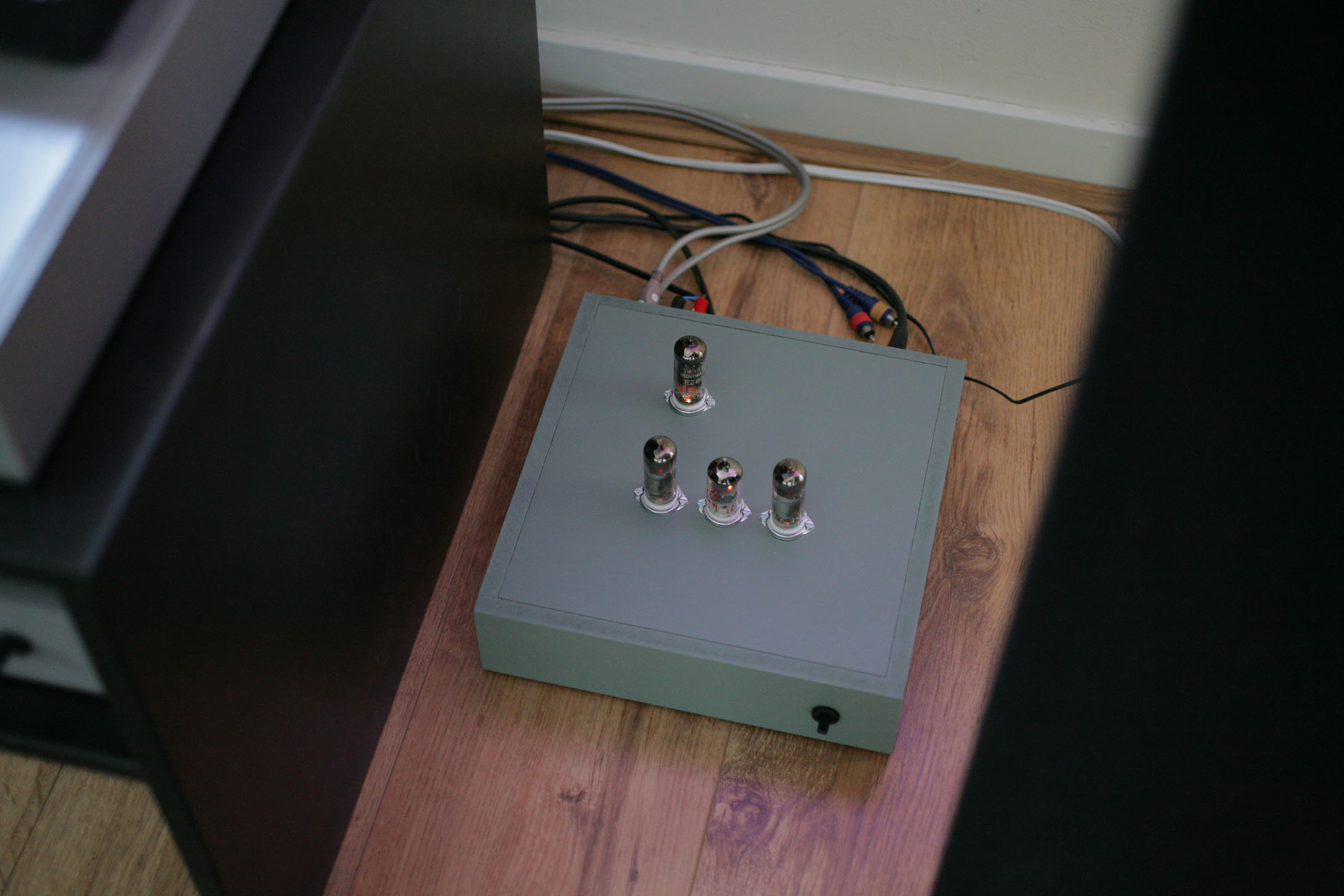

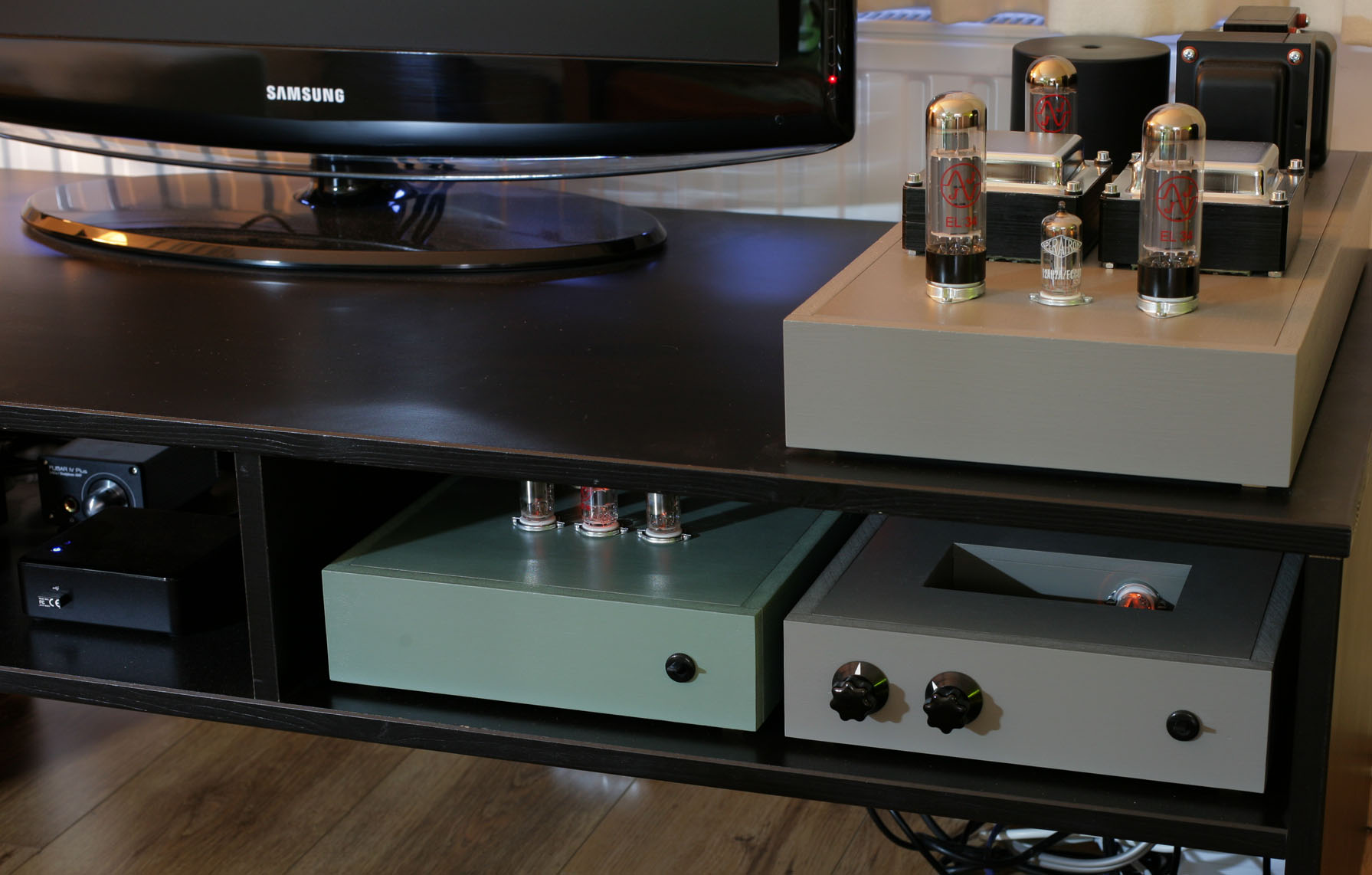

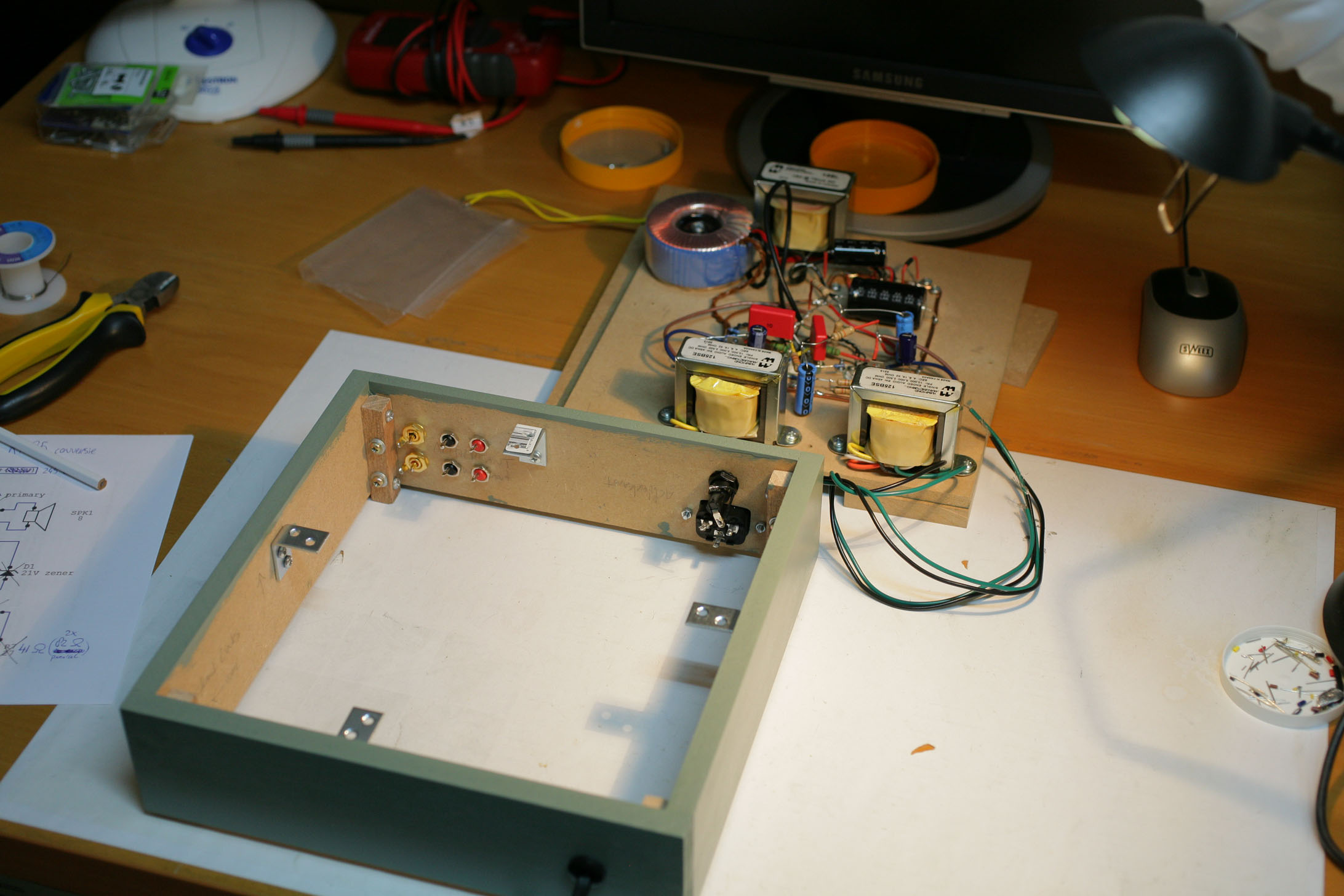

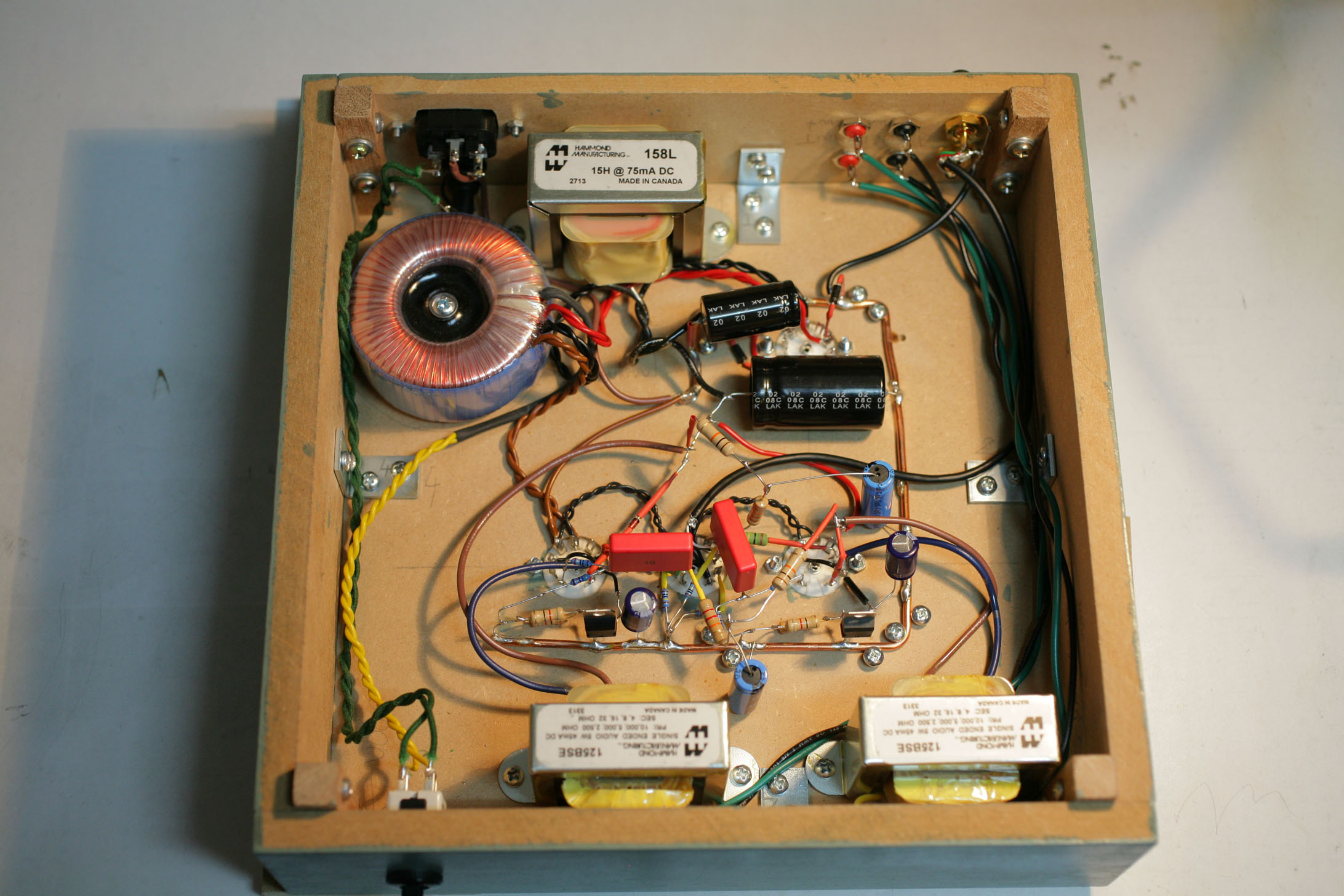

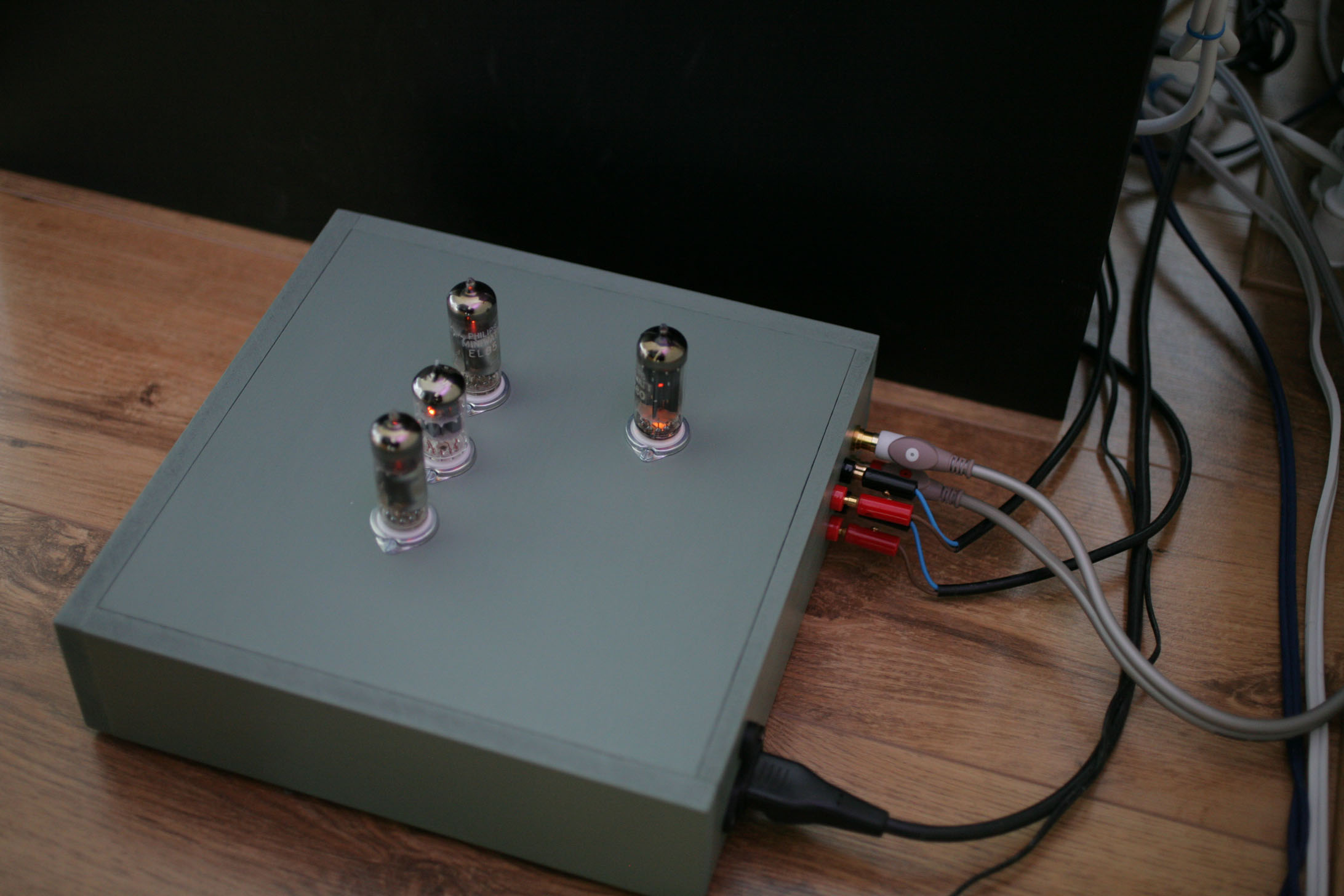

Single ended EL85 amplifier
This is what I build last week
2 watts per channel EL85 single ended 'power' amplifier, based on the RH84 rev.2 (with auto bias) schematics by A. Kitic.
ECC81 driver, with an EZ80 for rectification.
Featuring 5 watt Hammond output transformers, power transformer is custom made at HB amp design in Germany.
Uses 33 watts in total which isn't much considering it's a class A tube amplifier!
Sound quality is really neat.
This is what I build last week
2 watts per channel EL85 single ended 'power' amplifier, based on the RH84 rev.2 (with auto bias) schematics by A. Kitic.
ECC81 driver, with an EZ80 for rectification.
Featuring 5 watt Hammond output transformers, power transformer is custom made at HB amp design in Germany.
Uses 33 watts in total which isn't much considering it's a class A tube amplifier!
Sound quality is really neat.
Attachments

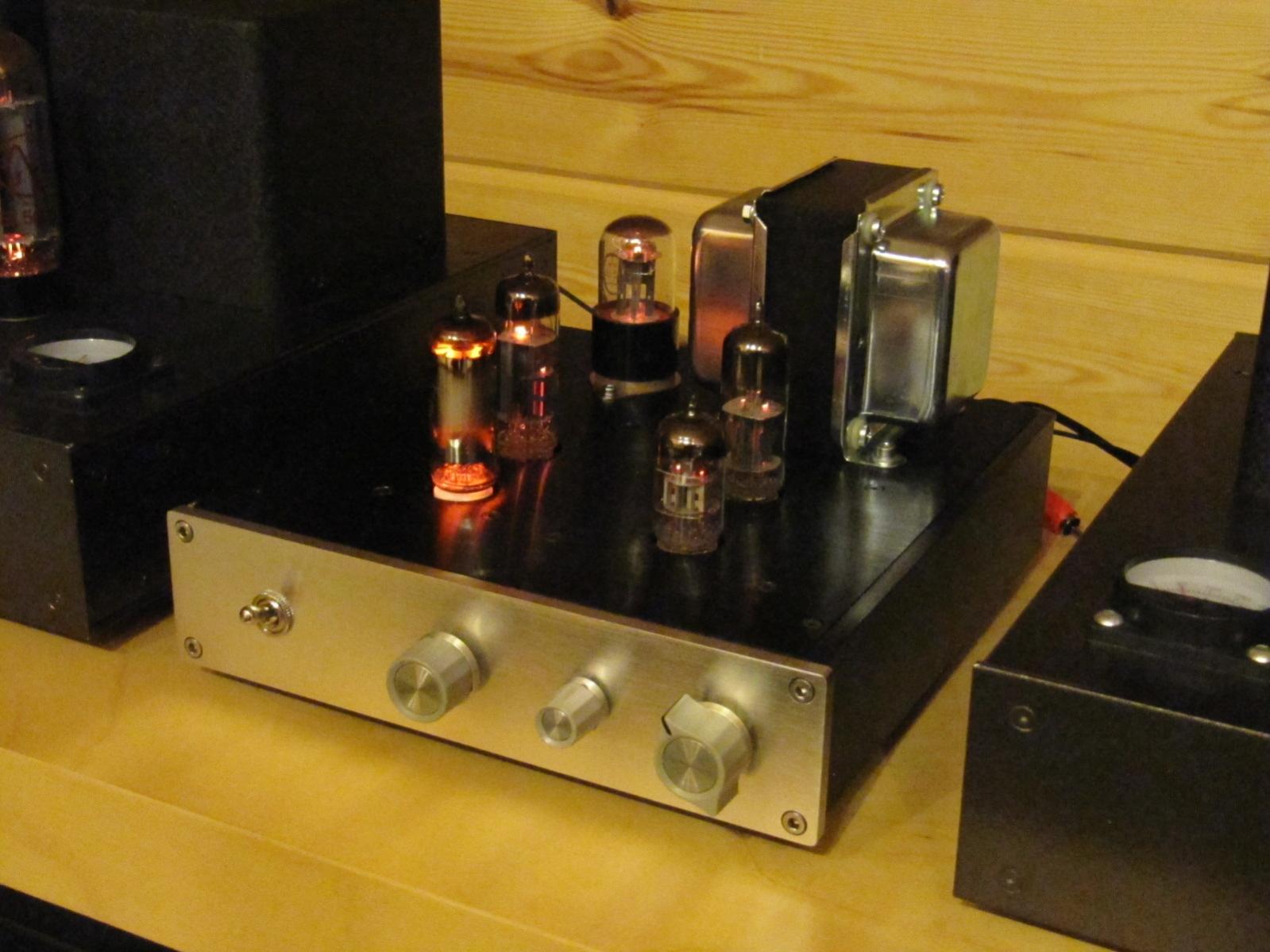

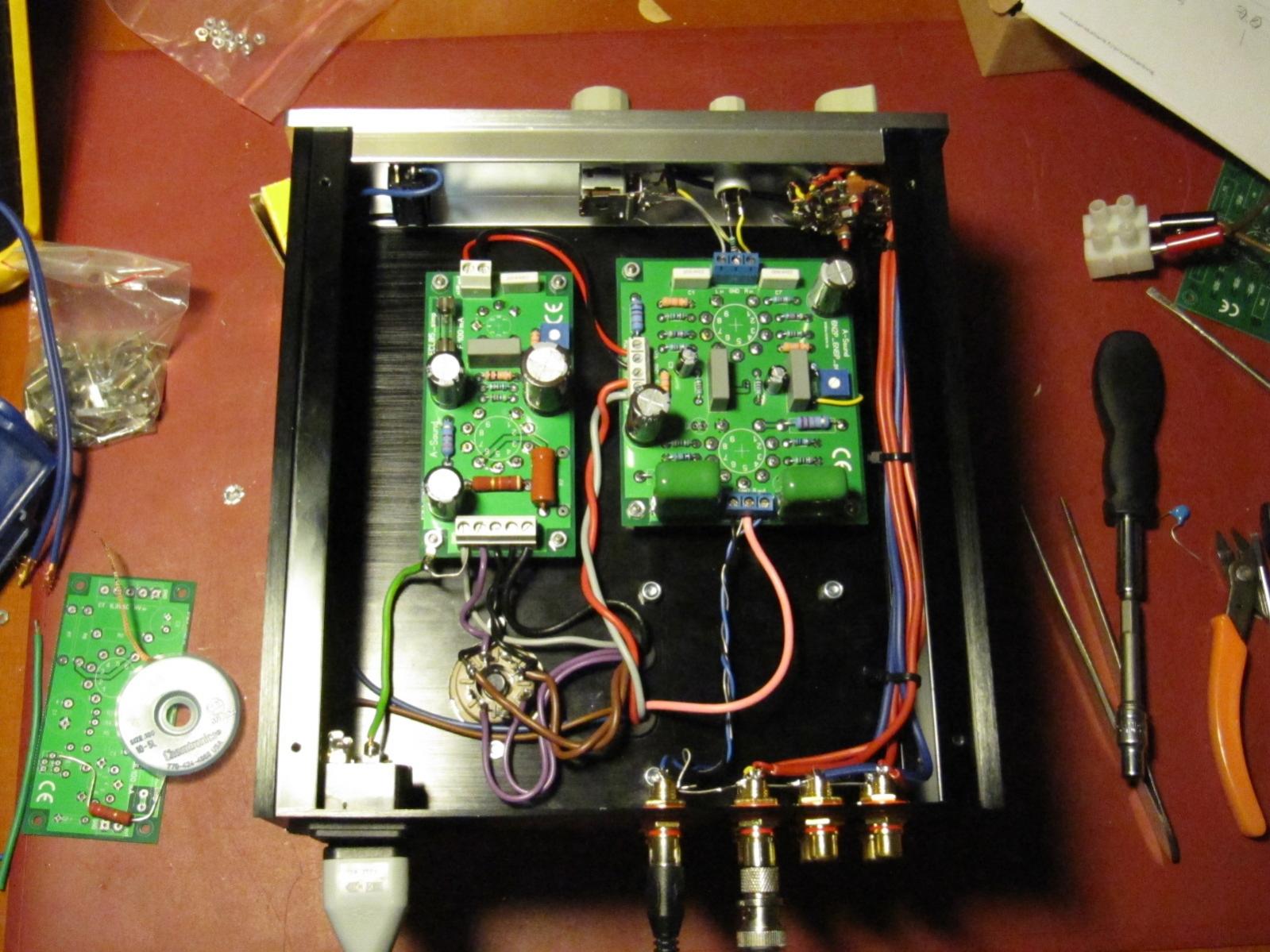

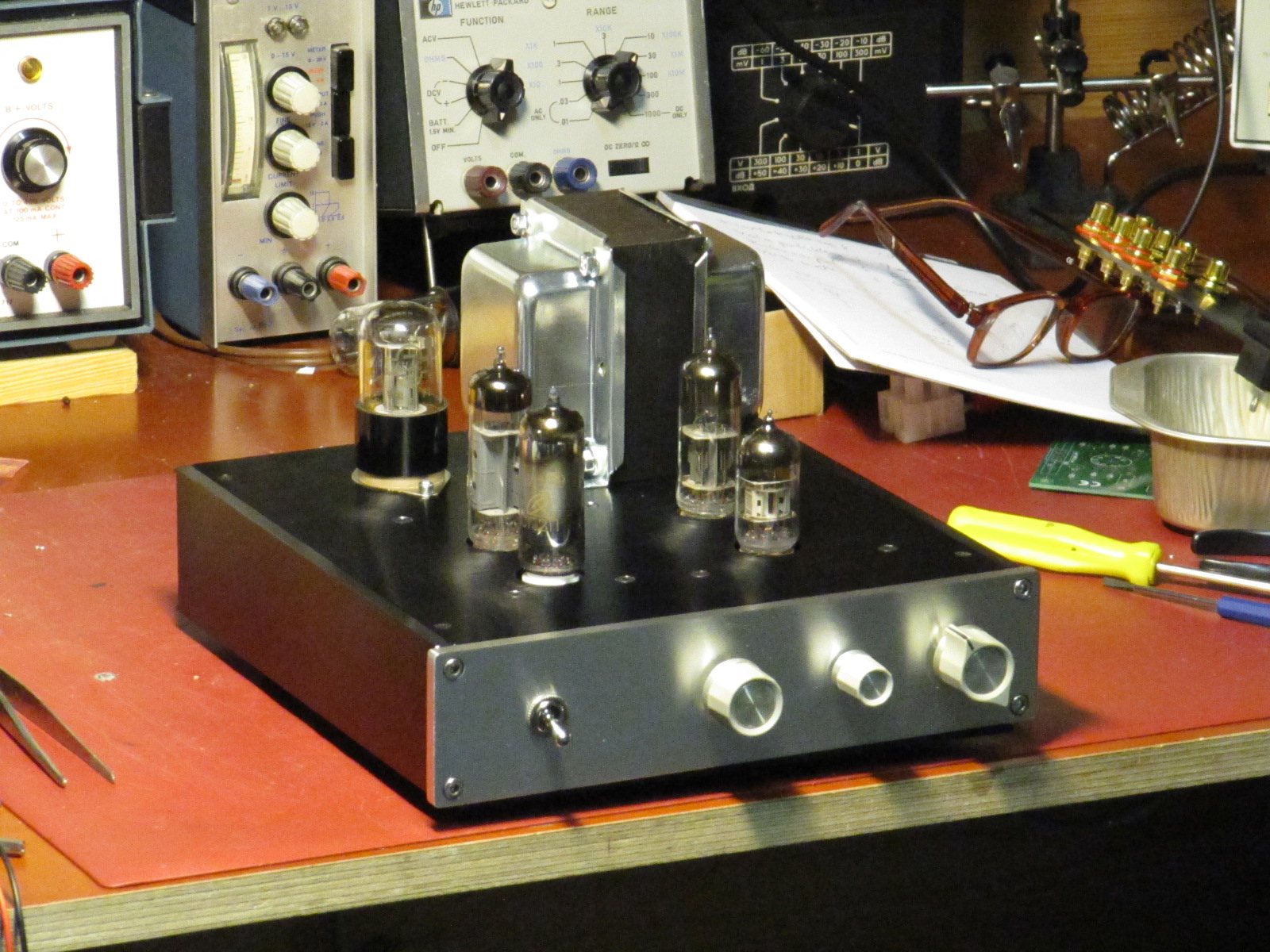

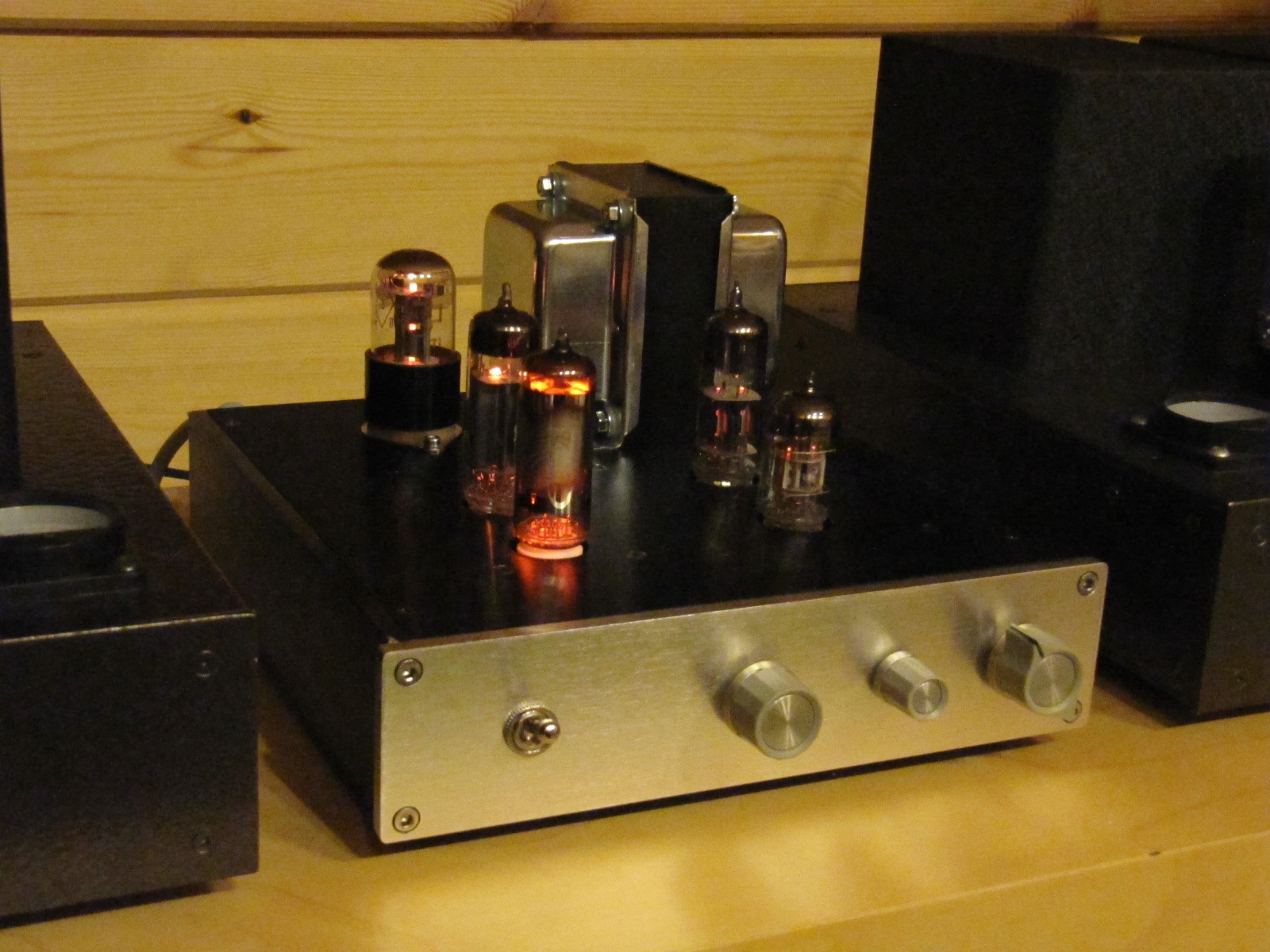

I built a preamp

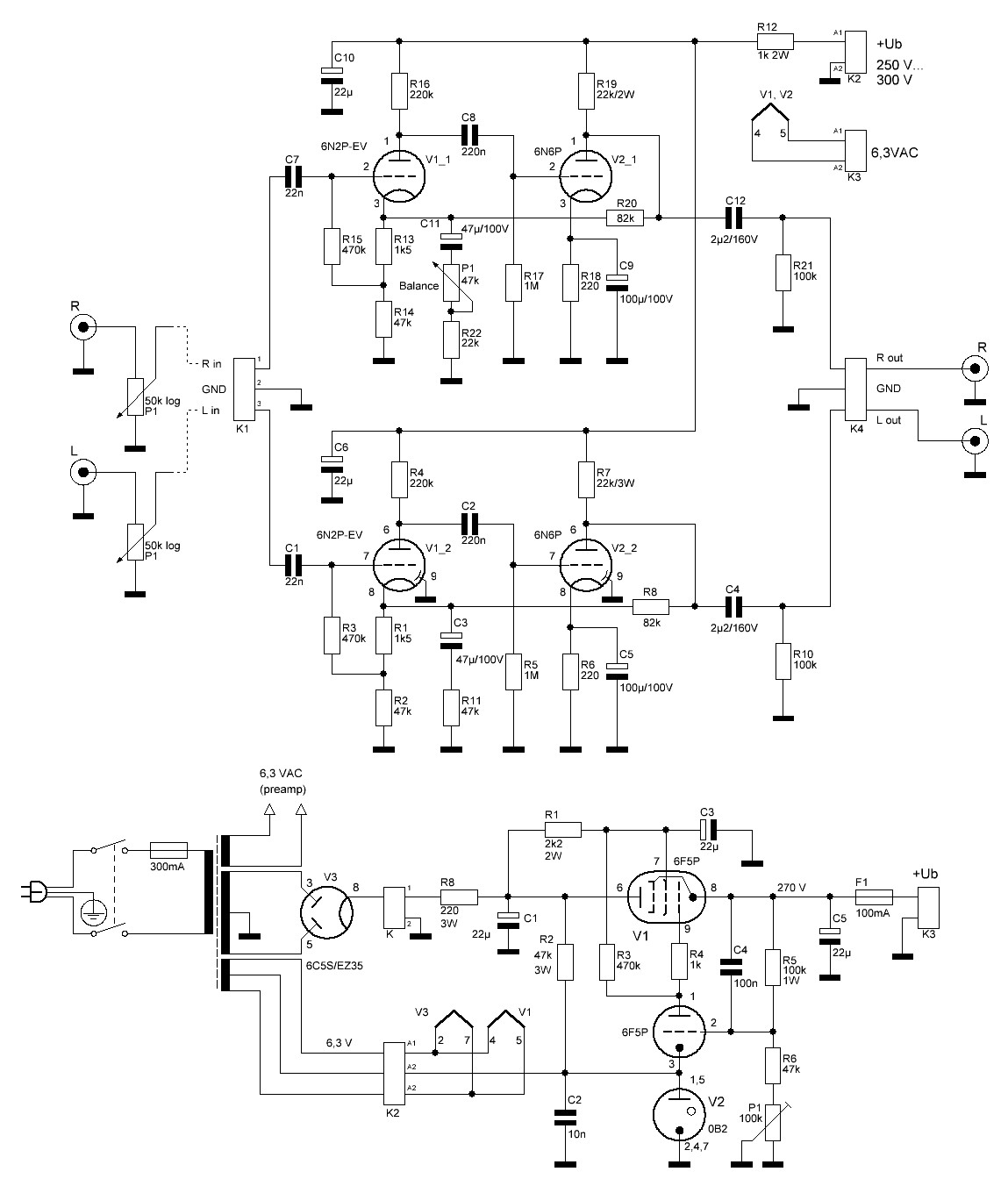

Full tube consruction. 6C5S rectifier, ECL85 / 0B2 voltage regulator and line level amplifier with 6N2P-EV and 6N6P.
Full tube consruction. 6C5S rectifier, ECL85 / 0B2 voltage regulator and line level amplifier with 6N2P-EV and 6N6P.
Attachments
I see Russian knobs =)Full tube consruction. 6C5S rectifier, ECL85 / 0B2 voltage regulator and line level amplifier with 6N2P-EV and 6N6P.
I see Russian knobs =)
All tubes, knobs and some capacitors are NOS Soviet.
My first preamp project.
ECC83/E88CCtubes at this point in time.
I have russian 6n2p-EV/6n6p too.
separate tone adjust, balance, bass output level adjust, program selector and mastervolume pot.
Yes. amplifier has two sets of outputs. Full frequency and the other is 40hz 18db/octave low-bass filter,with level adjust.
back row is the operating voltage rectifier and regulator.
5U4S/ECL85/0B2 from artosalo.
And my third power amp.
6F12P cathodyne driver/KT77 pentode connected PP powerstage. And GZ34 rectifiers.
Bad english. Google translator
An externally hosted image should be here but it was not working when we last tested it.
An externally hosted image should be here but it was not working when we last tested it.
ECC83/E88CCtubes at this point in time.
I have russian 6n2p-EV/6n6p too.
separate tone adjust, balance, bass output level adjust, program selector and mastervolume pot.
Yes. amplifier has two sets of outputs. Full frequency and the other is 40hz 18db/octave low-bass filter,with level adjust.
back row is the operating voltage rectifier and regulator.
5U4S/ECL85/0B2 from artosalo.
And my third power amp.
An externally hosted image should be here but it was not working when we last tested it.
An externally hosted image should be here but it was not working when we last tested it.
6F12P cathodyne driver/KT77 pentode connected PP powerstage. And GZ34 rectifiers.
Bad english. Google translator
Last edited:
Pair of our Altec 1570B's dressed up with black powder-coated, perforated metal front covers.
