I think simple projects that folks might actually build have an educational purpose. As a ham radio friend told me no one actually builds those 500 component circuits except the author. Dsp or Bluetooth designs will end up with 100's of pin leadless IC's and/or a BOM full of custom inductors and SMT transformers. The harsh reality is that they have little DIY use.
Sorry for inserting this in Jans thread, but perhaps this can serve as inspiration. https://www.youtube.com/watch?v=N3k9lWz48rw
Cheers,
Mogens
Well to put it plainly no. No offense but I think you are 100% wrong.
There are already many people in this forum involved with smd components.
Have you ever taken a look into a bluetooth dongle? Where did you see 500 components?
How many components does a class ab amp or a phono stage have? And then take a look for example at the buffalo dac. How many components are there?
This technology becomes more and more available, included needed tools and people have the skills to build such boards.
I think you are generalising your personal point of view/abilities.
Well the good news is, people who have no interest in RIAA via DSP, or turntable dynamics, or OEO balanced interconnects, or soft recovery diodes, or minimalist amplifiers ... don't have to pay for those articles.
Now that Linear Audio makes each individual article available for download, you have the option to pay only for the things you really REALLY want. Not only does this save you money, it also provides the best possible kind of feedback -- economic feedback -- to the Editor.
Vote with your Euros; you will be heard, loud and clear.
Now that Linear Audio makes each individual article available for download, you have the option to pay only for the things you really REALLY want. Not only does this save you money, it also provides the best possible kind of feedback -- economic feedback -- to the Editor.
Vote with your Euros; you will be heard, loud and clear.
Yes, this is a way. Still I have bought all issues, even those that one article was of interest, to support the effort.
I just would like to some of those topics explored and maybe read the editor's thoughts on the matter after so many posts.
Nikitas, I would really welcome a good digital/DSP construction article, SMD or not. But there's not many that want to put in that big effort. I do pay an author fee but it is much too little for all the parts and especially the hours a typical article takes.
So the people who write for us do it as a hobby and of course they chose the subject they like and have experience with.
I think the young engineers that can do digital/DSP/SMD are still too busy making money to pay off their Lexus
Jan
So the people who write for us do it as a hobby and of course they chose the subject they like and have experience with.
I think the young engineers that can do digital/DSP/SMD are still too busy making money to pay off their Lexus
Jan
I think the young engineers that can do digital/DSP/SMD are still too busy making money to pay off their Lexus
Jan
Lexus' are leased, not purchased.
I find the article on TT dynamics to be among the most interesting in this issue. Terra incognita for me.
Your certainly entitled to your opinion. SMT is one thing bumped die is another, I've seen too many articles with 2 or 3 huge system level chips and then a firmware download. Seems more an exercise in software development not circuit design.
I assembled an all-discrete modular Elektor preamp design with >>500 parts.
Even today, 'no one' (*) is not accurate, in numbers not worth the ink and bother of writing.
But hey, I'm willing to pay for your dsp download.
(* such a pleasant sight, in these days of noone pain)
You mean Peter he is on our shopping channel selling "17 CD's of your favorite 60's memories by the original artists"?
Thank you Jan.
Here's a quick example. Audacity has a built-in FIR RIAA but it is linear phase only. Load the psuedo-random noise signal with inverse-RIAA applied and using the Nyquist prompt to run the two IIR filters from the table in this order:
(biquad-m s 1. 0.3655731 0.01499662 1. -0.66168391 -0.18158841)
(biquad-m s 1. -0.57552742 -0.37960478 1. -0.60450091 -0.39094593)

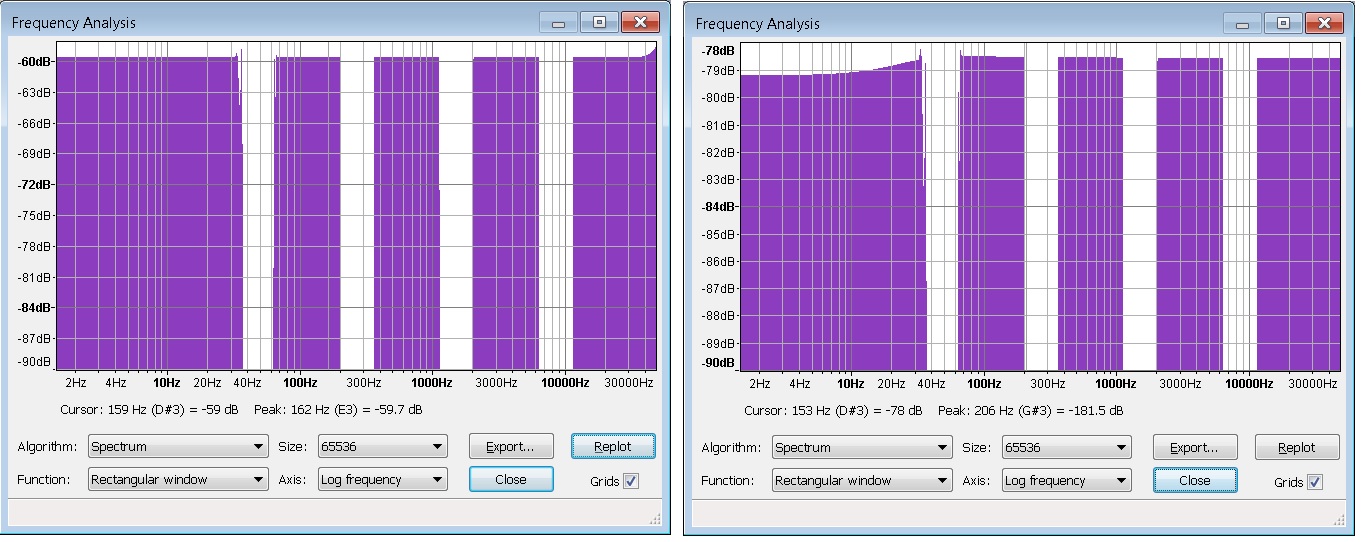

The result in the picture i(on the left) is flat 20-20k to <.005dB. Even at max length the built-in curve (right) is +-.3dB or so at the low end and the IIR solution is also the correct minimum phase answer. The holes in the spectrum are to check for spectral contamination either from numerical resolution or from an amplifier circuit that has passed this signal.
As an aside, I found the comment that, "when LP's were invented they did know about linear phase filters", rather silly. In fact the original RIAA spec specifically states that the response be exactly minimum phase, that is, exactly that of the three time constants.
