Live Lab Hangout #1.1 Posted

[Michael Rothacher]



[jama]

Thank you Michael. You are the best.



[Botte]

The load line video is up!

Load Line Tutorial

Thanks,



[Zen Mod]



[stefanobilliani]

Great



[Dennis Hui]

Fantastic! Thank you Michael.

Cheers,
Dennis



[hifibluedevil]

cool, very useful. Now I can test my Tokins.



[cwtim01]

Thanks Michael, this is even better than my tracer board cause it can trace at higher voltage level , so I'm tempted to build one.



[R-K Rønningstad]

Very good! And as Michael says, remember to heat sink the D.U.T.



[Soundhappy]

@ Michael Rothacher

Perfect for diyer needs !
Thanks a lot Michael super

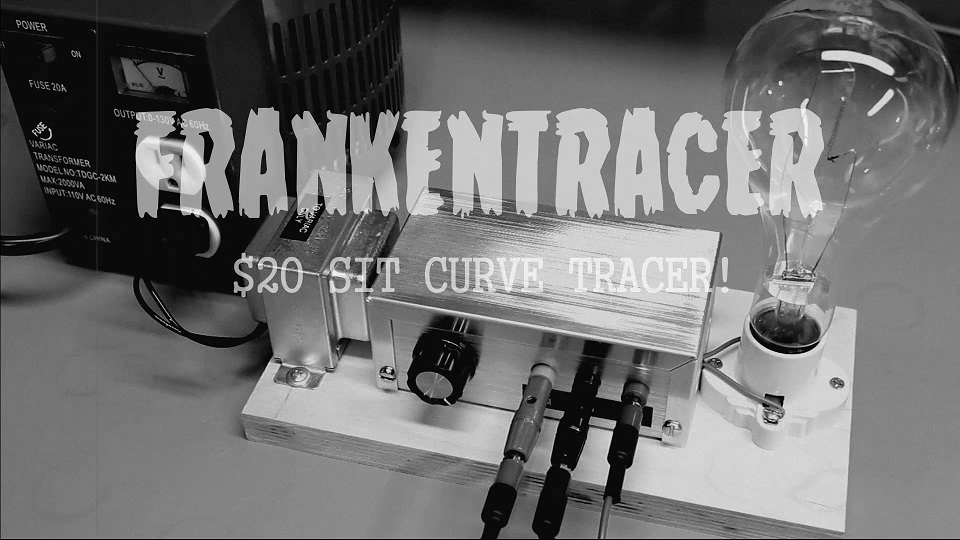

Green light of analog scope curves with "Frankentracer" tool
yes construct of better high fidelity amplifiers become
more enjoyable , less esoteric after tests and pairs findings.



[stefanobilliani]

Mike ,

Interesting thoughts about the source resistor .
it would be nice , to see in lab the effects of the parallel capacitor on that .

thanks



[Soundhappy]

It's alive!

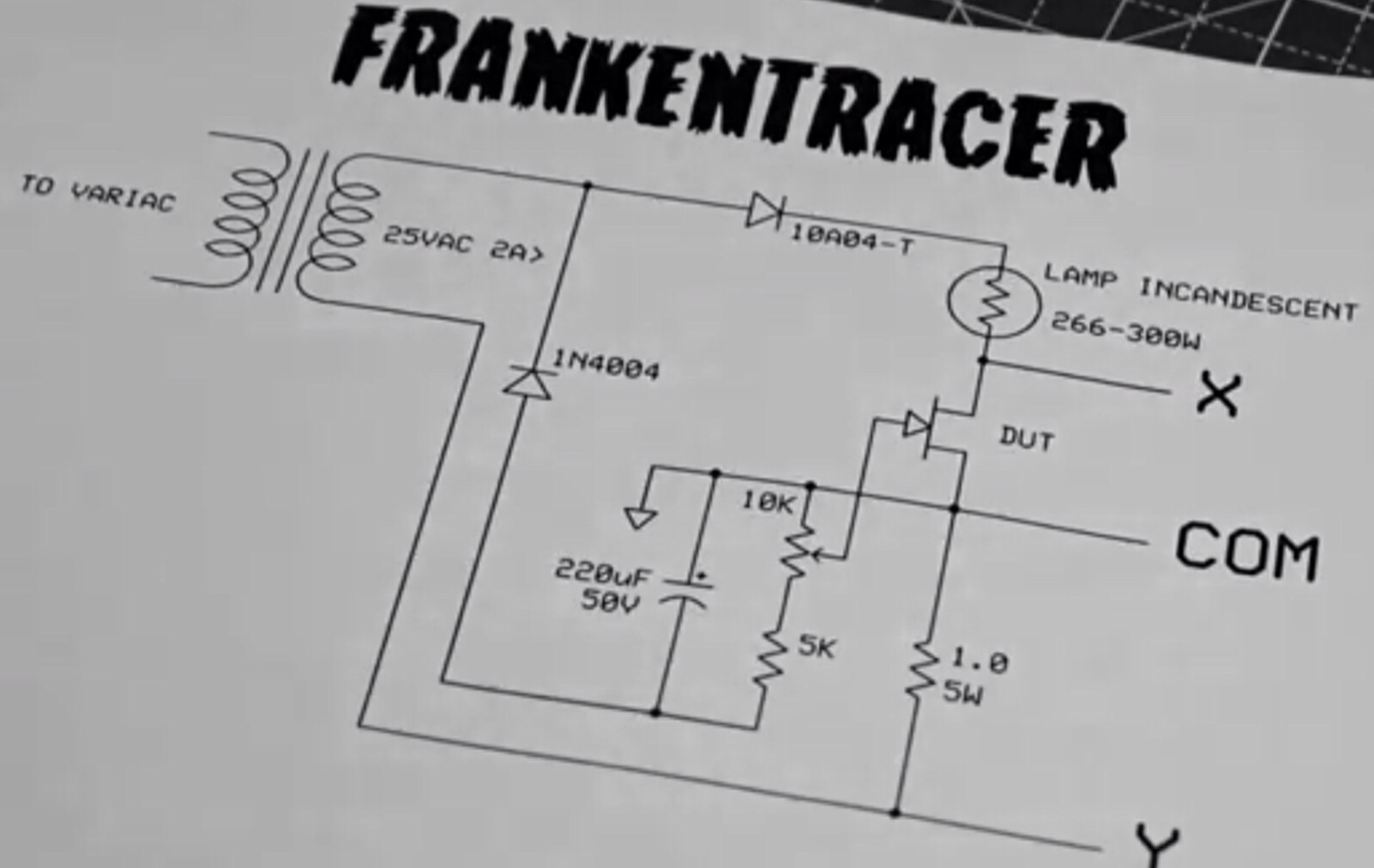

Just quick screen capture of Frankentracer schematic.
Thanks again Michael
Best regards



[Michael Rothacher]

Excel capture is ready. I wish I'd had that when I wrote the original article in 2011. It would have been a nice time saver.

I'll work on the tutorial video this weekend most likely.



[Nelson Pass]

That is so cool.

I laughed my *** off with the intro.



[Michael Rothacher]

I figured what the world needs is more over-produced videos of obscure do-it-yourself test equipment.



[davelang]

The schematic indicates a signal ground. To what? Chassis?



[Zen Mod]

CRO gnd



[vdi_nenna]

Super cool, Mike!



[aspringv]

Thanks!

Thank you for the frankentracer! I'll adapt it shortly to try on a SiC Fet, should I find an equivalent bulb over here in 240VAC land...



[jama]

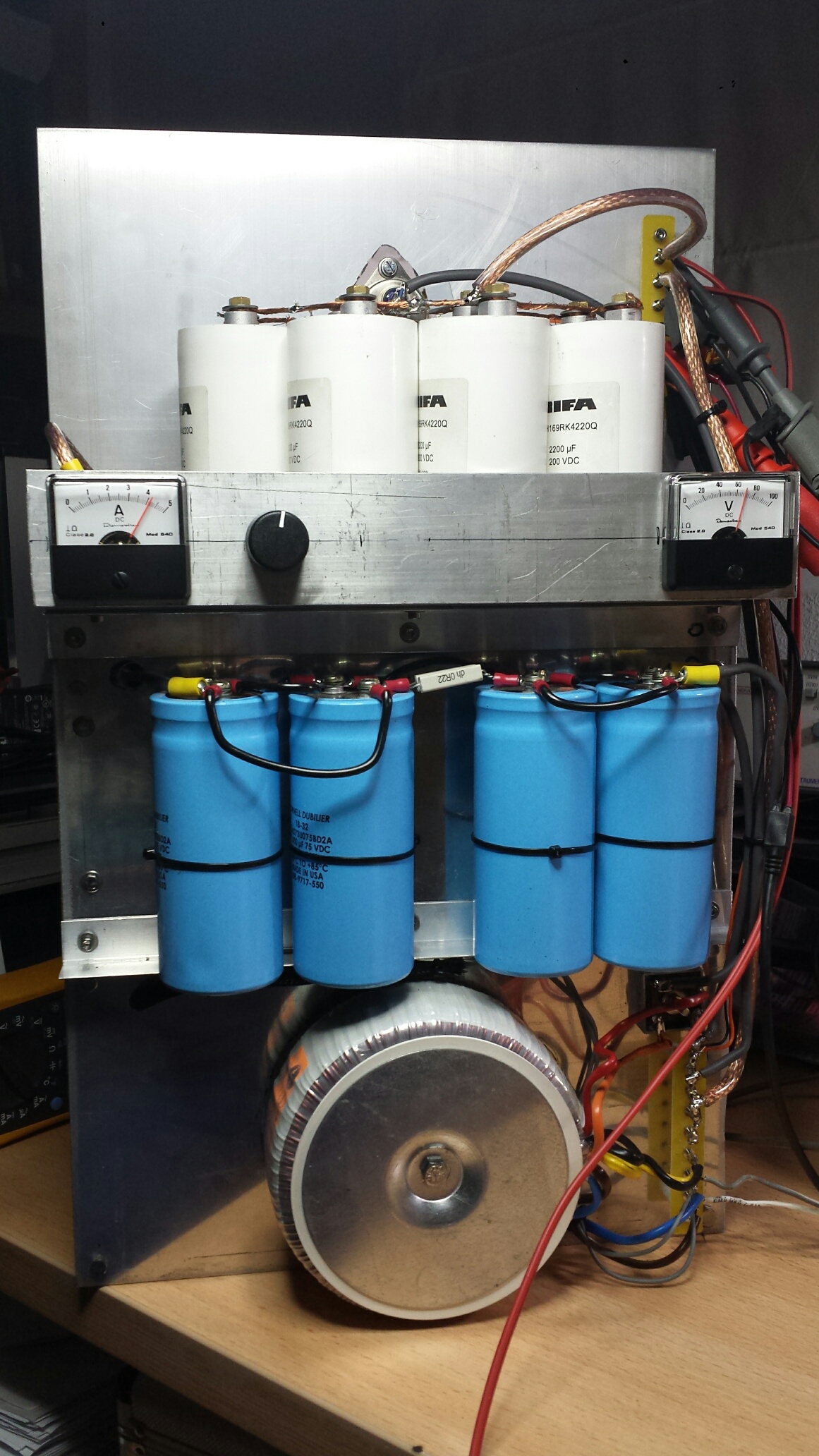

Hello again. Today I have finished amp. But now with resistor instead of bulbs.

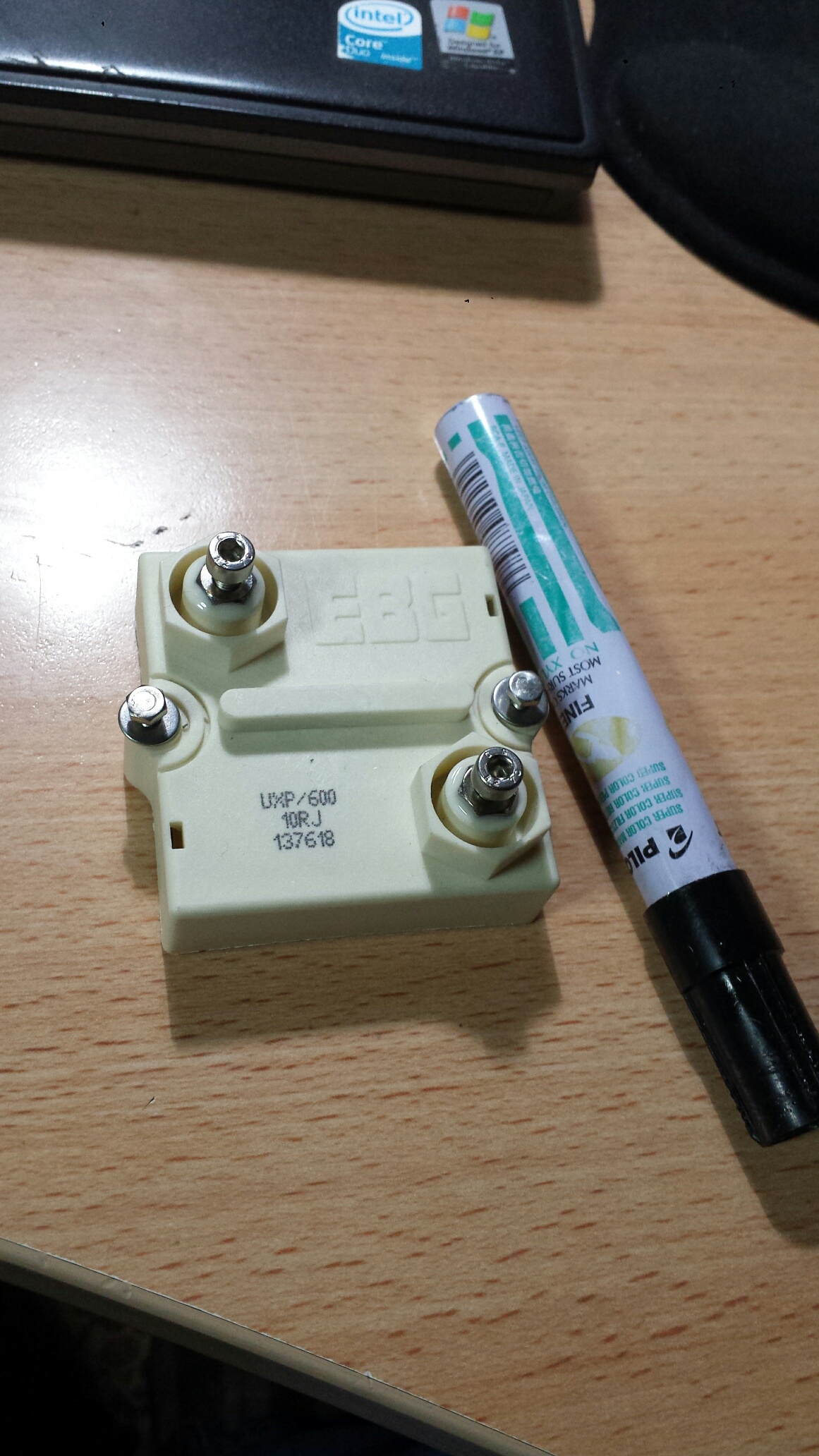

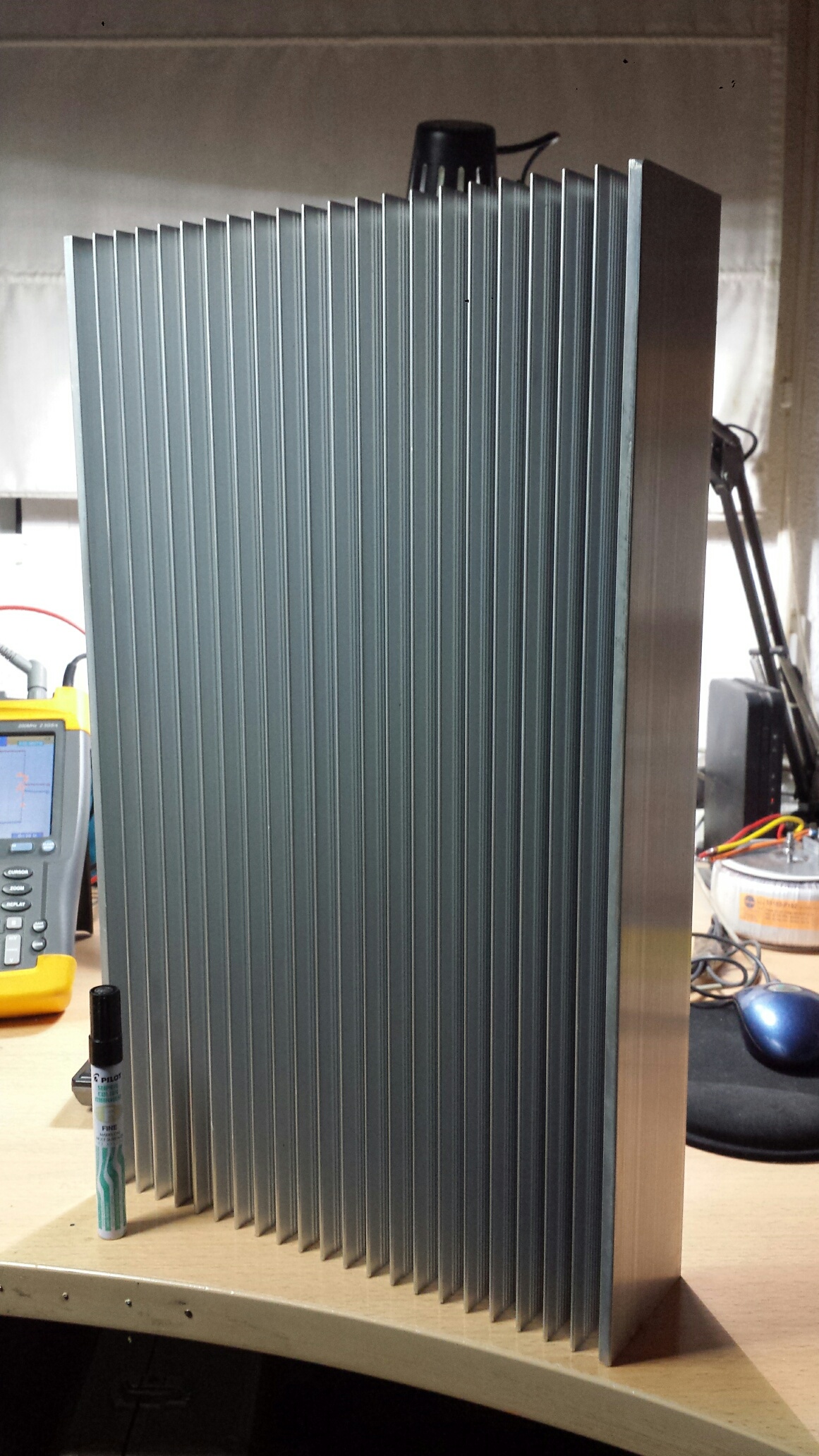

I got two massive heatsink (50cm x 30cm) and two industrial resistors of 10ohm and 600watt.
