GB for DC coupled B1 buffer with shunt PSUs

[sandbasser]

Hi Tea-Bag - I signed up on the Google Spreadsheet several weeks ago. I haven't received a PayPal invoice, but, I was away for 10 days - so I may have missed it. Or, am I just supposed to remit without invoice???

Thanks,



[Tea-Bag]

you can just paypal to address in spreadsheet before Jul 19th.
Thanks!



[mach1]

Mistertaz,
Those Panasonic TQ2 -12v relays cost about $6ea at RS Components, (only local supplier) - are about $2+ from "eeelectronics" in HongKong (eBay) - about to order 10 of them - want some?

James,

If you have not already ordered, could you please put me down for a couple ?



[Tea-Bag]

Anyone who is hard up enough for a mesmerize to want my original prototype unit. Let me know. It's fully functional, minus power transformer, switch, and RCA's.

PM me if interested. Make offer.



[korben69]

Here's the BOM for the Blue Edition



[Salas]

Nicer! Thanks.



[mac1963]

Hi guys.
I was part of the First GB and received boards. Unfortunatly I was distracted by health issues and am only now getting down to building. Can anyone direct me to the 'instruction manual' that I recall someone mentioning? This thread has gone Huge and I would prefer to get down to building than searching hundreds of pages.
Thanks



[Salas]

This one?



[korben69]

Nicer! Thanks.

Let me know if changes are required



[wendell c]

Hi,

I just signed up for the group buy after hearing some good reviews. What was so special about the "mez" version or how did it differ from this.

I went back a few pages and did not find the answer, just curious.



[Salas]

Hi,

I just signed up for the group buy after hearing some good reviews. What was so special about the "mez" version or how did it differ from this.

I went back a few pages and did not find the answer, just curious.

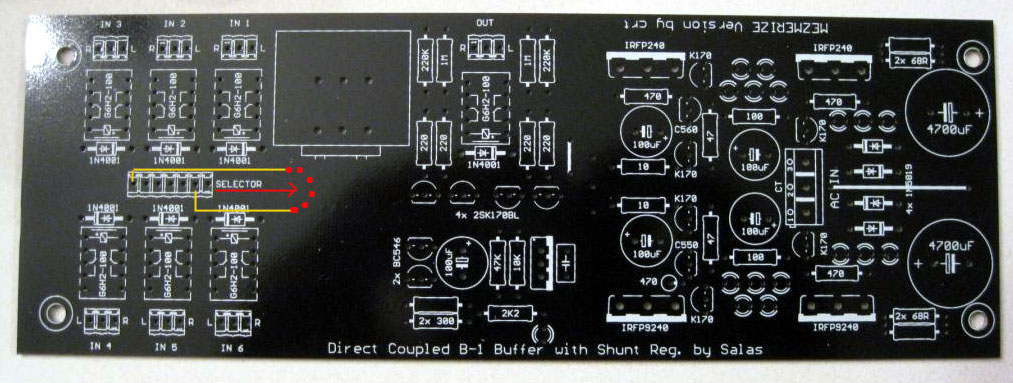

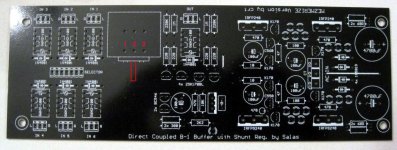

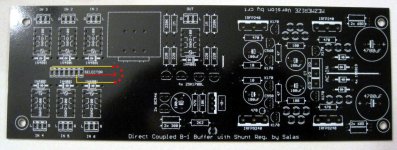

Was a Hypnotize with several relay switched inputs on board, so it got named Mezmerize. We will open a signup sheet for it in the future to see if there is interest to be produced in heavy copper traces in a final run of 100pcs minimum, but no redesign for TO-220 diodes, more filter capacitance or special space for film bypass caps in its regs. Just the old guy in better quality plated through holes, heavy metal PCB.

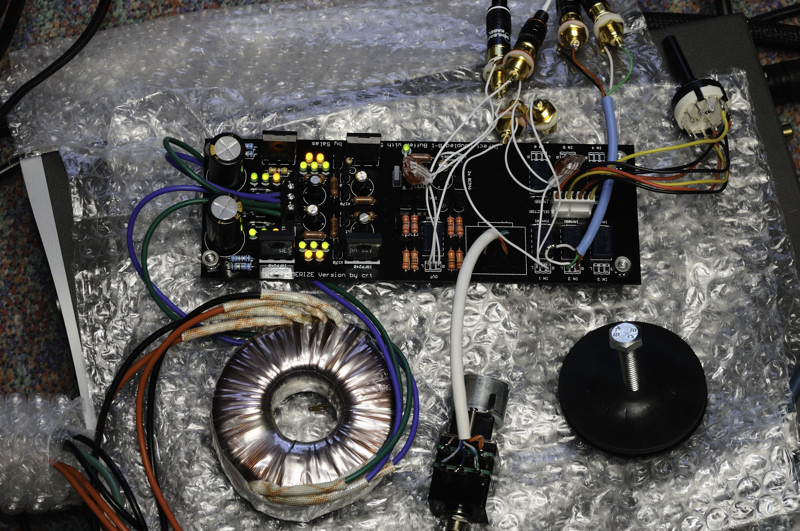

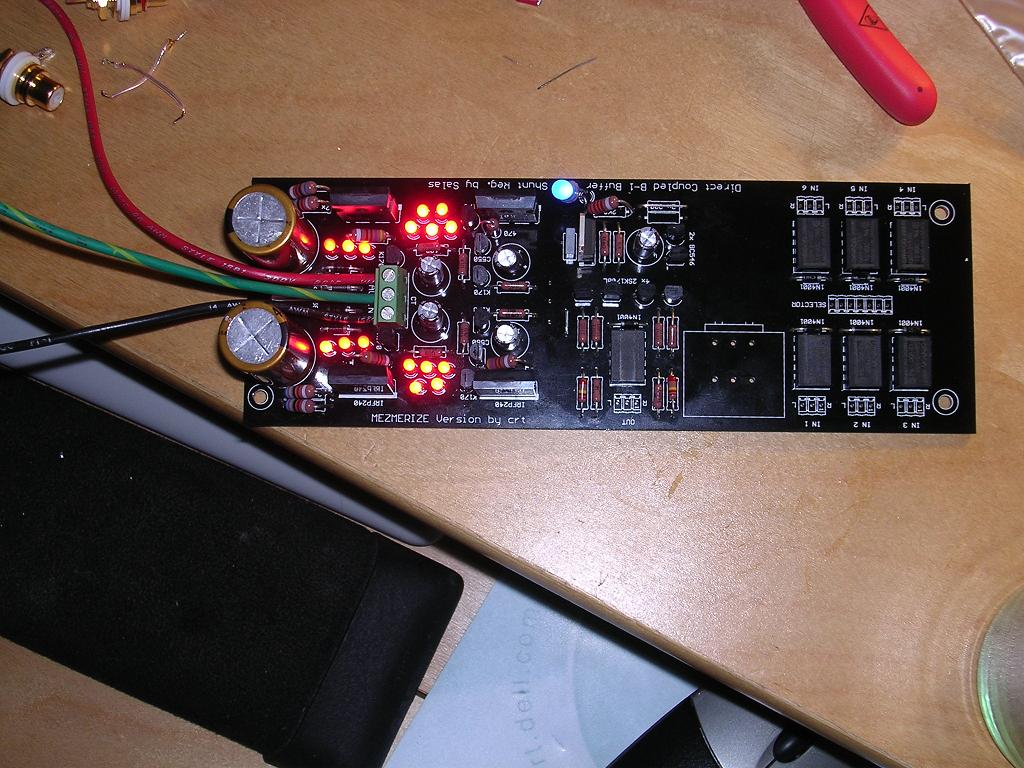

P.S. The photos are coming from the proto tests, are member's builds shown earlier in this thread.



[korben69]

MATCHING THE LED STRINGS

9V battery and a 1K2 or 1K resistor ?
I've read both values, which one is correct ?
Thanks



[regiregi22]

Doesn't really matter, both values are OK. Just use the same value for all testings.



[korben69]

Doesn't really matter, both values are OK. Just use the same value for all testings.

Thanks Regiregi22



[Tea-Bag]

Had a bunch more people pay up. The paid up list is below. Less than 2 weeks for GB to end.

dvb-projekt
mach1
kannan_s
skaos
Thror
rsotirov
pchw
alazira
Cobra2
fcaton
vegges
Korben69
jameshillj
arrow
cooi
Atilla
hawall841
wct
number9
thor61"
rmsds
HiljaisuudenMeri
roboazar
pstech
1MOR 2



[gervenja]

Had a bunch more people pay up. The paid up list is below. Less than 2 weeks for GB to end.

dvb-projekt
mach1
kannan_s
skaos
Thror
rsotirov
pchw
alazira
Cobra2
fcaton
vegges
Korben69
jameshillj
arrow
cooi
Atilla
hawall841
wct
number9
thor61"
rmsds
HiljaisuudenMeri
roboazar
pstech
1MOR 2

Is this GB closed? Am I to late?
the spreadsheet doesn't work anymore.

Regards,
John



[Salas]

Click it, if it fails, go back and click the link again. Its does it to me too. Still 2 weeks open sign up.



[gervenja]

And it works
payment has been made.
Thanks for the ultra fast reply.

John



[CeeVee]

2 Boards and 2 resistors for me ,paid ! thanks Salas, Tea-bag.



[Tea-Bag]

Click it, if it fails, go back and click the link again. Its does it to me too. Still 2 weeks open sign up.

It does that for me as well. Started a bit ago, not at first.
Refresh works fine too.
