specs comparable with original (speaking about THD spectra ) , but you know that specs aren't everything
will publish complete schmtc and measurements as soon I have it confirmed in vivo
FE configured for several TO92 , same as for SOT23 JFets , pair or double pair - cascoded , for convenience
cascoded EF in between LTP and OS gate
outputs - whatever one is having - SS , IRFP150 ........ any of Kosher Audio mosfets ..... though -I have no intention to accommodate pcb for different pinouts (IRFP and SS are GDS from left)
we'll see ...... have pretty good feeling about this one
will publish complete schmtc and measurements as soon I have it confirmed in vivo
FE configured for several TO92 , same as for SOT23 JFets , pair or double pair - cascoded , for convenience
cascoded EF in between LTP and OS gate
outputs - whatever one is having - SS , IRFP150 ........ any of Kosher Audio mosfets ..... though -I have no intention to accommodate pcb for different pinouts (IRFP and SS are GDS from left)
we'll see ...... have pretty good feeling about this one

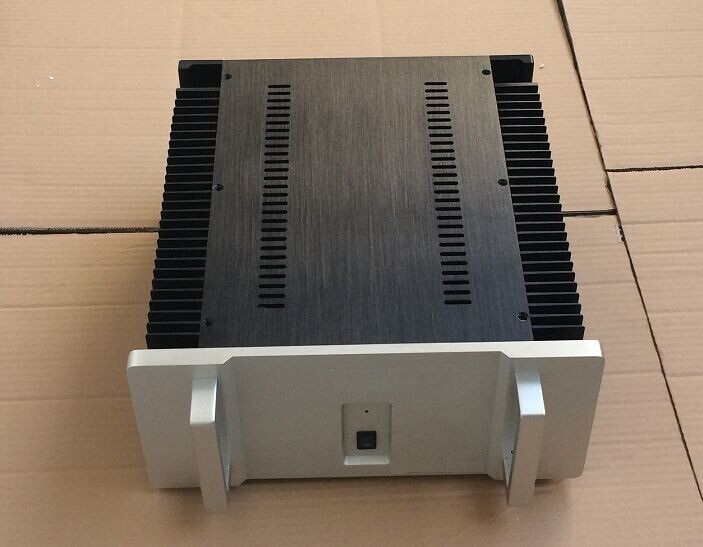

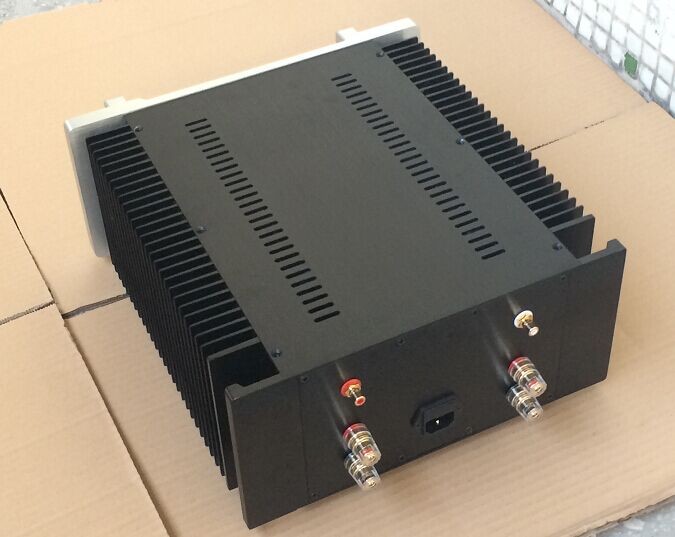

IMHO, for such a low dissipation amp with 60W per channel, a small case (340mm width) from ebay, plus a small PCB will be more than sufficient.
PCBs within 100x100mm are very low costs these days.
And you can use both top and bottom layer for power tracks, which can be made very short and compact.
Unless of course one wants to creat the illusion of a carbon copy of a FW product.
Cheers,
Patrick
.
PCBs within 100x100mm are very low costs these days.
And you can use both top and bottom layer for power tracks, which can be made very short and compact.
Unless of course one wants to creat the illusion of a carbon copy of a FW product.
Cheers,
Patrick
.
Attachments
sorry , no
idea is allowing use of 1 or 2 pairs (by wish) of 2SJ74 , J271 , MMBFJ271,LSJ74 ....... and it'll be major PITA squeezing in pinout for 2SJ109 too
I'm sure that arrangement with 2 JFet pairs in LTP is enabling use of some other "lesser" JFets too
Attachments

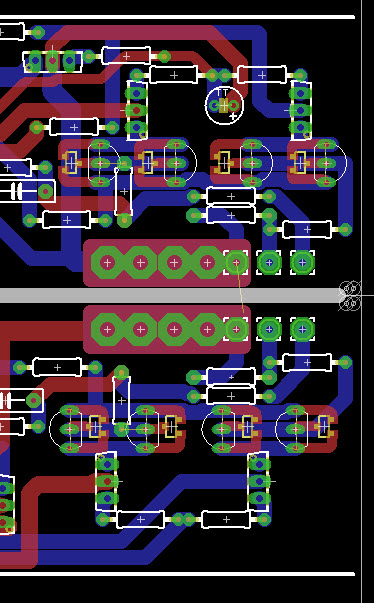

While we're having fun, here's a draft of a FirstWatt form-factor board using Ohmite TO-126 package power resistors in place of the parallel Panasonics.
If you could trim 50mm or so off it, then it would easily fit a 300mm deep chassis without worrying of it will hit power inlet , rcas, speaker out etc.
Hi Luke,
The board would need further re-design to make it suitable for a flat heatsink chassis -- this one is designed for a FirstWatt style case with flanges on the heatsinks.
Cheers,
Jeff.
So I am sorry too - but not too much, as a nice home made adapter would serve.
Or having a look at Jeffs boards
Cheers,
Ernst
This one deserves endless begging and nagging from Greedy Boyz, especially when the J2 is current production.
