F5 pcb group buy...

[Peter Daniel]

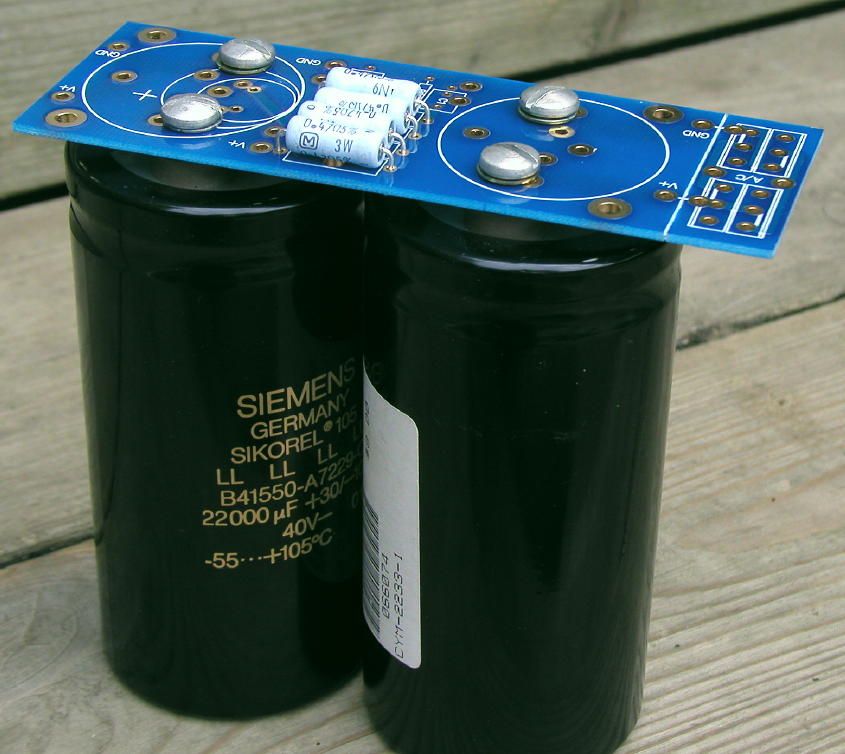

And if you'd like to use even larger caps, you can mount them on opposite side, so the resistors are not in a way:



[sandbasser]

PayPal sent.

Thanks,



[lafish]

PSU

Thanks Peter. I was making it harder than it needs to be.
Larry



[samoloko]

Peter

at your pics of F5 seems that you use only 25000 uF per rail of monoblock Is that sufficient
also Isn't It 300VA Plitron too much for monoblock



[Peter Daniel]

Yes, 25,000uF per rail works fine for me. In fact I had this setup with a single 300VA Plitron shared between 2 channels and it worked fine too.

As to 300VA transformers, I have bunch of them purchased a while ago, that's why using those. Besides, 300VA seems like a nice overall choice, either for dual mono or stereo.



[igwt]

f5 gb

Hello Peter do you have any more f5 and ps boards for a newbee,
Thanks,
Brent



[Peter Daniel]

I have approx 50 sets of F5 amp boards still available and 10 of F4.

No PS boards anymore.



[alphalove]

Hello Peter,
I've just sent a Paypal payment for 2x F4 and 2x F5 boards.

If there are any problems, please let me know.

Keep up the great work.

Regards,

alex



[Peter Daniel]

Hi, I received your payment and will ship today. Thanks.



[strider75]

Mr. Daniels,

I just sent payment for one F5 board via Paypal.

Please let me know if you need anything else.

Thanks,

Ben Washington



[Peter Daniel]

Hi Ben, You just made it on time and the board has been shipped today. Thanks.



[JC Fardo]

Hi Peter. Green PS boards arrived.

Thanks, JC



[gil-garcia]

Don't you think there is a mistake in the bom
Q3 and Q4.
My F5 is burning, j hope you have again some boards,
Philippe



[Peter Daniel]

The BOM in post #8: http://www.diyaudio.com/forums/showthread.php?postid=1777841#post1777841 indeed seems to contain an error: Q3 should be FQA12P20 and Q4 FQA19N20C
It wasn't my BOM and I found that link posted somwhere on a Forum. Didn't check it either, as I'm using IRF mosfets.

The boards are still available.



[igwt]

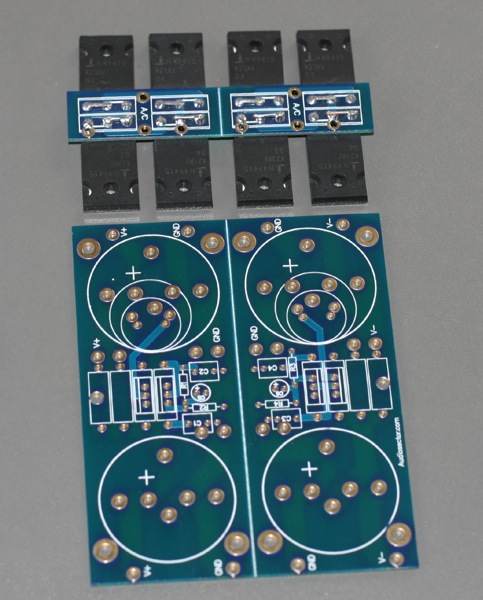

Hello Peter. I recieved my PCBs today. They look GREAT !!! Thanks! I am having trouble finding data for the diodes you had mounted on the PS board though. Any info you could provide would be appreciated . They appear to be from Harris\Intersil Which sold their rectifier devision to fairchild I could not locate or cross reference the part #IH49415.

Thanks,

Brent



[sandbasser]

Peter -

Received all my boards in today's mail.

I'm going to look closely at them later this evening. If I can't figure something out, I'll post a query here???

Thanks for the excellent service.



[lgreen]

The BOM in post #8: http://www.diyaudio.com/forums/showthread.php?postid=1777841#post1777841 indeed seems to contain an error: Q3 should be FQA12P20 and Q4 FQA19N20C
It wasn't my BOM and I found that link posted somwhere on a Forum. Didn't check it either, as I'm using IRF mosfets.

The boards are still available.

Thank you Gil-Garcia!!!!

I just put my boards together last night using this same parts list on Peter's recommendation. Luckily I did not apply the juice yet, so can I swap the FQA's around tonight. Close call.



[speakrsrfun]

Hey Peter are there any of the F5 boards and supply boards left? If so please PM me or e-mail me regarding a possible pick up.

Thanks again, and the LM3875 builds are still ongoing, awaiting some parts.



[Peter Daniel]

I am having trouble finding data for the diodes you had mounted on the PS board though. Any info you could provide would be appreciated . They appear to be from Harris\Intersil Which sold their rectifier devision to fairchild I could not locate or cross reference the part #IH49415.

Hi, I got those diodes two years ago and didn't keep any notes. Tried to identify them recently through findchips.com but that didn't produce any results.

I'm going to look closely at them later this evening. If I can't figure something out, I'll post a query here???

Sure thing.

Hey Peter are there any of the F5 boards and supply boards left?

I have approx 36 stereo amp sets left, no PS boards though. Pickup is fine, but since the shipping is already included in the price of the boards, you may as well order them online.



[korben69]

Basic BOM for F5, hope it could be helpfull.
