DD Z1a damaged

[Perry Babin]

Are you saying that the lamp was always lit?



[Achim1409]

no, it doesnt lit.



[Perry Babin]

Did the amp oscillate and produce low power audio on low voltage?



[Achim1409]

it oscillates. the amplitude is moving from left to right and back always a little bit. I have tried with 100Hz, but it seems nothing. I was expecting that the voltage was to low.



[Perry Babin]

Was it oscillating at a high frequency (80kHz) when you were driving the 100hz signal into it?

Did you try connecting a speaker and listening to it?



[Achim1409]

No, always 17khz.no i dont put a speaker



[Perry Babin]

What's the frequency of oscillation with high voltage?



[Achim1409]

I didnt checked. Allready i took the board out of the heatsink. I will remove the rectifiers again and start with low voltage again.



[Perry Babin]

If you think it's a voltage related issue, you can increase the voltage incrementally by increasing the turns a little at a time. Wind the initial turns but leave a long length of wire at the end of the winding. Then desolder that wire and make another turn or two and reconnect the wire.



[Achim1409]

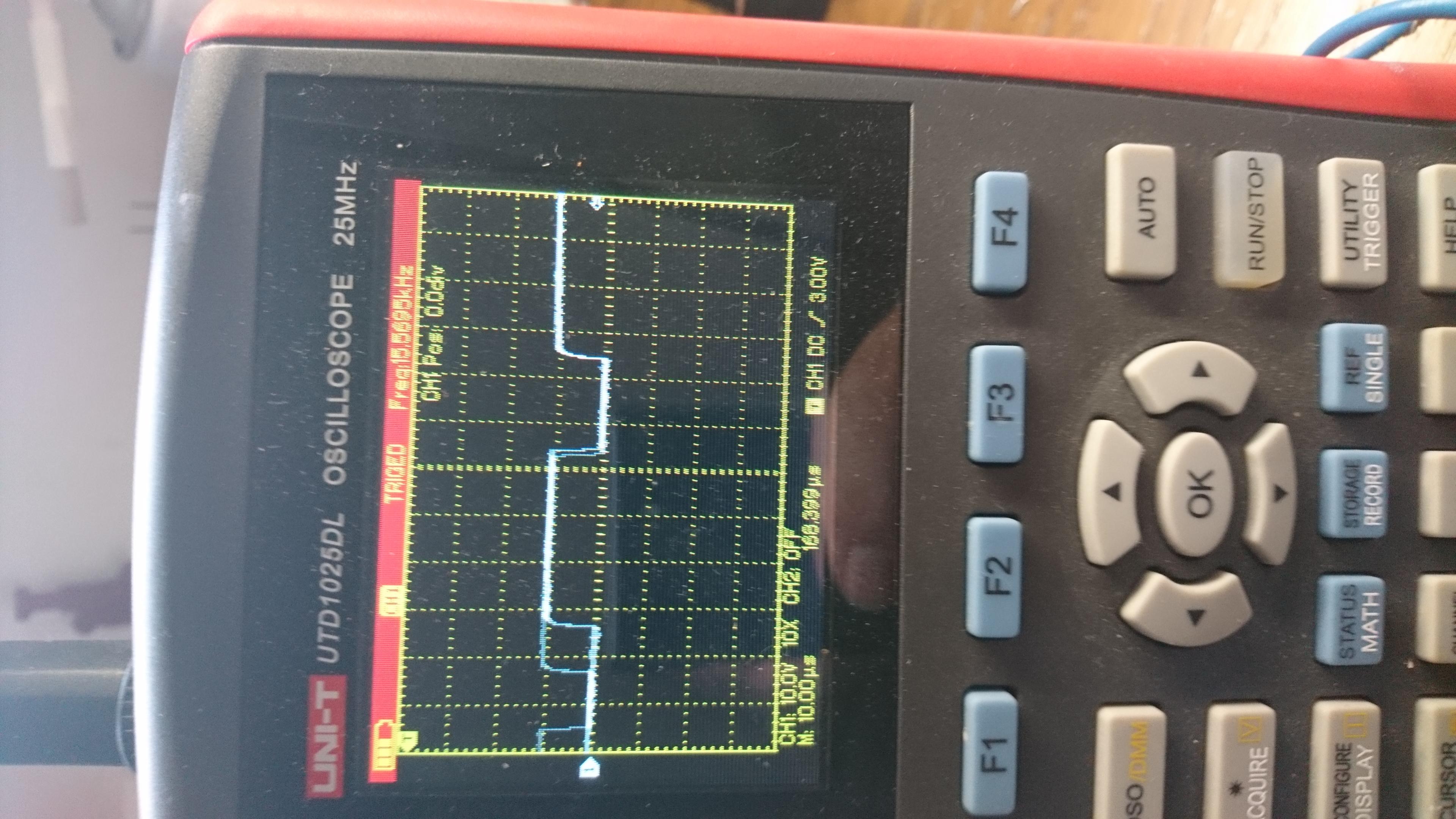

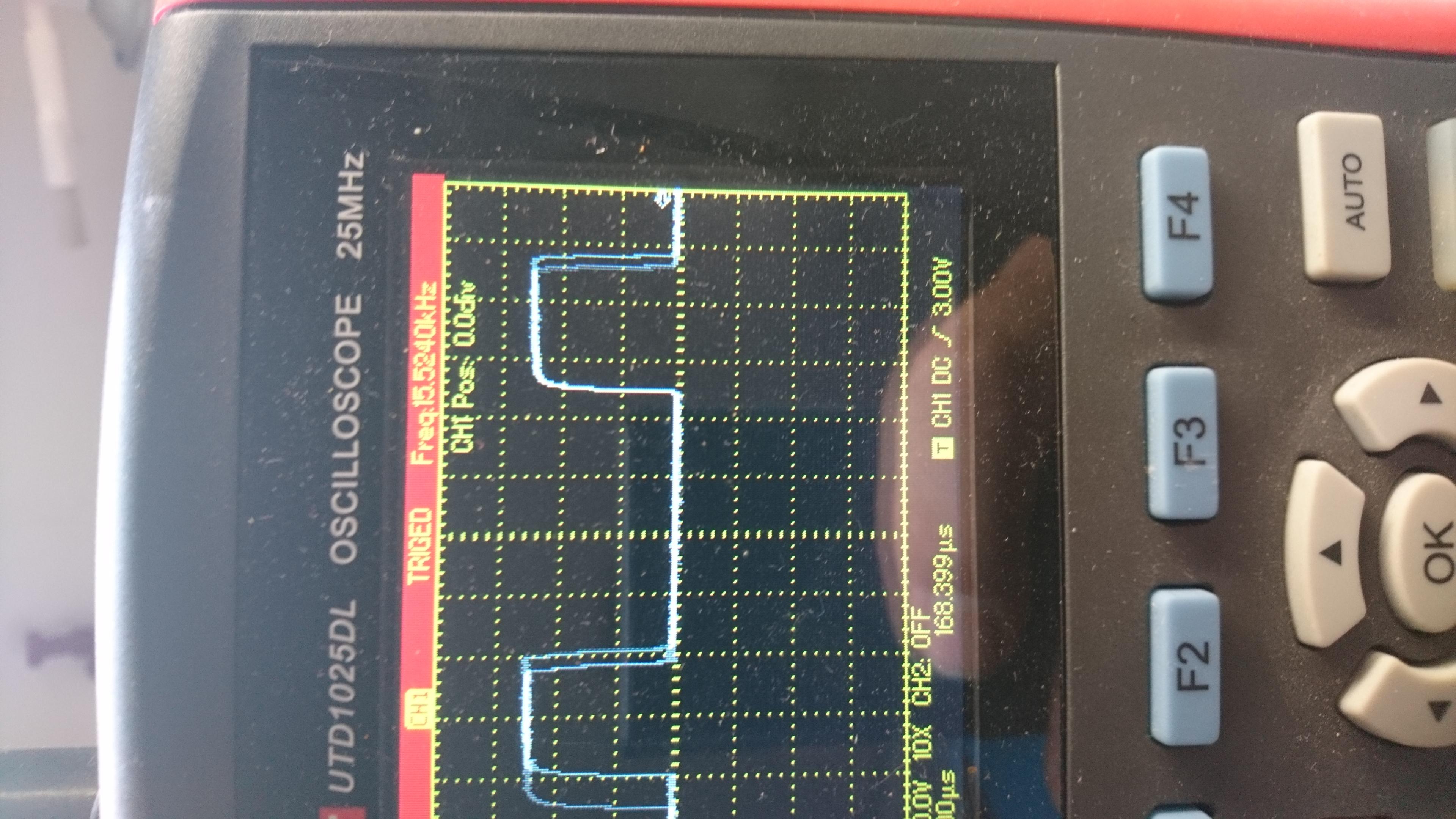

Both Pictures with low Voltage. 5 turns about 20v. 1st. Picture High Gate, 2nd Low Gate



[Achim1409]

on the drain low side i have same signal. On the high side there is only dc, but on high side source i have signal.



[Perry Babin]

That's normal.

Will the amp produce audio at low power?



[Achim1409]

only disorted noise with high frequencies



[Achim1409]

the same with disconnected pre-amp section



[Perry Babin]

Are you getting an audio signal to the driver board?



[Achim1409]

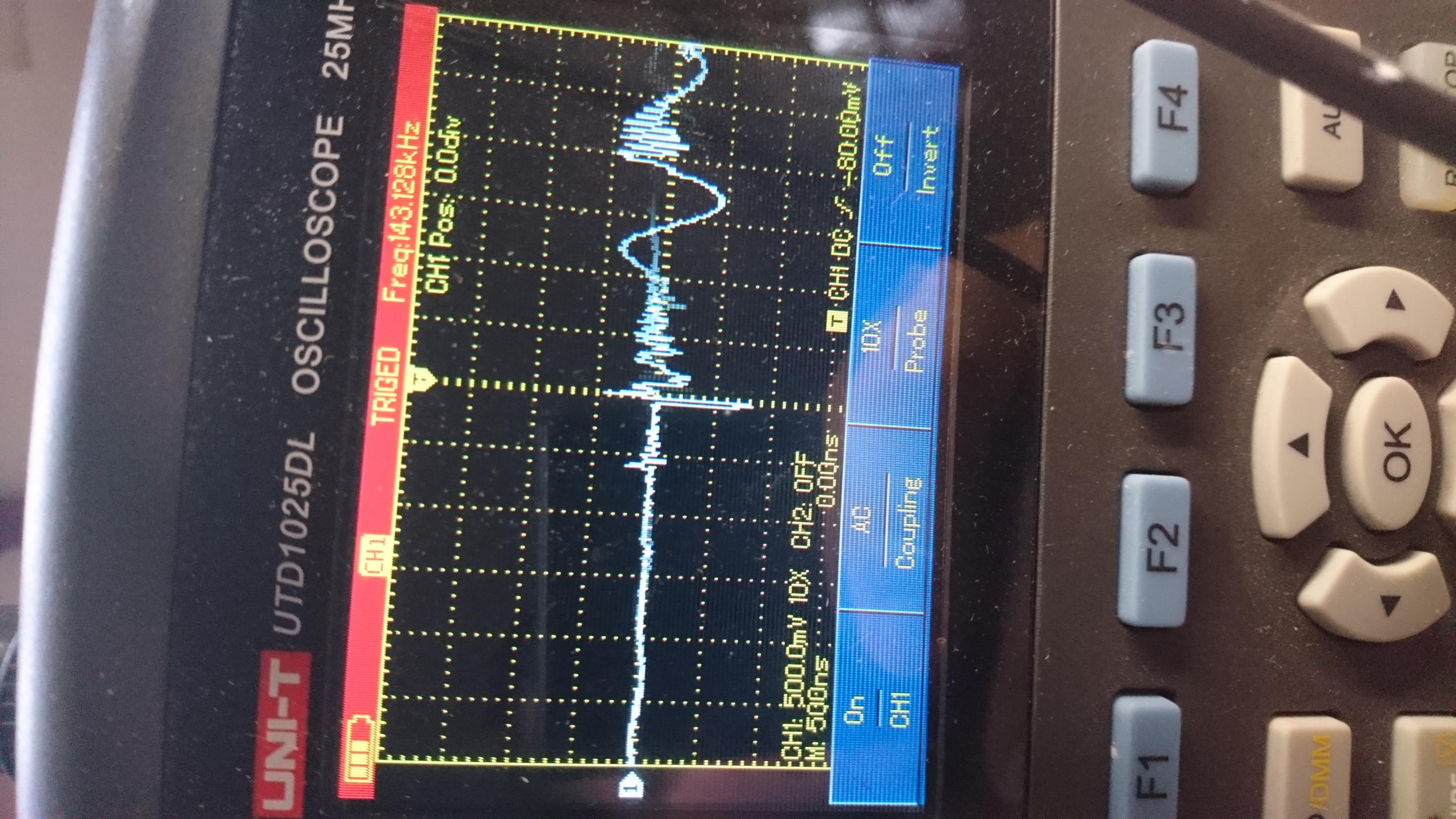

Only this signal. Very disorted. Measured on Pin 15 Audio in, ground probe on low side shunt



[Perry Babin]

Follow the signal path back. It likely goes to a 10uf cap. Find the op-amp driving that cap and check the signal there.



[Achim1409]

where should i connect my ground from the oscilloscope?



[Perry Babin]

Secondary ground. You can use the audio ground next to the input on the driver board if you can do so without slipping and shorting between pins.



[Achim1409]

I took ground from the cinch insert ground.

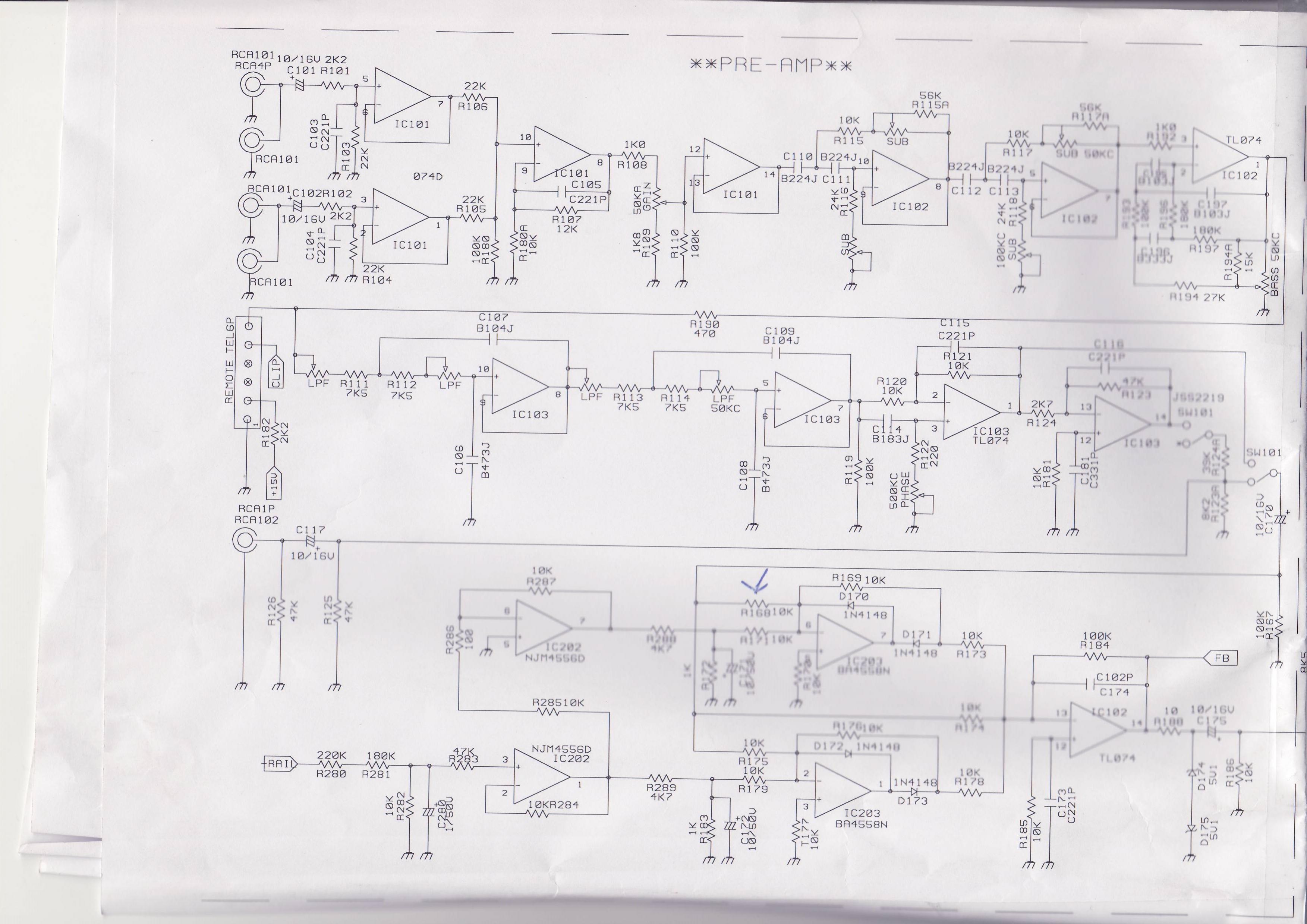

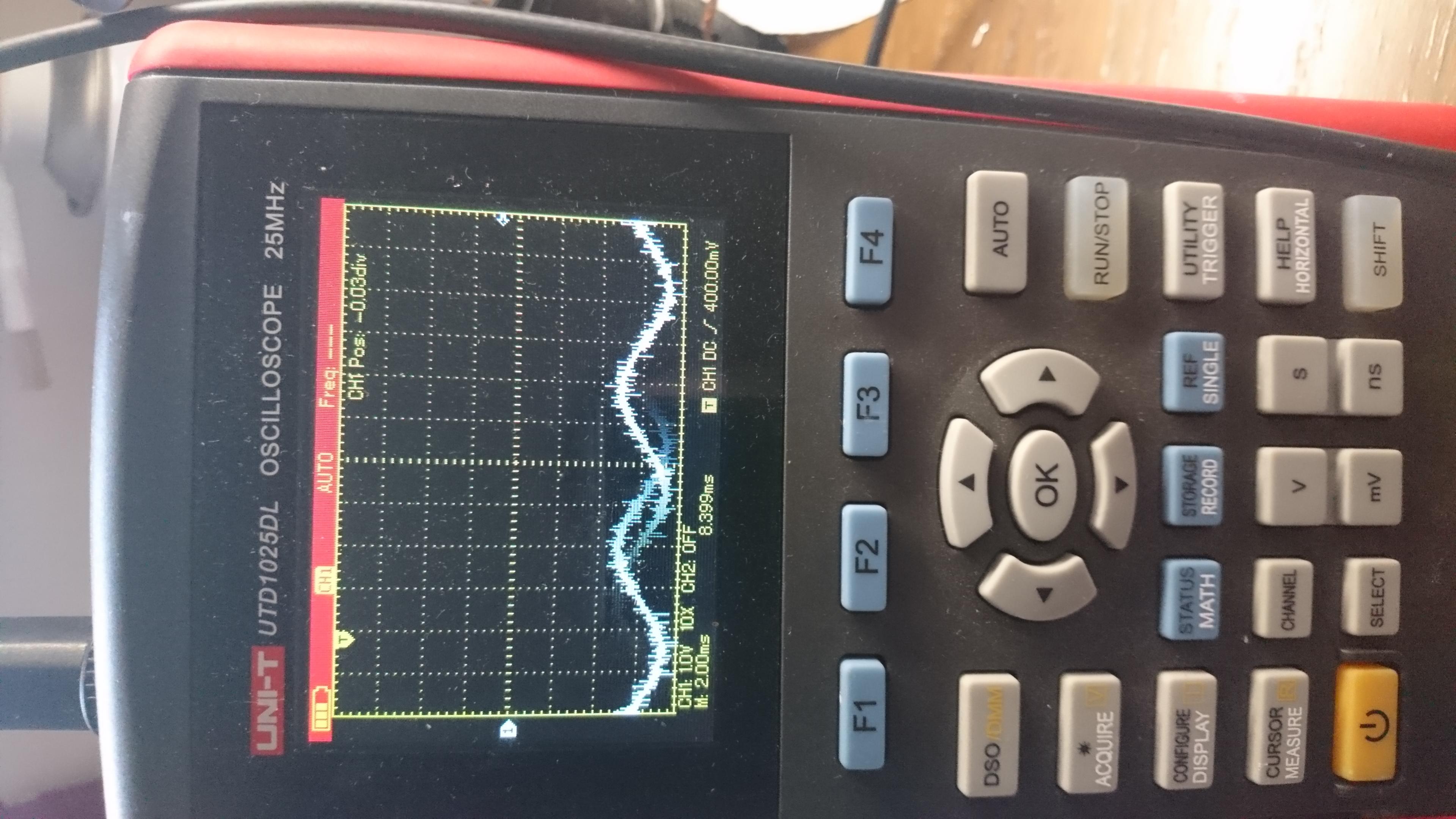

At Resistor R168 i have that signal. After R168 the Signal drops more to negativ (Below center line). After that OP´s i have only DC
