Chip Amp Photo Gallery

[jnewbold]

you should build a REAL power supply like 20,000uf per rail. you will FEEL the bass.

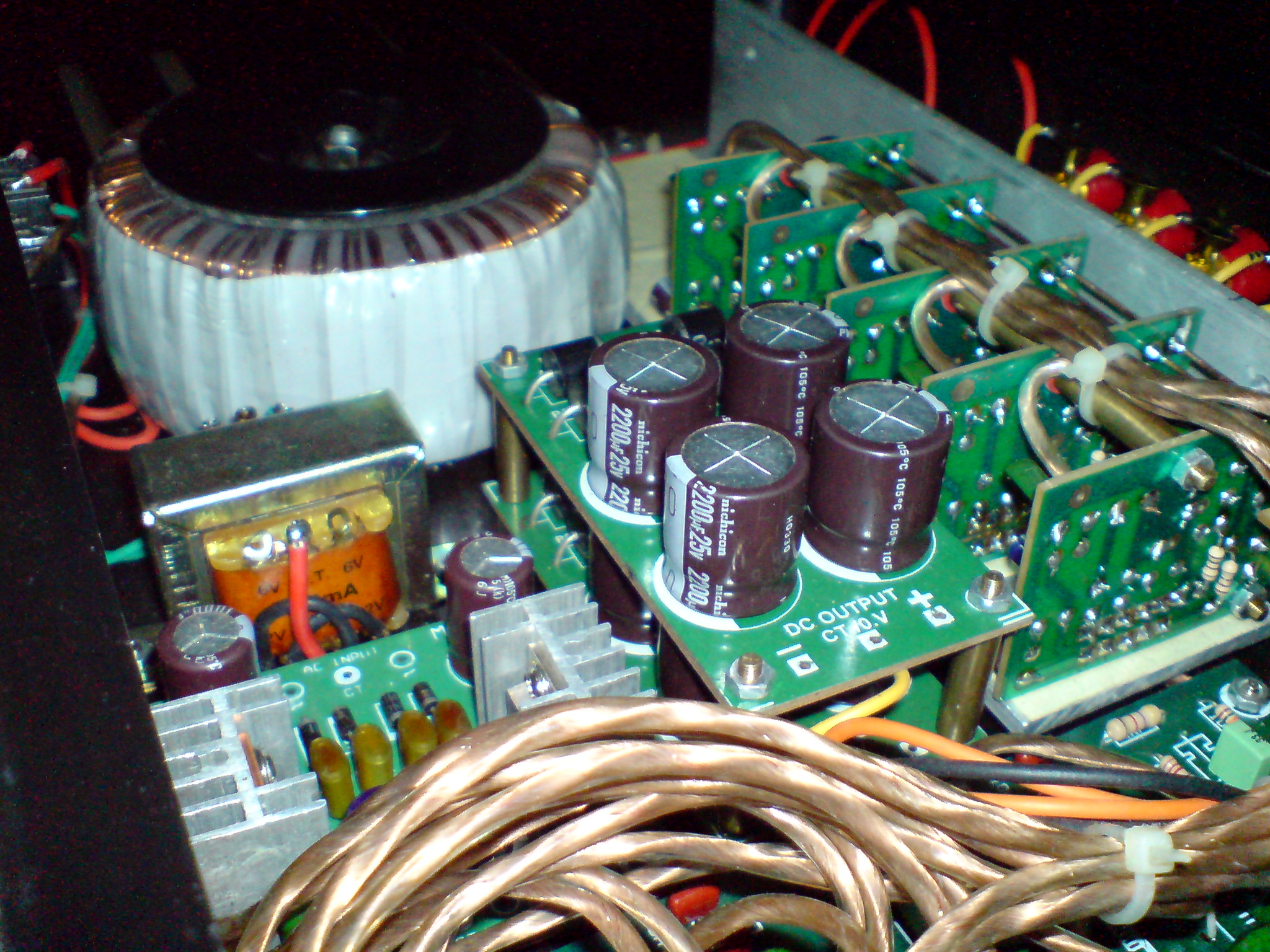

The psu caps are 2200uF Panasonic FC. Compared to my other amps, the bass doesn't suffer much at all. I never listen to rock. mostly to acoustic guitar, jazz, chamber music. However, a beefier (and snubberised) PSU with the suggested 20,000uF caps is one of the things I want to try. I also want to re-do the PCBs so I can fit smaller bypass caps close to the LM3886 pins when I use the larger PSU caps. My first priority is to get the Optivol LDR volume control and buffer functioning, then. . . PSU



[lanchile]

The psu caps are 2200uF Panasonic FC. Compared to my other amps, the bass doesn't suffer much at all. I never listen to rock. mostly to acoustic guitar, jazz, chamber music. However, a beefier (and snubberised) PSU with the suggested 20,000uF caps is one of the things I want to try. I also want to re-do the PCBs so I can fit smaller bypass caps close to the LM3886 pins when I use the larger PSU caps. My first priority is to get the Optivol LDR volume control and buffer functioning, then. . . PSU

Those tiny caps in the power supply are 2200uf?, I thought they were like 10uf or so.Well still not enough for a decent power supply. as you mention above you should try to use a hefty power supply.The chassis looks really nice.



[Professor]

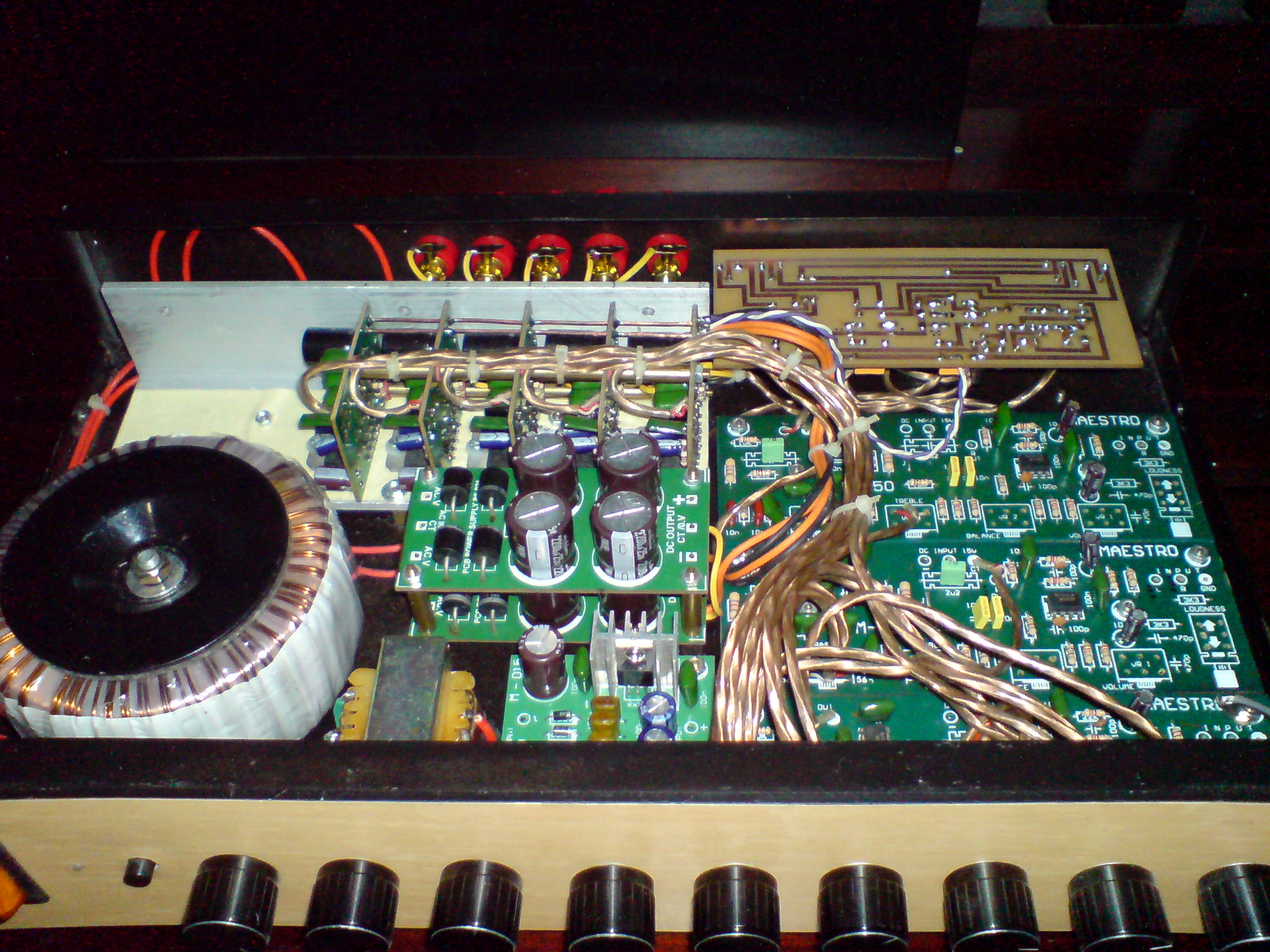

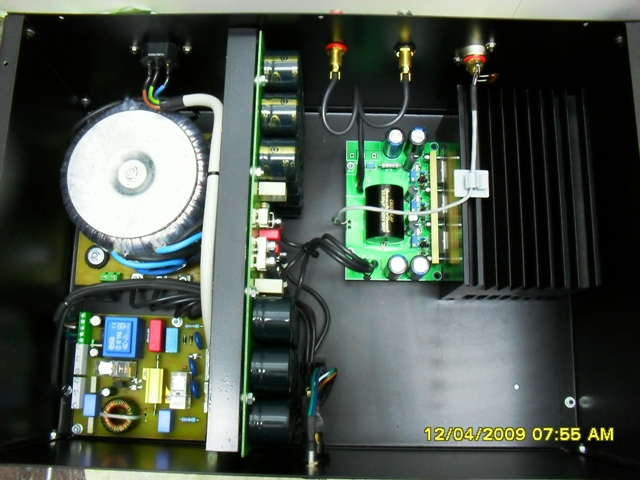

My PA-150, thanks to P.A. =)



[AndrewT]

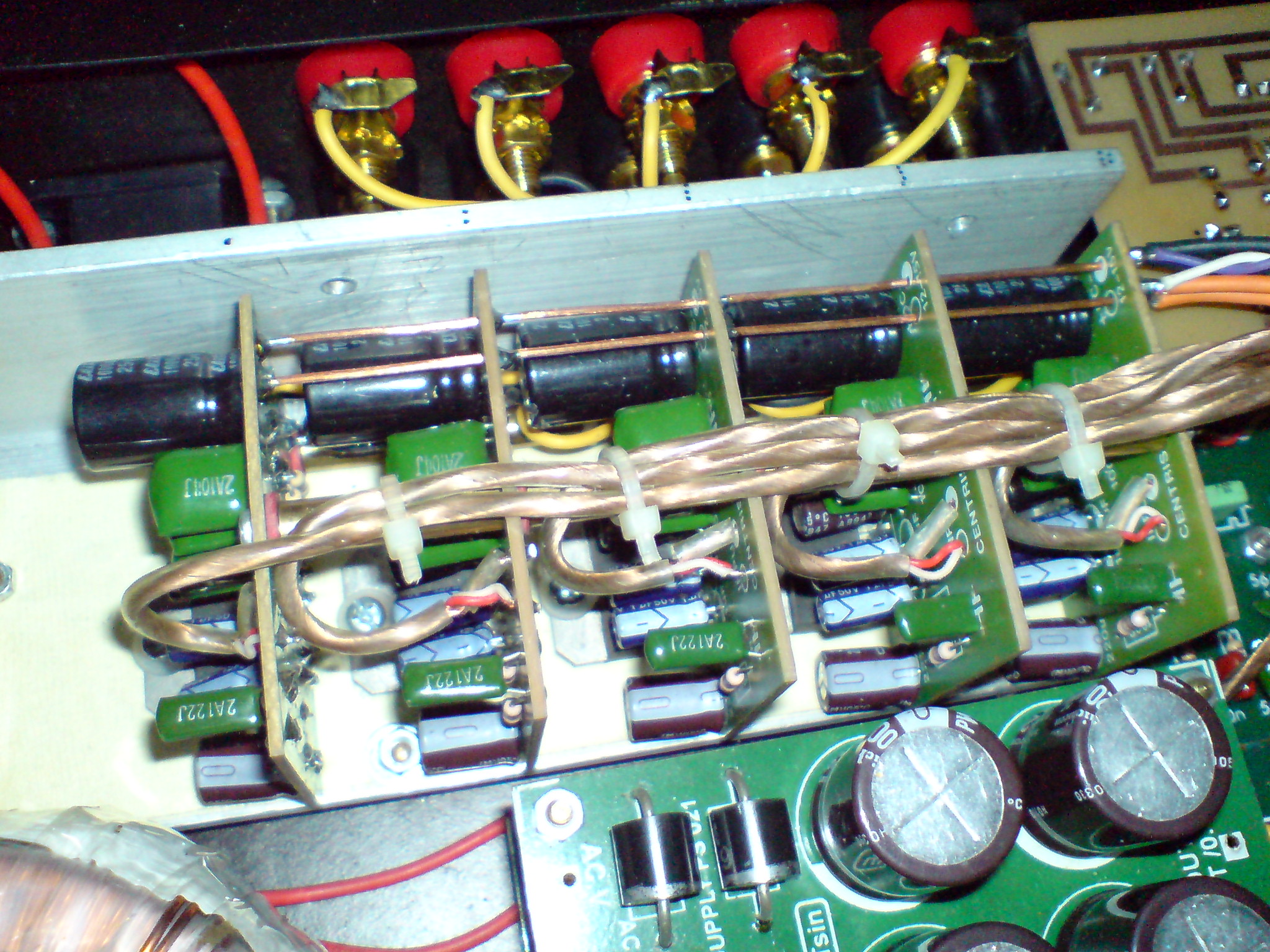

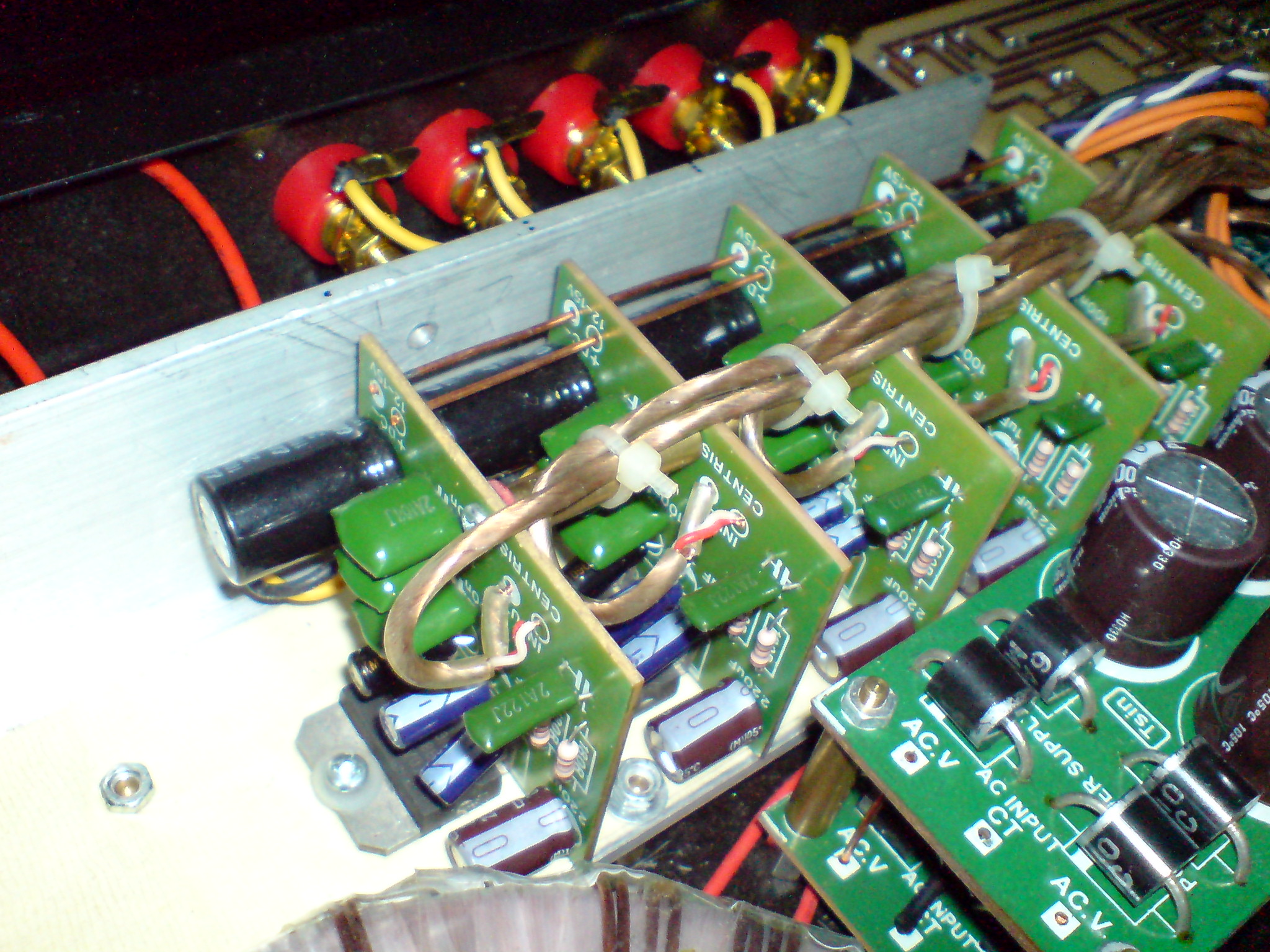

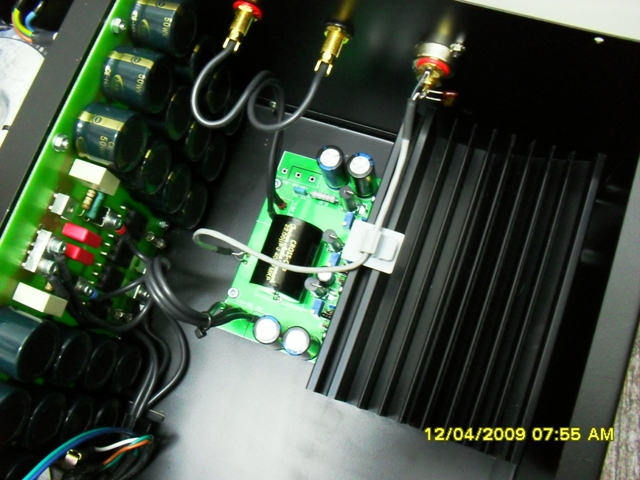

I love the clamp bar across the three chips.

I hate the orientation of the heatsink.
Does the box have ventilation?



[Professor]

I love the clamp bar across the three chips.

I hate the orientation of the heatsink.
Does the box have ventilation?

Yes



[jnewbold]

My PA-150, thanks to P.A. =)

Hi Prof,

Very nice build. What value caps in that PSU?

Joe



[Professor]

Hi Prof,

Very nice build. What value caps in that PSU?

Joe

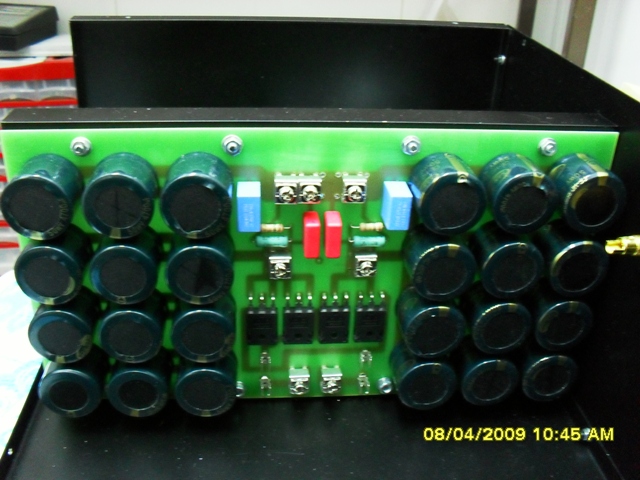

Hi! 4700x50V



[Professor]

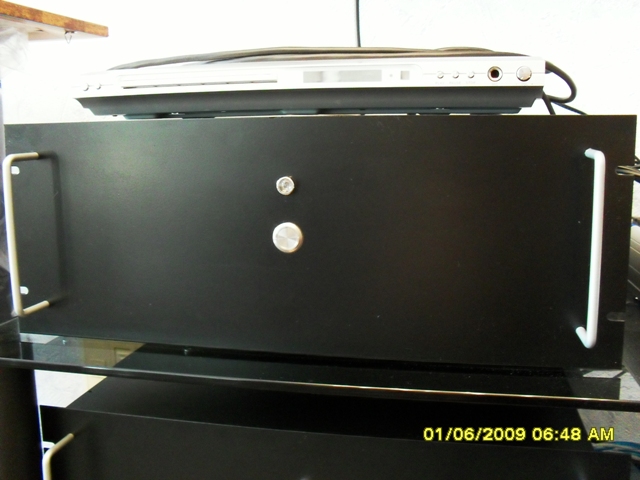

Has forgotten about front panel



[Miu.miu]

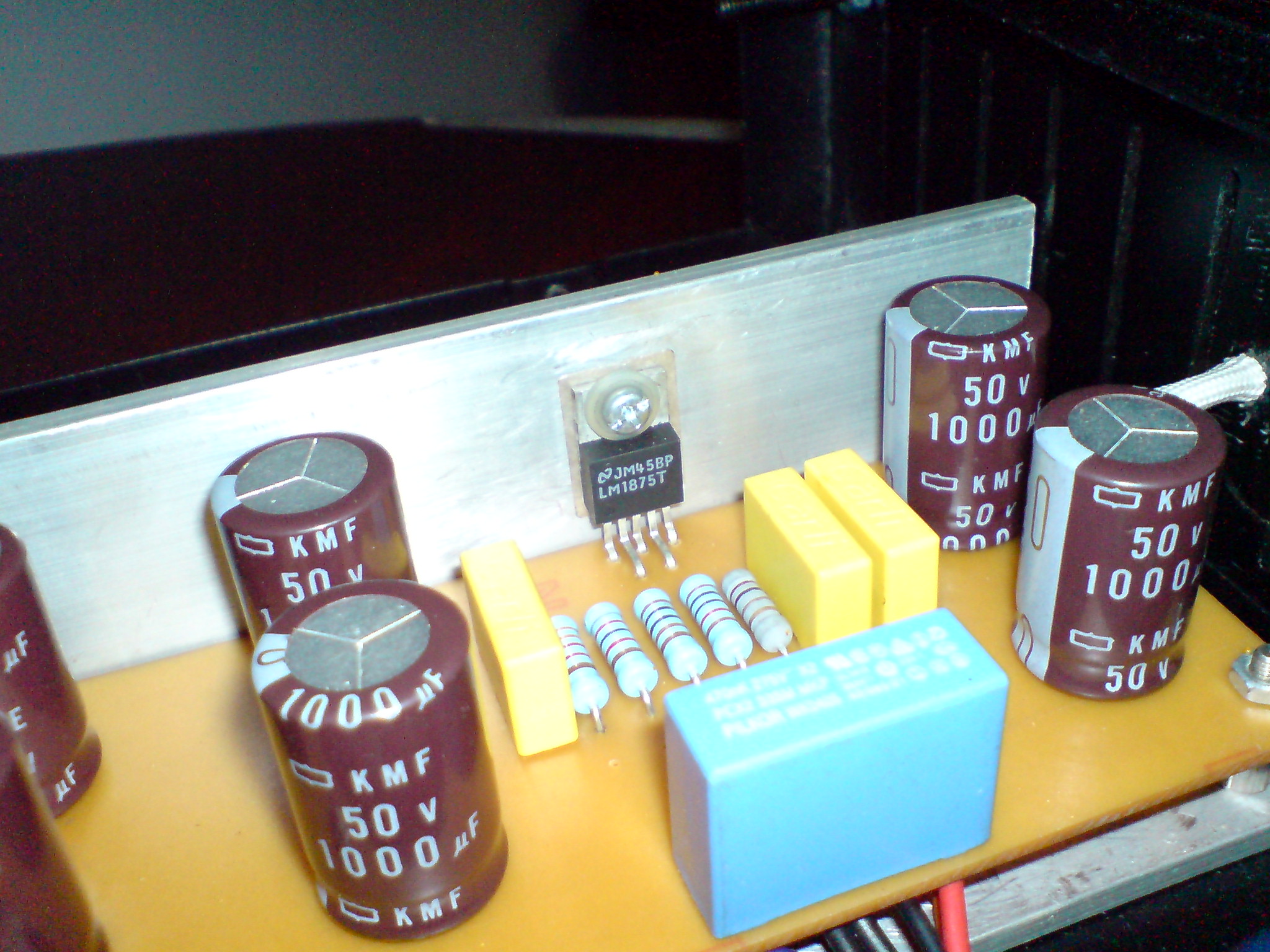

hello Sir, sorry for my bad english, im newbie in diyaudio forum and this pic of my LM1875 chipamp



[pikkujöpö]

hello Sir, sorry for my bad english, im newbie in diyaudio forum and this pic of my LM1875 chipamp

Hi

Have you tried smaller value electrolytics near the chip,what you have now are much bigger than normally used with lm1875.



[roredigolo]

small one

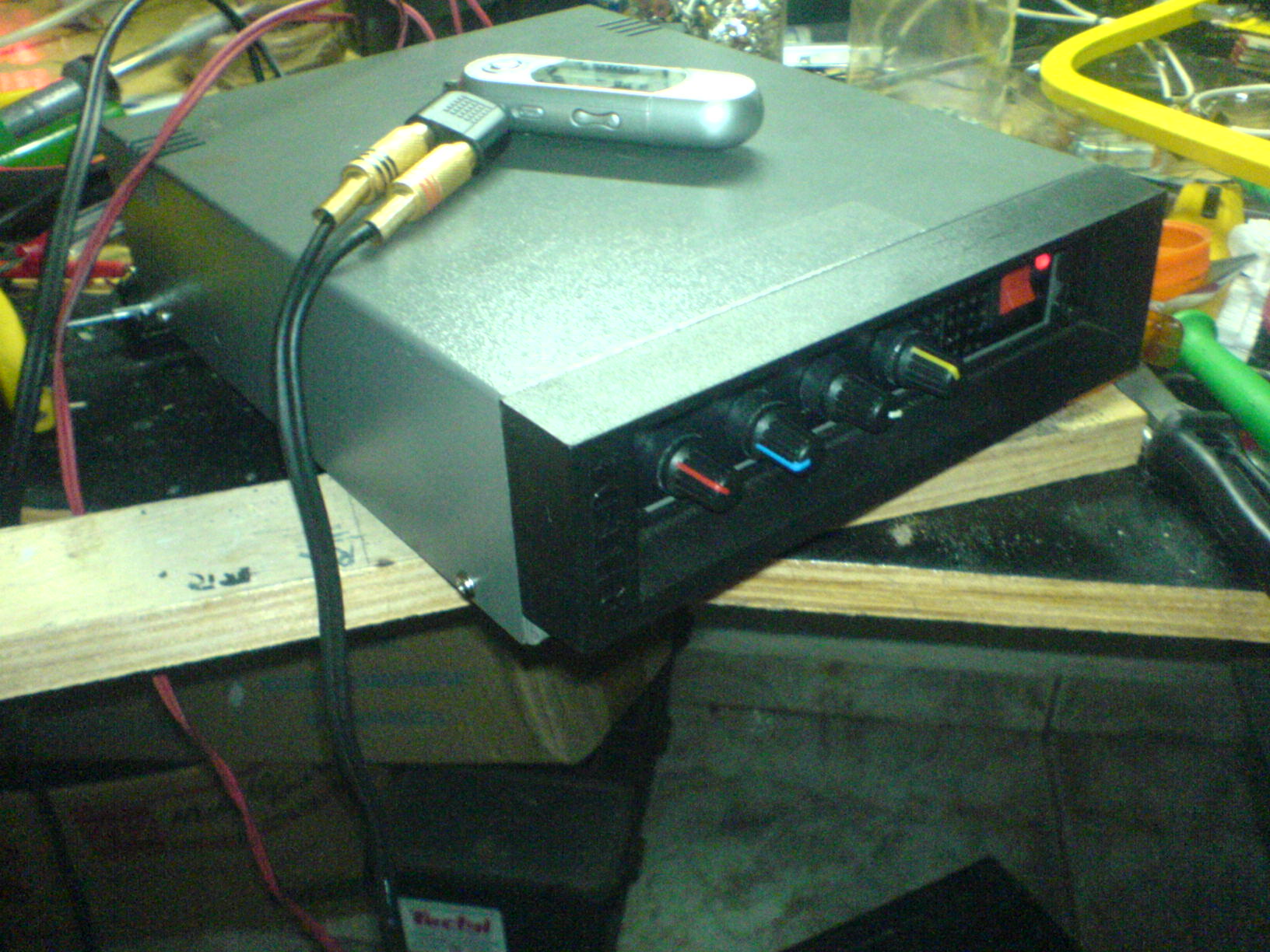

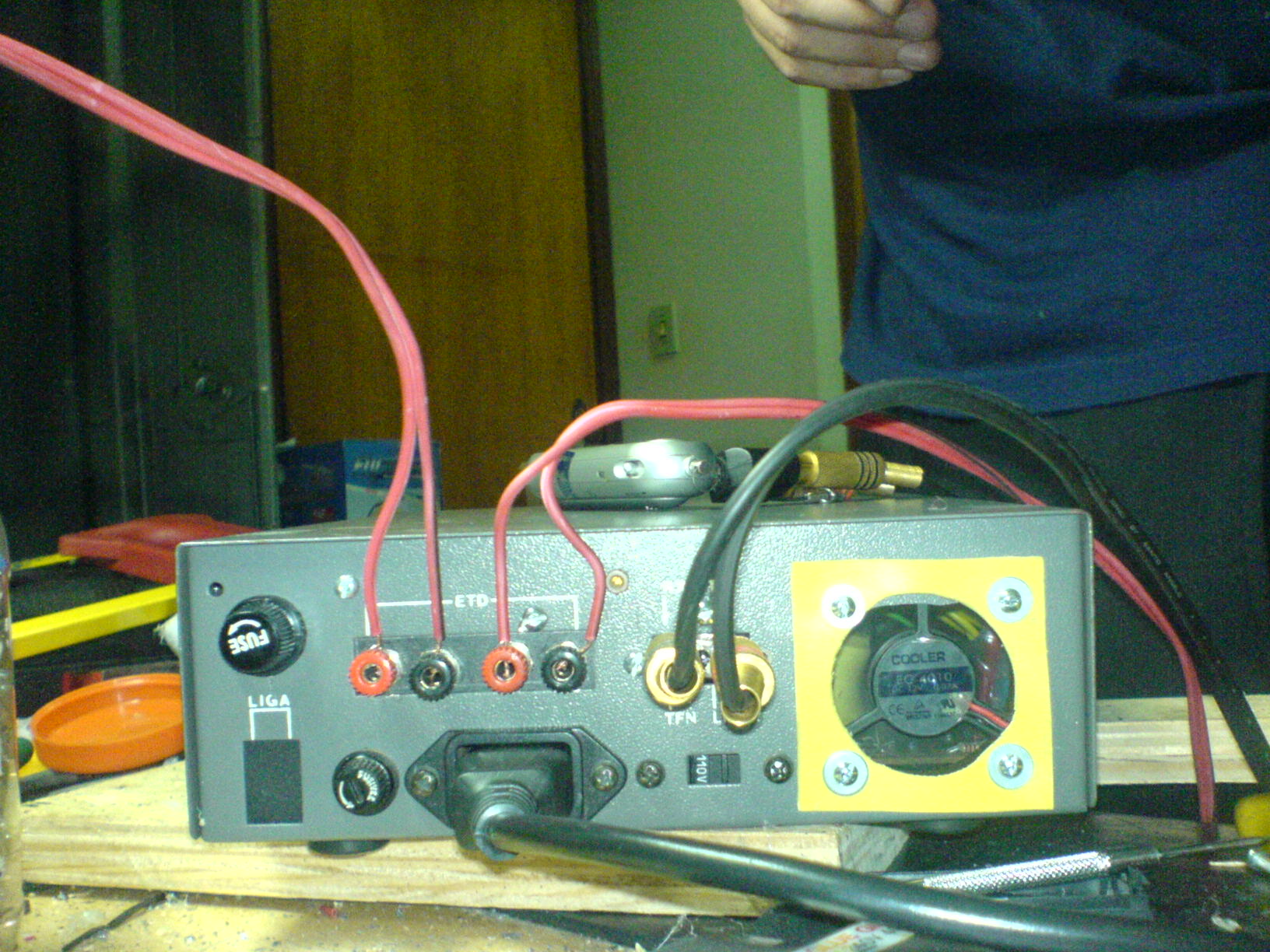

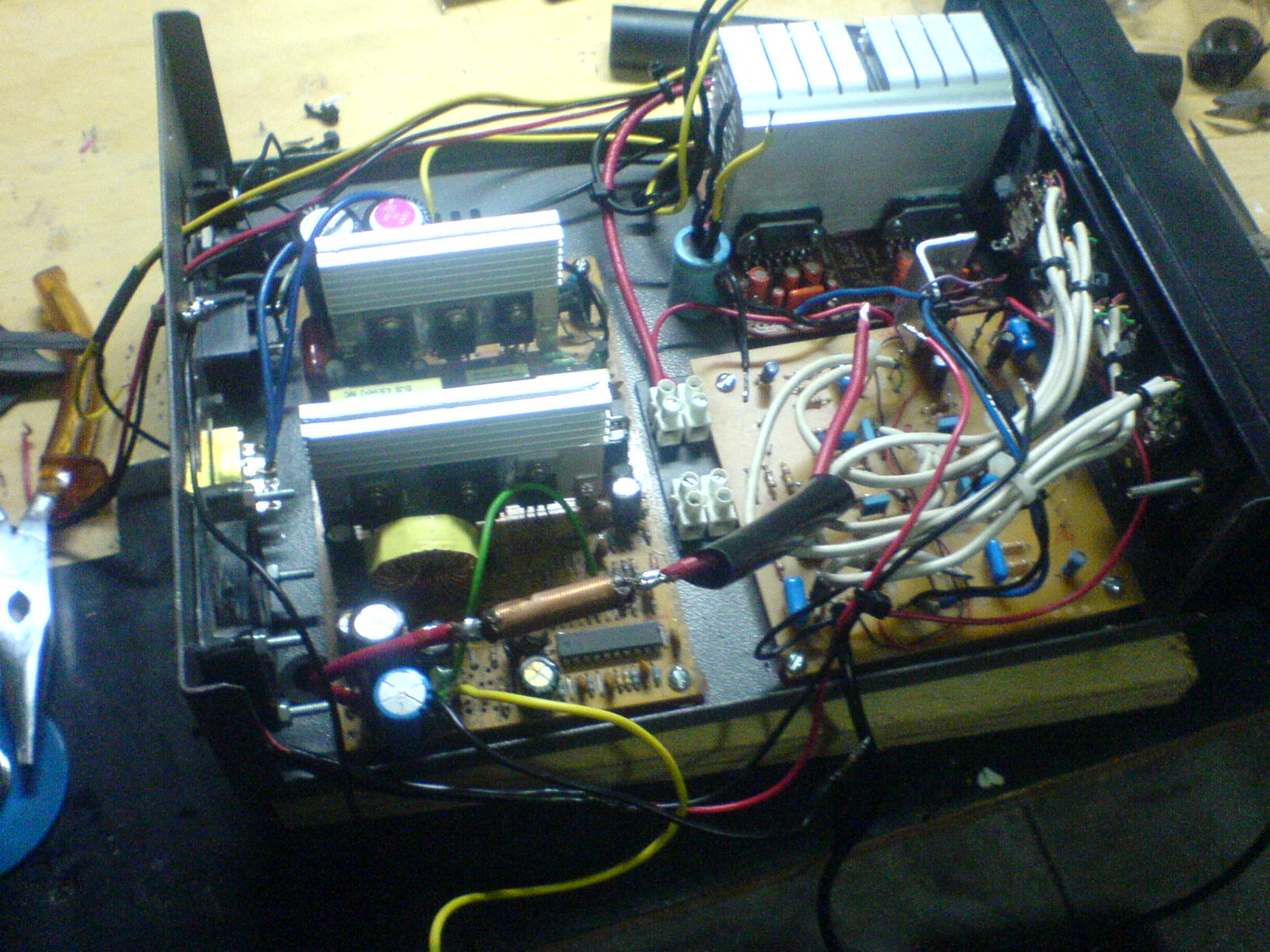

hello folks , for this project ( my second one ) I used some old parts a old modem case, a PC power supply, and a old ( 80's ) car amp based on TDA1515b , and I built the 2 channel pre amp with 2 TL072.

so that's it, works fine for my purpose.

for the future, I'm planning to build a more powerfull amp.

thanks Rogerio



[Miu.miu]

Hi

Have you tried smaller value electrolytics near the chip,what you have now are much bigger than normally used with lm1875.

No Sir, but i like the result, sound good with my tube preamp, no hum and no hiss



[Miu.miu]

And this my other chip amp, 5ch using TDA2009



[roredigolo]

congratulations

Here's few pics for the build- Chipamp was fast in shipping and the circuit boards are really high quality. The build was done over five days. The chassis is 3/8" aluminum base with 1/8" lid and dadoed solid cherry sides. Note the blue illumination around the front panel volume control. The PS LED is cool! (Pot to be added later.) 330VA 25vac Avel with snubberized PS. Rail voltages at +/-35V

Connected it to my speakers, and it sounded better than my aged Hafler, which now has to be modded to regain its sound. Tight bass, clear upper ranges, Voltage sag under heavy bass riff was about 5 volts, but it sounds great.
I'll probably do another, but with multi chips per channel.

Clean and nice Job , I hope in the future be able to work good and fast like that,



[apoopoo999]

my twisted pear RevC mono blocks

An externally hosted image should be here but it was not working when we last tested it.

An externally hosted image should be here but it was not working when we last tested it.

An externally hosted image should be here but it was not working when we last tested it.

An externally hosted image should be here but it was not working when we last tested it.

Uploaded with ImageShack.us



[Ted205]

very nice



[regiregi22]

My PA-150, thanks to P.A. =)

I really like the way you build that. Seems a really professional job, not from a novice. Really nice touches all over there, like the internal wiring disposition.

Regards
Regi



[jeronimo2003]

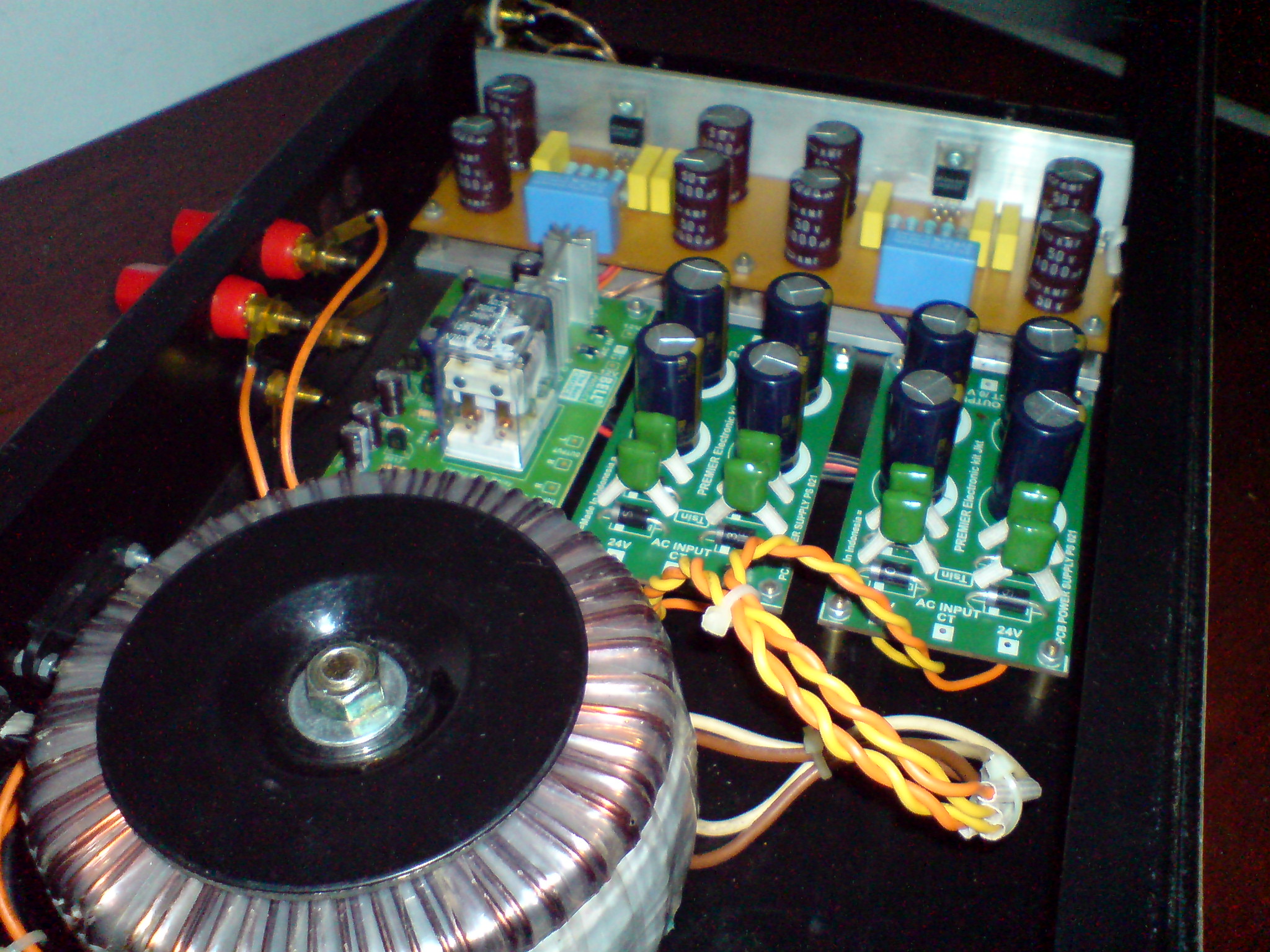

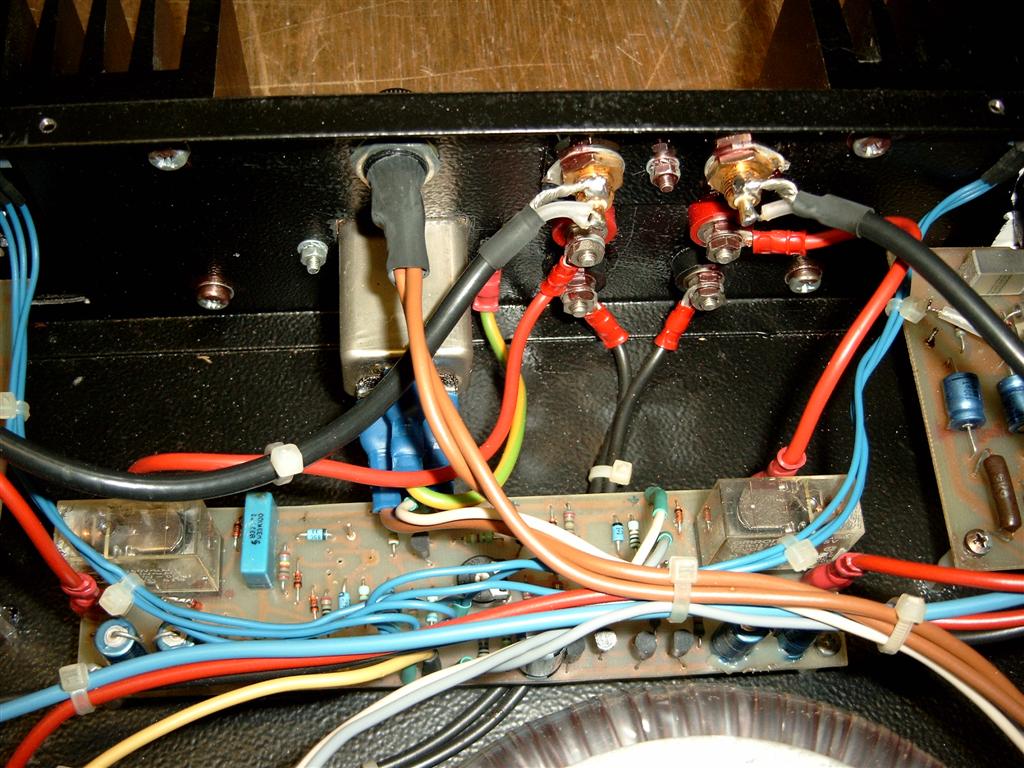

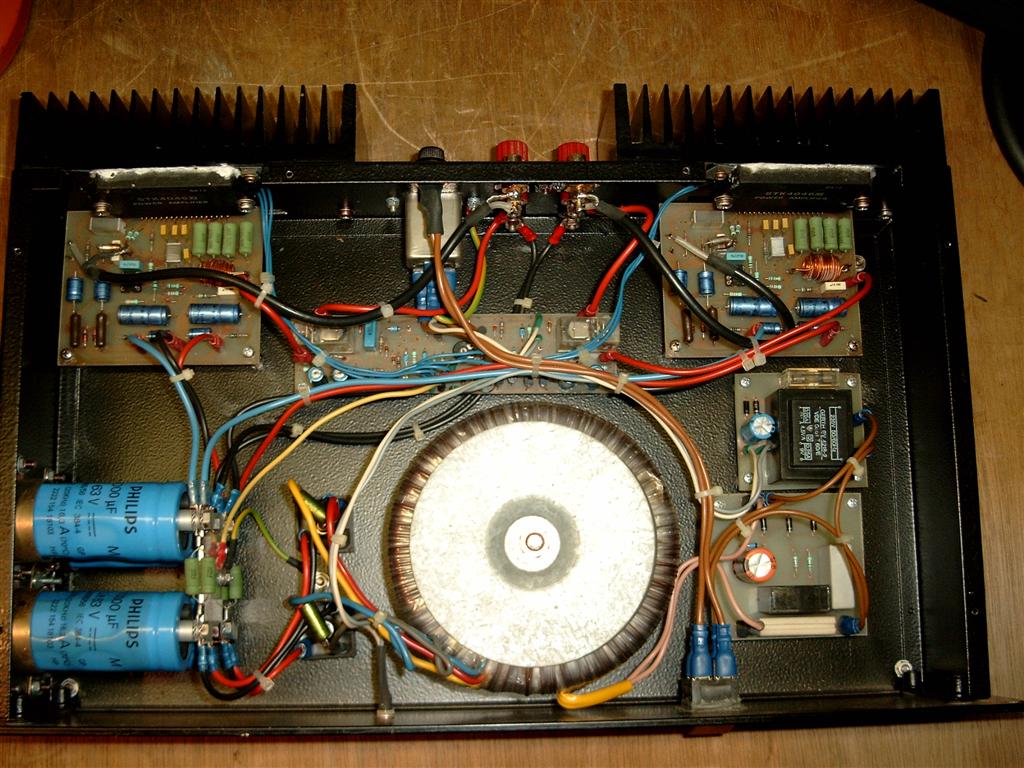

I build this one more than 5 years ago, still in use as amp in the living room. It has a 500VA transformer, soft start and DC/temp protection.



[Prophetmaster]

I build this one more than 5 years ago, still in use as amp in the living room. It has a 500VA transformer, soft start and DC/temp protection.

The line input cannot be placed so close from the speakers output and power supply input



[sasmit]

I build this one more than 5 years ago, still in use as amp in the living room. It has a 500VA transformer, soft start and DC/temp protection.

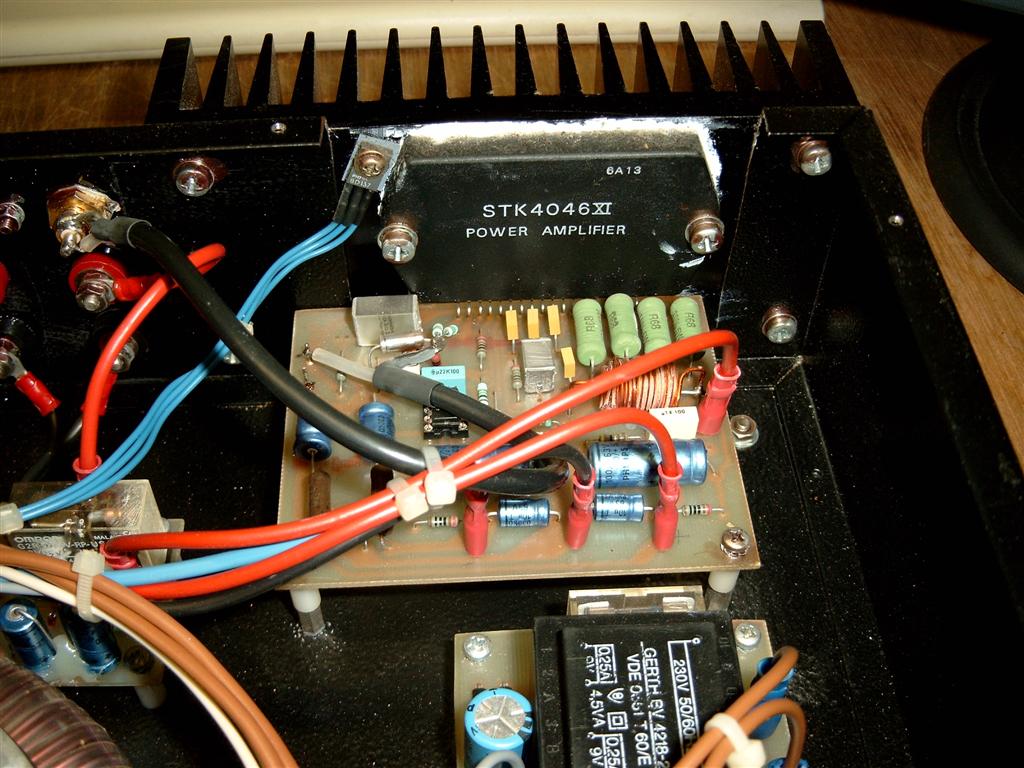

rare to see a STK here...but these were good amps in those days.. I had built a STK435 and STK459 for friends..your's is nicely built.
