900W H-class PA Amp with Limiter

[Budy]

Hem



[Mooly]

Hem

As in ?



[sasek]

Hi all.
Can anybody give all list of apex amplifier projects?
Sr200 very good amplifier for me.



[suryadi5417]

designed by APEX AUDIO
draw by by willy cerna
redraw by Arif Sumadireja



[rohin]

sir,
1.what is rating of new design?
2. is that ok tested?
3. what is size of pcb?
please post all files +solder resistance. i asking to you because i want to make h 900. now i am lookig for pcb.my new friend aman khalsa also will give me pcb next week. so i am lucky having good friends.



[rohin]

how ever its looking very nice.thank you.



[apexaudio]

designed by APEX AUDIO
draw by by willy cerna
redraw by Arif Sumadireja

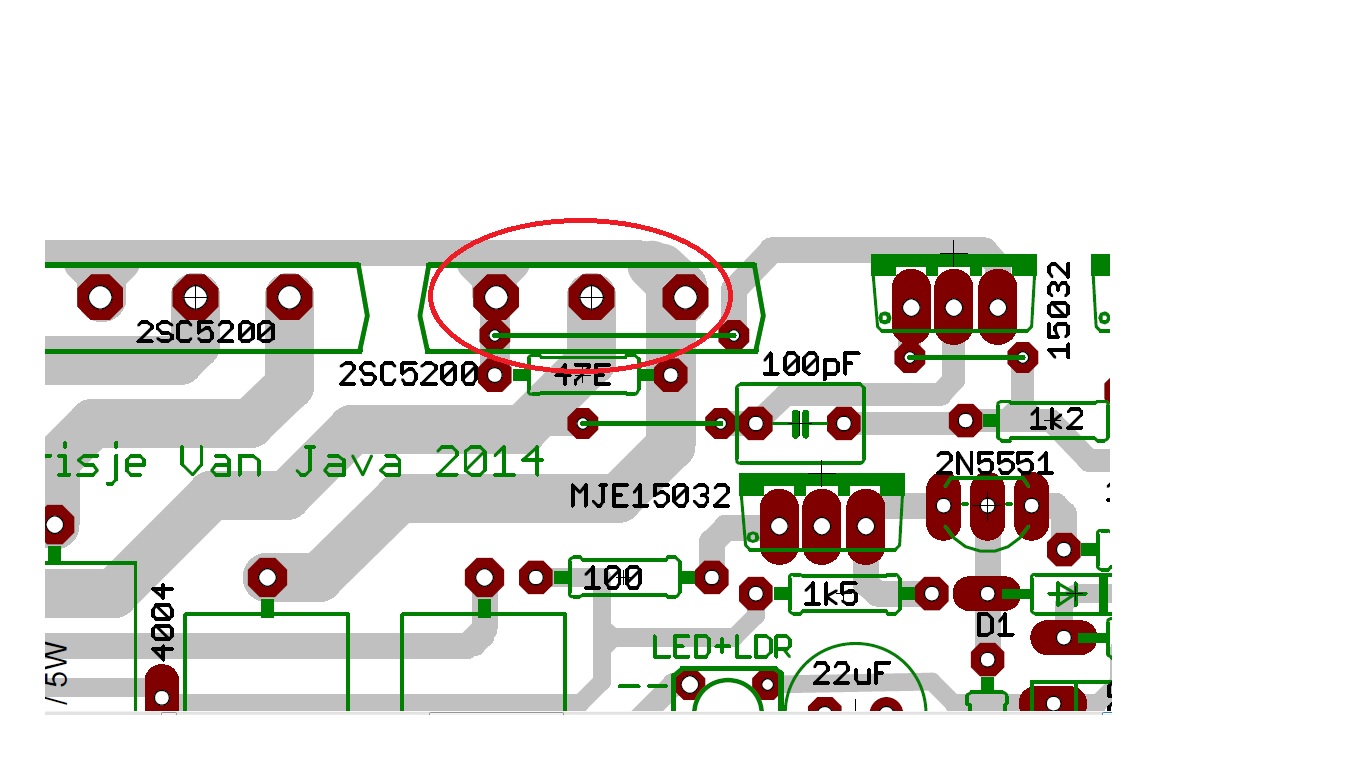

Nice pcb but there is some mistake...



[suryadi5417]

Nice pcb but there is some mistake...

thank you for your attention sir Miles, i will fix for the test...


Regards.



[pallab]

apexaudio ,sir what is the exact input voltage for apex h900 for true 900watt rms output? Is it 110/55 or 120/60? and for 120/60 output PSU has the both transformers out put i.e 40 0 40 and 40 0 40 same ampere ratings??



[DC sound]

thank you for your attention sir Miles, i will fix for the test...


Regards.

hello Suryadi..

can you share your PCB lay-out?



[jose luis guerrero]

hello Suryadi..

can you share your PCB lay-out?

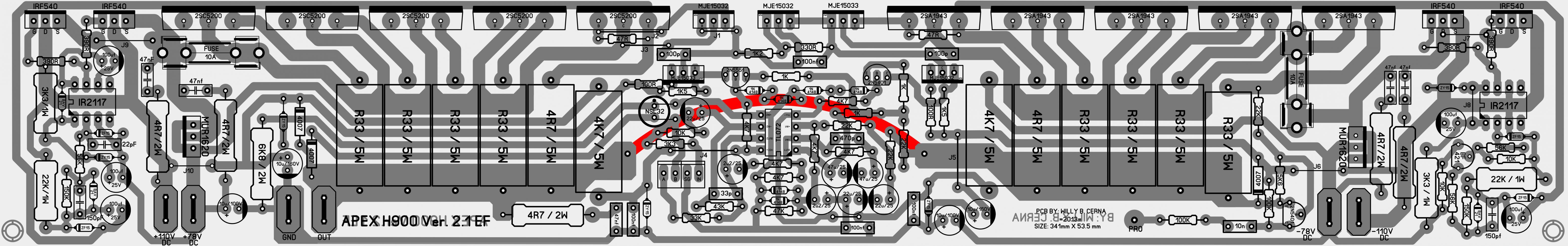

The pcb has several errors, I'm still analyzing it.



[suryadi5417]

let me know if there any mastakes....



[suryadi5417]



[jose luis guerrero]

Now if it's okay, you have to try, and what did you do this design work?



[suryadi5417]

Now if it's okay, you have to try, and what did you do this design work?

i have try this design and the result is not work ...should i delete those picts ?



[jose luis guerrero]

i have try this design and the result is not work ...should i delete those picts ?

I do not understand



[CIPRIANDRAGOS]

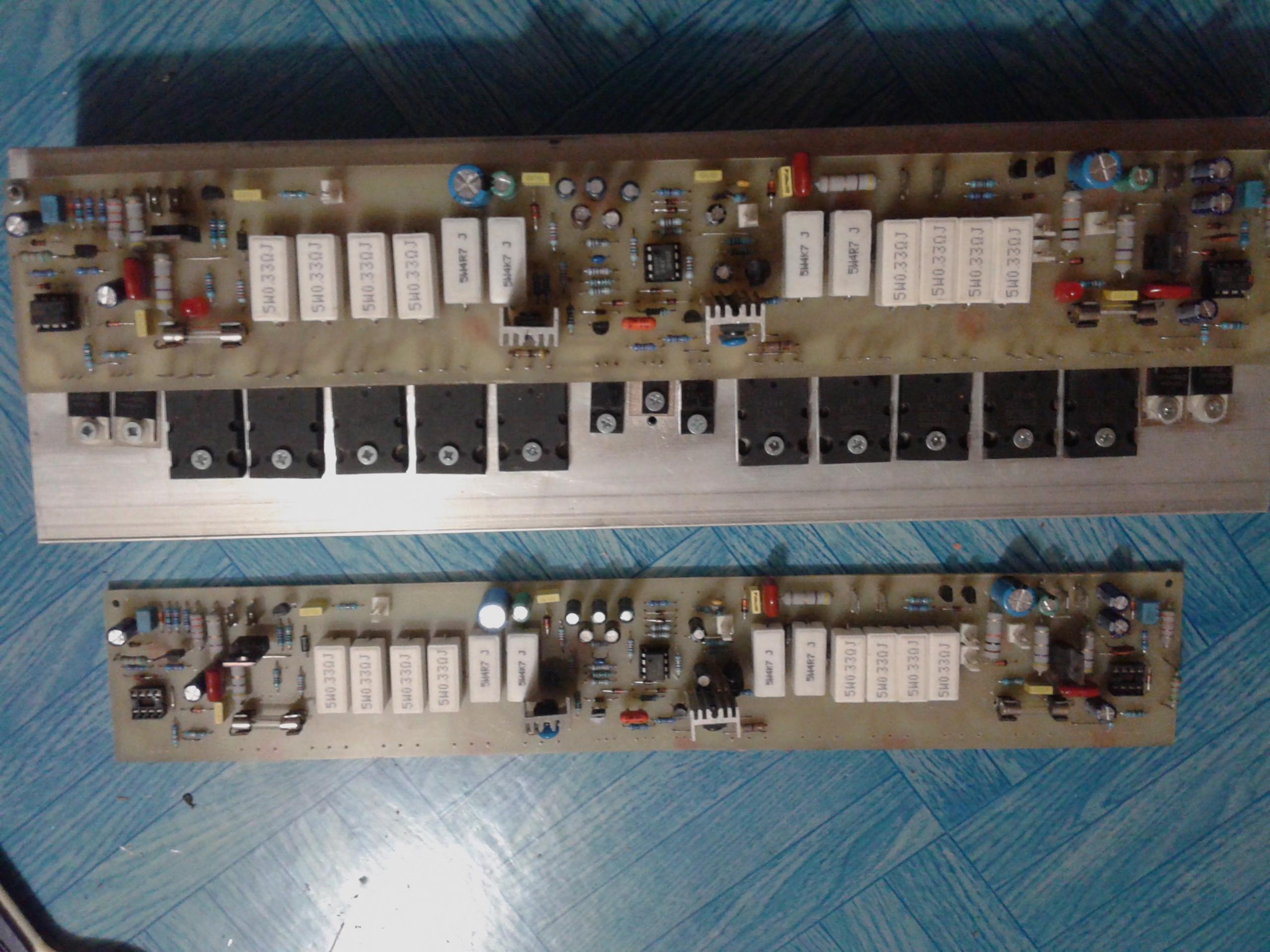

i just finish my H900 but i let just class AB because i do not like how class H works
The cage is an original old amplifier Renkforce HVA-9080that was damage and i receive only the cage.
PSU is the original one +/- 67V and 800W consumption
On output i have 34Vac RMS/4 ohms on oscillo with limiter even i put 3V on input and without limiter i can have even 40Vac RMS but with clipp
I observe with this main voltage i don't need a fan for cooling,on 4 ohms works perfect!
Thank you APEX

An externally hosted image should be here but it was not working when we last tested it.

An externally hosted image should be here but it was not working when we last tested it.

An externally hosted image should be here but it was not working when we last tested it.



[apexaudio]

i just finish my H900 but i let just class AB because i do not like how class H works
The cage is an original old amplifier Renkforce HVA-9080that was damage and i receive only the cage.
PSU is the original one +/- 67V and 800W consumption
On output i have 34Vac RMS/4 ohms on oscillo with limiter even i put 3V on input and without limiter i can have even 40Vac RMS but with clipp
I observe with this main voltage i don't need a fan for cooling,on 4 ohms works perfect!
Thank you APEX

Nice work but this is B500
Regards



[CIPRIANDRAGOS]

Yes,now it is B500 but normaly it was H900 (on left side you can see the holes for components) but i dont like how it works on oscillo and i let only class AB
Anyway now it work well
I must make the clipping display and it will be ready to us
Thanks again Mr.Mile



[apexaudio]

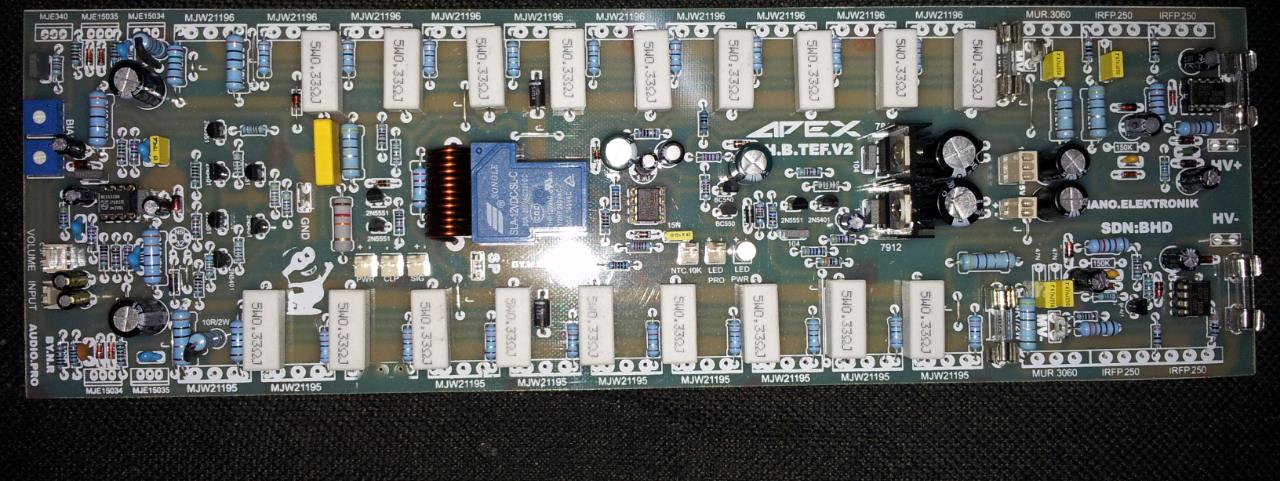

Amp based on B600
