900W H-class PA Amp with Limiter

[nano nano]

@rizqi bisa minta layout kosong yang gak ada daftar komponen nya maaf belum berkenalan salam kenal untuk semua
@ rizqi can ask for a blank layout that we do not have a list yet acquainted sorry its components Greetings to all



[dartamaji kachapury]

watch schematic please sir........apex vertex



[dartamaji kachapury]

apex vertex of the scheme please complete, thank you very much sir mile



[dartamaji kachapury]

want to design a power amplfier vertex with yamaha EEEngine topology version.



[SERGIODS]

please

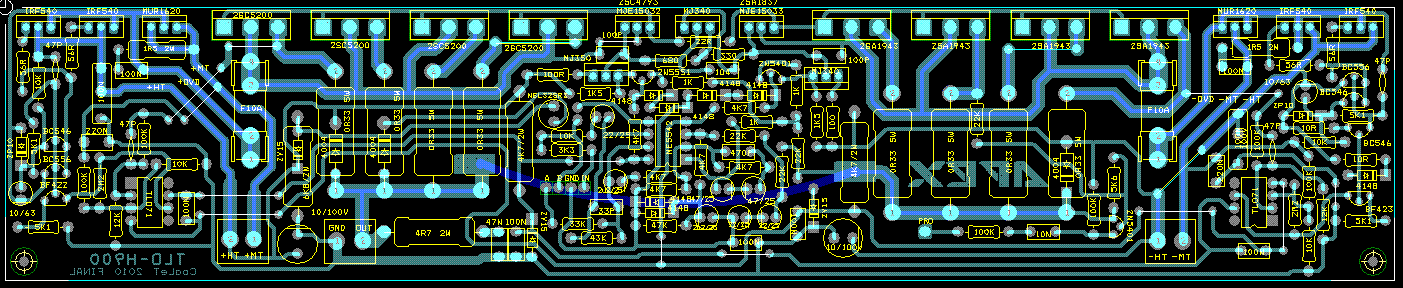

H 900 TEF with protector speaker

What is the password?



[rizqi]

here is vertex : http://www.diyaudio.com/forums/solid-state/199879-vertex-amp-apexaudio.html?highlight=VERTEX



[suryadi5417]

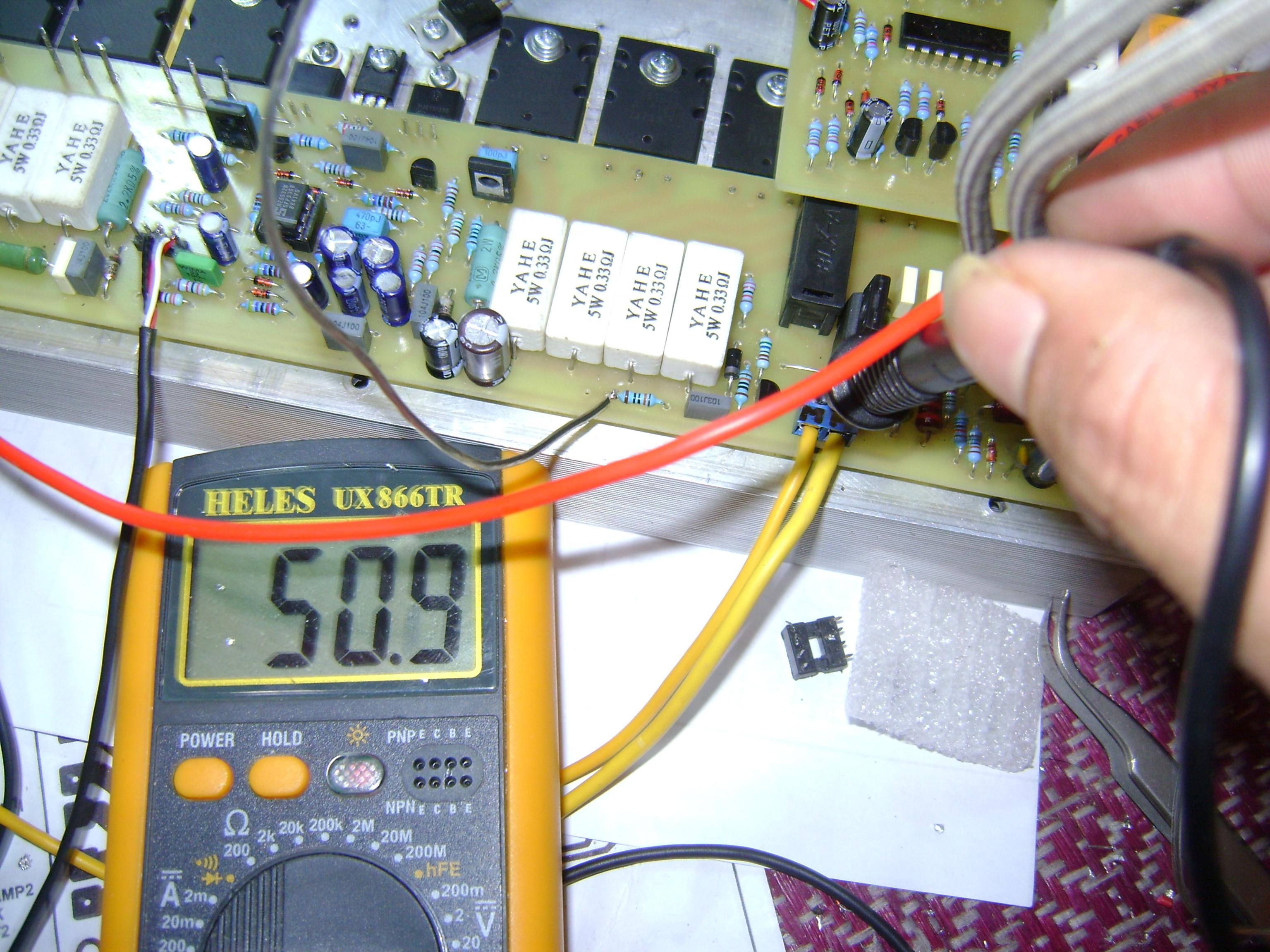

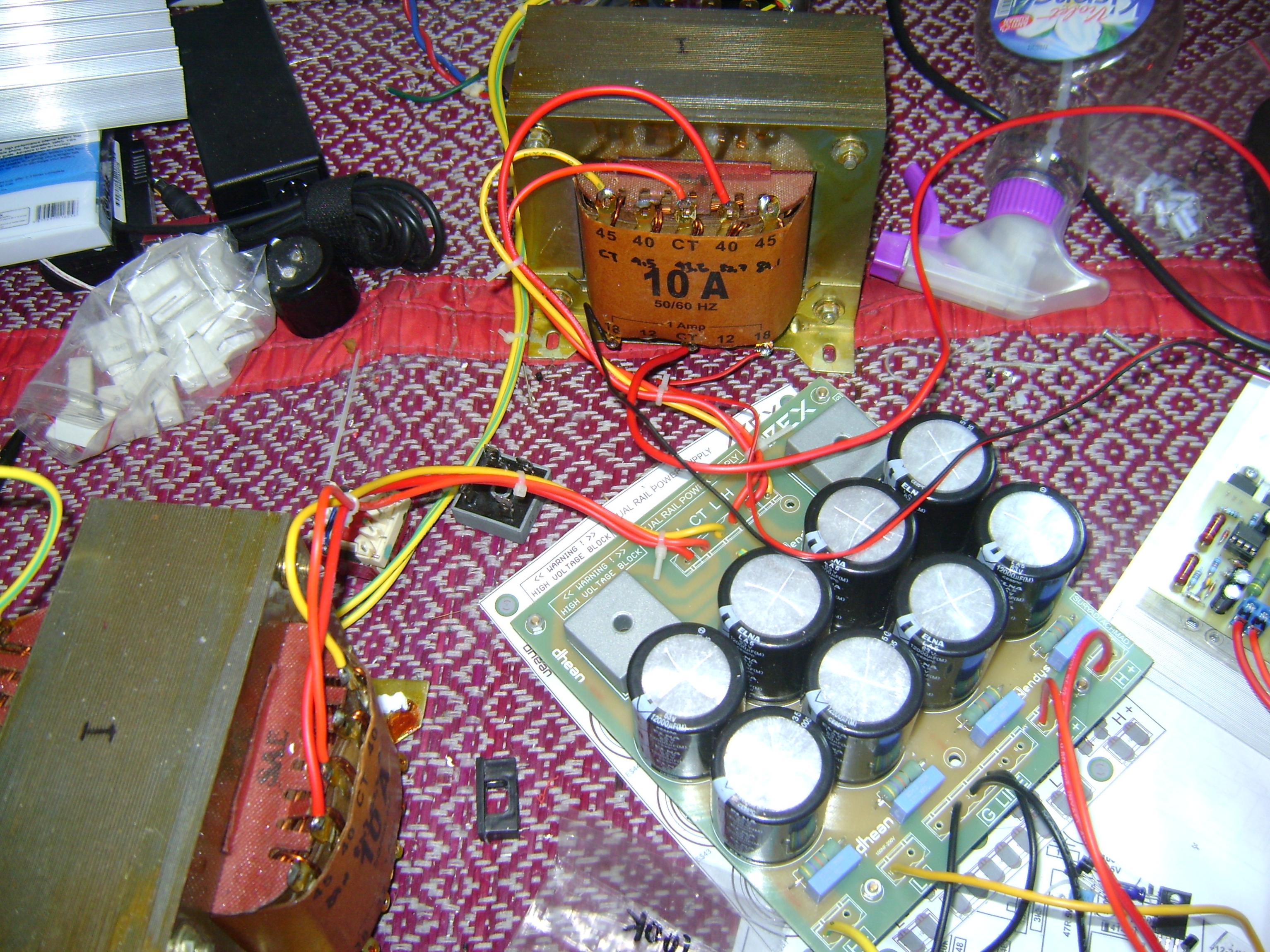

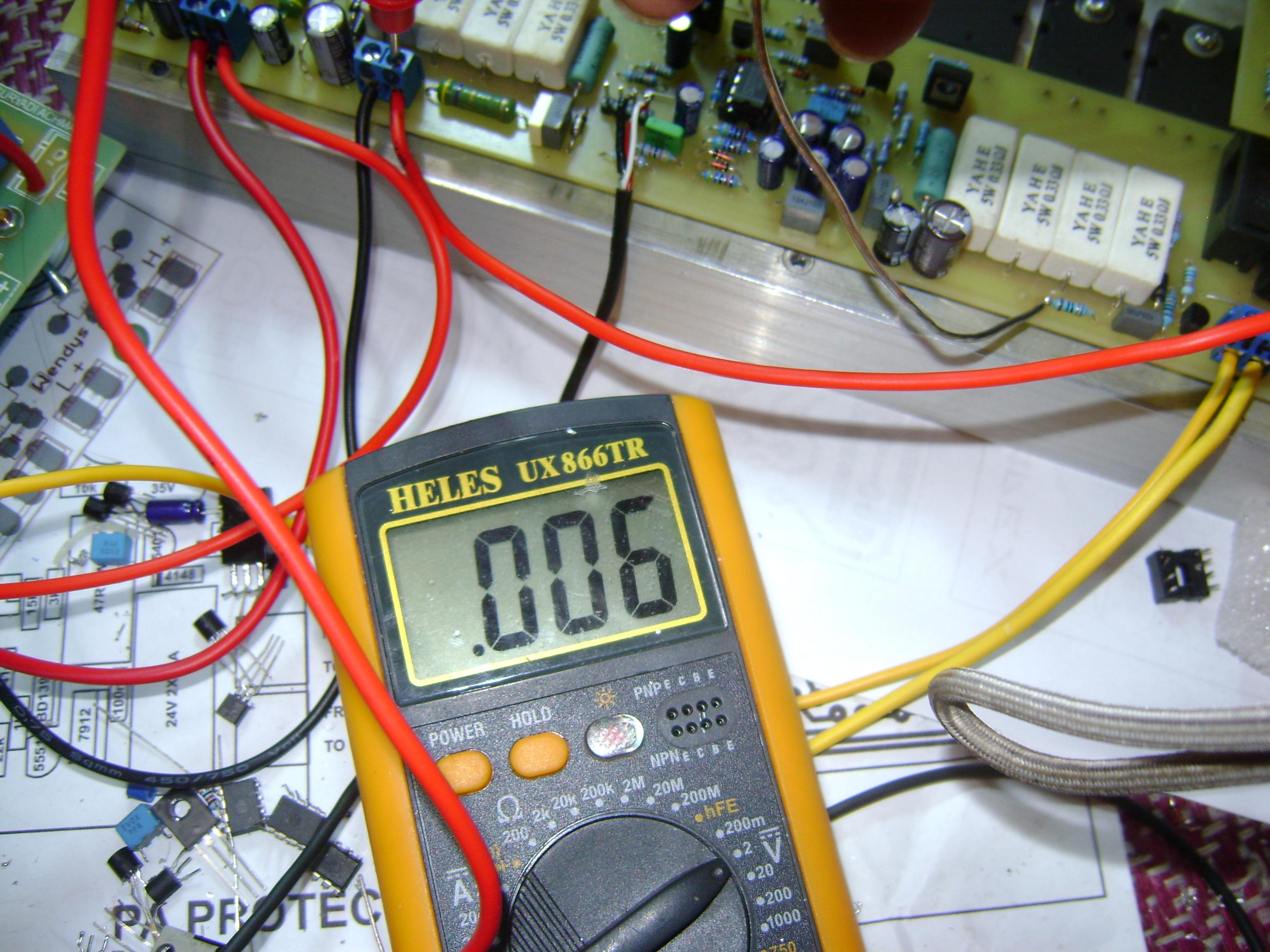

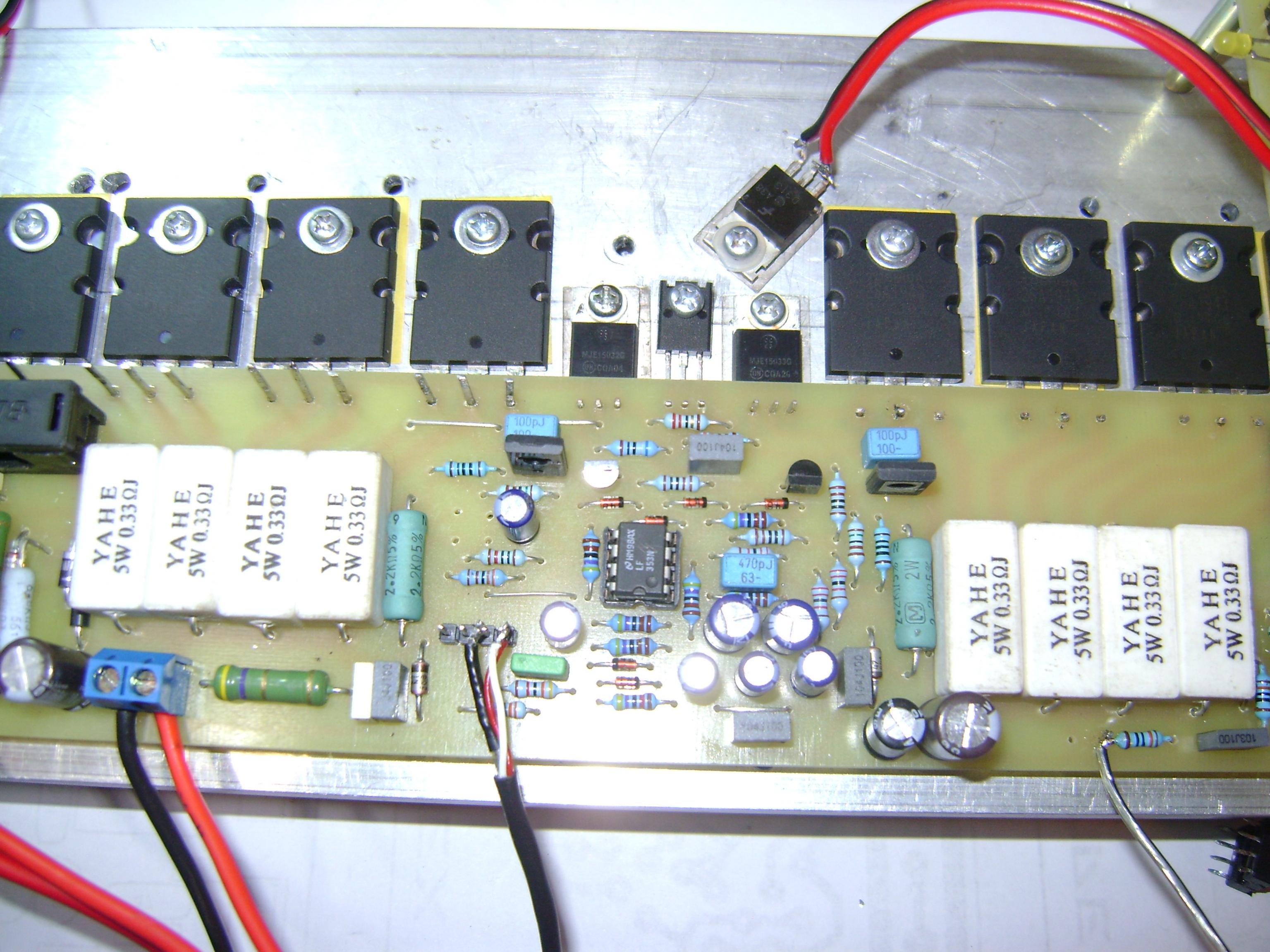

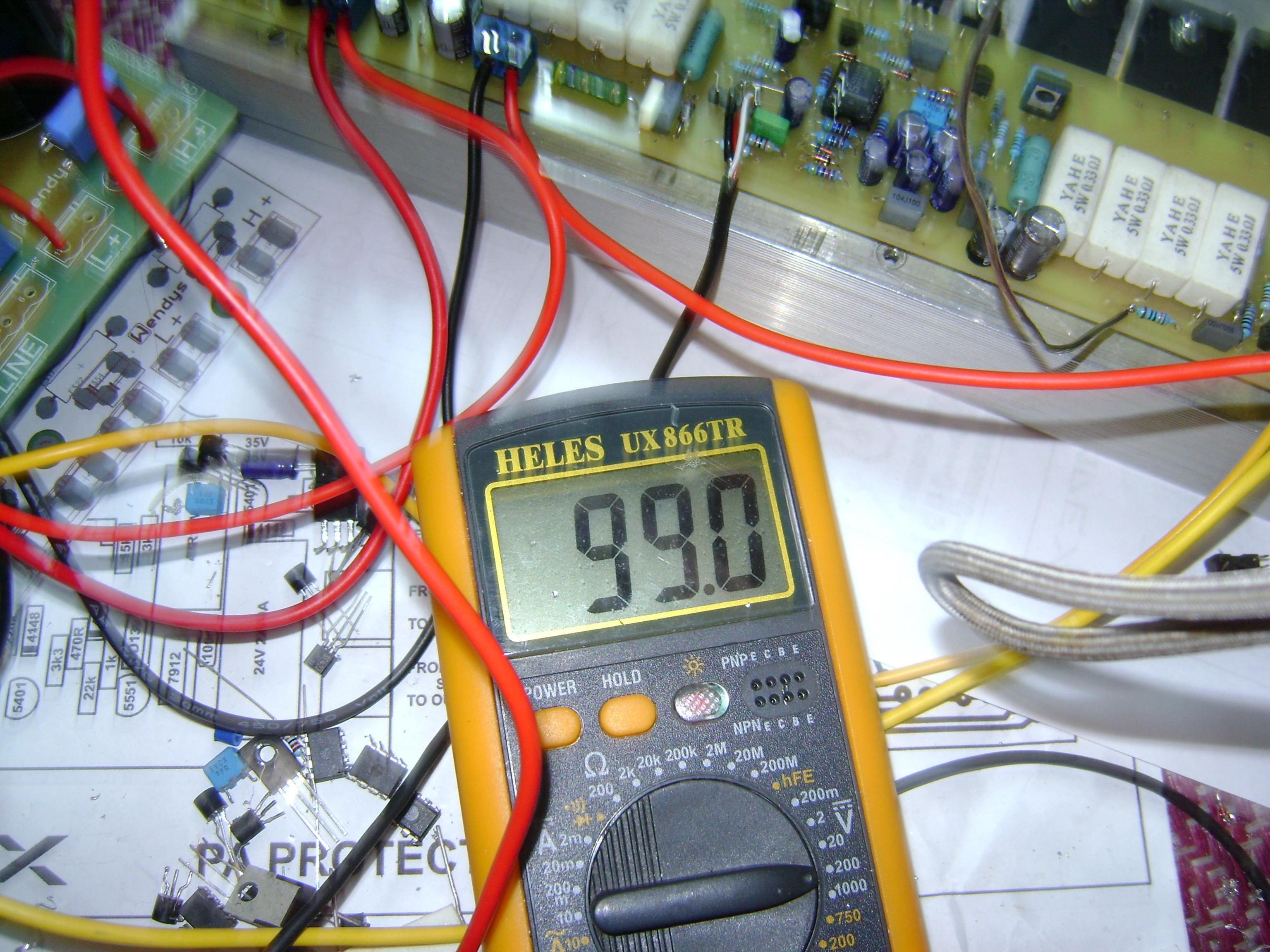

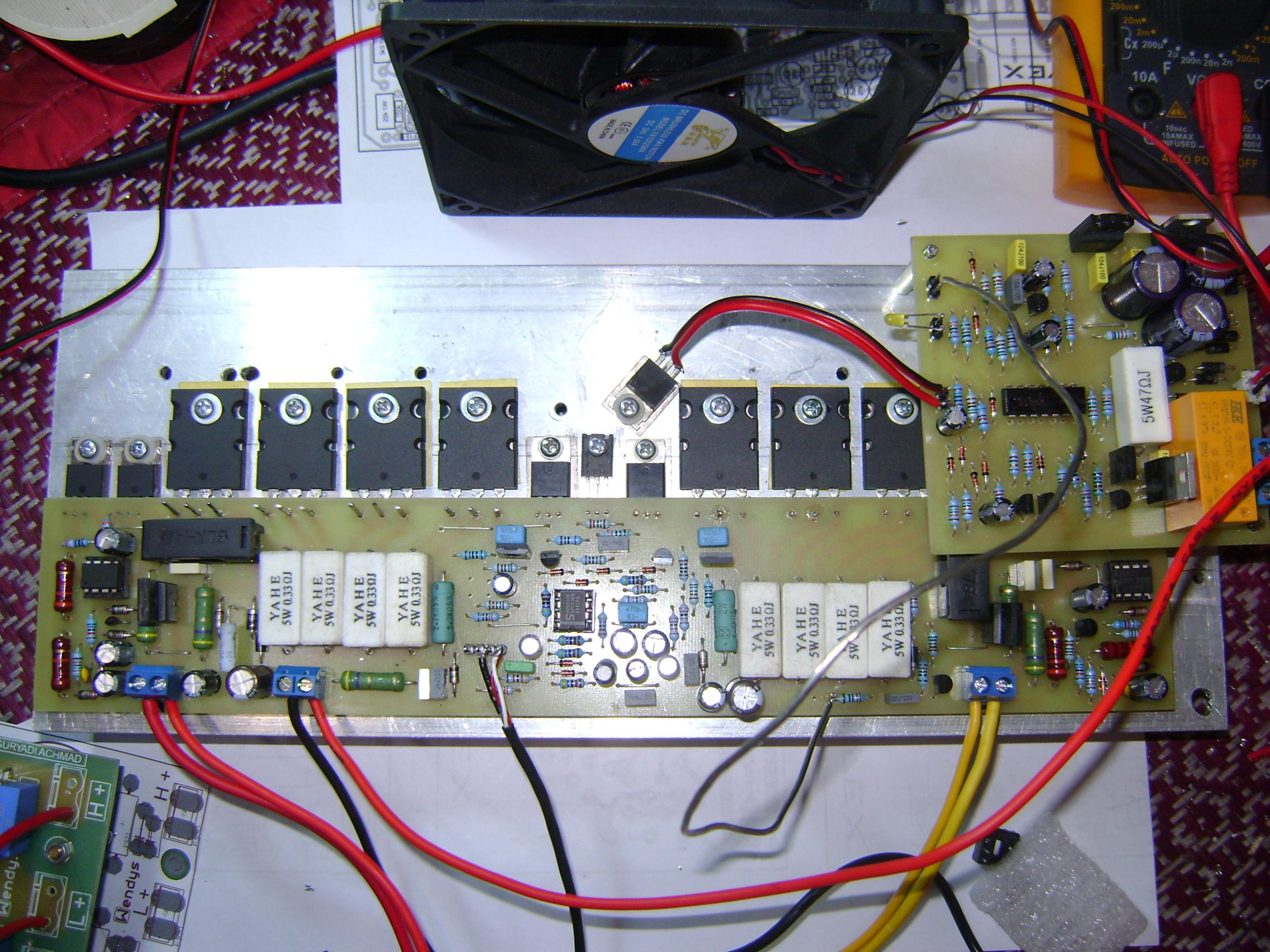

H900 TL071

this enough for me...



[apexaudio]

this enough for me...

Nice work.
Regards



[djkhai]

cabn i have the password plss



[iiee3602]

Please PM

iiee3602@yahoo.com



[ron1221]

just finished reading the whole thread. whew!

going to build this soon.

@sir wil(kababayan),

do you still have your design for 3 pin commutation diode?
the one that you uploaded with different colors?

can you please send it to me in PDF?

thanks man!

Regards,

Ron



[wiljj78]

just finished reading the whole thread. whew!

going to build this soon.

@sir wil(kababayan),

do you still have your design for 3 pin commutation diode?
the one that you uploaded with different colors?

can you please send it to me in PDF?

thanks man!

Regards,

Ron

Hi Ron,

What post no. is that??

Regards,



[LIEM POO]

Part List h900 TEF

Part List of H900 TEF



[wendipassundan]

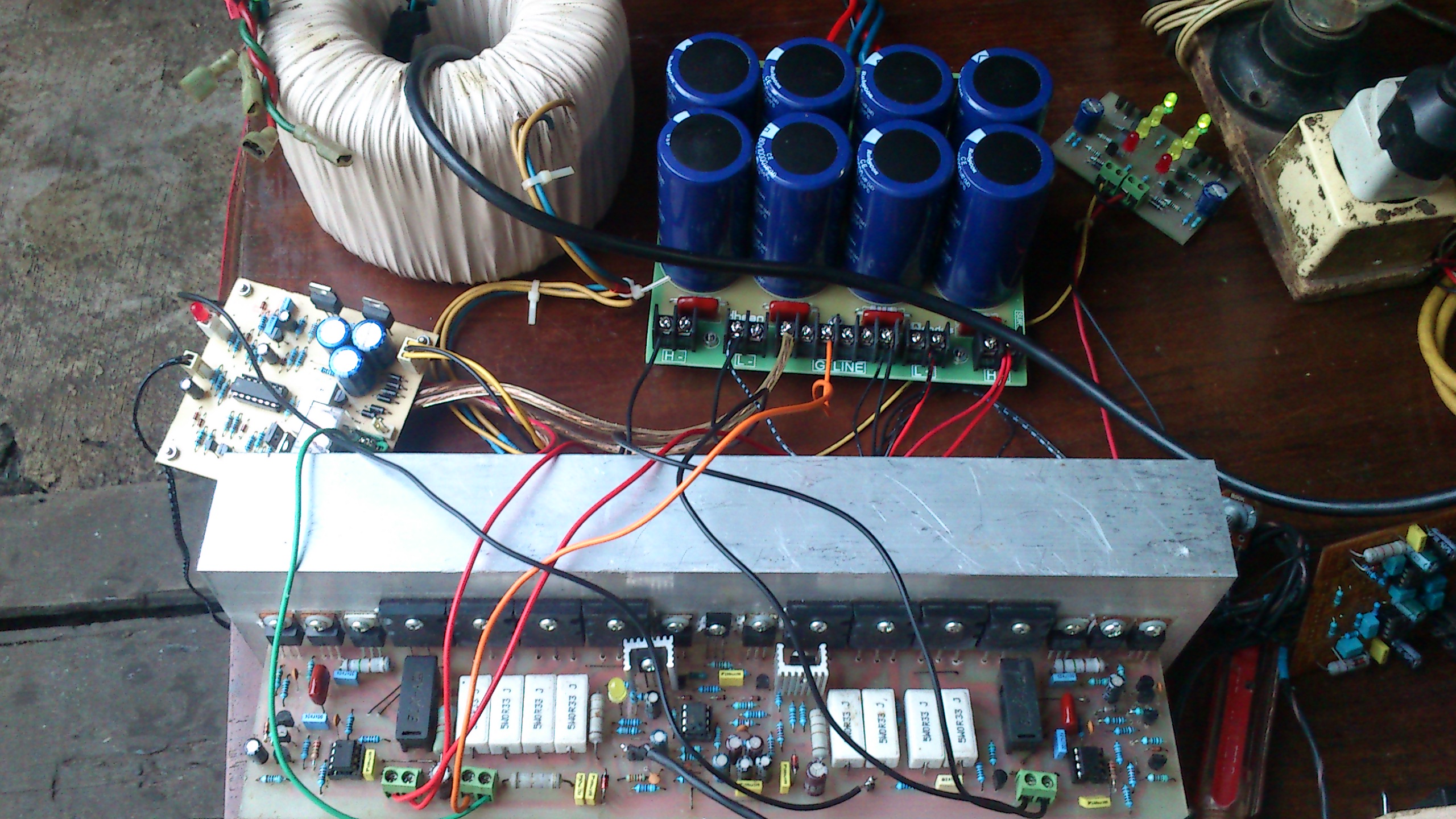

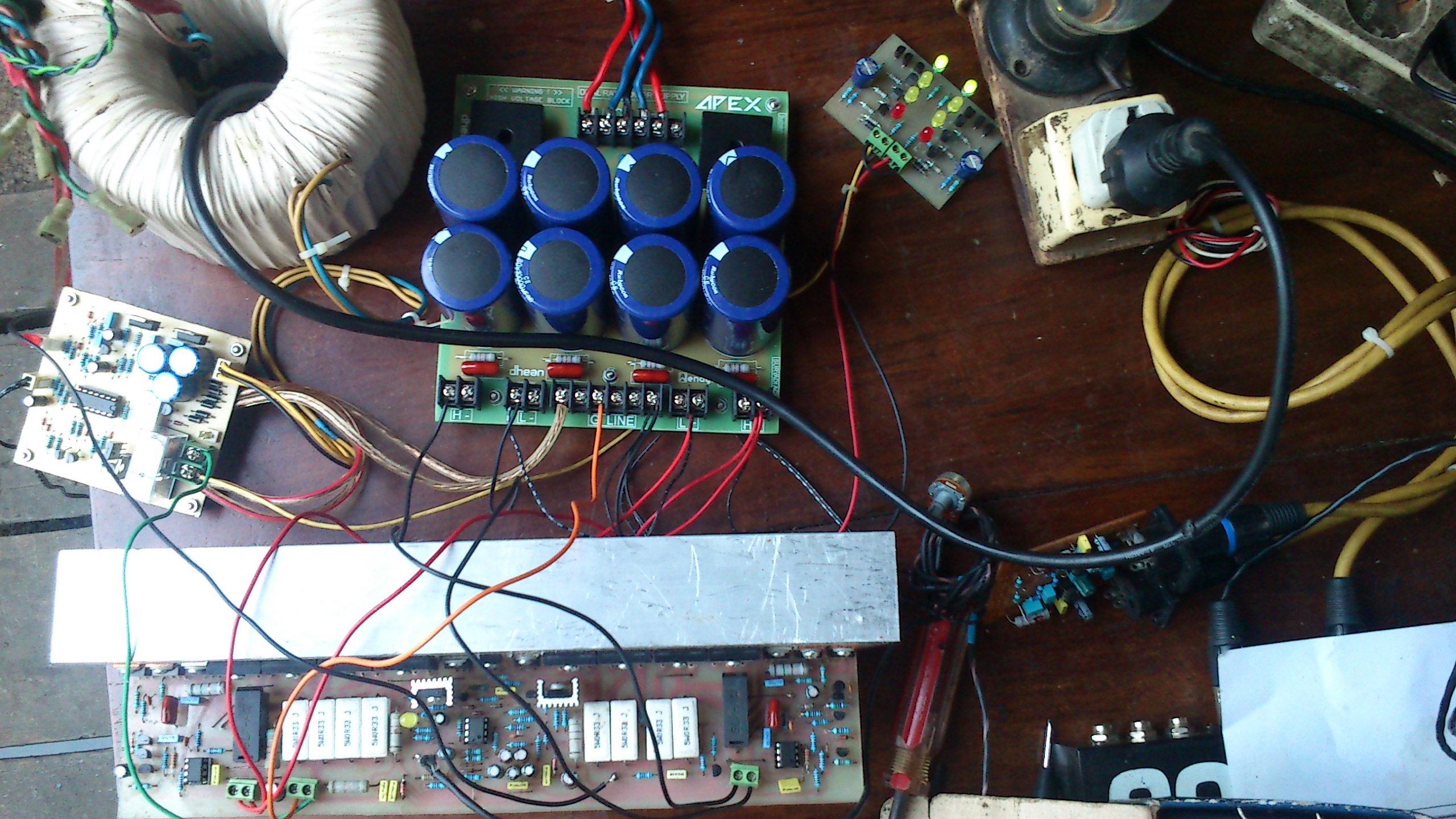

thank to apex audio.

h900 standard. his sound is very clear.






thank you very much...

arif smd



[apexaudio]

h900 standard. his sound is very clear.






thank you very much...

arif smd

Nice work, thaks for shareing.
Regards



[jaagut]

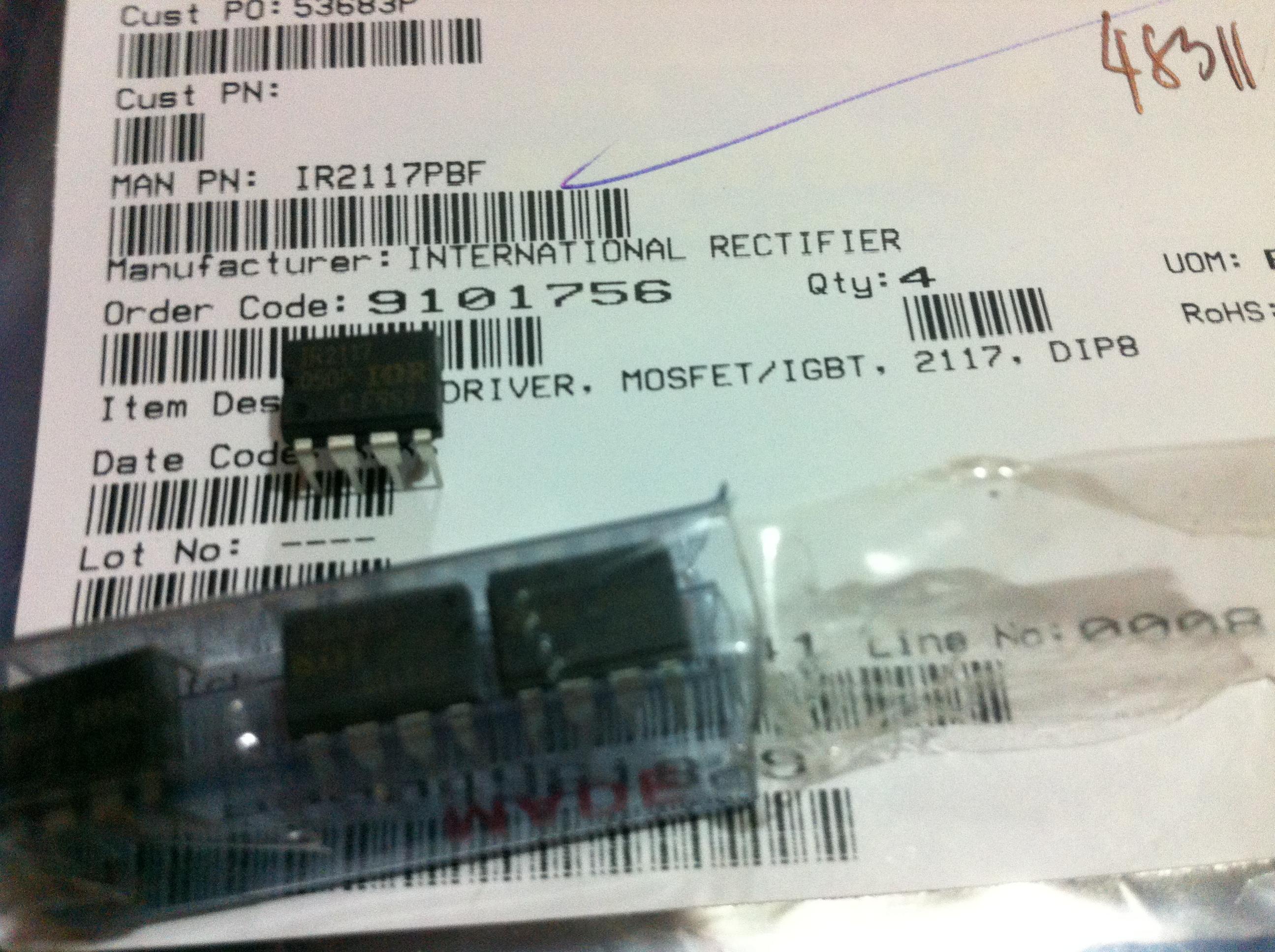

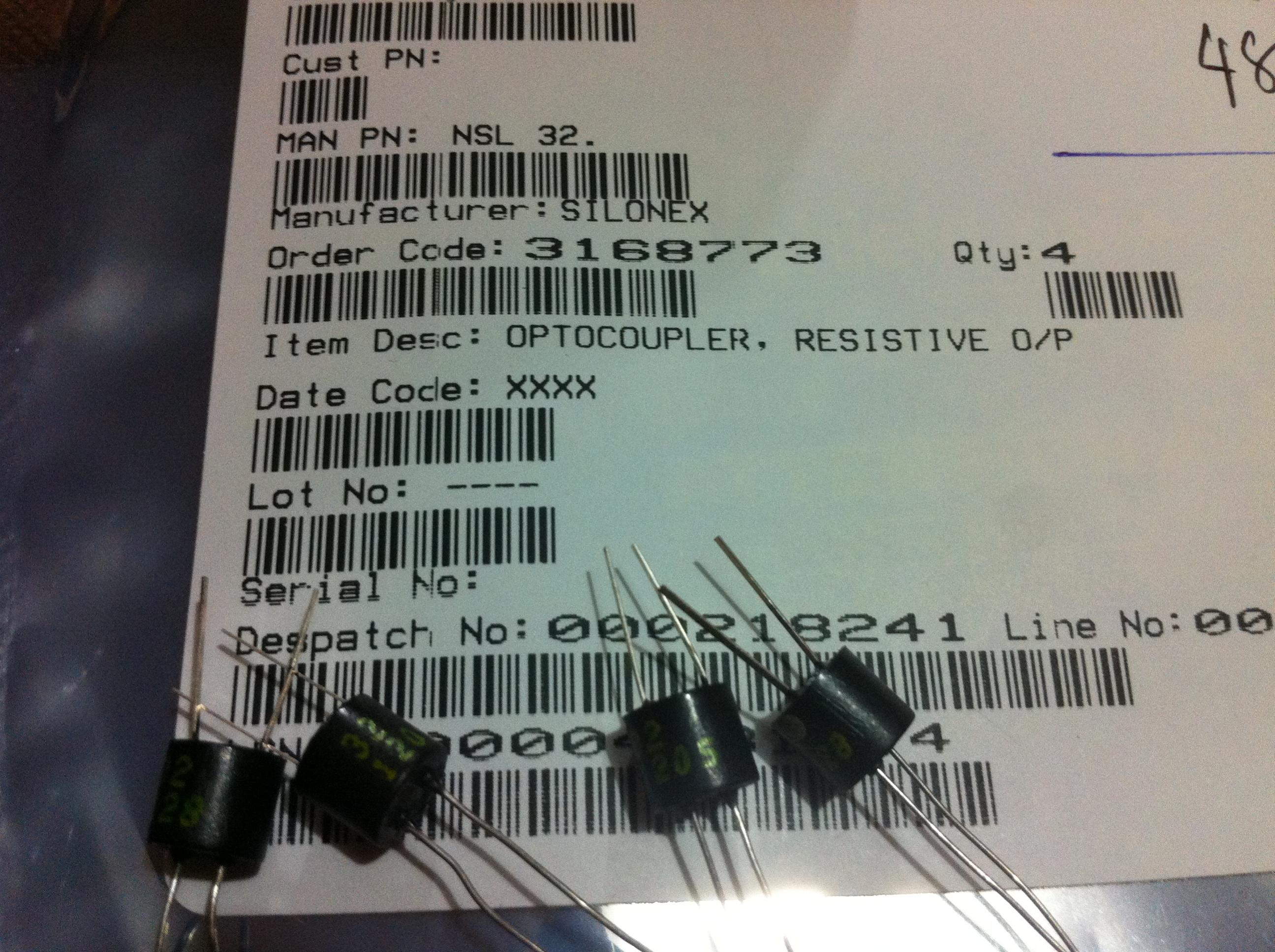

"Hard to get" parts that can be ordered through Element-14.
Hope this helps you to proceed building H900.

I will be building my own soon.



[jaagut]

Ok, I will share complete schematic of 'vertex' amp, but I suggest to start with H900.

May I know post # of this vertex schematic is?



[Vostro]

Vertex post #
http://www.diyaudio.com/forums/solid-state/162408-900w-h-class-pa-amp-limiter-253.html#post3481203



[jaagut]

OK, i found the vertex schematic at page 96 post#951 http://www.diyaudio.com/forums/solid-state/162408-900w-h-class-pa-amp-limiter-96.html#post2364583



[jaagut]

May I know who built H900 with TL071 as step driver using coolet's PCB?
