Riff Member Joined 2011 diyaudio.com/forums/members/AlvAudio.html 2013-03-28 2:41 pm #2,481 2013-03-28 2:41 pm #2,481 andrewlebon said: simple step driver warm regards andrew lebon Click to expand... sir give us more information about this amps... ••• More options Share andrewlebon R.I.P. Joined 2008 2013-03-28 3:00 pm #2,482 2013-03-28 3:00 pm #2,482 Hi Riff greetings i posted this circuit because many diyers find difficulty in getting IR2117 step driver ic personally i have not tried it so i cant comment warm regards andrew lebon ••• More options Share K khalsa Member Joined 2007 2013-03-28 4:33 pm #2,483 2013-03-28 4:33 pm #2,483 pcb phonic amp Attachments cls h.jpg 105.1 KB · Views: 1,569 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-28 6:03 pm #2,484 2013-03-28 6:03 pm #2,484 hi riff "Quote: Originally Posted by andrewlebon simple step driver warm regards andrew lebon sir give us more information about this amps... " h class amp made from two amp technology 1 step driver from crown 2 amp from yamaha and merge them m i right ........? ••• More options Share S suryadi5417 Member Joined 2010 2013-03-28 7:15 pm #2,485 2013-03-28 7:15 pm #2,485 khalsa said: phonic amp Click to expand... VERY NICE pcb Khalsa, i hope you don't mind to share it ... ••• More options Share vedmitraa Member Joined 2010 2013-03-29 11:32 am #2,486 2013-03-29 11:32 am #2,486 P.c.b.designed as per layout Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Attachments New Picture.JPG 85.8 KB · Views: 1,443 ••• More options Share B black Member Joined 2006 2013-03-29 2:20 pm #2,487 2013-03-29 2:20 pm #2,487 Hello I have a question about where food comes red + - 15V stabilized separate? am curious if it will make someone Attachments cls h.jpg 104.9 KB · Views: 1,321 ••• More options Share apexaudio Member Joined 2010 2013-03-29 2:29 pm #2,488 2013-03-29 2:29 pm #2,488 PHONIC use this H class step driver in XP and MAX amplifiers. Attachments phonic max.JPG 89.4 KB · Views: 1,381 ••• More options Share B black Member Joined 2006 2013-03-29 2:54 pm #2,489 2013-03-29 2:54 pm #2,489 Hello I have a question about where food comes red + - 15V stabilized separate? ••• More options Share vedmitraa Member Joined 2010 2013-03-29 3:39 pm #2,490 2013-03-29 3:39 pm #2,490 Thanks Mr. Mile for Shematic ••• More options Share R ravpreet420 Member Joined 2009 2013-03-29 4:01 pm #2,491 2013-03-29 4:01 pm #2,491 i have phonic pcb ,now m busy , later i update phonic amp pcb files for all diyer ........ ••• More options Share B black Member Joined 2006 2013-03-29 5:41 pm #2,492 2013-03-29 5:41 pm #2,492 weiting pcb thankyou ••• More options Share K khalsa Member Joined 2007 2013-03-29 5:56 pm #2,493 2013-03-29 5:56 pm #2,493 post #2486 is ok black ••• More options Share B black Member Joined 2006 2013-03-29 8:46 pm #2,494 2013-03-29 8:46 pm #2,494 but what I asked in the post 2487 no one knows? ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:10 am #2,495 2013-03-30 3:10 am #2,495 Phonic Pcb for all diyer........ Attachments Class h pcb.pdf 193.5 KB · Views: 1,665 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:15 am #2,496 2013-03-30 3:15 am #2,496 for more power some changes in same pcb.... use low side voltage -+40 & high side -+80 ••• More options Share B black Member Joined 2006 2013-03-30 5:29 am #2,497 2013-03-30 5:29 am #2,497 someone made this scheme am curious if possibly go if I knew that going'll do and XP 3000 ••• More options Share B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link Home Amplifiers Solid State 900W H-class PA Amp with Limiter Top Bottom
andrewlebon said: simple step driver warm regards andrew lebon Click to expand... sir give us more information about this amps...
andrewlebon R.I.P. Joined 2008 2013-03-28 3:00 pm #2,482 2013-03-28 3:00 pm #2,482 Hi Riff greetings i posted this circuit because many diyers find difficulty in getting IR2117 step driver ic personally i have not tried it so i cant comment warm regards andrew lebon ••• More options Share K khalsa Member Joined 2007 2013-03-28 4:33 pm #2,483 2013-03-28 4:33 pm #2,483 pcb phonic amp Attachments cls h.jpg 105.1 KB · Views: 1,569 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-28 6:03 pm #2,484 2013-03-28 6:03 pm #2,484 hi riff "Quote: Originally Posted by andrewlebon simple step driver warm regards andrew lebon sir give us more information about this amps... " h class amp made from two amp technology 1 step driver from crown 2 amp from yamaha and merge them m i right ........? ••• More options Share S suryadi5417 Member Joined 2010 2013-03-28 7:15 pm #2,485 2013-03-28 7:15 pm #2,485 khalsa said: phonic amp Click to expand... VERY NICE pcb Khalsa, i hope you don't mind to share it ... ••• More options Share vedmitraa Member Joined 2010 2013-03-29 11:32 am #2,486 2013-03-29 11:32 am #2,486 P.c.b.designed as per layout Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Attachments New Picture.JPG 85.8 KB · Views: 1,443 ••• More options Share B black Member Joined 2006 2013-03-29 2:20 pm #2,487 2013-03-29 2:20 pm #2,487 Hello I have a question about where food comes red + - 15V stabilized separate? am curious if it will make someone Attachments cls h.jpg 104.9 KB · Views: 1,321 ••• More options Share apexaudio Member Joined 2010 2013-03-29 2:29 pm #2,488 2013-03-29 2:29 pm #2,488 PHONIC use this H class step driver in XP and MAX amplifiers. Attachments phonic max.JPG 89.4 KB · Views: 1,381 ••• More options Share B black Member Joined 2006 2013-03-29 2:54 pm #2,489 2013-03-29 2:54 pm #2,489 Hello I have a question about where food comes red + - 15V stabilized separate? ••• More options Share vedmitraa Member Joined 2010 2013-03-29 3:39 pm #2,490 2013-03-29 3:39 pm #2,490 Thanks Mr. Mile for Shematic ••• More options Share R ravpreet420 Member Joined 2009 2013-03-29 4:01 pm #2,491 2013-03-29 4:01 pm #2,491 i have phonic pcb ,now m busy , later i update phonic amp pcb files for all diyer ........ ••• More options Share B black Member Joined 2006 2013-03-29 5:41 pm #2,492 2013-03-29 5:41 pm #2,492 weiting pcb thankyou ••• More options Share K khalsa Member Joined 2007 2013-03-29 5:56 pm #2,493 2013-03-29 5:56 pm #2,493 post #2486 is ok black ••• More options Share B black Member Joined 2006 2013-03-29 8:46 pm #2,494 2013-03-29 8:46 pm #2,494 but what I asked in the post 2487 no one knows? ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:10 am #2,495 2013-03-30 3:10 am #2,495 Phonic Pcb for all diyer........ Attachments Class h pcb.pdf 193.5 KB · Views: 1,665 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:15 am #2,496 2013-03-30 3:15 am #2,496 for more power some changes in same pcb.... use low side voltage -+40 & high side -+80 ••• More options Share B black Member Joined 2006 2013-03-30 5:29 am #2,497 2013-03-30 5:29 am #2,497 someone made this scheme am curious if possibly go if I knew that going'll do and XP 3000 ••• More options Share B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link Home Amplifiers Solid State 900W H-class PA Amp with Limiter Top Bottom
Hi Riff greetings i posted this circuit because many diyers find difficulty in getting IR2117 step driver ic personally i have not tried it so i cant comment warm regards andrew lebon

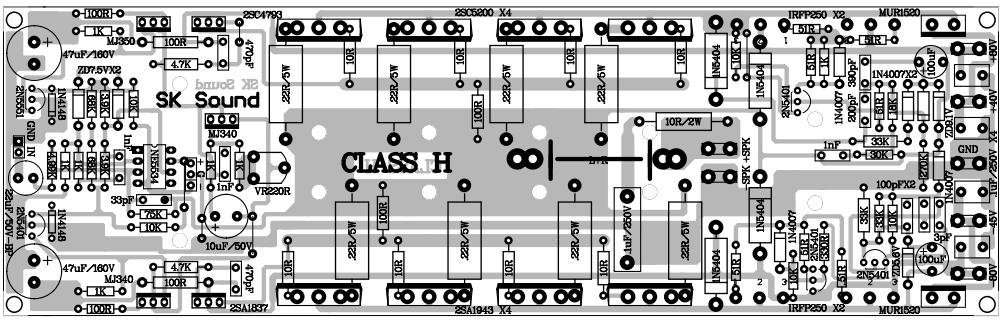

K khalsa Member Joined 2007 2013-03-28 4:33 pm #2,483 2013-03-28 4:33 pm #2,483 pcb phonic amp Attachments cls h.jpg 105.1 KB · Views: 1,569 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-28 6:03 pm #2,484 2013-03-28 6:03 pm #2,484 hi riff "Quote: Originally Posted by andrewlebon simple step driver warm regards andrew lebon sir give us more information about this amps... " h class amp made from two amp technology 1 step driver from crown 2 amp from yamaha and merge them m i right ........? ••• More options Share S suryadi5417 Member Joined 2010 2013-03-28 7:15 pm #2,485 2013-03-28 7:15 pm #2,485 khalsa said: phonic amp Click to expand... VERY NICE pcb Khalsa, i hope you don't mind to share it ... ••• More options Share vedmitraa Member Joined 2010 2013-03-29 11:32 am #2,486 2013-03-29 11:32 am #2,486 P.c.b.designed as per layout Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Attachments New Picture.JPG 85.8 KB · Views: 1,443 ••• More options Share B black Member Joined 2006 2013-03-29 2:20 pm #2,487 2013-03-29 2:20 pm #2,487 Hello I have a question about where food comes red + - 15V stabilized separate? am curious if it will make someone Attachments cls h.jpg 104.9 KB · Views: 1,321 ••• More options Share apexaudio Member Joined 2010 2013-03-29 2:29 pm #2,488 2013-03-29 2:29 pm #2,488 PHONIC use this H class step driver in XP and MAX amplifiers. Attachments phonic max.JPG 89.4 KB · Views: 1,381 ••• More options Share B black Member Joined 2006 2013-03-29 2:54 pm #2,489 2013-03-29 2:54 pm #2,489 Hello I have a question about where food comes red + - 15V stabilized separate? ••• More options Share vedmitraa Member Joined 2010 2013-03-29 3:39 pm #2,490 2013-03-29 3:39 pm #2,490 Thanks Mr. Mile for Shematic ••• More options Share R ravpreet420 Member Joined 2009 2013-03-29 4:01 pm #2,491 2013-03-29 4:01 pm #2,491 i have phonic pcb ,now m busy , later i update phonic amp pcb files for all diyer ........ ••• More options Share B black Member Joined 2006 2013-03-29 5:41 pm #2,492 2013-03-29 5:41 pm #2,492 weiting pcb thankyou ••• More options Share K khalsa Member Joined 2007 2013-03-29 5:56 pm #2,493 2013-03-29 5:56 pm #2,493 post #2486 is ok black ••• More options Share B black Member Joined 2006 2013-03-29 8:46 pm #2,494 2013-03-29 8:46 pm #2,494 but what I asked in the post 2487 no one knows? ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:10 am #2,495 2013-03-30 3:10 am #2,495 Phonic Pcb for all diyer........ Attachments Class h pcb.pdf 193.5 KB · Views: 1,665 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:15 am #2,496 2013-03-30 3:15 am #2,496 for more power some changes in same pcb.... use low side voltage -+40 & high side -+80 ••• More options Share B black Member Joined 2006 2013-03-30 5:29 am #2,497 2013-03-30 5:29 am #2,497 someone made this scheme am curious if possibly go if I knew that going'll do and XP 3000 ••• More options Share B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link Home Amplifiers Solid State 900W H-class PA Amp with Limiter Top Bottom
R ravpreet420 Member Joined 2009 2013-03-28 6:03 pm #2,484 2013-03-28 6:03 pm #2,484 hi riff "Quote: Originally Posted by andrewlebon simple step driver warm regards andrew lebon sir give us more information about this amps... " h class amp made from two amp technology 1 step driver from crown 2 amp from yamaha and merge them m i right ........? ••• More options Share S suryadi5417 Member Joined 2010 2013-03-28 7:15 pm #2,485 2013-03-28 7:15 pm #2,485 khalsa said: phonic amp Click to expand... VERY NICE pcb Khalsa, i hope you don't mind to share it ... ••• More options Share vedmitraa Member Joined 2010 2013-03-29 11:32 am #2,486 2013-03-29 11:32 am #2,486 P.c.b.designed as per layout Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Attachments New Picture.JPG 85.8 KB · Views: 1,443 ••• More options Share B black Member Joined 2006 2013-03-29 2:20 pm #2,487 2013-03-29 2:20 pm #2,487 Hello I have a question about where food comes red + - 15V stabilized separate? am curious if it will make someone Attachments cls h.jpg 104.9 KB · Views: 1,321 ••• More options Share apexaudio Member Joined 2010 2013-03-29 2:29 pm #2,488 2013-03-29 2:29 pm #2,488 PHONIC use this H class step driver in XP and MAX amplifiers. Attachments phonic max.JPG 89.4 KB · Views: 1,381 ••• More options Share B black Member Joined 2006 2013-03-29 2:54 pm #2,489 2013-03-29 2:54 pm #2,489 Hello I have a question about where food comes red + - 15V stabilized separate? ••• More options Share vedmitraa Member Joined 2010 2013-03-29 3:39 pm #2,490 2013-03-29 3:39 pm #2,490 Thanks Mr. Mile for Shematic ••• More options Share R ravpreet420 Member Joined 2009 2013-03-29 4:01 pm #2,491 2013-03-29 4:01 pm #2,491 i have phonic pcb ,now m busy , later i update phonic amp pcb files for all diyer ........ ••• More options Share B black Member Joined 2006 2013-03-29 5:41 pm #2,492 2013-03-29 5:41 pm #2,492 weiting pcb thankyou ••• More options Share K khalsa Member Joined 2007 2013-03-29 5:56 pm #2,493 2013-03-29 5:56 pm #2,493 post #2486 is ok black ••• More options Share B black Member Joined 2006 2013-03-29 8:46 pm #2,494 2013-03-29 8:46 pm #2,494 but what I asked in the post 2487 no one knows? ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:10 am #2,495 2013-03-30 3:10 am #2,495 Phonic Pcb for all diyer........ Attachments Class h pcb.pdf 193.5 KB · Views: 1,665 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:15 am #2,496 2013-03-30 3:15 am #2,496 for more power some changes in same pcb.... use low side voltage -+40 & high side -+80 ••• More options Share B black Member Joined 2006 2013-03-30 5:29 am #2,497 2013-03-30 5:29 am #2,497 someone made this scheme am curious if possibly go if I knew that going'll do and XP 3000 ••• More options Share B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link Home Amplifiers Solid State 900W H-class PA Amp with Limiter Top Bottom
hi riff "Quote: Originally Posted by andrewlebon simple step driver warm regards andrew lebon sir give us more information about this amps... " h class amp made from two amp technology 1 step driver from crown 2 amp from yamaha and merge them m i right ........?
S suryadi5417 Member Joined 2010 2013-03-28 7:15 pm #2,485 2013-03-28 7:15 pm #2,485 khalsa said: phonic amp Click to expand... VERY NICE pcb Khalsa, i hope you don't mind to share it ... ••• More options Share vedmitraa Member Joined 2010 2013-03-29 11:32 am #2,486 2013-03-29 11:32 am #2,486 P.c.b.designed as per layout Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Attachments New Picture.JPG 85.8 KB · Views: 1,443 ••• More options Share B black Member Joined 2006 2013-03-29 2:20 pm #2,487 2013-03-29 2:20 pm #2,487 Hello I have a question about where food comes red + - 15V stabilized separate? am curious if it will make someone Attachments cls h.jpg 104.9 KB · Views: 1,321 ••• More options Share apexaudio Member Joined 2010 2013-03-29 2:29 pm #2,488 2013-03-29 2:29 pm #2,488 PHONIC use this H class step driver in XP and MAX amplifiers. Attachments phonic max.JPG 89.4 KB · Views: 1,381 ••• More options Share B black Member Joined 2006 2013-03-29 2:54 pm #2,489 2013-03-29 2:54 pm #2,489 Hello I have a question about where food comes red + - 15V stabilized separate? ••• More options Share vedmitraa Member Joined 2010 2013-03-29 3:39 pm #2,490 2013-03-29 3:39 pm #2,490 Thanks Mr. Mile for Shematic ••• More options Share R ravpreet420 Member Joined 2009 2013-03-29 4:01 pm #2,491 2013-03-29 4:01 pm #2,491 i have phonic pcb ,now m busy , later i update phonic amp pcb files for all diyer ........ ••• More options Share B black Member Joined 2006 2013-03-29 5:41 pm #2,492 2013-03-29 5:41 pm #2,492 weiting pcb thankyou ••• More options Share K khalsa Member Joined 2007 2013-03-29 5:56 pm #2,493 2013-03-29 5:56 pm #2,493 post #2486 is ok black ••• More options Share B black Member Joined 2006 2013-03-29 8:46 pm #2,494 2013-03-29 8:46 pm #2,494 but what I asked in the post 2487 no one knows? ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:10 am #2,495 2013-03-30 3:10 am #2,495 Phonic Pcb for all diyer........ Attachments Class h pcb.pdf 193.5 KB · Views: 1,665 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:15 am #2,496 2013-03-30 3:15 am #2,496 for more power some changes in same pcb.... use low side voltage -+40 & high side -+80 ••• More options Share B black Member Joined 2006 2013-03-30 5:29 am #2,497 2013-03-30 5:29 am #2,497 someone made this scheme am curious if possibly go if I knew that going'll do and XP 3000 ••• More options Share B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link Home Amplifiers Solid State 900W H-class PA Amp with Limiter Top Bottom
khalsa said: phonic amp Click to expand... VERY NICE pcb Khalsa, i hope you don't mind to share it ...

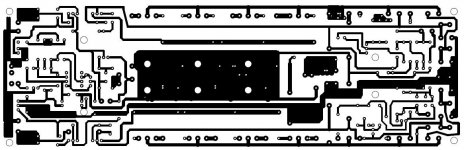

vedmitraa Member Joined 2010 2013-03-29 11:32 am #2,486 2013-03-29 11:32 am #2,486 P.c.b.designed as per layout Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Attachments New Picture.JPG 85.8 KB · Views: 1,443 ••• More options Share B black Member Joined 2006 2013-03-29 2:20 pm #2,487 2013-03-29 2:20 pm #2,487 Hello I have a question about where food comes red + - 15V stabilized separate? am curious if it will make someone Attachments cls h.jpg 104.9 KB · Views: 1,321 ••• More options Share apexaudio Member Joined 2010 2013-03-29 2:29 pm #2,488 2013-03-29 2:29 pm #2,488 PHONIC use this H class step driver in XP and MAX amplifiers. Attachments phonic max.JPG 89.4 KB · Views: 1,381 ••• More options Share B black Member Joined 2006 2013-03-29 2:54 pm #2,489 2013-03-29 2:54 pm #2,489 Hello I have a question about where food comes red + - 15V stabilized separate? ••• More options Share vedmitraa Member Joined 2010 2013-03-29 3:39 pm #2,490 2013-03-29 3:39 pm #2,490 Thanks Mr. Mile for Shematic ••• More options Share R ravpreet420 Member Joined 2009 2013-03-29 4:01 pm #2,491 2013-03-29 4:01 pm #2,491 i have phonic pcb ,now m busy , later i update phonic amp pcb files for all diyer ........ ••• More options Share B black Member Joined 2006 2013-03-29 5:41 pm #2,492 2013-03-29 5:41 pm #2,492 weiting pcb thankyou ••• More options Share K khalsa Member Joined 2007 2013-03-29 5:56 pm #2,493 2013-03-29 5:56 pm #2,493 post #2486 is ok black ••• More options Share B black Member Joined 2006 2013-03-29 8:46 pm #2,494 2013-03-29 8:46 pm #2,494 but what I asked in the post 2487 no one knows? ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:10 am #2,495 2013-03-30 3:10 am #2,495 Phonic Pcb for all diyer........ Attachments Class h pcb.pdf 193.5 KB · Views: 1,665 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:15 am #2,496 2013-03-30 3:15 am #2,496 for more power some changes in same pcb.... use low side voltage -+40 & high side -+80 ••• More options Share B black Member Joined 2006 2013-03-30 5:29 am #2,497 2013-03-30 5:29 am #2,497 someone made this scheme am curious if possibly go if I knew that going'll do and XP 3000 ••• More options Share B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link Home Amplifiers Solid State 900W H-class PA Amp with Limiter Top Bottom
P.c.b.designed as per layout Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults.
B black Member Joined 2006 2013-03-29 2:20 pm #2,487 2013-03-29 2:20 pm #2,487 Hello I have a question about where food comes red + - 15V stabilized separate? am curious if it will make someone Attachments cls h.jpg 104.9 KB · Views: 1,321 ••• More options Share apexaudio Member Joined 2010 2013-03-29 2:29 pm #2,488 2013-03-29 2:29 pm #2,488 PHONIC use this H class step driver in XP and MAX amplifiers. Attachments phonic max.JPG 89.4 KB · Views: 1,381 ••• More options Share B black Member Joined 2006 2013-03-29 2:54 pm #2,489 2013-03-29 2:54 pm #2,489 Hello I have a question about where food comes red + - 15V stabilized separate? ••• More options Share vedmitraa Member Joined 2010 2013-03-29 3:39 pm #2,490 2013-03-29 3:39 pm #2,490 Thanks Mr. Mile for Shematic ••• More options Share R ravpreet420 Member Joined 2009 2013-03-29 4:01 pm #2,491 2013-03-29 4:01 pm #2,491 i have phonic pcb ,now m busy , later i update phonic amp pcb files for all diyer ........ ••• More options Share B black Member Joined 2006 2013-03-29 5:41 pm #2,492 2013-03-29 5:41 pm #2,492 weiting pcb thankyou ••• More options Share K khalsa Member Joined 2007 2013-03-29 5:56 pm #2,493 2013-03-29 5:56 pm #2,493 post #2486 is ok black ••• More options Share B black Member Joined 2006 2013-03-29 8:46 pm #2,494 2013-03-29 8:46 pm #2,494 but what I asked in the post 2487 no one knows? ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:10 am #2,495 2013-03-30 3:10 am #2,495 Phonic Pcb for all diyer........ Attachments Class h pcb.pdf 193.5 KB · Views: 1,665 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:15 am #2,496 2013-03-30 3:15 am #2,496 for more power some changes in same pcb.... use low side voltage -+40 & high side -+80 ••• More options Share B black Member Joined 2006 2013-03-30 5:29 am #2,497 2013-03-30 5:29 am #2,497 someone made this scheme am curious if possibly go if I knew that going'll do and XP 3000 ••• More options Share B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link Home Amplifiers Solid State 900W H-class PA Amp with Limiter Top Bottom
Hello I have a question about where food comes red + - 15V stabilized separate? am curious if it will make someone
apexaudio Member Joined 2010 2013-03-29 2:29 pm #2,488 2013-03-29 2:29 pm #2,488 PHONIC use this H class step driver in XP and MAX amplifiers. Attachments phonic max.JPG 89.4 KB · Views: 1,381 ••• More options Share B black Member Joined 2006 2013-03-29 2:54 pm #2,489 2013-03-29 2:54 pm #2,489 Hello I have a question about where food comes red + - 15V stabilized separate? ••• More options Share vedmitraa Member Joined 2010 2013-03-29 3:39 pm #2,490 2013-03-29 3:39 pm #2,490 Thanks Mr. Mile for Shematic ••• More options Share R ravpreet420 Member Joined 2009 2013-03-29 4:01 pm #2,491 2013-03-29 4:01 pm #2,491 i have phonic pcb ,now m busy , later i update phonic amp pcb files for all diyer ........ ••• More options Share B black Member Joined 2006 2013-03-29 5:41 pm #2,492 2013-03-29 5:41 pm #2,492 weiting pcb thankyou ••• More options Share K khalsa Member Joined 2007 2013-03-29 5:56 pm #2,493 2013-03-29 5:56 pm #2,493 post #2486 is ok black ••• More options Share B black Member Joined 2006 2013-03-29 8:46 pm #2,494 2013-03-29 8:46 pm #2,494 but what I asked in the post 2487 no one knows? ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:10 am #2,495 2013-03-30 3:10 am #2,495 Phonic Pcb for all diyer........ Attachments Class h pcb.pdf 193.5 KB · Views: 1,665 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:15 am #2,496 2013-03-30 3:15 am #2,496 for more power some changes in same pcb.... use low side voltage -+40 & high side -+80 ••• More options Share B black Member Joined 2006 2013-03-30 5:29 am #2,497 2013-03-30 5:29 am #2,497 someone made this scheme am curious if possibly go if I knew that going'll do and XP 3000 ••• More options Share B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link Home Amplifiers Solid State 900W H-class PA Amp with Limiter Top Bottom
B black Member Joined 2006 2013-03-29 2:54 pm #2,489 2013-03-29 2:54 pm #2,489 Hello I have a question about where food comes red + - 15V stabilized separate? ••• More options Share vedmitraa Member Joined 2010 2013-03-29 3:39 pm #2,490 2013-03-29 3:39 pm #2,490 Thanks Mr. Mile for Shematic ••• More options Share R ravpreet420 Member Joined 2009 2013-03-29 4:01 pm #2,491 2013-03-29 4:01 pm #2,491 i have phonic pcb ,now m busy , later i update phonic amp pcb files for all diyer ........ ••• More options Share B black Member Joined 2006 2013-03-29 5:41 pm #2,492 2013-03-29 5:41 pm #2,492 weiting pcb thankyou ••• More options Share K khalsa Member Joined 2007 2013-03-29 5:56 pm #2,493 2013-03-29 5:56 pm #2,493 post #2486 is ok black ••• More options Share B black Member Joined 2006 2013-03-29 8:46 pm #2,494 2013-03-29 8:46 pm #2,494 but what I asked in the post 2487 no one knows? ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:10 am #2,495 2013-03-30 3:10 am #2,495 Phonic Pcb for all diyer........ Attachments Class h pcb.pdf 193.5 KB · Views: 1,665 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:15 am #2,496 2013-03-30 3:15 am #2,496 for more power some changes in same pcb.... use low side voltage -+40 & high side -+80 ••• More options Share B black Member Joined 2006 2013-03-30 5:29 am #2,497 2013-03-30 5:29 am #2,497 someone made this scheme am curious if possibly go if I knew that going'll do and XP 3000 ••• More options Share B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link Home Amplifiers Solid State 900W H-class PA Amp with Limiter Top Bottom
vedmitraa Member Joined 2010 2013-03-29 3:39 pm #2,490 2013-03-29 3:39 pm #2,490 Thanks Mr. Mile for Shematic ••• More options Share R ravpreet420 Member Joined 2009 2013-03-29 4:01 pm #2,491 2013-03-29 4:01 pm #2,491 i have phonic pcb ,now m busy , later i update phonic amp pcb files for all diyer ........ ••• More options Share B black Member Joined 2006 2013-03-29 5:41 pm #2,492 2013-03-29 5:41 pm #2,492 weiting pcb thankyou ••• More options Share K khalsa Member Joined 2007 2013-03-29 5:56 pm #2,493 2013-03-29 5:56 pm #2,493 post #2486 is ok black ••• More options Share B black Member Joined 2006 2013-03-29 8:46 pm #2,494 2013-03-29 8:46 pm #2,494 but what I asked in the post 2487 no one knows? ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:10 am #2,495 2013-03-30 3:10 am #2,495 Phonic Pcb for all diyer........ Attachments Class h pcb.pdf 193.5 KB · Views: 1,665 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:15 am #2,496 2013-03-30 3:15 am #2,496 for more power some changes in same pcb.... use low side voltage -+40 & high side -+80 ••• More options Share B black Member Joined 2006 2013-03-30 5:29 am #2,497 2013-03-30 5:29 am #2,497 someone made this scheme am curious if possibly go if I knew that going'll do and XP 3000 ••• More options Share B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link Home Amplifiers Solid State 900W H-class PA Amp with Limiter Top Bottom
R ravpreet420 Member Joined 2009 2013-03-29 4:01 pm #2,491 2013-03-29 4:01 pm #2,491 i have phonic pcb ,now m busy , later i update phonic amp pcb files for all diyer ........ ••• More options Share B black Member Joined 2006 2013-03-29 5:41 pm #2,492 2013-03-29 5:41 pm #2,492 weiting pcb thankyou ••• More options Share K khalsa Member Joined 2007 2013-03-29 5:56 pm #2,493 2013-03-29 5:56 pm #2,493 post #2486 is ok black ••• More options Share B black Member Joined 2006 2013-03-29 8:46 pm #2,494 2013-03-29 8:46 pm #2,494 but what I asked in the post 2487 no one knows? ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:10 am #2,495 2013-03-30 3:10 am #2,495 Phonic Pcb for all diyer........ Attachments Class h pcb.pdf 193.5 KB · Views: 1,665 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:15 am #2,496 2013-03-30 3:15 am #2,496 for more power some changes in same pcb.... use low side voltage -+40 & high side -+80 ••• More options Share B black Member Joined 2006 2013-03-30 5:29 am #2,497 2013-03-30 5:29 am #2,497 someone made this scheme am curious if possibly go if I knew that going'll do and XP 3000 ••• More options Share B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link Home Amplifiers Solid State 900W H-class PA Amp with Limiter Top Bottom
B black Member Joined 2006 2013-03-29 5:41 pm #2,492 2013-03-29 5:41 pm #2,492 weiting pcb thankyou ••• More options Share K khalsa Member Joined 2007 2013-03-29 5:56 pm #2,493 2013-03-29 5:56 pm #2,493 post #2486 is ok black ••• More options Share B black Member Joined 2006 2013-03-29 8:46 pm #2,494 2013-03-29 8:46 pm #2,494 but what I asked in the post 2487 no one knows? ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:10 am #2,495 2013-03-30 3:10 am #2,495 Phonic Pcb for all diyer........ Attachments Class h pcb.pdf 193.5 KB · Views: 1,665 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:15 am #2,496 2013-03-30 3:15 am #2,496 for more power some changes in same pcb.... use low side voltage -+40 & high side -+80 ••• More options Share B black Member Joined 2006 2013-03-30 5:29 am #2,497 2013-03-30 5:29 am #2,497 someone made this scheme am curious if possibly go if I knew that going'll do and XP 3000 ••• More options Share B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link Home Amplifiers Solid State 900W H-class PA Amp with Limiter Top Bottom
K khalsa Member Joined 2007 2013-03-29 5:56 pm #2,493 2013-03-29 5:56 pm #2,493 post #2486 is ok black ••• More options Share B black Member Joined 2006 2013-03-29 8:46 pm #2,494 2013-03-29 8:46 pm #2,494 but what I asked in the post 2487 no one knows? ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:10 am #2,495 2013-03-30 3:10 am #2,495 Phonic Pcb for all diyer........ Attachments Class h pcb.pdf 193.5 KB · Views: 1,665 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:15 am #2,496 2013-03-30 3:15 am #2,496 for more power some changes in same pcb.... use low side voltage -+40 & high side -+80 ••• More options Share B black Member Joined 2006 2013-03-30 5:29 am #2,497 2013-03-30 5:29 am #2,497 someone made this scheme am curious if possibly go if I knew that going'll do and XP 3000 ••• More options Share B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link Home Amplifiers Solid State 900W H-class PA Amp with Limiter
B black Member Joined 2006 2013-03-29 8:46 pm #2,494 2013-03-29 8:46 pm #2,494 but what I asked in the post 2487 no one knows? ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:10 am #2,495 2013-03-30 3:10 am #2,495 Phonic Pcb for all diyer........ Attachments Class h pcb.pdf 193.5 KB · Views: 1,665 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:15 am #2,496 2013-03-30 3:15 am #2,496 for more power some changes in same pcb.... use low side voltage -+40 & high side -+80 ••• More options Share B black Member Joined 2006 2013-03-30 5:29 am #2,497 2013-03-30 5:29 am #2,497 someone made this scheme am curious if possibly go if I knew that going'll do and XP 3000 ••• More options Share B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link Home Amplifiers Solid State 900W H-class PA Amp with Limiter
R ravpreet420 Member Joined 2009 2013-03-30 3:10 am #2,495 2013-03-30 3:10 am #2,495 Phonic Pcb for all diyer........ Attachments Class h pcb.pdf 193.5 KB · Views: 1,665 ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 3:15 am #2,496 2013-03-30 3:15 am #2,496 for more power some changes in same pcb.... use low side voltage -+40 & high side -+80 ••• More options Share B black Member Joined 2006 2013-03-30 5:29 am #2,497 2013-03-30 5:29 am #2,497 someone made this scheme am curious if possibly go if I knew that going'll do and XP 3000 ••• More options Share B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link
R ravpreet420 Member Joined 2009 2013-03-30 3:15 am #2,496 2013-03-30 3:15 am #2,496 for more power some changes in same pcb.... use low side voltage -+40 & high side -+80 ••• More options Share B black Member Joined 2006 2013-03-30 5:29 am #2,497 2013-03-30 5:29 am #2,497 someone made this scheme am curious if possibly go if I knew that going'll do and XP 3000 ••• More options Share B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link
B black Member Joined 2006 2013-03-30 5:29 am #2,497 2013-03-30 5:29 am #2,497 someone made this scheme am curious if possibly go if I knew that going'll do and XP 3000 ••• More options Share B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link
B black Member Joined 2006 2013-03-30 11:53 am #2,498 2013-03-30 11:53 am #2,498 I think IC will be placed on the back of the PCB to match pin ••• More options Share R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link
R ravpreet420 Member Joined 2009 2013-03-30 2:12 pm #2,499 2013-03-30 2:12 pm #2,499 hi black this is mirror of pcb ••• More options Share M mkubawat Member Joined 2008 2013-03-30 6:22 pm #2,500 2013-03-30 6:22 pm #2,500 vedmitraa said: Nice Layout Mr. Khalsa, Please check out attached photo of p.c.b.layout . I have tried to make it from your sent photo.please check out for faults. Click to expand... nice job ••• More options Share Prev 1 … Go to page Go 123 124 125 126 127 … Go to page Go 203 Next First Prev 125 of 203 Go to page Go Next Last Show hidden low quality content You must log in or register to reply here.
