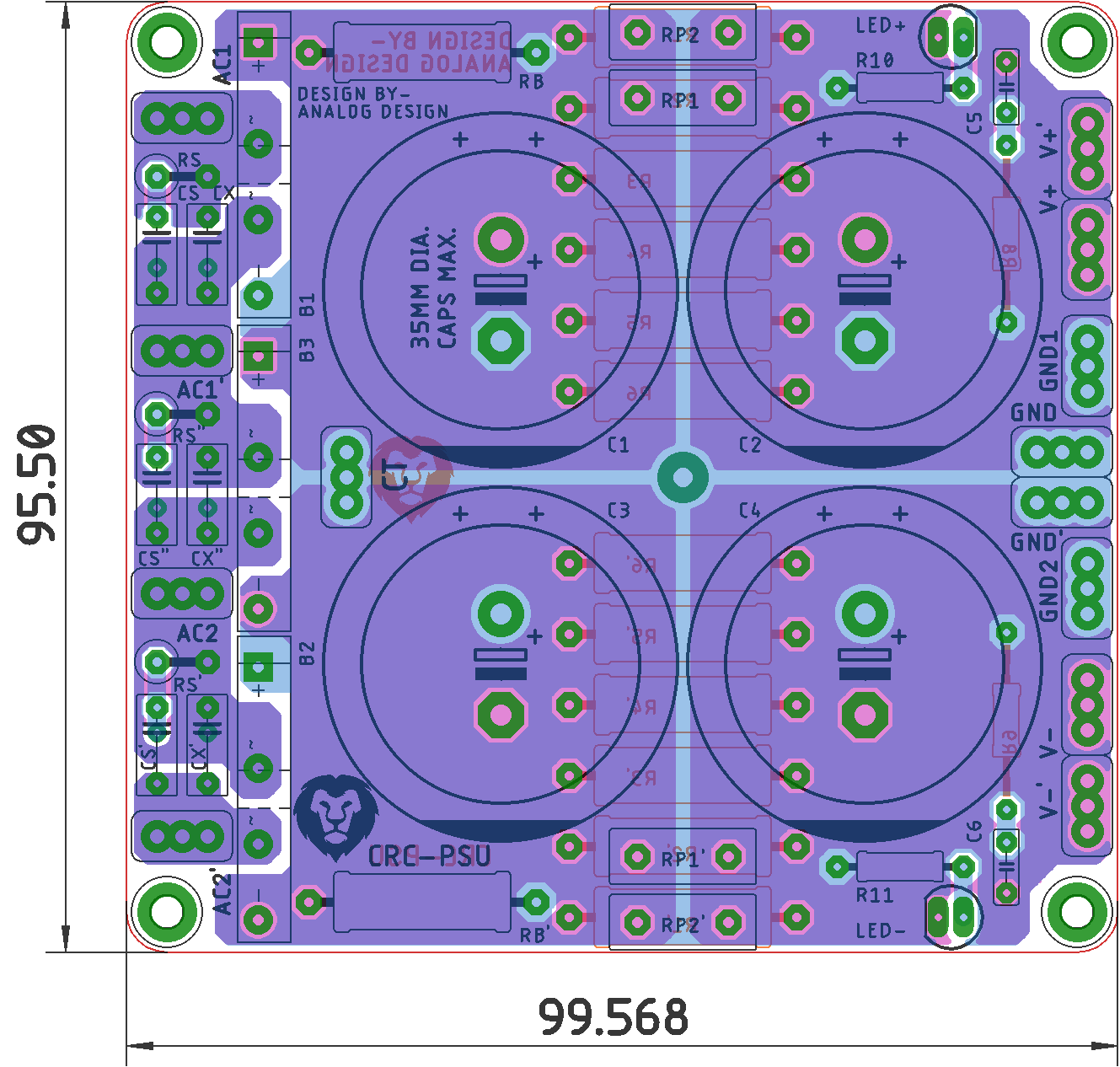

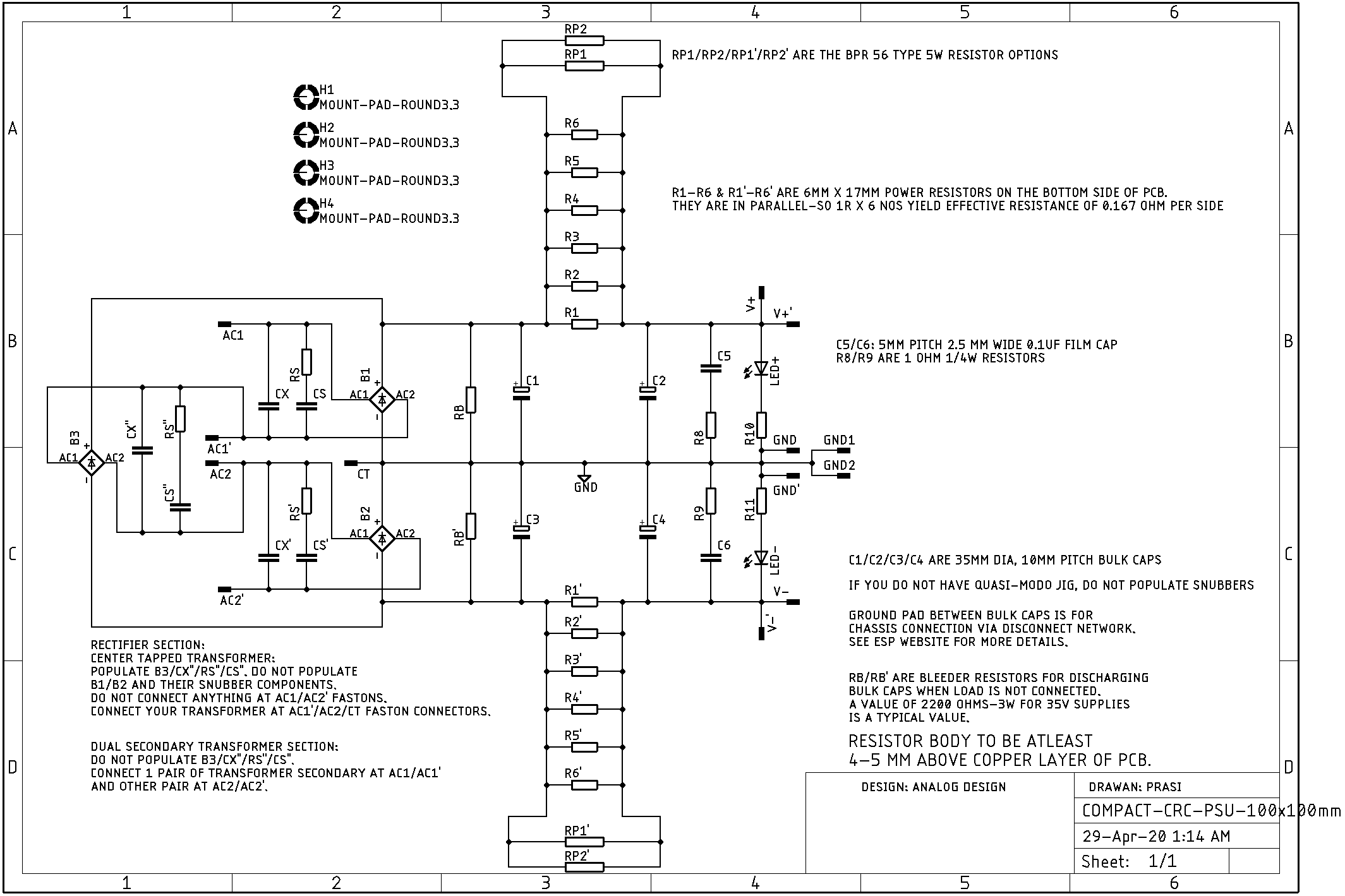

I see text on above CRC pcb mentions 30mm caps. $#%@. It should be 35mm.
here are revised files..



[channini]

psu15

thanks sir my mistake changed mpsa42 and mpsa92
now it works perfect thanks

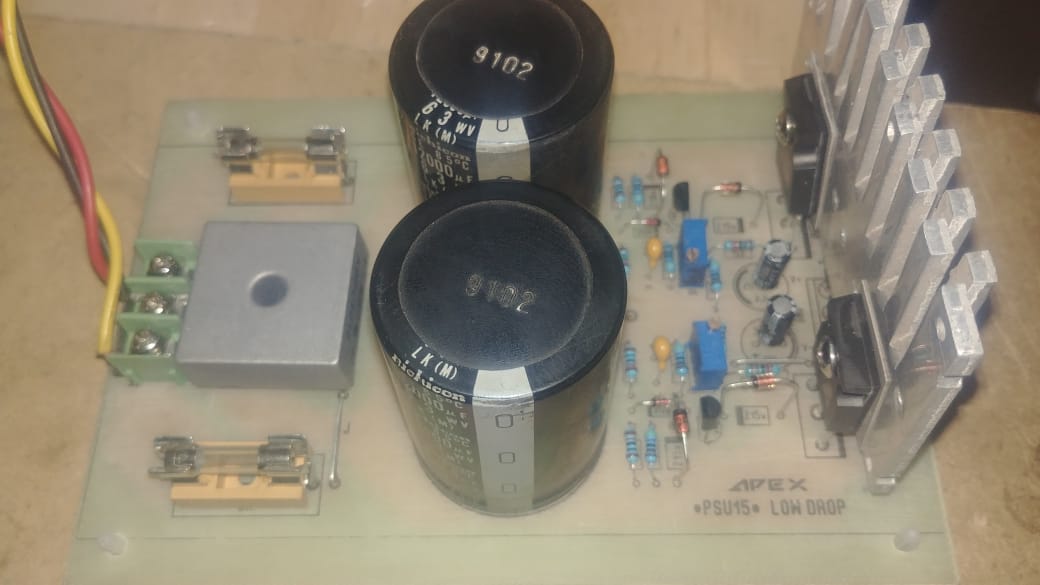

tested with 50-0-50 and trimpot 10k and zener 8.1v -regulating from 29 to 49v



[channini]

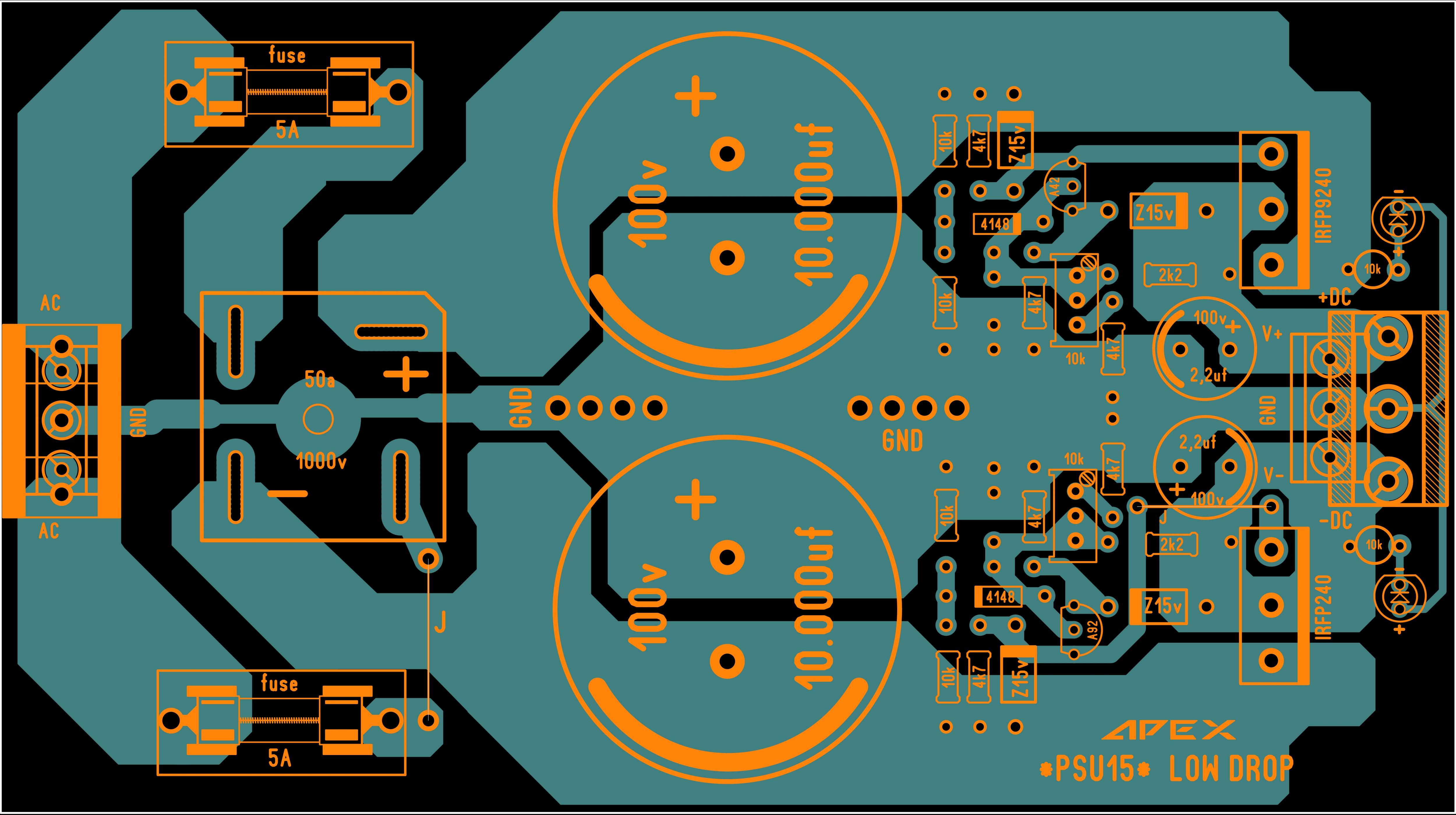

psu15 low drop

my version



[apexaudio]

thanks sir my mistake changed mpsa42 and mpsa92
now it works perfect thanks

tested with 50-0-50 and trimpot 10k and zener 8.1v -regulating from 29 to 49v

Nice work,
Regards



[querce615]

Hi all,
where are gerber files for ax-11 and ax-14 amplifier?
I didn't find them.


thanks,
Marco.



[prasi]

Hi all,
where are gerber files for ax-11 and ax-14 amplifier?
I didn't find them.


thanks,
Marco.

Dont know if gerbers for ax-11 are available, but here are all files for AX-14 designed by me. post no. 11462
100W Ultimate Fidelity Amplifier

the gerber files are shared on pcbway and the link is provided in the same post no. 11462. one can order pcbs with just few clicks.

regards
prasi



[Yurik_V]

where are gerber files for ax-14 amplifier?
I didn't find them.

I ordered PCB using the Gerber here:
Apex AX-14 - Share Project - PCBWay

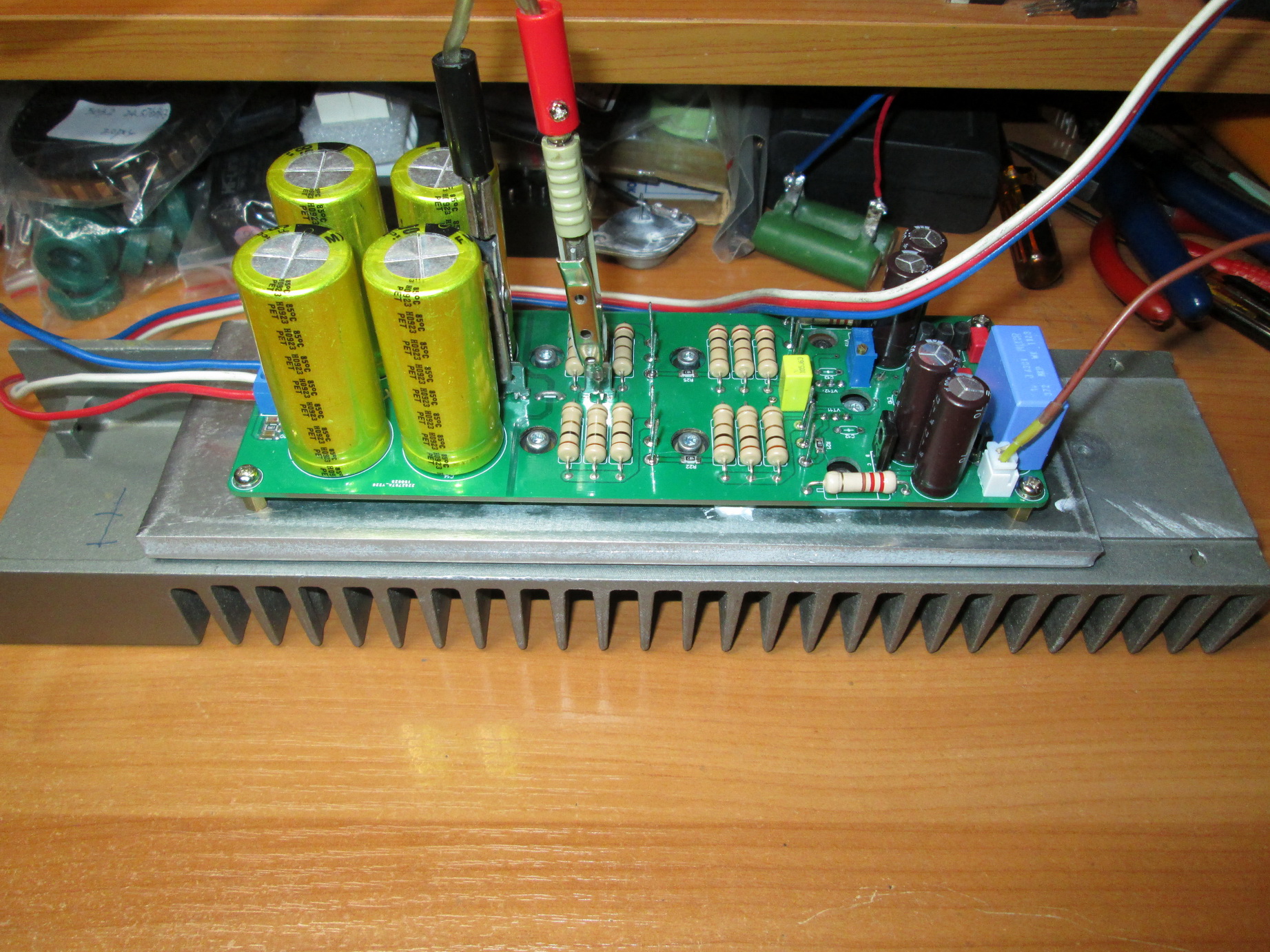

It is convenient to mount boards on narrow radiators.



[vargasmongo3435]

really?



[bullittstang]

really?

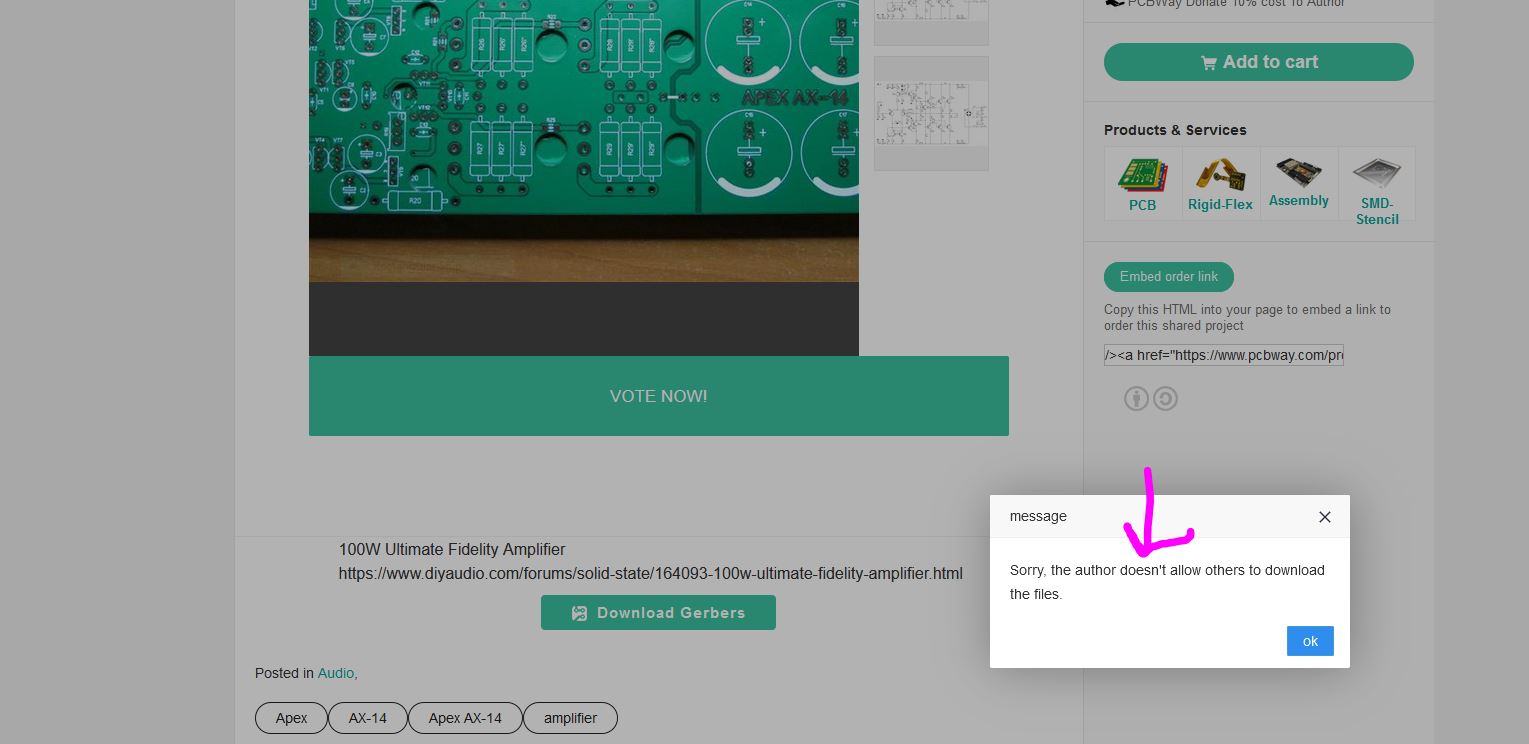

he said "order", it doesn't allow downloading of files, but "add to cart" and you can order 1 for $35 + shipping.



[wiljj78]

really?

The latest technology



[vargasmongo3435]

confirm yes you right bullittstang it can be order like that I didn't know cool



[Carmelo86]

hi excuse my question what is the value for its perfect DC operation. and the quiescent current regulation value. thanks i am new to this and want to learn from those who know. from already very grateful



[apexaudio]

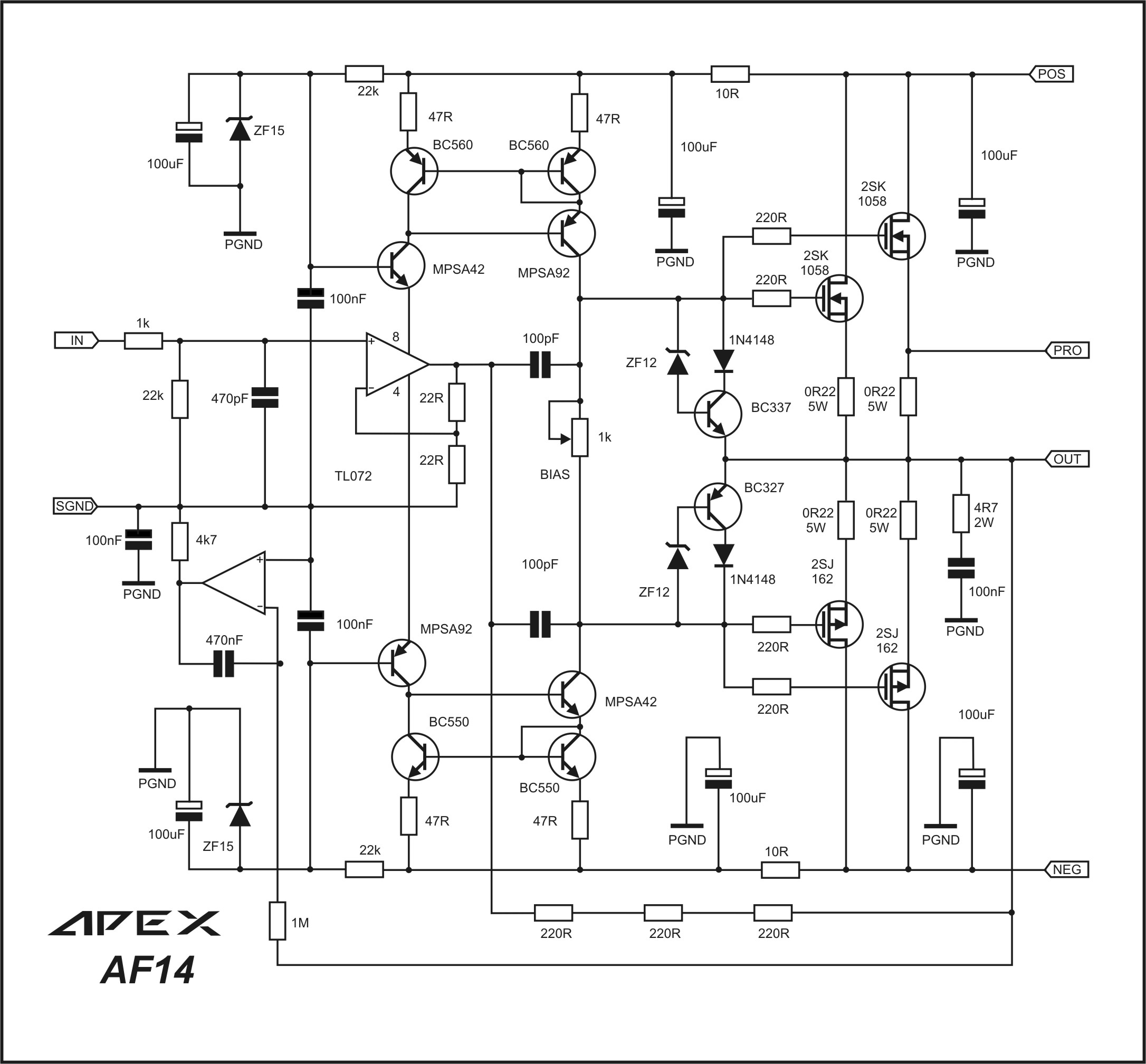

AF14



[Yurik_V]

really?

I just ordered PCB.



[Yurik_V]

you can order 1 for $35 + shipping.

10 pcb for $35 + shipping or 5pcb for $28
I ordered 10 pсb, for myself and for a friend. And the rest may someday come in handy.



[ballisticz4]

Are there suitable replacements for IRFP240 and IRFP9240?



[apexaudio]

Are there suitable replacements for IRFP240 and IRFP9240?

2SK1530 and 2SJ201



[vargasmongo3435]

I just ordered PCB.

yes I didn't know that you just add to your basket then order my bad



[ballisticz4]

2SK1530 and 2SJ201

Thank you



[still4given]

Mouser has IRFP240PBF and IRFP9240PBF in stock.

IRFP9240PBF Vishay Semiconductors | Mouser

IRFP240PBF Vishay Semiconductors | Mouser
