100W Ultimate Fidelity Amplifier

[GringoAudio]

10000!

Wow!



[apexaudio]

HT100 can use PSU60 or PSU75, only HT must be add...



[trebolo]

I love seeing new designs from Apex that still need to be tested and modified. There is nothing better than getting to be a part of designing new amplifiers. I never post mine , but I will some day. Cant wait to see another simple yet different class A!!! Thanks Mile!



[apexaudio]

I love seeing new designs from Apex that still need to be tested and modified. There is nothing better than getting to be a part of designing new amplifiers. I never post mine , but I will some day. Cant wait to see another simple yet different class A!!! Thanks Mile!

There is simple class A amplifiers AA9 and AA14. AA9 is tested and you can test AA14
Regards



[Samuel Jayaraj]

I love seeing new designs from Apex that still need to be tested and modified. There is nothing better than getting to be a part of designing new amplifiers. I never post mine , but I will some day. Cant wait to see another simple yet different class A!!! Thanks Mile!

Aren't the supply rails too high for Class A?



[AndrewT]

Aren't the supply rails too high for Class A?

Do you know which schematic trebolo is looking at?
There are dozens, or maybe hundreds of sch in this Thread.



[3388ton]

Toner Transfer Paper กระดาษสำหรับทำแผ่น PCB ด้วยวิธี Toner Transfer


สำหรับ นักสร้างแผ่นวงจร ออกแบบลายวงจร เผื่อเป็นอีกทางเลือกหนึ่งของนักทำปริ้นท์ครับ สนใจ
YouTube



[AndrewT]

you are going to have to translate that for us.



[prasi]

you are going to have to translate that for us.

Google translate yields following text.

"
Toner Transfer Paper Toner Transfer Paper
For circuit builders. Circuit design This is one of the options I do."

He may be advertising the product.

BTW really nice transfer results.



[trebolo]

That was just a general post. I am referring to the new untested designs that I can play with at home and make work better(when possible). I will start posting my modifications as soon as they are as perfect as I can get them. As long as I can get mine posted fast enough! I was surly not referring to post 10002



[I love the sound]

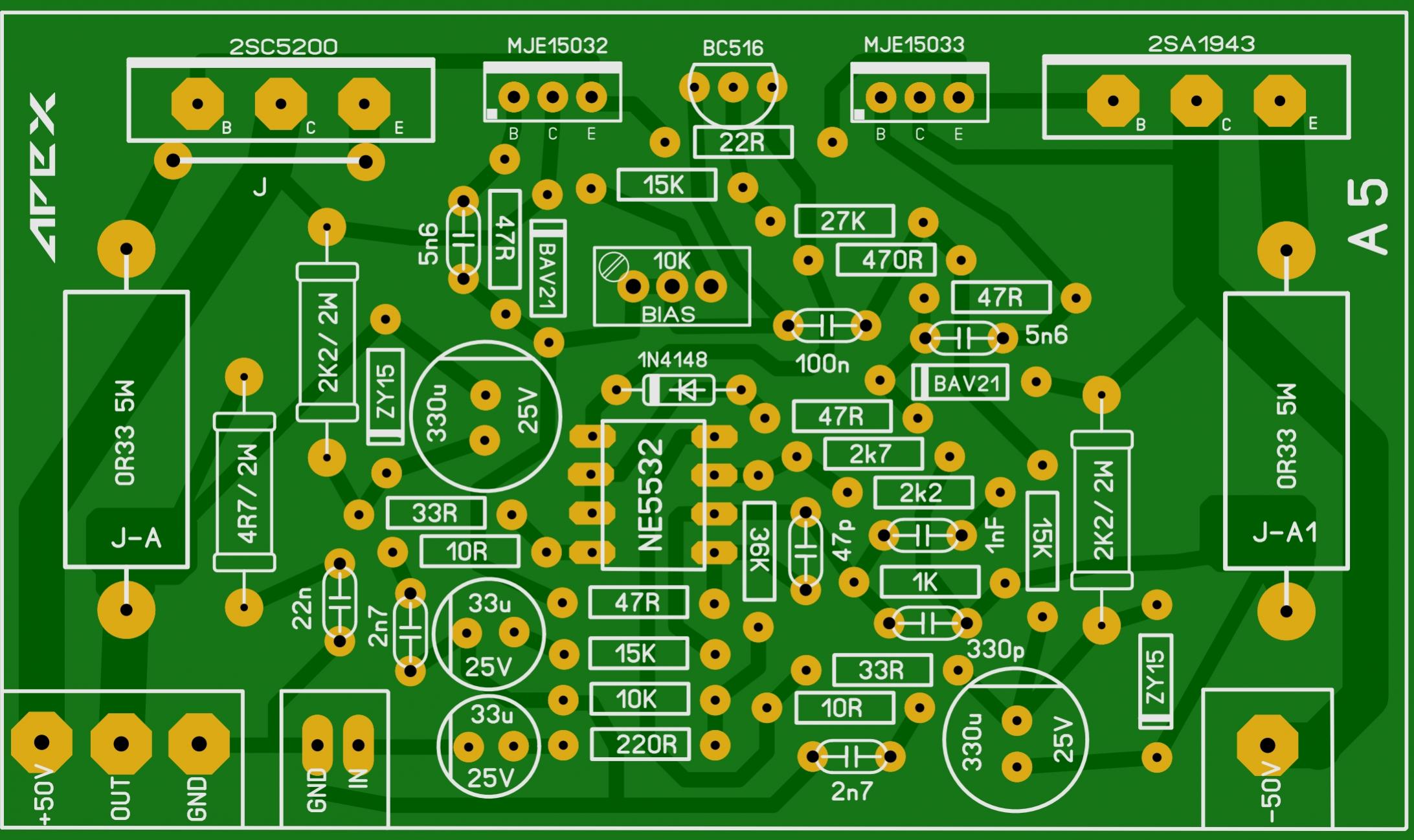

Apex a5 for who wants it

Here is.



[AndrewT]

Why are the two emitter resistors not connected?



[3388ton]

Toner Transfer YouTube

An externally hosted image should be here but it was not working when we last tested it.



[Ultima Thule]

Is that toner thing something similar to this?

DIY PCB Using Liquid Photoresist : 6 Steps (with Pictures)
wfl3030.world.taobao.com



[3388ton]

What you see is similar. If you are interested There are channels for you.
YouTube
www.youtube.com/watch?v=UTt_SaJzPSU&t=34s



[trebolo]

I am ordering boards for FH9. What size is the board. This is the firat time I am ordering from a board house and I want to make sure I order right. I am ordering from seed studio. And I am using Sonal's Gerber.zip file thank you for the info. Also is there anything else I need to know to fill in on the ordering pcb page before I commit? Other than size?



[Samuel Jayaraj]

Do you know which schematic trebolo is looking at?
There are dozens, or maybe hundreds of sch in this Thread.

Was wondering if the circuit in post 10002 was Class A?



[trebolo]

Was wondering if the circuit in post 10002 was Class A?

It is a class H sir! The first letter in model number is the class with Apex most times



[gannaji]

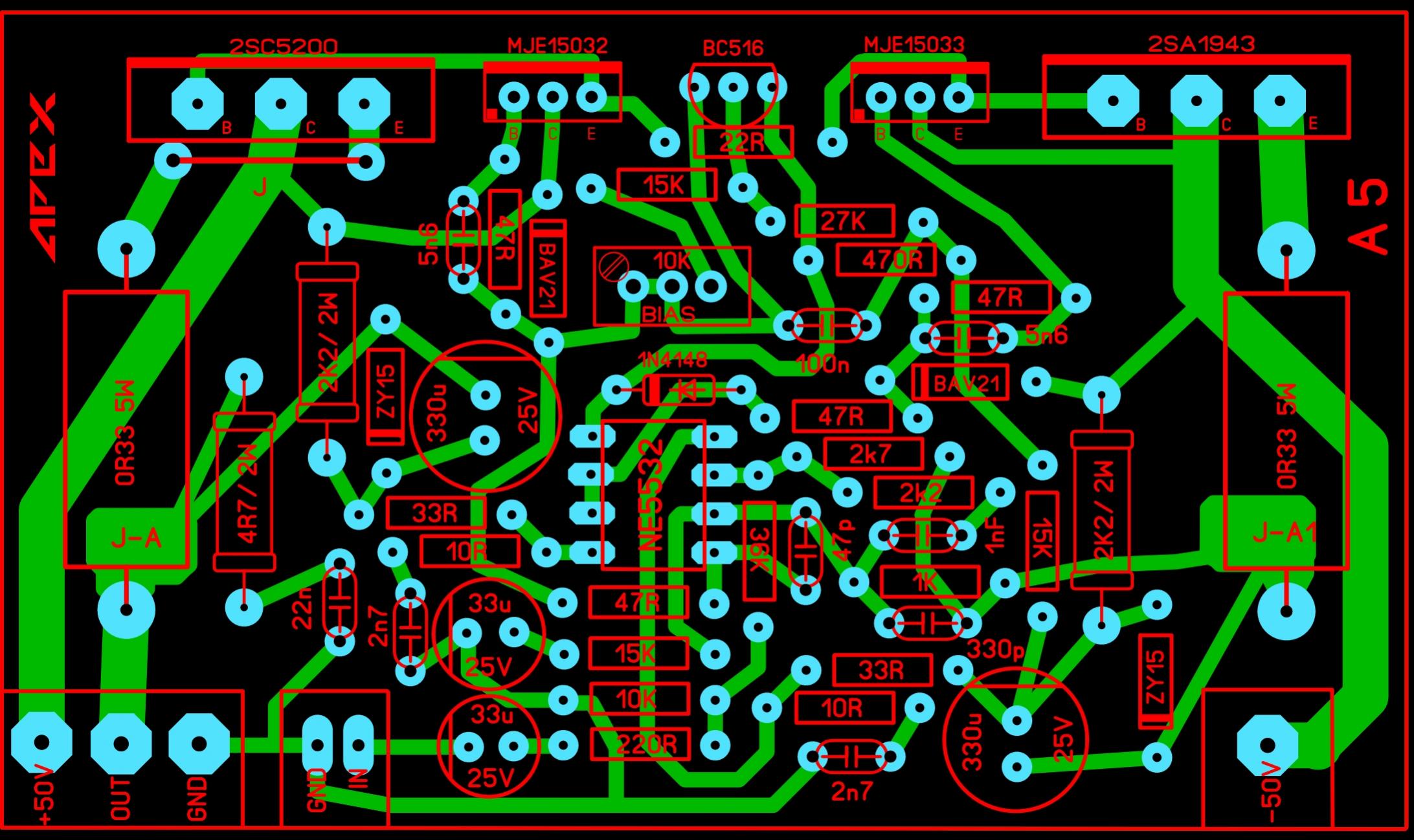

Apex A5

Here is.

Can somebody post the schematic and the correct Pcb layout together ?



[Samuel Jayaraj]

It is a class H sir! The first letter in model number is the class with Apex most times

Interesting. Thank you.
