where can I buy this perfboard and turrets ?

[cbueche]

Hello fellow diy colleagues,

I like the perfboard and turret looks of what Shine7 has used in this project : DIY 6922 / E88CC Tube preamp

Can anyone point me to these models ? Especially the board, I can't find anything like it on shops I visit.

Kind regards,
Charles



[souplesse]

Interested too.



[dtaylo3]

I noticed that on his website as well. Have never seen one in a store or on line.



[Bensen]

Yes, very nice material. Have looked for it many times, without succes.



[ArcticBrew]

Ebay seller 8audio-mall has the exact board shown.

for 9 pin tubes
Multi-purpose pcb with 9 pin holes for Tube Amp DIY | eBay

for octal base
Multi-purpose PCB for High End Audio Equipment DIY | eBay

Steve



[ggnarley]

Here is one also

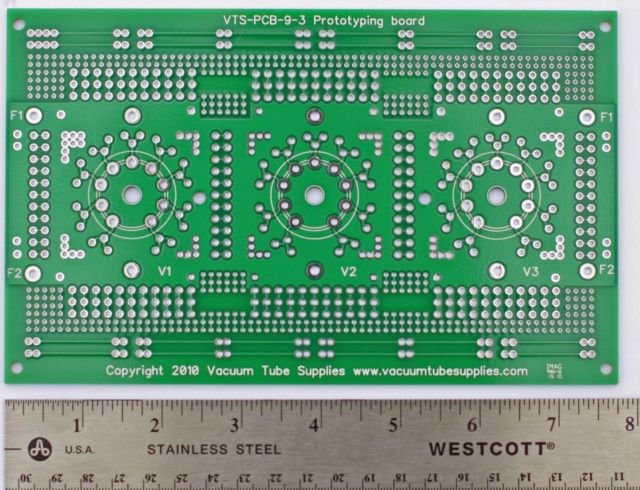

Here is one I just got off ebay and is very thick. Haven't used it yet, but looks to be ideal for prototyping. They have 8, 9 pin ones and kits.

Vacuum Tube Supplies | eBay Stores



[cbueche]

Thanks Steve & Ggnarley, going to order a few of them.



[MAAC0]

Turrets You can find on 70's gear, but those seem gold plated.
The board seems to be an ordinary one, but silk-screened perhaps.



[mickeymoose]

Solder pins/turrets: Products available through Digikey or Mouser. E



[cbueche]

Ebay seller 8audio-mall has the exact board shown.

for 9 pin tubes
Multi-purpose pcb with 9 pin holes for Tube Amp DIY | eBay

for octal base
Multi-purpose PCB for High End Audio Equipment DIY | eBay

Steve

WARNING : the 9-pin holes PCB linked above has in fact twice 10-pin holes. Difficult to use with 9-pin sockets. Anyway, got 2X2 of them from seller, no problem with the transaction.



[Zung]

Thanks, I was looking for these too.
What is the diameter of the holes for the turrets?



[cbueche]

the plates are 193x144 mm in size and 2mm tick. Quality product from what I see.

• the large holes are 4.5 mm
• the tube holes are 2 mm
• the turret holes are something between 1.1 and 1.2 mm.

Difficult to be exact with my caliper. I would suggest to buy 1.2mm turrets and if they do not fit use a 1.2mm drill bit to slightly extend the holes.



[Zung]

Merci.

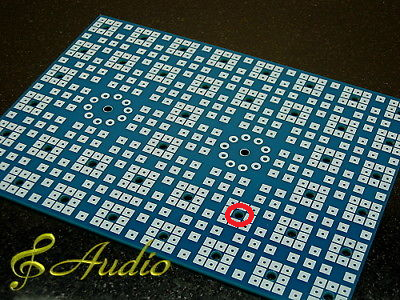

I think the original author mounts the turrets in the large holes, the one circled in red in the attached pic. So 4.5mm it'll be.



[jazz]

Hi,

have a look at this link: PCB's and materials

they have various types of such boards. I order from them regularly and they are reliable and fast.

rgegards,
Joris



[cbueche]

Hi,

have a look at this link: PCB's and materials

they have various types of such boards. I order from them regularly and they are reliable and fast.

rgegards,
Joris

ohh, looks nice and in Austria, very near from my home. Thanks Joris !



[Zung]

ohh, looks nice and in Austria, very near from my home. Thanks Joris !

Nooooooo!
The Netherlands, 888KM away! 🙂



[cbueche]

Nooooooo!
The Netherland, 888KM away! 🙂

ouch, I stand corrected. Anyway, at least it's Europe so I can expect sane shipping costs.



[Kay Pirinha]

As the spacing between two holes is 36° also in common 9-pin sockets, I don't see any issues, at least as long as the circle's and the individual hole's diameters are apt.
Best regards!


Edit: Answer to #10...
