Hi guys!

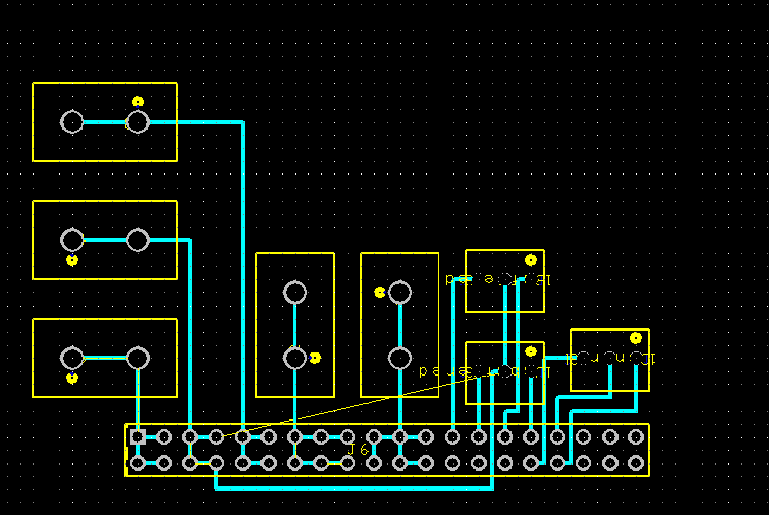

Currently I'm learning to design PCBs while designing a adapter for OEM modules from Hypex. Just some connectors. Currently I have a 40pin connctor for Hypex(couldn't find 36pin), 6,3mm connectors for power and output also 2,54mm connectors for Buffered in, Unbuffered in and 3 control pins: on/off, clipping and DC error. PCB is going to be 1 layer, so anybody can make it at home. I'm thinking about making internal possibility to have on/off selected on board by jumper(good idea?). Please share your thoughts, it's all about learning 🙂
Currently I'm learning to design PCBs while designing a adapter for OEM modules from Hypex. Just some connectors. Currently I have a 40pin connctor for Hypex(couldn't find 36pin), 6,3mm connectors for power and output also 2,54mm connectors for Buffered in, Unbuffered in and 3 control pins: on/off, clipping and DC error. PCB is going to be 1 layer, so anybody can make it at home. I'm thinking about making internal possibility to have on/off selected on board by jumper(good idea?). Please share your thoughts, it's all about learning 🙂
