Tube PWM driver

Status
Not open for further replies.
Jump to Latest
Sch3mat1c

Sch3mat1c

Member
Joined 2003
seventransistorlabs.com/
#1

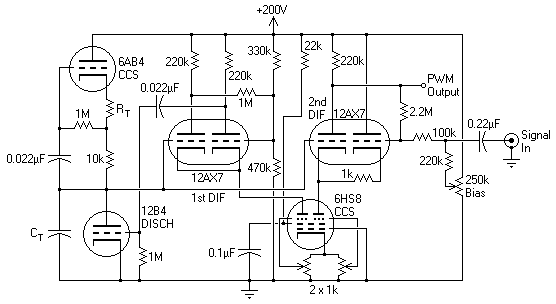

Yeah, so I got bored. Here's a five tube PWM generator circuit!

Depending on the output level, it should be basically ready to slap onto an SE output stage, actually. Just add a plate filter choke so the switching noise has somewhere to go.

I have no idea if the hysteresis resistors are enough, if I ever breadboard this I guess I'll find out. 🙂

Tim


Attachments

  • tube pwm generator.gif
    tube pwm generator.gif
    5.9 KB · Views: 266
