This would be a thread to post some picture from lab equipment you have, preferably with the nice rare parts inside, showing the effort made to achieve best performance.

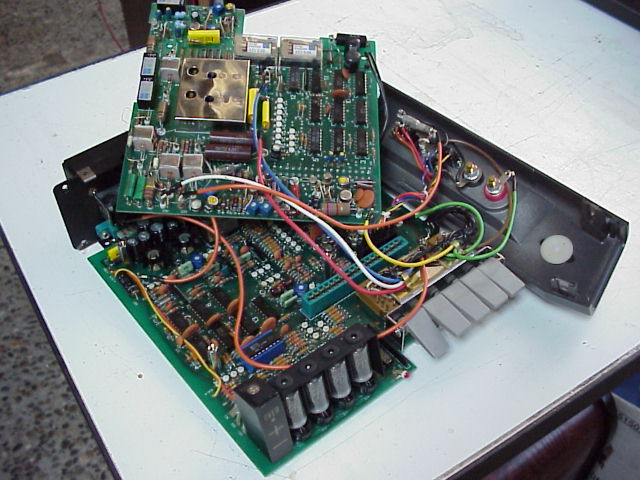

I opened an old Philips DMM last week and was happily surprised with the exotics of the components inside. Here’s my contribution.: Philips PM2424 DMM.



[Netlist]

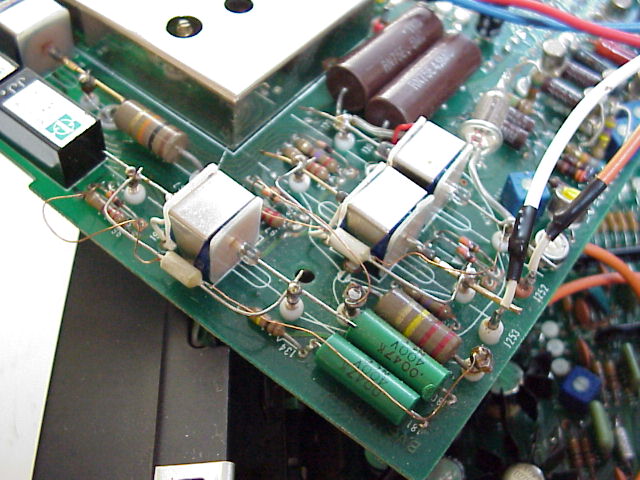

The white cubes are relays of a kind I never saw before. Wired in parallel you can see some parts having a little copper wire running through them and soldered to other parts in the circuit:



[Netlist]

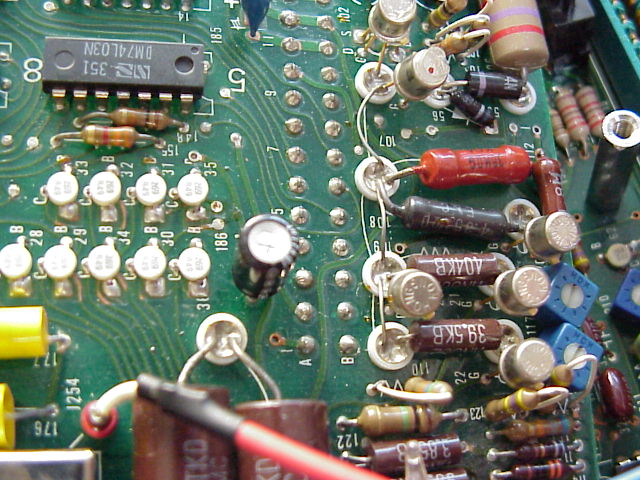

Precision resistors and early SMD transistors. Look at the combination of point to point and PCB:



[SY]

Those white relays look like reed relays. Is the center a glass tube?



[Netlist]

Is the center a glass tube?

Yes, and although I have the schematic, I haven't got a clue what the paralleled components with the wires are.



[Sch3mat1c]

Oooo, I might just have to open up my Tektronix 475 for this thread. And since you're counting old I could pop a few of my Eico 377 signal generator. And Heathkit IO-10 scope...hmmm....

Tim



[Netlist]

Oooo, I might just have to open up my Tektronix 475 for this thread. And since you're counting old I could pop a few of my Eico 377 signal generator. And Heathkit IO-10 scope...hmmm....

Tim

Please do!

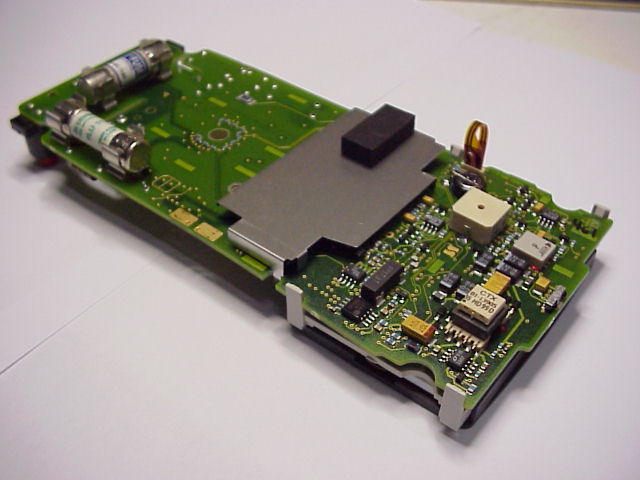

Only six screws hide the splendor of Fluke:



[Netlist]

Front:



[Da5id4Vz]

leeds and norththrope

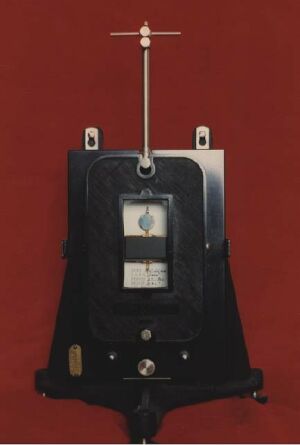

I dont own one and had a tough time finding a decent picture of one, but I've always loved the look of the Leeds Northrop ballistic galvanometer.



[DRC]

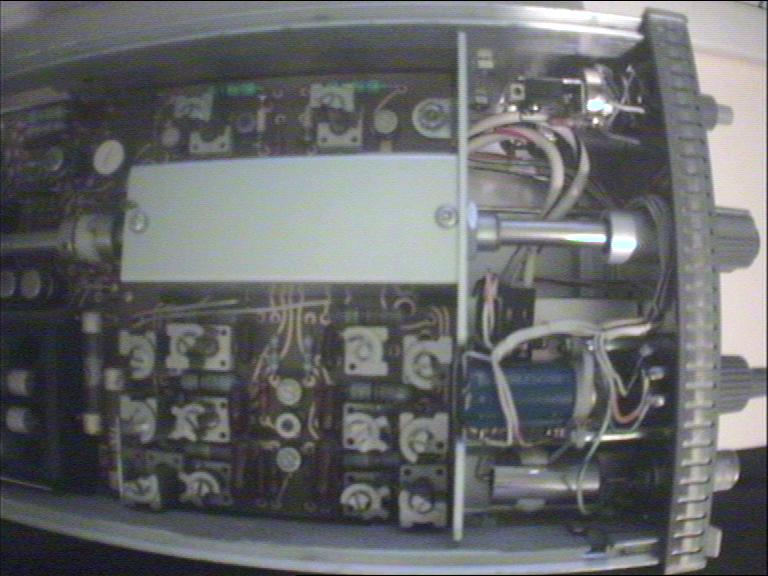

Does this count (tek 7A22 diff input amp) ?

Rather expensive when new ....



[till]

Does this count (tek 7A22 diff input amp) ?

I wish i had one...

Today my TEK7313 storage scope arrived and i play with it at the moment using a 7B53A and 7A16.



[Sch3mat1c]

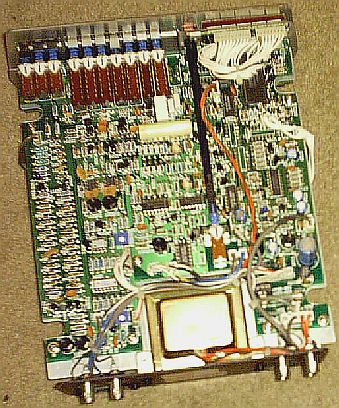

Ok.. I probably won't take apart the Tek again 🙄 and the Eico is downstairs so here's my B&K Precision 3026 5MHz signal generator.

Tim



[Sch3mat1c]

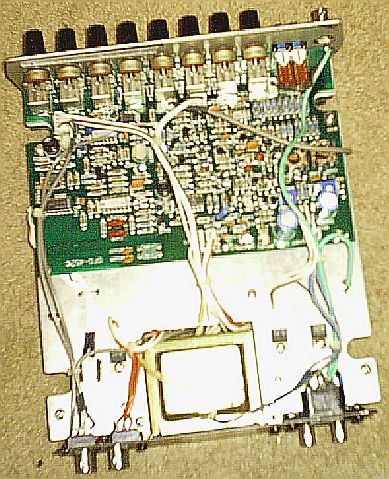

That was the top circuit board, this is bottom. Yep, the only big IC is the display driver, everything else is logic and op-amps.

Tim
