TDA7294 Hybrid 12AU7 Tube Advice.

[Heretik HiFi]

Hey everyone, I'm just getting ready to start a new build with a hybrid amp with 2 x TDA7294 & a 12AU7 valve, before I start I was wandering if therers any improvements that can be made to the components selected in the bom, any advice is greatly appreciated!

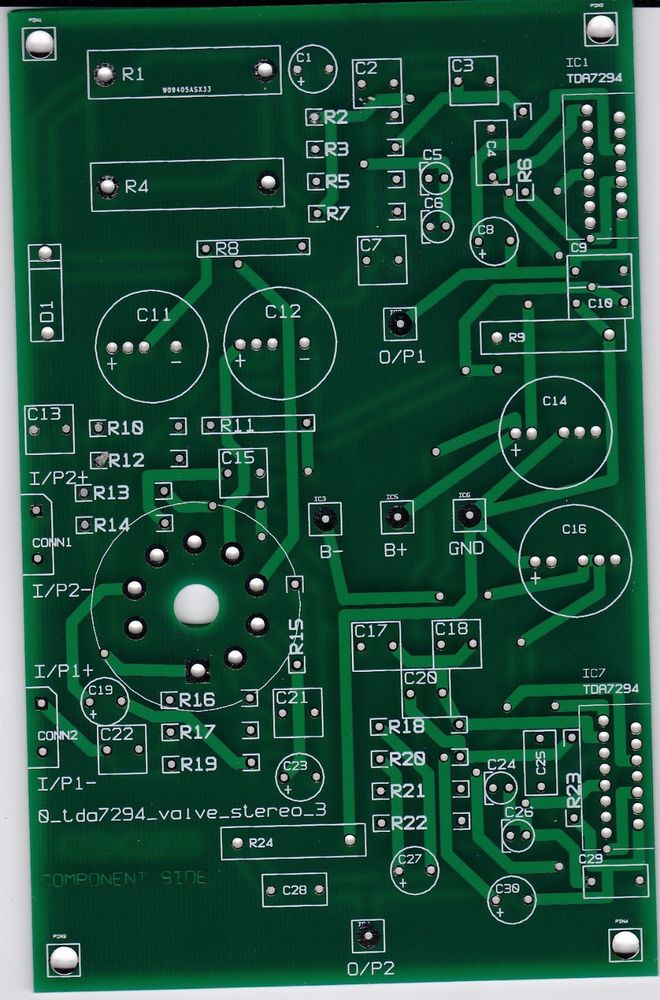

The pcb in question:

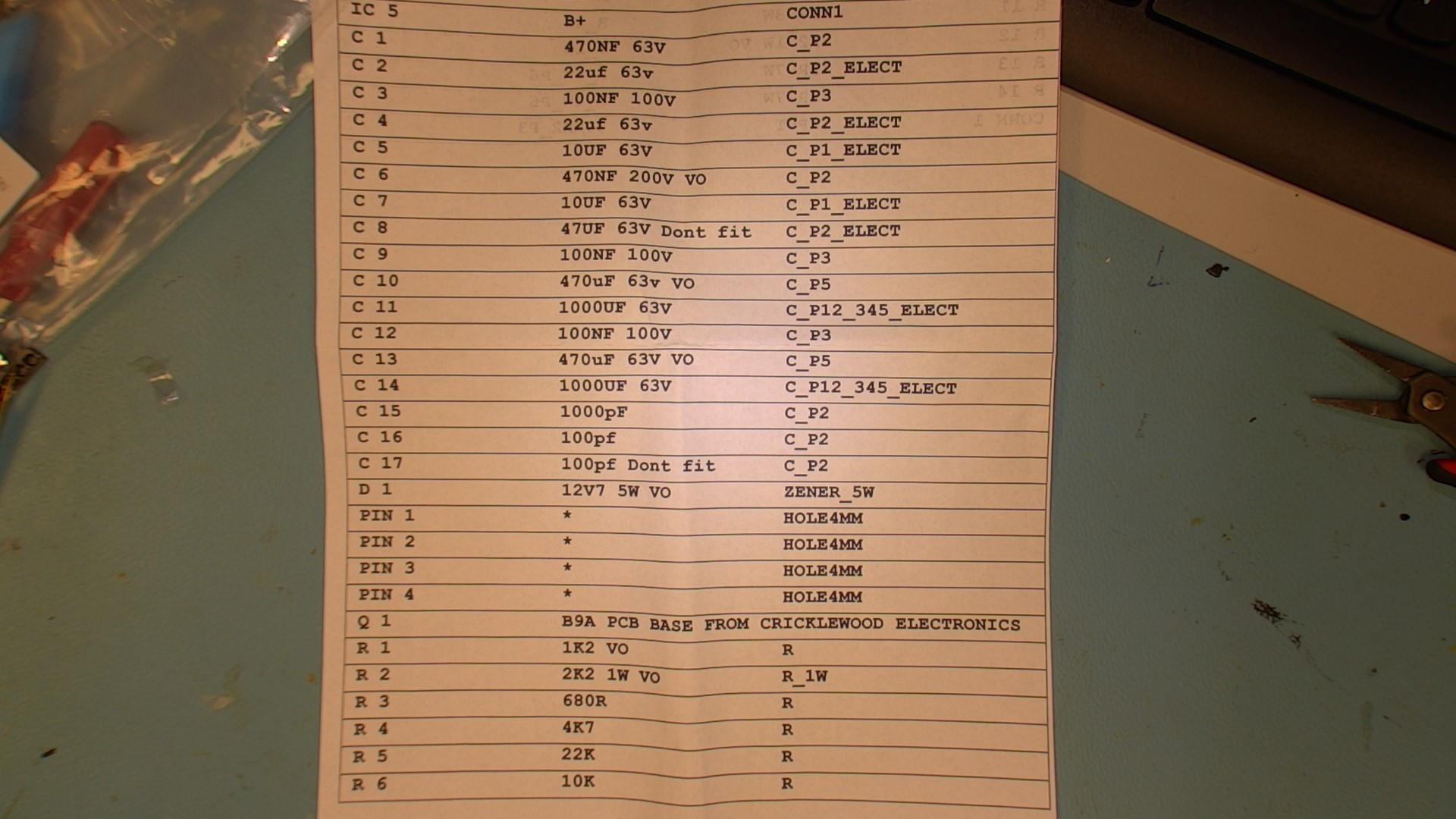

Current bom:

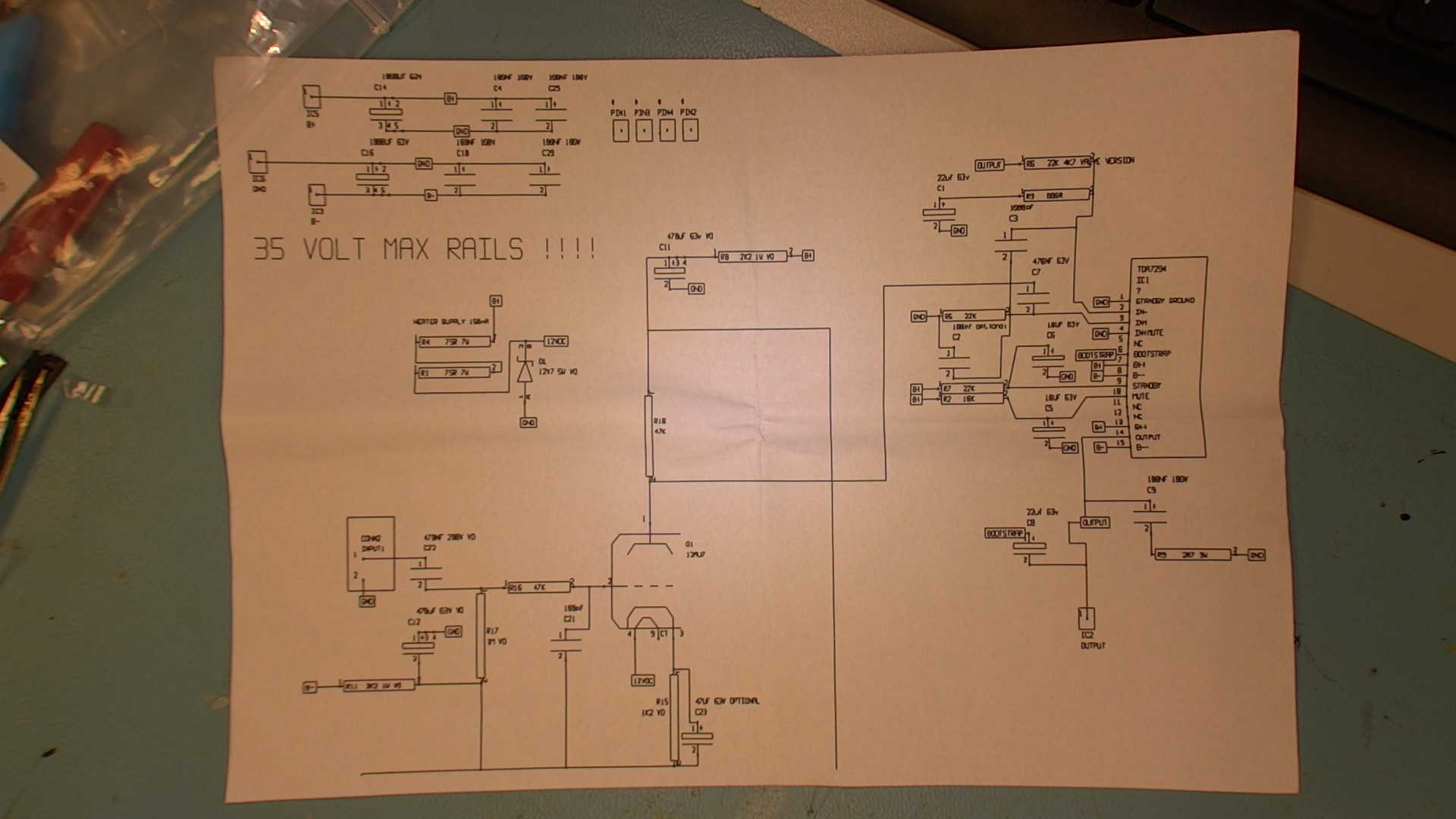

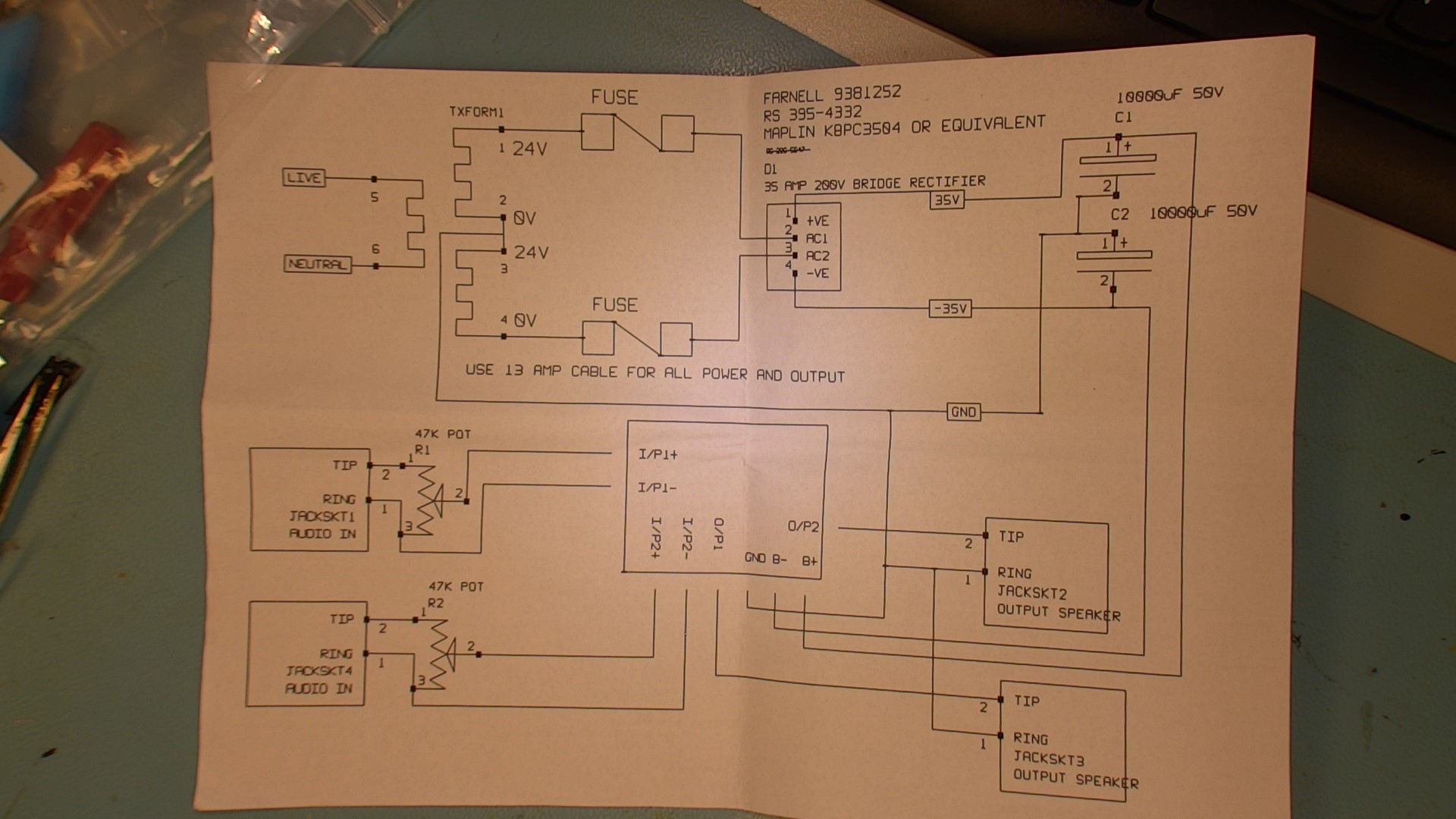

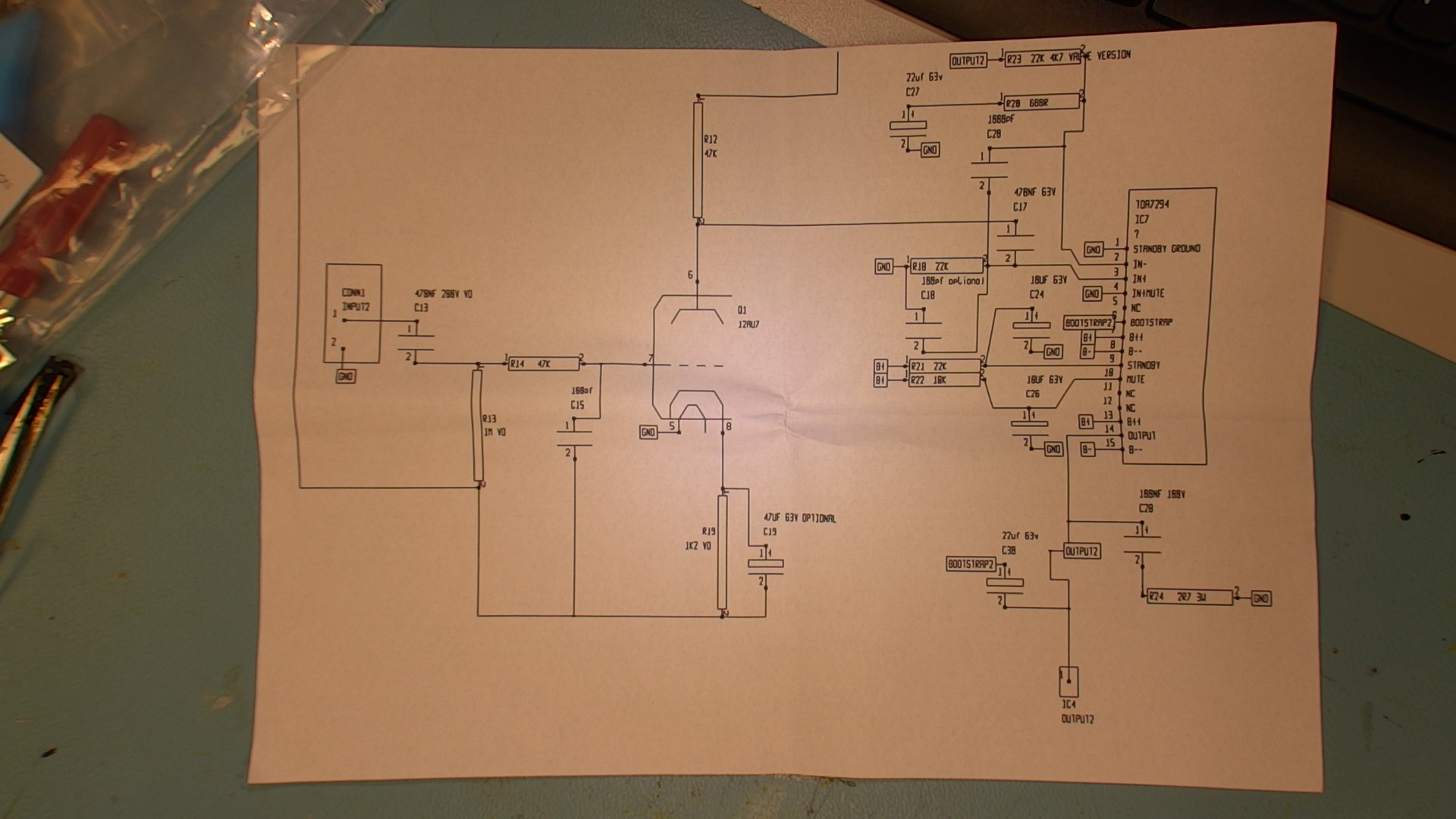

Circuit diagrams:




Cheers!



[Heretik HiFi]

On a closer look the bom does not match the schematic rather confused at the mo!



[nigelwright7557]

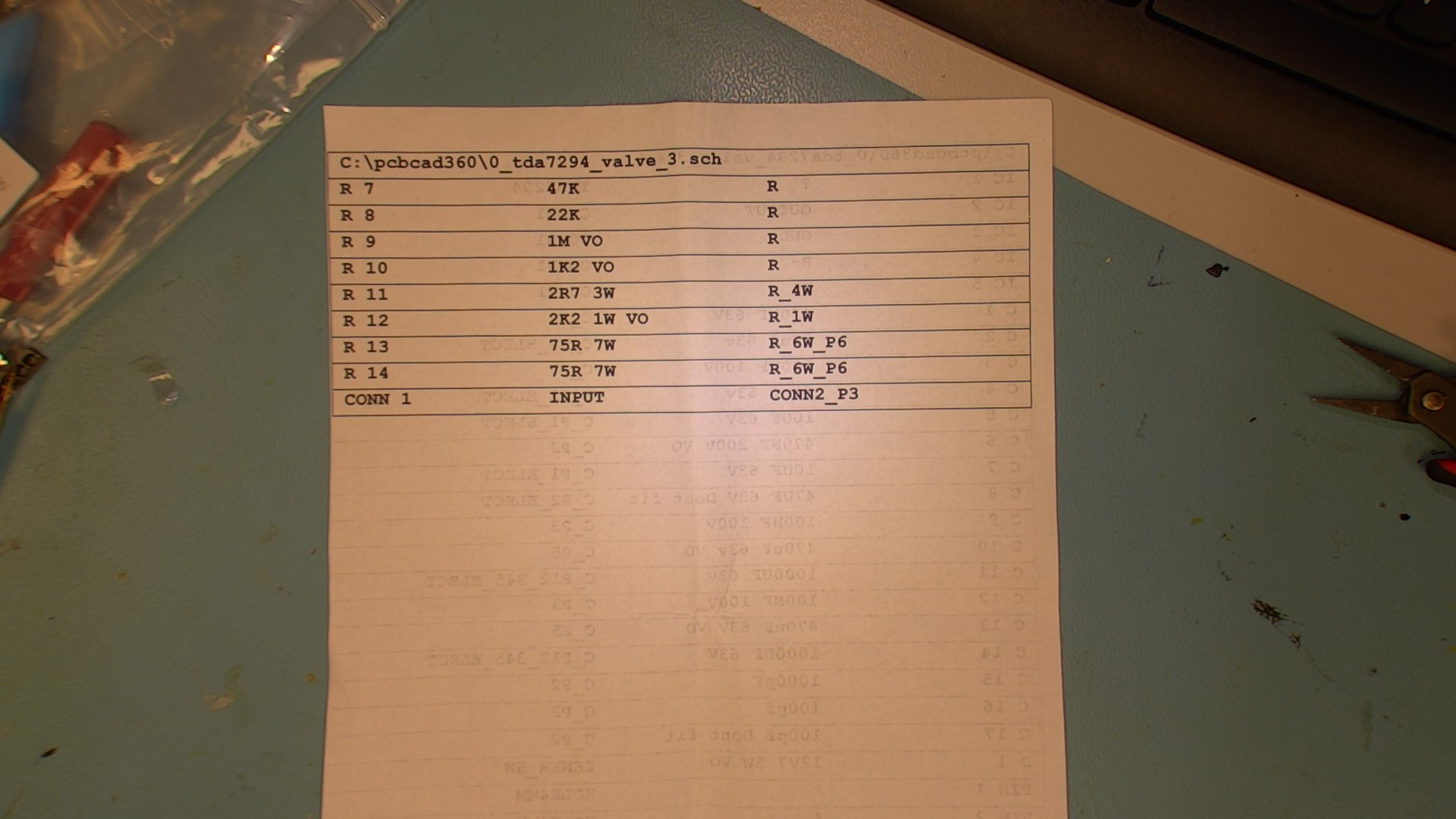

You have been given the mono channel parts list.

Here is the stereo one:

C:\pcbcad360\0_tda7294_valve_stereo_3.pls

Reference Value Symbol name
--------- ----- -----------

IC 1 ? TDA7294
IC 2 OUTPUT CONN1
IC 3 B- CONN1
IC 4 OUTPUT2 CONN1
IC 5 B+ CONN1
IC 6 GND CONN1
IC 7 ? TDA7294
C 1 22uf 63v C_P2_ELECT
C 2 100pf optional C_P2
C 3 1000pF C_P2
C 4 100NF 100V C_P3
C 5 10UF 63V C_P1_ELECT
C 6 10UF 63V C_P1_ELECT
C 7 470NF 63V C_P2
C 8 22uf 63v C_P2_ELECT
C 9 100NF 100V C_P3
C 10 100NF 100V C_P3
C 11 470uF 63v VO C_P5
C 12 470uF 63V VO C_P5
C 13 470NF 200V VO C_P2
C 14 1000UF 63V C_P12_345_ELECT
C 15 100pf C_P2
C 16 1000UF 63V C_P12_345_ELECT
C 17 470NF 63V C_P2
C 18 100pf optional C_P2
C 19 47UF 63V OPTIONAL C_P2_ELECT
C 20 1000pF C_P2
C 21 100pf C_P2
C 22 470NF 200V VO C_P2
C 23 47UF 63V OPTIONAL C_P2_ELECT
C 24 10UF 63V C_P1_ELECT
C 25 100NF 100V C_P3
C 26 10UF 63V C_P1_ELECT
C 27 22uf 63v C_P2_ELECT
C 28 100NF 100V C_P3
C 29 100NF 100V C_P3
C 30 22uf 63v C_P2_ELECT
D 1 12V7 5W VO ZENER_5W
PIN 1 * HOLE4MM
PIN 2 * HOLE4MM
PIN 3 * HOLE4MM
PIN 4 * HOLE4MM
Q 1 12AU7
R 1 75R 7W R_6W_P6
R 2 10K R
R 3 680R R
R 4 75R 7W R_6W_P6
R 5 22K R
R 6 4K7 R
R 7 22K R
R 8 2K2 1W VO R_1W
R 9 2R7 3W R_4W
R 10 47K R
R 11 2K2 1W VO R_1W
R 12 47K R
R 13 1M VO R
R 14 47K R
R 15 1K2 VO R C:\pcbcad360\0_tda7294_valve_stereo_3.pls

Reference Value Symbol name
--------- ----- -----------

R 16 47K R
R 17 1M VO R
R 18 22K R
R 19 1K2 VO R
R 20 680R R
R 21 22K R
R 22 10K R
R 23 4K7 R
R 24 2R7 3W R_4W
CONN 1 INPUT2 CONN2_P3
CONN 2 INPUT1 CONN2_P3



[Heretik HiFi]

Thank you so much! I was thinking it may have been one channels worth, looking foward to getting it built now. Thanks again.
