future Member Joined 2003 2003-05-22 6:11 am #1 2003-05-22 6:11 am #1 Does anyone have a schematic/datasheet for the TDA1512? Netlist Moderator Joined 2003 Paid Member 2003-05-22 2:27 pm #2 2003-05-22 2:27 pm #2 Here's what I could find from the TDA1520. It's the same IC, except: TDA1512: HiFi NF-E, 35V, 3,2A, 25W(32V/4ohm) TDA1520: HiFi NF-E, 44V, 4A, 22W(33V/4ohm) TDA1520B: = TDA1520 50V, RthG=2.5)°C/W /Hugo Attachments tda1520.gif 14 KB · Views: 768 future Member Joined 2003 2003-05-24 3:01 am #3 2003-05-24 3:01 am #3 Thank you, I was looking for this for a long time. Status Not open for further replies. Share: Facebook X (Twitter) LinkedIn Reddit Pinterest Tumblr WhatsApp Email Link

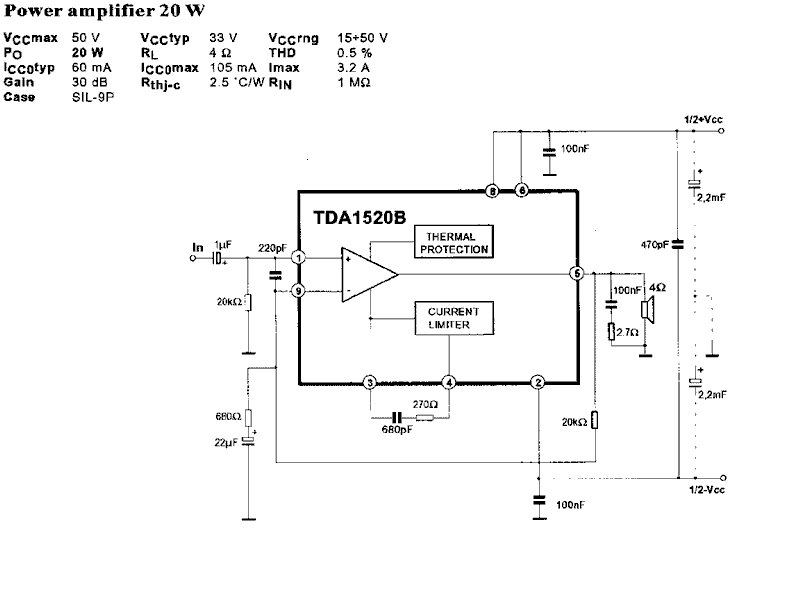

Netlist Moderator Joined 2003 Paid Member 2003-05-22 2:27 pm #2 2003-05-22 2:27 pm #2 Here's what I could find from the TDA1520. It's the same IC, except: TDA1512: HiFi NF-E, 35V, 3,2A, 25W(32V/4ohm) TDA1520: HiFi NF-E, 44V, 4A, 22W(33V/4ohm) TDA1520B: = TDA1520 50V, RthG=2.5)°C/W /Hugo Attachments tda1520.gif 14 KB · Views: 768 future Member Joined 2003 2003-05-24 3:01 am #3 2003-05-24 3:01 am #3 Thank you, I was looking for this for a long time. Status Not open for further replies.
Here's what I could find from the TDA1520. It's the same IC, except: TDA1512: HiFi NF-E, 35V, 3,2A, 25W(32V/4ohm) TDA1520: HiFi NF-E, 44V, 4A, 22W(33V/4ohm) TDA1520B: = TDA1520 50V, RthG=2.5)°C/W /Hugo
future Member Joined 2003 2003-05-24 3:01 am #3 2003-05-24 3:01 am #3 Thank you, I was looking for this for a long time.
