SSR Speaker Protection BIG (mono)

[HRDSTL]

Hello,
For my new project 4 channel amplifier SA2015 (Bi-Amping) I will also make speakers protection with large mosfets in (TO247). These protections are usable up to 400W.

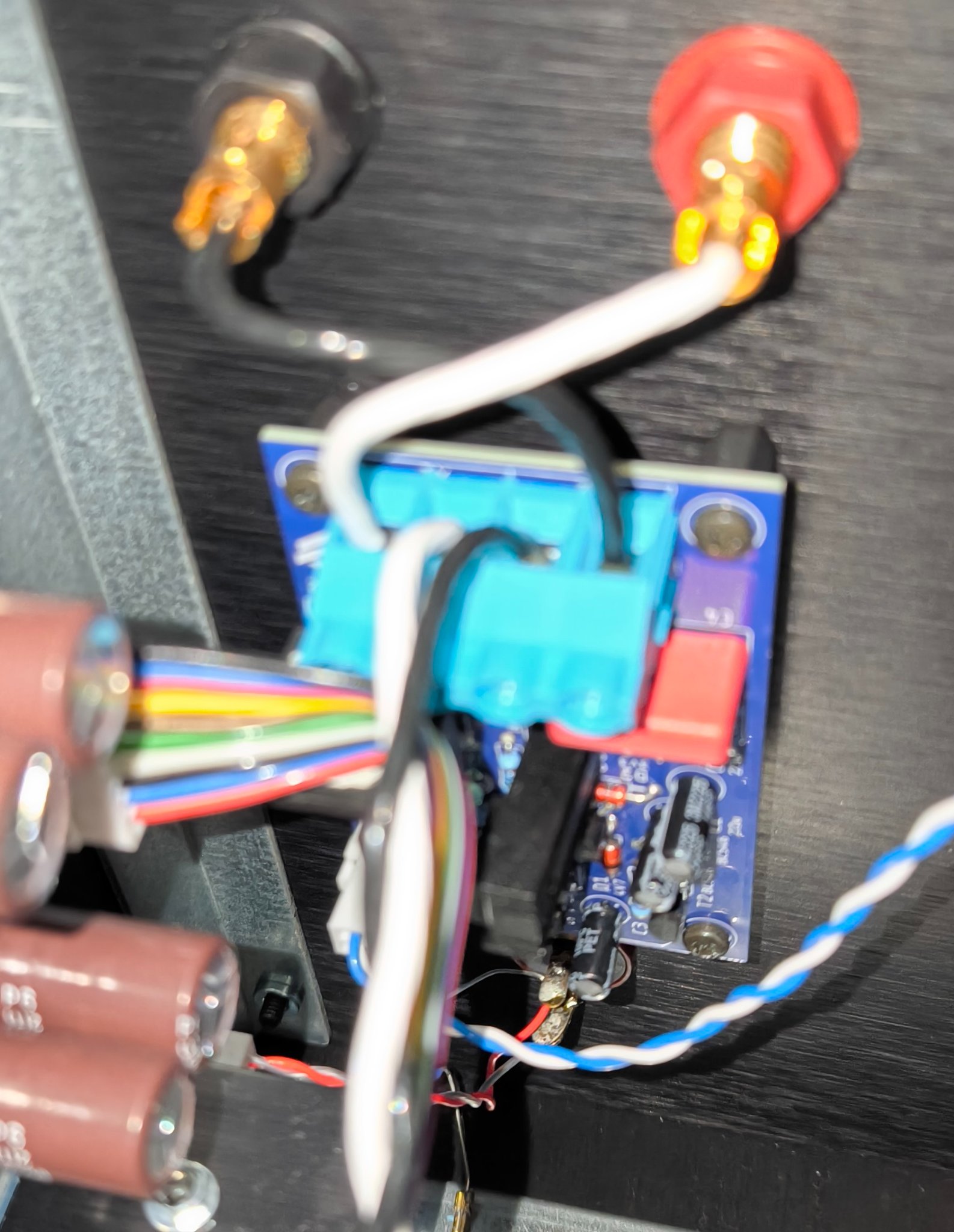

They work reliably in my SA2014 amplifier (400W/ 4Ohm).


schematic:


pcb layout:


PCB colour: blue
Thickness of copper: 2 oz

Closing on Sunday (24.11)



[HRDSTL]

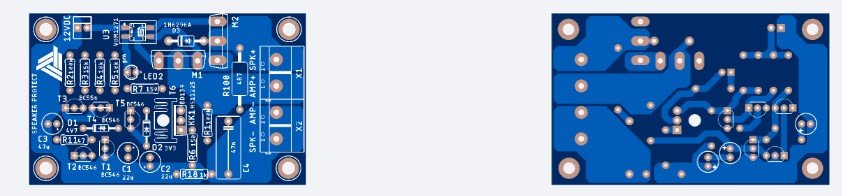

Preview:

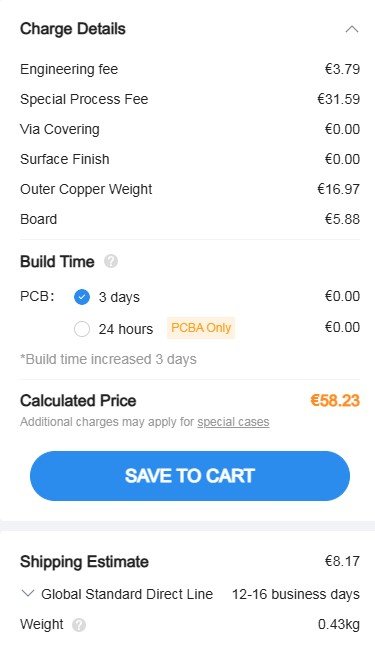

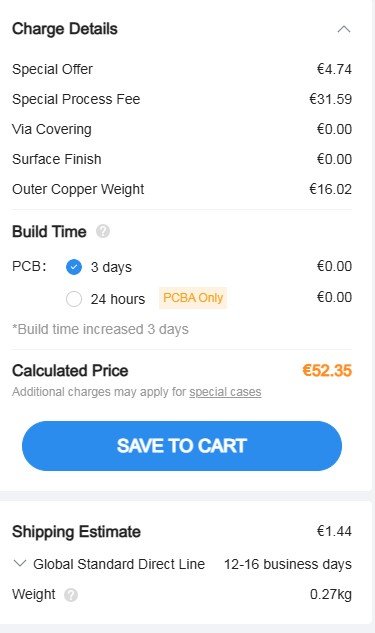

Price for 10 pcs: 54€
Price for 20 pcs: 63€



[Ryssen]

What is the price for 2 boards?
Does it delay the speakers at startup?



[HRDSTL]

Does it delay the speakers at startup?

2sec

If there will be at least 4 of us 10PCB, the price for 2 pcb is 11€ + shipping to your country. If 20 pcs are ordered, ...at least 9 people, the price for 2 pcb will be about 7€ + shipping. Within the EU shipping without tracking 5€ with tracking 10€.



[Ryssen]

Ryssen 2pcb



[HRDSTL]

HRDSTL 4pcb
Ryssen 2pcb



[a007udio]

Will this work on all amplifier power supply voltages?



[pinnocchio]

@a007udio , schematic seems to indicate 12vdc supply.

@HRDSTL , what is the cutoff dc voltage? Did you run a FFT plot to check if it adds a lot distortion from the original signal? Just curious for the later because it usually does not add much.

Thanks
Do



[Ryssen]

HRDSTL 4pcb
Ryssen 4pcb



[a007udio]

Is it possible to add pads for faston connectors?



[Ryssen]

HRDSTL you got P.M.​



[HRDSTL]

@a007udio the board is adapted only for high quality screw connectors TB005-762-04BE

The board can only be powered from an aux power supply 12 - 20V DC
@Ryssen pls send me email: hrdstl.official@gmail.com
