Long shot maybe, but does anyone have / know where I can find a schematic for the Sinclair 'System 4000' Amp ?
It was supposedly completely reworked compared to the System 2000 or 3000, but I've not managed to locate anything online yet (for the 4000).
Regards,
Alan
It was supposedly completely reworked compared to the System 2000 or 3000, but I've not managed to locate anything online yet (for the 4000).
Regards,
Alan
You can find a pdf of the project 80 on hifiengine, otherwise I can e mail you a copy.
Project 80 has a pre amp, power amp, tuner and filters along with power amp bridging information.Over 40 pages of info and schematics.
I think that is all that is available these days and from memory I think it was the best of all the Sinclair amps.
Don
Project 80 has a pre amp, power amp, tuner and filters along with power amp bridging information.Over 40 pages of info and schematics.
I think that is all that is available these days and from memory I think it was the best of all the Sinclair amps.
Don
Thanks Don - for some reason I hadn't thought of the Project 80 - but at first glance, a lot of the main (Z60) amp topology at least may be similar, I'll have a better look later.
Richard Torrens' site Sinclair Radionics - System 2000 and System 3000 amplifiers does provide more detail for the System 2000 & 3000 units, but unfortunately doesn't cover the later System 4000 unit, that I believe was the last they made.

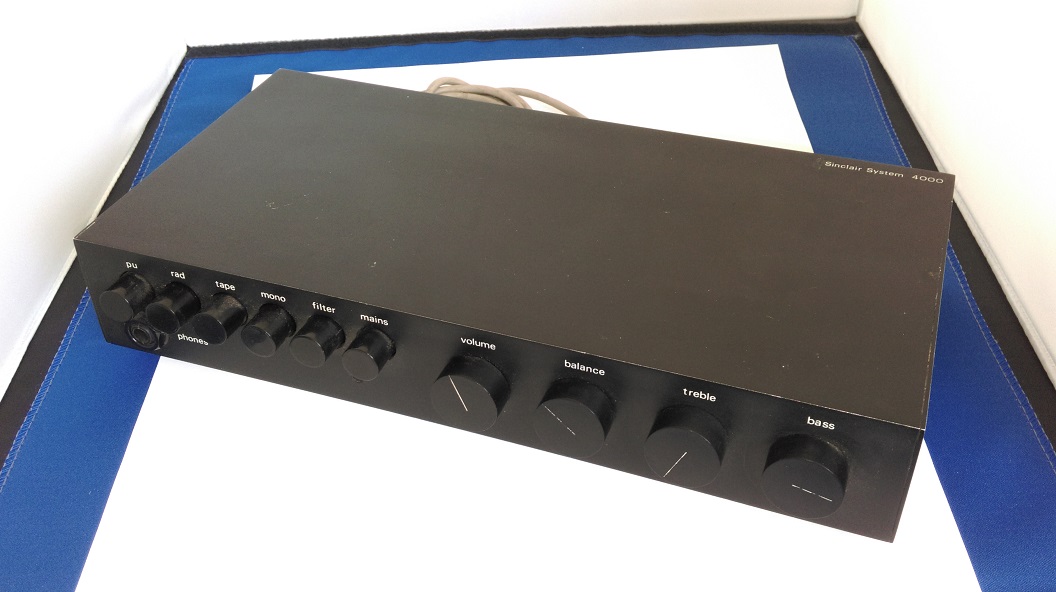

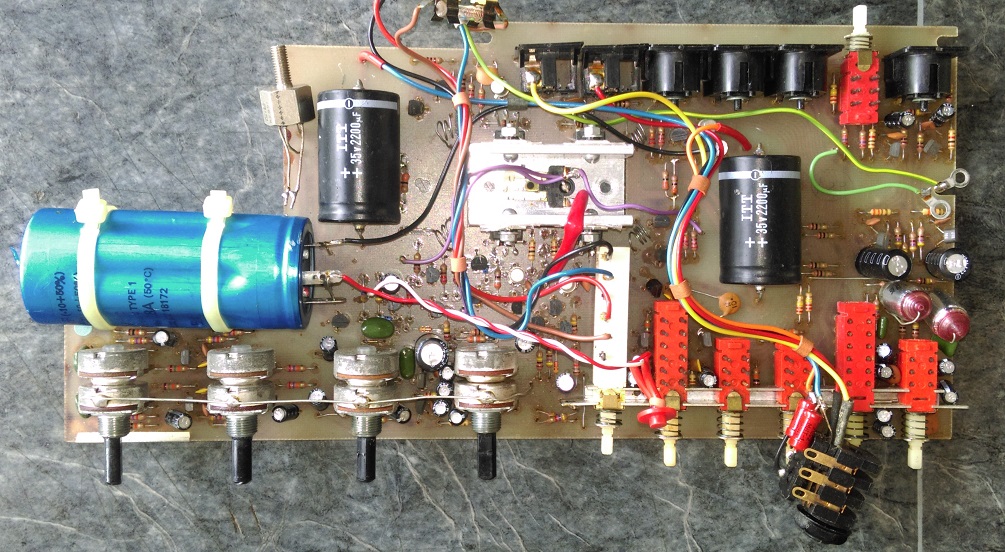

I've added a couple of photos just to see if it nudges anyone's memory.
Regards,
Alan
Richard Torrens' site Sinclair Radionics - System 2000 and System 3000 amplifiers does provide more detail for the System 2000 & 3000 units, but unfortunately doesn't cover the later System 4000 unit, that I believe was the last they made.
I've added a couple of photos just to see if it nudges anyone's memory.
Regards,
Alan
