Dear diyaudio community.
I need your help with my RAKK DAC MK IV board, (version 2.1.) I use for my DIY DAC.
I would like to use the I2S input for the first time.
My plan is to use the I2S over HDMI board from Ian Canada as input.
This offers MLK, SCK (BCK), LRCK and SD (Data) as outputs.

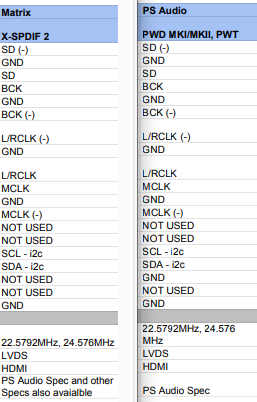

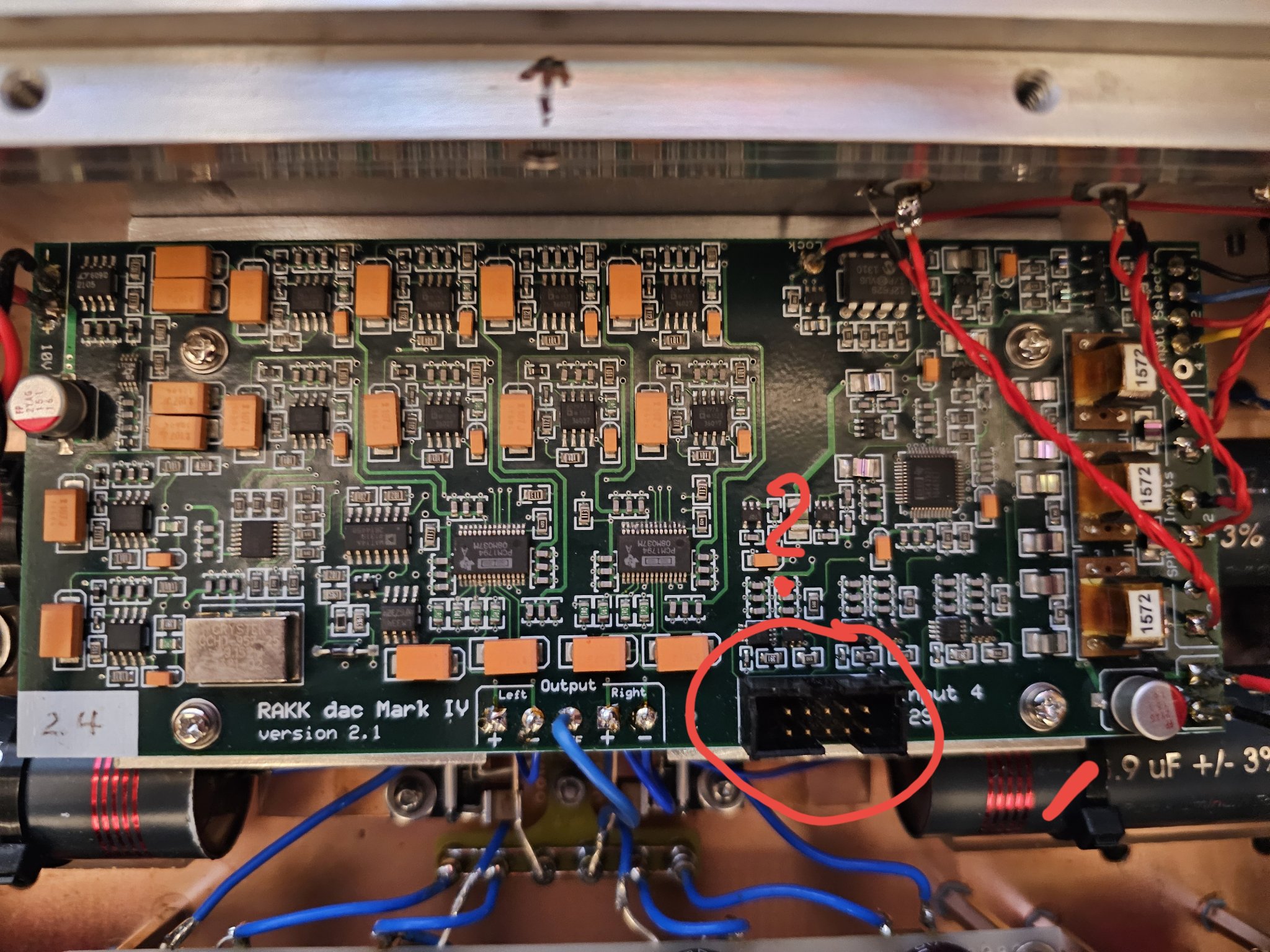

Unfortunately, I do not have any information on the assignment of the 10-pin connection block on the RAKK DAC MK IV board.
Does anyone know the pin assignment of the connection block?
I would be very grateful for any help.
Unfortunately, I cannot reach the developer of the RAKK DAC, David Davenport, by email.
He seems to be retired and I only have his work email address (from Raleigh Audio), which is apparently no longer active.
Cheers, Niels
I need your help with my RAKK DAC MK IV board, (version 2.1.) I use for my DIY DAC.
I would like to use the I2S input for the first time.
My plan is to use the I2S over HDMI board from Ian Canada as input.
This offers MLK, SCK (BCK), LRCK and SD (Data) as outputs.
Unfortunately, I do not have any information on the assignment of the 10-pin connection block on the RAKK DAC MK IV board.
Does anyone know the pin assignment of the connection block?
I would be very grateful for any help.
Unfortunately, I cannot reach the developer of the RAKK DAC, David Davenport, by email.
He seems to be retired and I only have his work email address (from Raleigh Audio), which is apparently no longer active.
Cheers, Niels
Do you know if there's any glue logic used in front of the 1794 pins 4, 5, 6 and 7? Can you maybe trace the 10-pin connection block back to DAC? Is there a schematic?
Hi Extreme_Boky,
thank you very much for your willingness to help me.
Unfortunately I don't have a circuit diagram and can't find one on the internet.
I also can't get in touch with the developer of the board.
In order to be able to follow the tracks I first have to remove the board and then take a look - hopefully the board only has 2 layers ;-)
I'll write again about tracing the tracks once I've removed the board.
Meanwhile - is there anyone else here who also uses the RAKK DAC MK IV and knows the pinout of the I2S connection block?
thank you very much for your willingness to help me.
Unfortunately I don't have a circuit diagram and can't find one on the internet.
I also can't get in touch with the developer of the board.
In order to be able to follow the tracks I first have to remove the board and then take a look - hopefully the board only has 2 layers ;-)
I'll write again about tracing the tracks once I've removed the board.
Meanwhile - is there anyone else here who also uses the RAKK DAC MK IV and knows the pinout of the I2S connection block?
